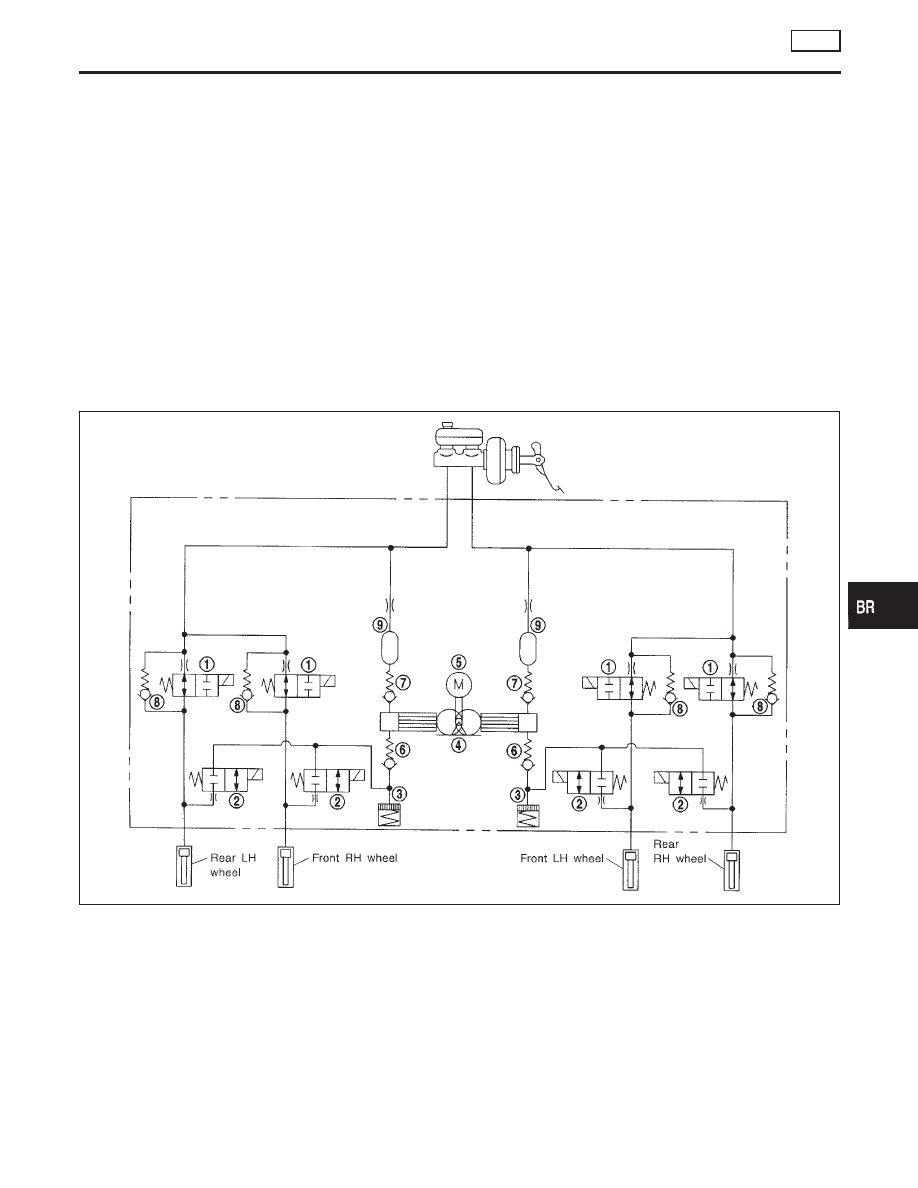

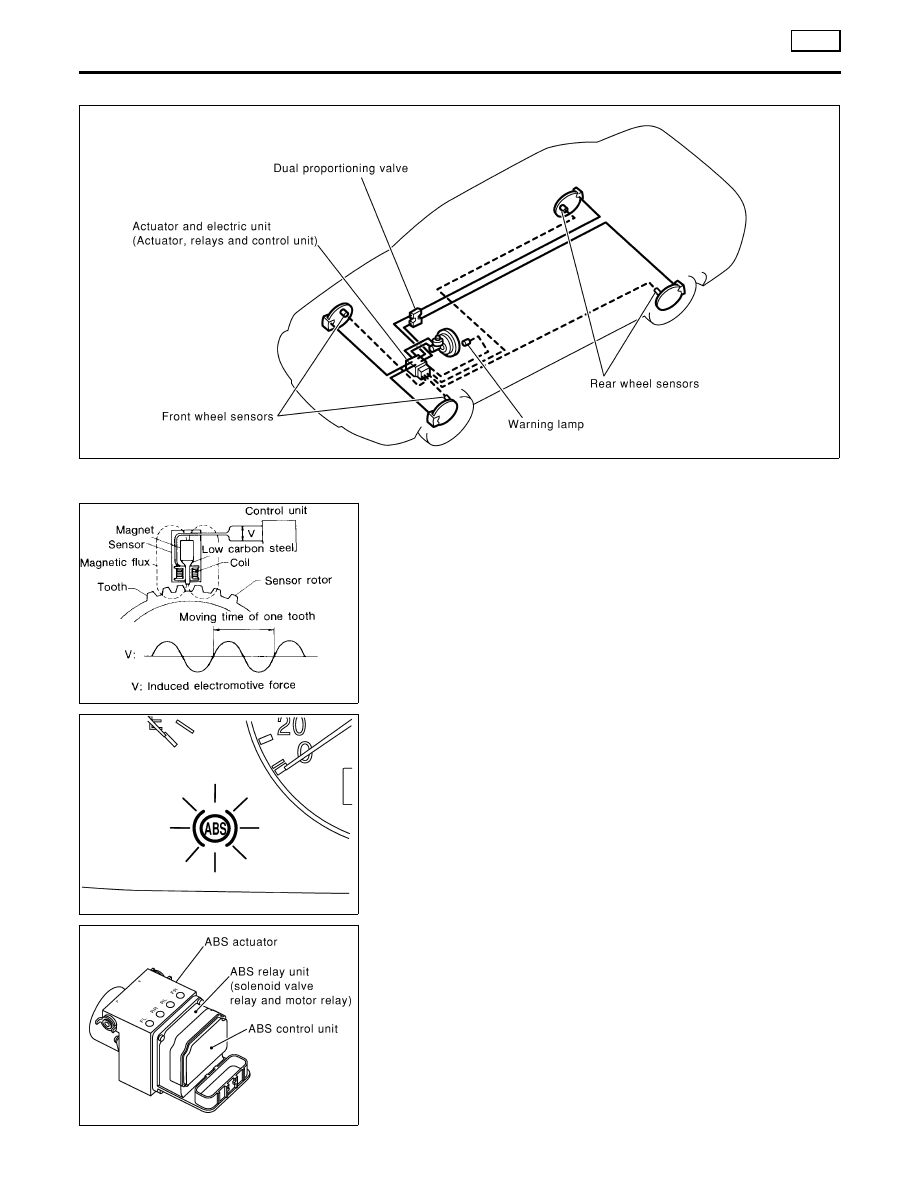

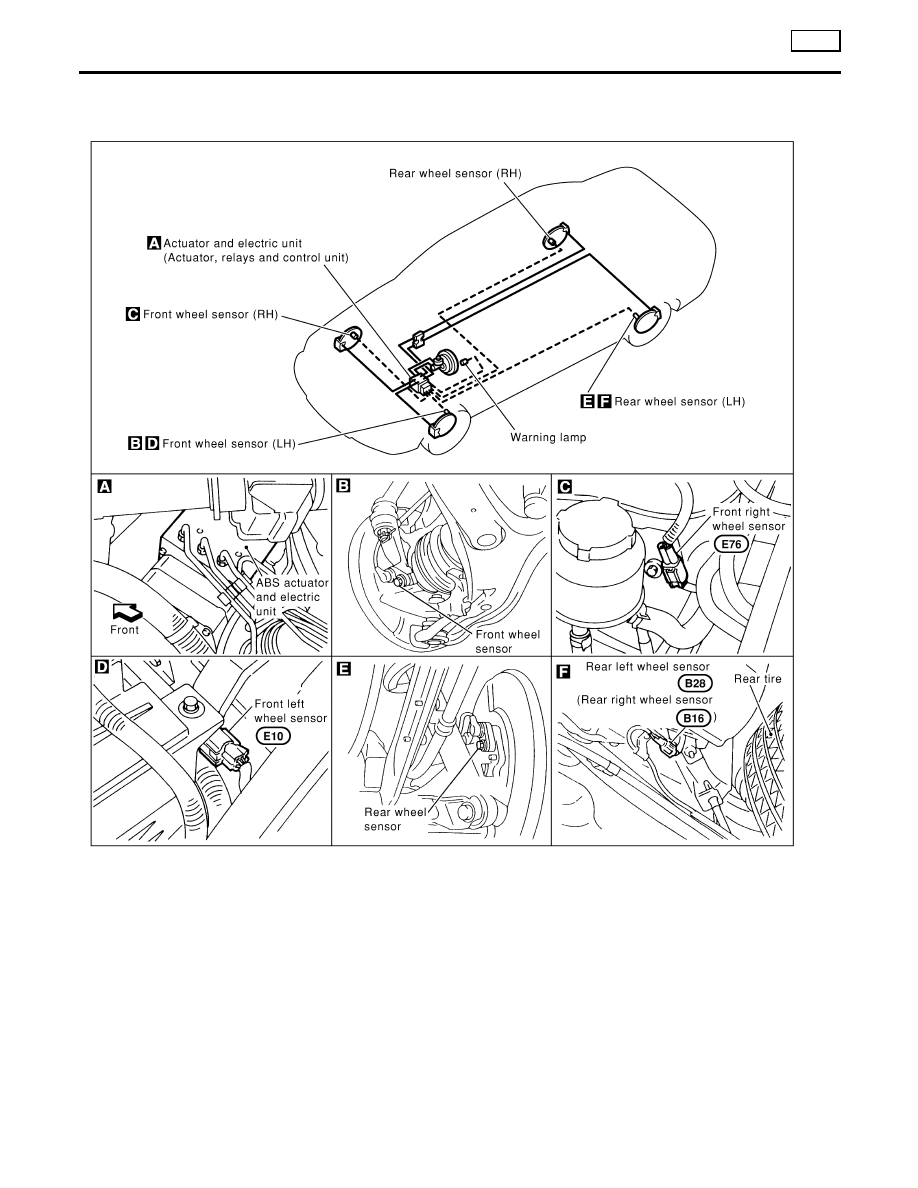

Purpose NHBR0100 The ABS consists of electronic and hydraulic components. It allows for control of braking force so that lock- ABS (Anti-Lock Brake System) Operation NHBR0101 I When the vehicle speed is less than 10 km/h (6 MPH) this system does not work. I The Anti-Lock Brake System (ABS) has self-test capabilities. The system turns on the ABS warning lamp I During ABS operation, a mechanical noise may be heard. This is a normal condition. ABS Hydraulic Circuit NHBR0102 SBR984D 1. Inlet solenoid valve 2. Outlet solenoid valve 3. Reservoir 4. Pump 5. Motor 6. Inlet valve 7. Outlet valve 8. Bypass check valve 9. Damper GI MA EM LC EC FE AT AX SU ST RS BT HA SC EL IDX DESCRIPTION ABS Purpose BR-39 |
