Infiniti I30 (A33). Manual - part 25





Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

29

W

Revolution sensor

When moving at 20 km/h (12 MPH), use the
CONSULT-II pulse frequency measuring func-
tion.*1

CAUTION:

Connect the diagnosis data link cable to
the vehicle diagnosis connector.
*1: A circuit tester cannot be used to test this
item.

450 Hz

When vehicle parks.

Under 1.3V
or over 4.5V

30**

BR/Y

Data link connector

31**

P

Data link connector

32

R

Throttle position
sensor
(Power source)

Ignition switch ON.

4.5 - 5.5V

Ignition switch OFF.

0V

33*

Y/B

LAN

34

Y/PU

PNP switch D posi-
tion

When setting selector lever to D position.

Battery volt-
age

When setting selector lever to other positions.

0V

35

G/W

PNP switch R posi-
tion

When setting selector lever to R position.

Battery volt-
age

When setting selector lever to other positions.

0V

36

R/G

PNP switch P or N
position

When setting selector lever to P or N position.

Battery volt-
age

When setting selector lever to other positions.

0V

39

W/G

Engine speed sig-
nal

Refer to EC-132, “ECM INSPECTION
TABLE”.

40

PU/R

Vehicle speed sen-
sor

When moving vehicle at 2 to 3 km/h (1 to 2
MPH) for 1 m (3 ft) or more.

Voltage var-
ies between
less than 1V
and more
than 4.5V

41

W

Throttle position
sensor

When depressing accelerator pedal slowly
after warming up engine.
(Voltage rises gradually in response to throttle
position.)

Fully-closed
throttle: 0.5V
Fully-open
throttle: 4V

42

B

Throttle position
sensor
(Ground)

45

R/G

Stop lamp switch

When depressing brake pedal

Battery volt-
age

When releasing brake pedal

0V

47

G

A/T fluid tempera-
ture sensor

When ATF temperature is 20°C (68°F).

1.5V

When ATF temperature is 80°C (176°F).

0.5V

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

TCM Terminals and Reference Value (Cont’d)

AT-97

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

48

B

Ground

*: These terminals are connected to the ECM.
**: These terminals are connected to the Data link connector.

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

TCM Terminals and Reference Value (Cont’d)

AT-98

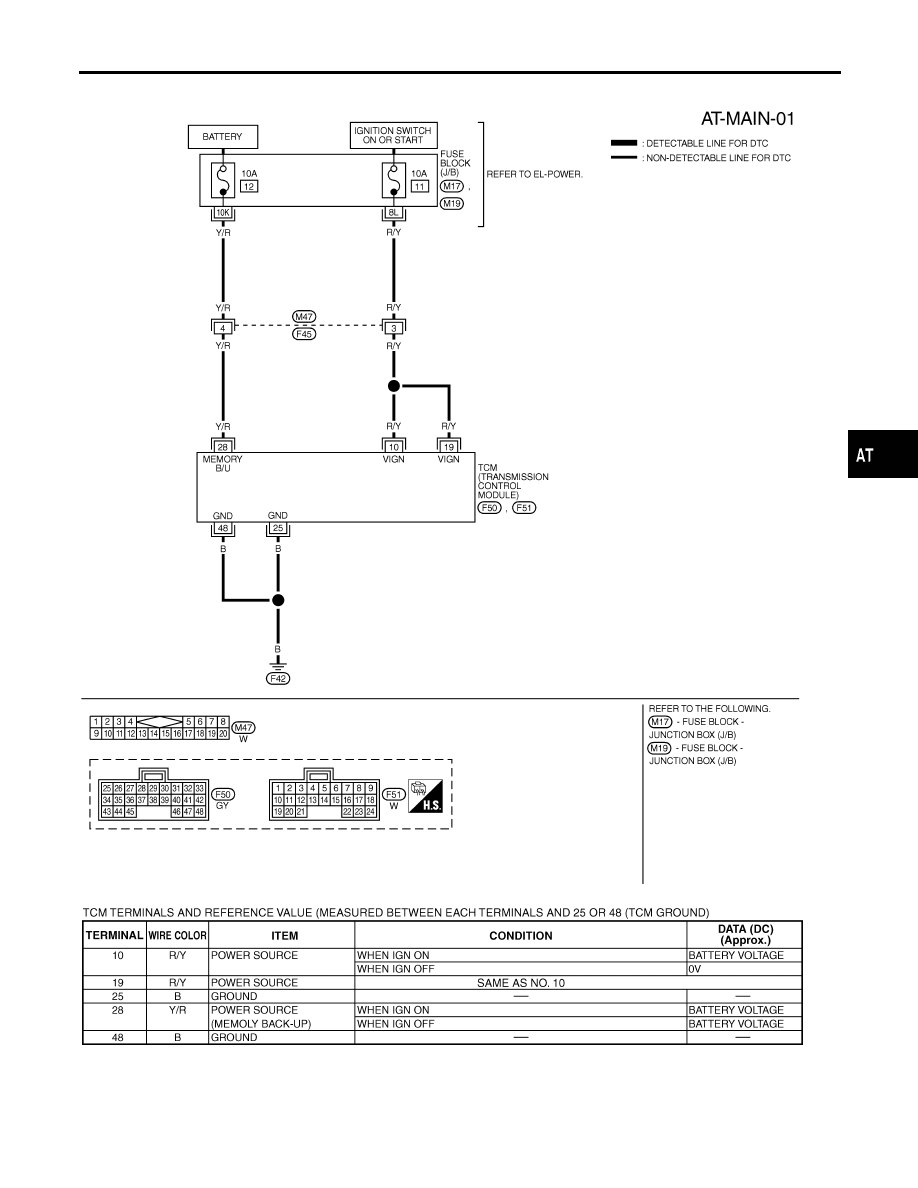

Wiring Diagram — AT — MAIN

NHAT0032

MAT803A

SAT292K

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS FOR POWER SUPPLY

Wiring Diagram — AT — MAIN

AT-99

TCM TERMINALS AND REFERENCE VALUE

=NHAT0032S01

Terminal

No.

Wire color

Item

Condition

Judgement

standard

(Approx.)

10

R/Y

Power source

or

When turning ignition switch to ON.

Battery volt-
age

When turning ignition switch to OFF.

0V

19

R/Y

Power source

Same as No. 10

25

B

Ground

28

Y/R

Power source
(Memory back-
up)

or

When turning ignition switch to OFF.

Battery volt-
age

When turning ignition switch to ON.

Battery volt-
age

48

B

Ground

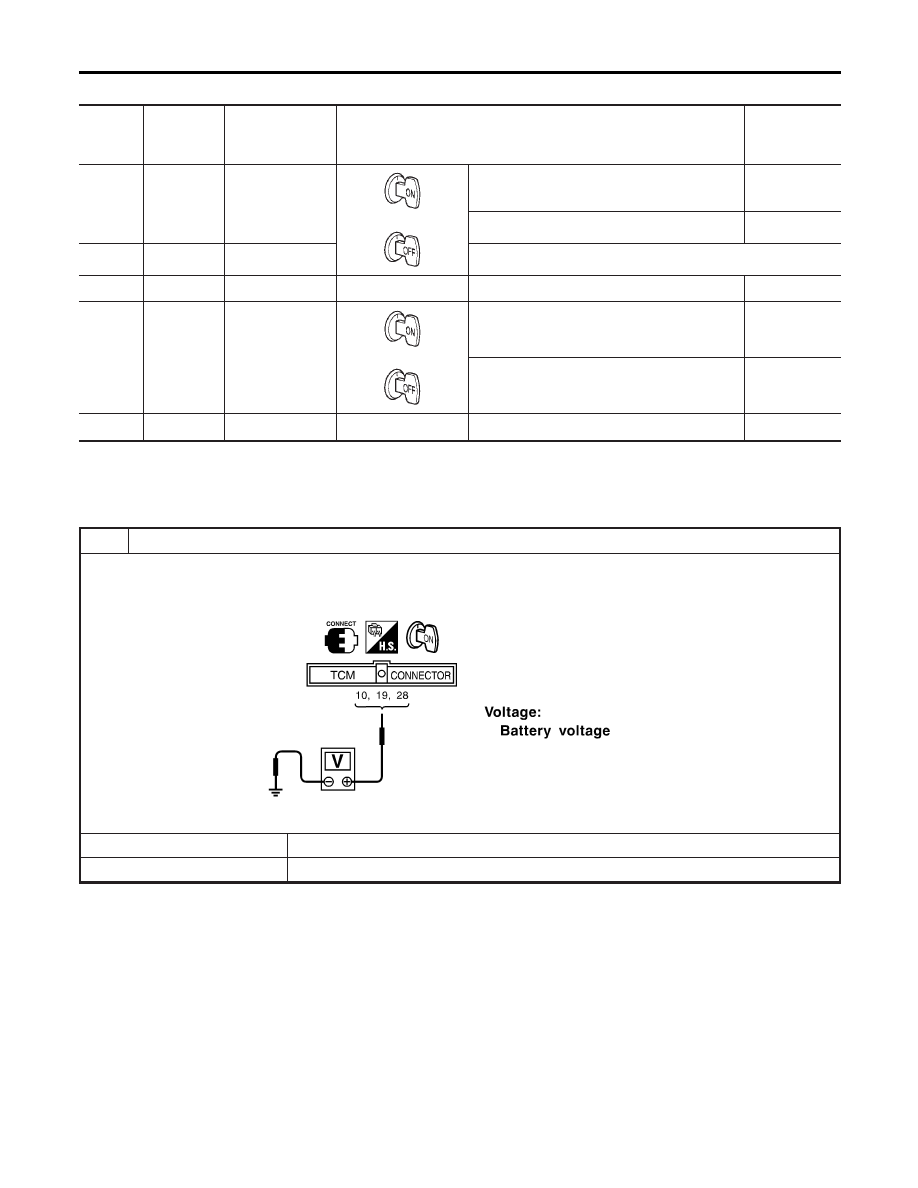

Diagnostic Procedure

NHAT0033

1

CHECK TCM POWER SOURCE STEP 1

1. Turn ignition switch to ON position.

(Do not start engine.)

2. Check voltage between TCM terminals 10, 19, 28 and ground.

SAT611J

OK or NG

OK

©

GO TO 2.

NG

©

GO TO 3.

TROUBLE DIAGNOSIS FOR POWER SUPPLY

Wiring Diagram — AT — MAIN (Cont’d)

AT-100
