DIFFERENTIAL ASSEMBLY

• If the tooth contact is near the face (face contact), or near the

heel (heel contact), thicken pinion height adjusting washers to
move drive pinion closer to drive gear.

• If the tooth contact is near the flank (flank contact), or near the

toe (toe contact), thin pinion height adjusting washers to move
drive pinion farther from drive gear.

BACKLASH

• Before inspection and adjustment, drain gear oil.

1.

Remove carrier cover. Refer to

DLN-123, "Disassembly"

.

2.

Fit a dial indicator to the drive gear face to measure the back-
lash.

• If the backlash is outside of the specified value, change the

thickness of side bearing adjusting washer.

Inspection After Disassembly

INFOID:0000000000957363

Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures
below.

PDIA0440E

PDIA0441E

Standard

Backlash

: Refer to

DLN-144, "Back-

lash"

.

When the backlash is large:

Decrease side bearing adjusting washer thickness.

When the backlash is small:

Increase side bearing adjusting washer thickness.

SDIA0009J

Content

Conditions and Measures

Hypoid gear

• If the gear teeth do not mesh or line-up correctly, determine the cause and adjust or replace as nec-

essary.

• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new

drive gear and drive pinion as a set.

Bearing

• If any chipped (by friction), pitted, worn, rusted or scratched mark, or unusual noise from the bearing

is observed, replace as a bearing assembly (as a new set).

Side gear and Pinion mate
gear

• If any cracks or damage on the surface of the tooth is found, replace.
• If any worn or chipped mark on the contact sides of the thrust washer is found, replace.

DIFFERENTIAL ASSEMBLY

DLN-135

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: F160A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Side gear thrust washer and
pinion mate thrust washer

• If it is chipped (by friction), damaged, or unusually worn, replace.

Oil seal

• Whenever disassembled, replace.
• If wear, deterioration of adherence (sealing force lips), or damage is detected on the lips, replace them.

Differential case

• If any wear or crack on the contact sides of the differential case is found, replace.

Companion flange

• If any chipped mark (about 0.1 mm, 0.004 in) or other damage on the contact sides of the lips of the

companion flange is found, replace.

Content

Conditions and Measures

DLN-136

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: F160A]

DRIVE PINION

DRIVE PINION

Exploded View

INFOID:0000000000957364

1.

Drive pinion lock nut

2.

Companion flange

3.

Front oil seal

4.

Pinion front bearing

5.

Drive pinion bearing adjusting wash-
er

6.

Drive pinion adjusting washer

7.

Gear carrier

8.

Pinion rear bearing

9.

Pinion height adjusting washer

10. Drive pinion

11.

Drive gear

12. Side oil seal (right side)

13. Side retainer

14. O-ring

15. Side bearing adjusting shim

16. Side bearing

17. Differential case

18. Breather connector

19. Dowel pin

20. Filler plug

21. Drain plug

22. Gasket

23. Carrier cover

24. Gear oil defense

25. Side gear thrust washer

26. Side gear

27. Circular clip

28. Pinion mate thrust washer

29. Pinion mate gear

30. Pinion mate shaft

31. Lock pin

32. Side bearing adjusting washer

33. Side oil seal (left side)

JSDIA0020GB

DRIVE PINION

DLN-137

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: F160A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Disassembly

INFOID:0000000000957365

1.

Remove differential assembly. Refer to

DLN-123, "Disassembly"

.

2.

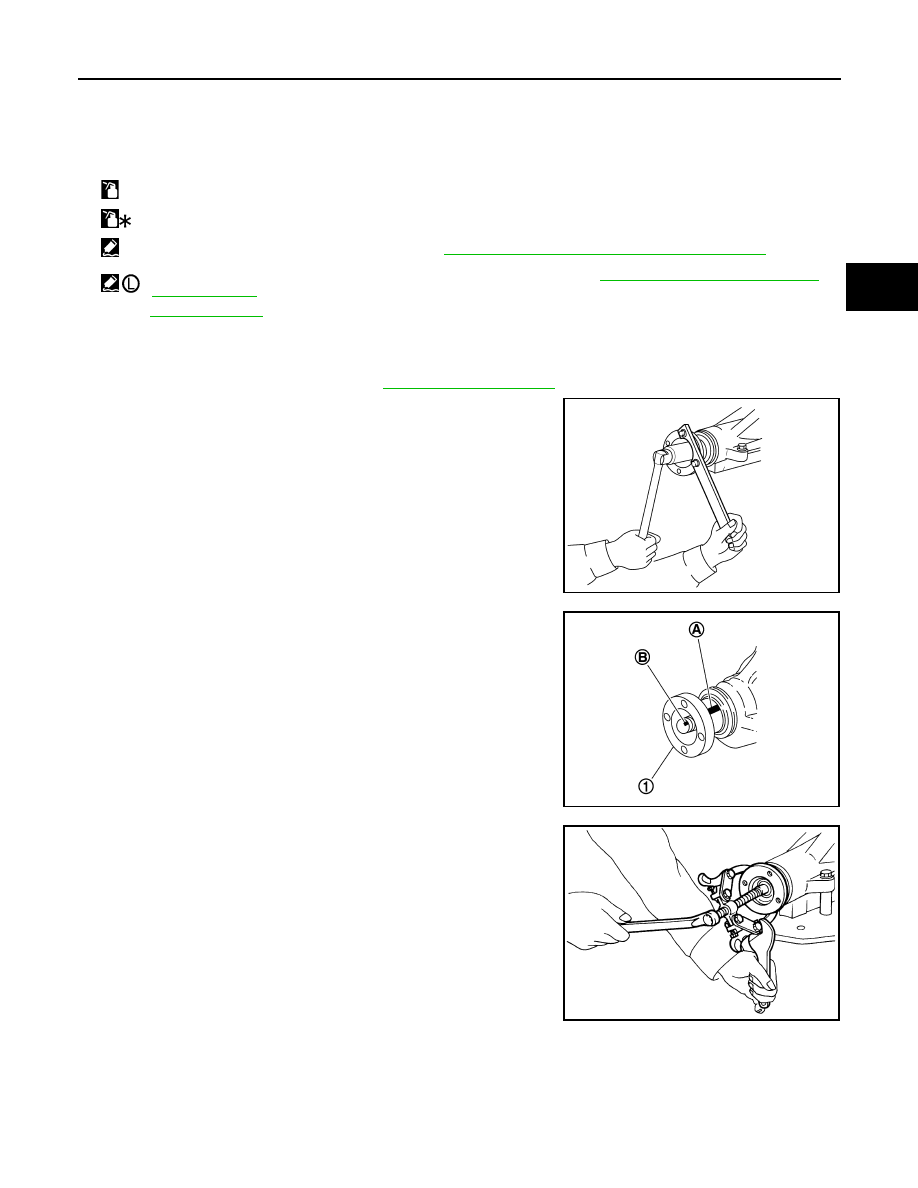

Remove drive pinion lock nut with a flange wrench.

3.

Put matching mark (B) on the end of drive pinion. The matching
mark should be in line with the matching mark (A) on companion
flange (1).

CAUTION:

For matching mark, use paint. Never damage companion
flange and drive pinion.
NOTE:
The matching mark (A) on the final drive companion flange (1)
indicates the maximum vertical runout position.
When replacing companion flange, matching mark is not neces-
sary.

4.

Remove companion flange using the suitable puller.

34. Side shaft bearing

35. Extension tube retainer

36. Side shaft oil seal

37. Dust sealed

38. Side shaft

A: Oil seal lip

B: Screw hole

:

Apply gear oil.

:

Apply anti-corrosion oil.

:

Apply Genuine Silicone RTV or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.



:

Apply Genuine Medium Strength Thread Locking Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Prod-

ucts and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

PDIA0798J

PDIA0799J

SDIA1132E
