< PRECAUTION >

[VDC/TCS/ABS]

PRECAUTIONS

• If aftermarket parts (car stereo, CD player, etc.) have been installed, check for incidents such as harness

pinches, open circuits, and improper wiring.

• VDC system may not operate normally or a VDC OFF indicator lamp or SLIP indicator lamp may light.
- When replacing the following parts with parts other than genuine parts or making modifications: Suspension

related parts (shock absorber, spring, bushing, etc.), tires, wheels (other than specified sizes), brake-related
parts (pad, rotor, caliper, etc.), engine-related parts (muffler, ECM, etc.) and body reinforcement-related parts
(roll bar, tower bar, etc.).

- When driving with worn or deteriorated suspension, tires and brake-related parts.

PREPARATION

BRC-99

< PREPARATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000000958637

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000000958638

Tool number
(Kent-Moore No.)
Tool name

Description

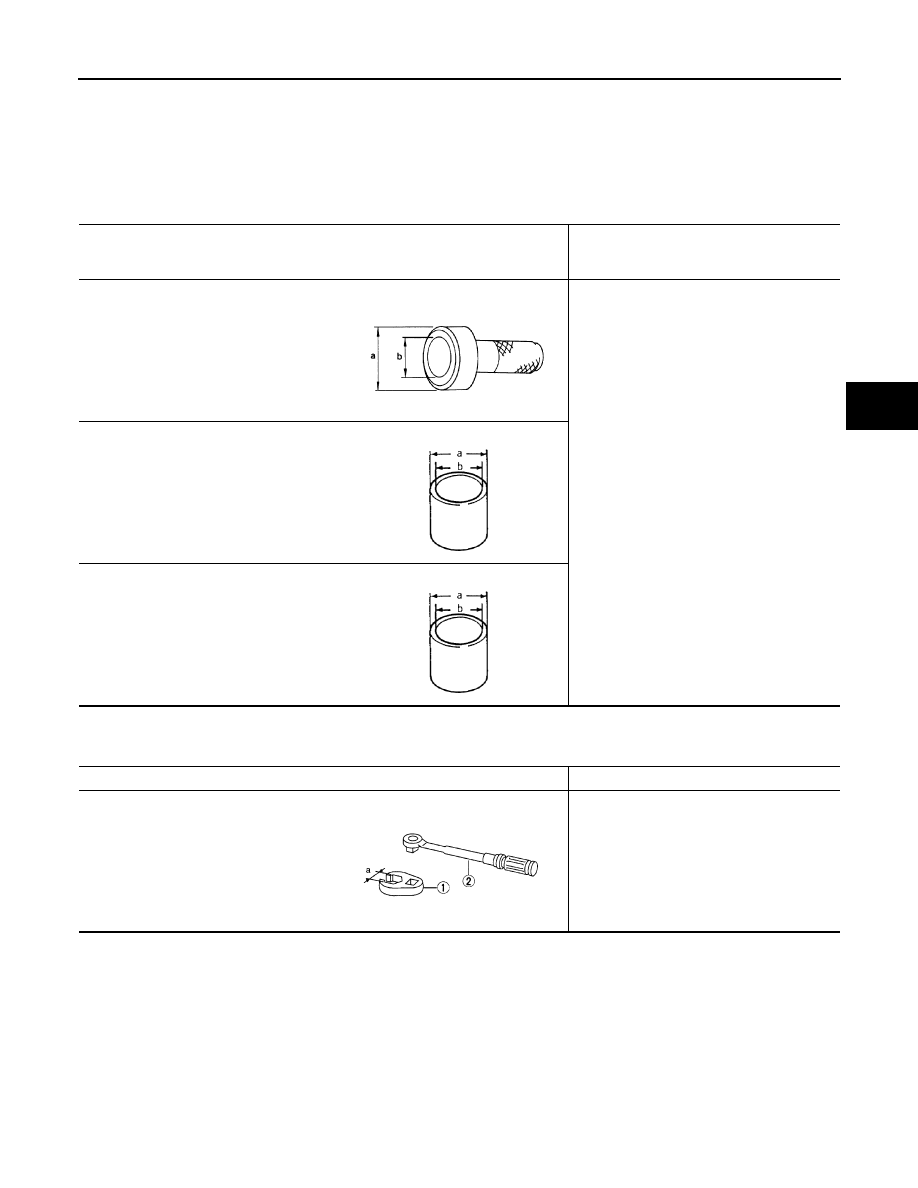

ST30720000
(J-25405)
Drift
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

Installing rear sensor rotor

ST27863000
(

—

)

Drift
a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.

KV40104710
(

—

)

a: 76.3 mm (3.004 in) dia.
b: 67.9 mm (2.673 in) dia.

ZZA0701D

ZZA0832D

ZZA0832D

Tool name

Description

1. Flare nut crowfoot
 a: 10 mm (0.39 in) /12 mm (0.47 in)
2. Torque wrench

Installing brake tube

S-NT360

BRC-100

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

WHEEL SENSOR

ON-VEHICLE REPAIR

WHEEL SENSOR

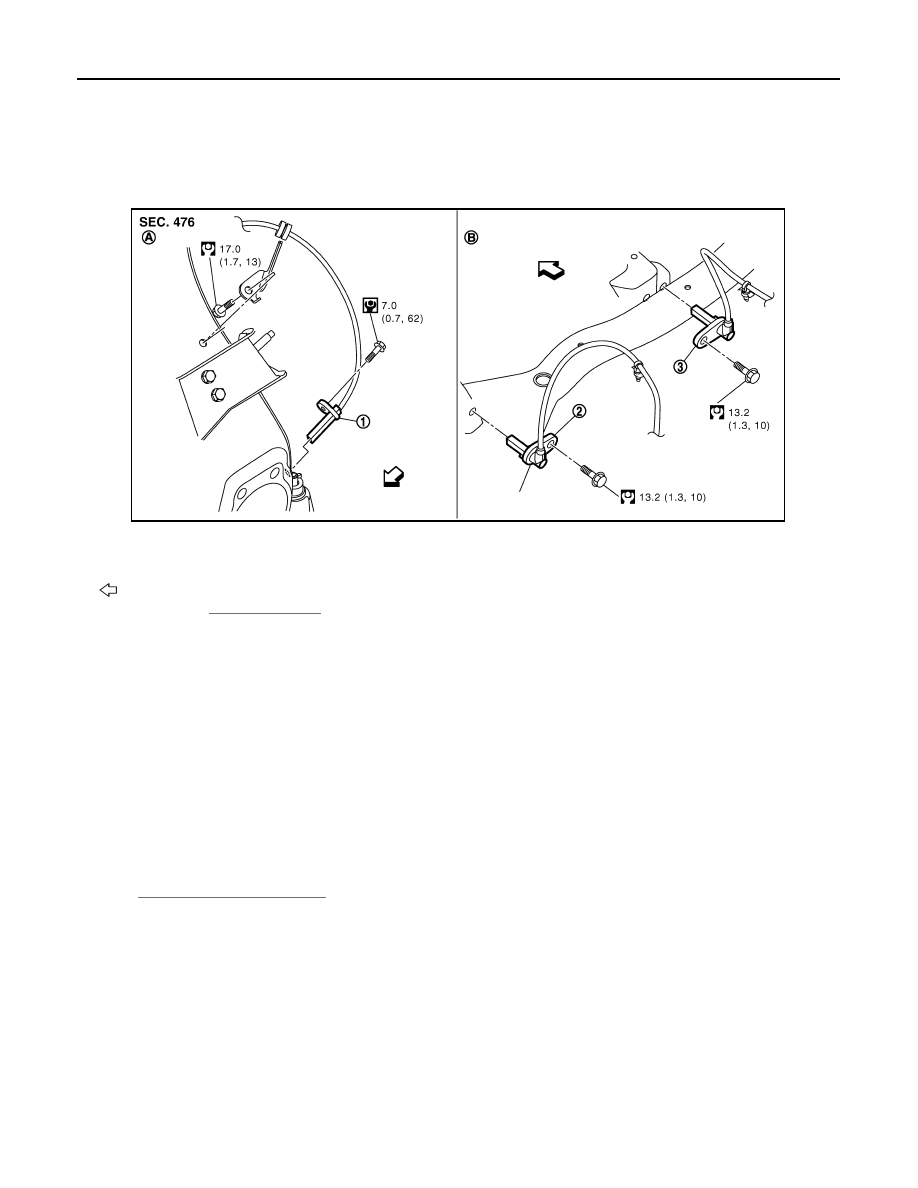

Exploded View

INFOID:0000000000958639

NOTE:
The above figure (front side) shows left side. Right side is the mirror image.

Removal and Installation

INFOID:0000000000958640

REMOVAL

Pay attention to the following when removing sensor.

CAUTION:

• Do not twist sensor harness as much as possible, when removing it. Pull sensors out without pulling

on sensor harness.

• Take care to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before remov-

ing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor function.

INSTALLATION

Pay attention to the following when installing wheel sensor. Tighten installation bolts to the specified torques.
Refer to

BRC-100, "Exploded View"

.

• When installing, make sure there is no foreign material such as iron chips on and in the mounting hole of the

wheel sensor. Make sure no foreign material has been caught in the sensor rotor. Remove any foreign mate-
rial and clean the mount.

• When installing wheel sensor, be sure to press rubber grommets in until they lock at locations shown above

in the figure. When installed, harness must not be twisted.

1.

Front LH wheel sensor

2.

Rear LH wheel sensor

3.

Rear RH wheel sensor

A.

Front

B.

Rear

: Vehicle front

Refer to GI section

GI-4, "Components"

 for symbol marks in the figure.

JSFIA0001GB

SENSOR ROTOR

BRC-101

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SENSOR ROTOR

FRONT SENSOR ROTOR

FRONT SENSOR ROTOR : Exploded View

INFOID:0000000000958641

Refer to

FAX-6, "Exploded View"

 (2WD models),

FAX-16, "Exploded View"

 (AWD models).

FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000000958642

REMOVAL

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly. Refer to

FAX-6, "Removal and Installation"

 (2WD models),

FAX-16, "Removal and Installation"

 (AWD models).

INSTALLATION

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly. Refer to

FAX-6, "Removal and Installation"

 (2WD models),

FAX-16, "Removal and Installation"

 (AWD models).

REAR SENSOR ROTOR

REAR SENSOR ROTOR : Exploded View

INFOID:0000000000958643

REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000000958644

REMOVAL

• Follow the procedure below to remove rear sensor rotor.
- Remove side flange. Refer to

RAX-10, "Disassembly and Assembly"

.

- Using a bearing replacer (suitable tool) and puller (suitable tool), remove sensor rotor from side flange.

INSTALLATION

CAUTION:

Do not reuse sensor rotor.
• Follow the procedure below to install rear sensor rotor.
- Using a drifts, press rear sensor rotor onto side flange.

- Install side flange. Refer to

RAX-10, "Disassembly and Assembly"

.

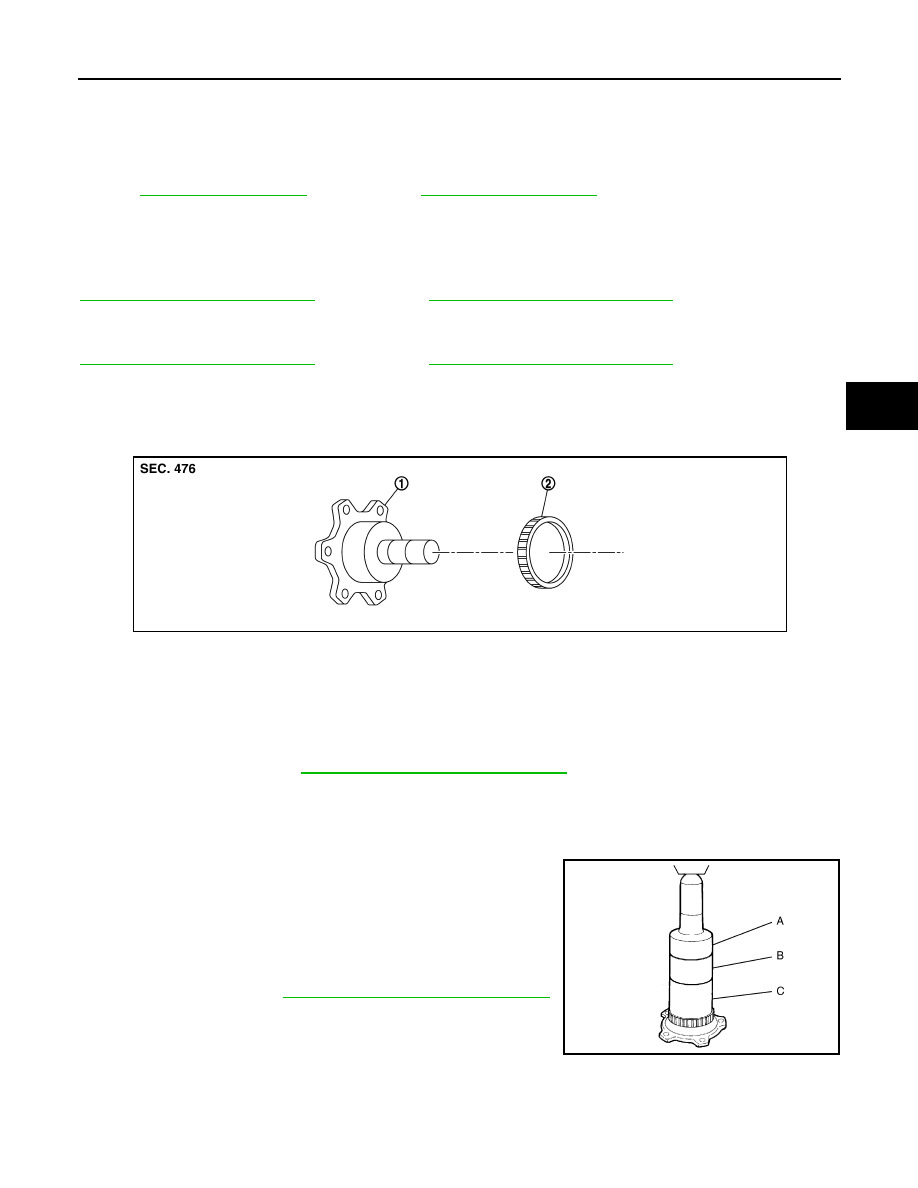

1.

Side flange

2.

Rear wheel sensor rotor

JSFIA0008ZZ

A: Drift [SST: ST30720000 (J-25405)]

B: Drift [SST: ST27863000 (

—

)]

C: Drift [SST: KV40104710 (

—

)]

SFIA3387E
