Infiniti G35 (V35) Sedan. Manual - part 193

AV-544

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

CD CHANGER

CD CHANGER

Exploded View

INFOID:0000000000964935

Removal and Installation

INFOID:0000000000964936

REMOVAL

1.

Remove trunk front finisher. Refer to

INT-26, "Exploded View"

.

2.

Remove CD changer from rear parcel shelf.

INSTALLATION

Installation is the reverse order of removal.

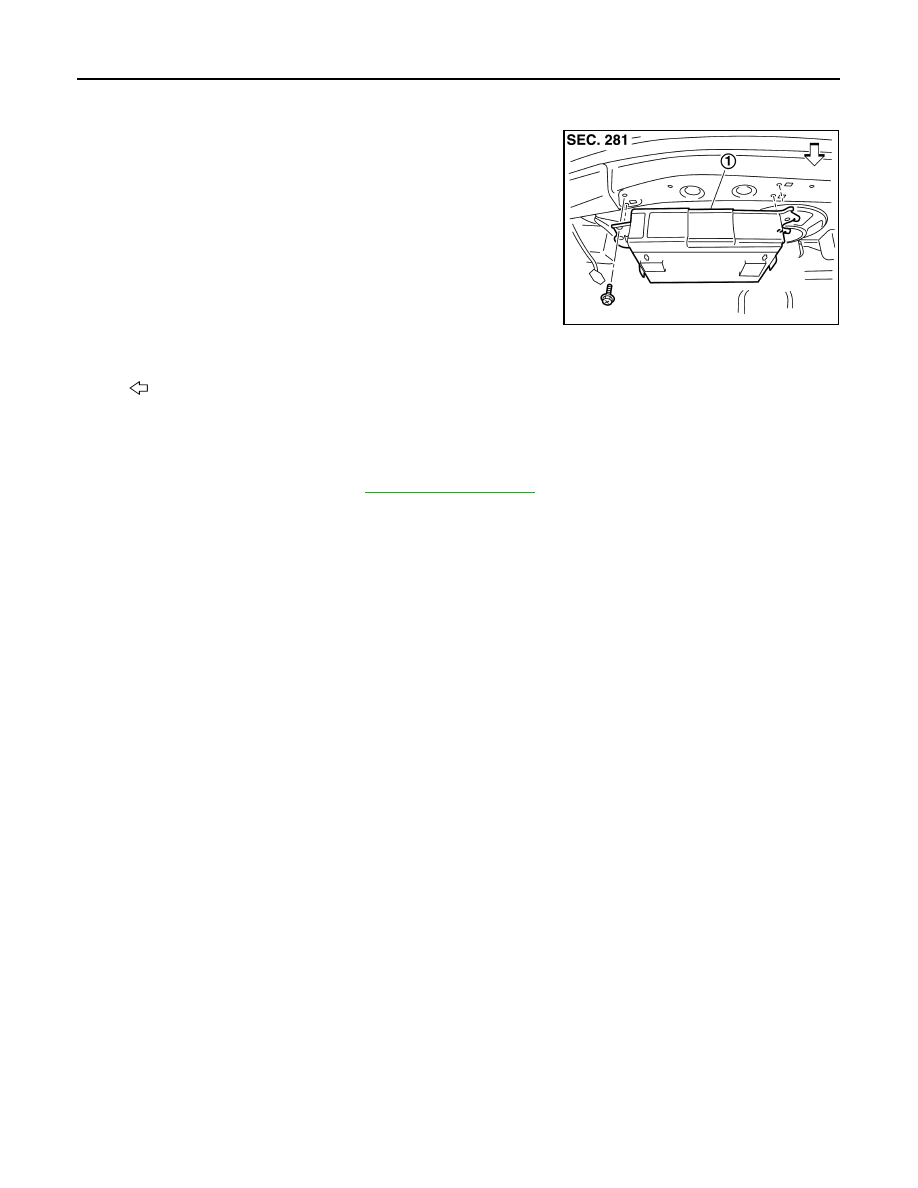

JSNIA0129ZZ

1.

CD changer

.

Vehicle front

AV

AUXILIARY INPUT JACKS

AV-545

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000000964937

REMOVAL

Refer to

IP-22, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964938

REMOVAL

1.

Remove center console. (M/T models) Refer to

INT-20, "Exploded View"

.

Remove center console cup. (A/T models) Refer to

INT-20, "Exploded View"

.

2.

Remove auxiliary input jacks from center console. (M/T models)
Remove auxiliary input jacks from center console cup. (A/T models)

INSTALLATION

Installation is the reverse order of removal.

JSNIA0131ZZ

1.

Auxiliary input jacks

AV-546

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000000964939

REMOVAL

Refer to

INL-96, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964940

REMOVAL

1.

Remove map lamp. Refer to

INL-96, "Exploded View"

.

2.

Remove microphone from map lamp.

INSTALLATION

Installation is the reverse order of removal.

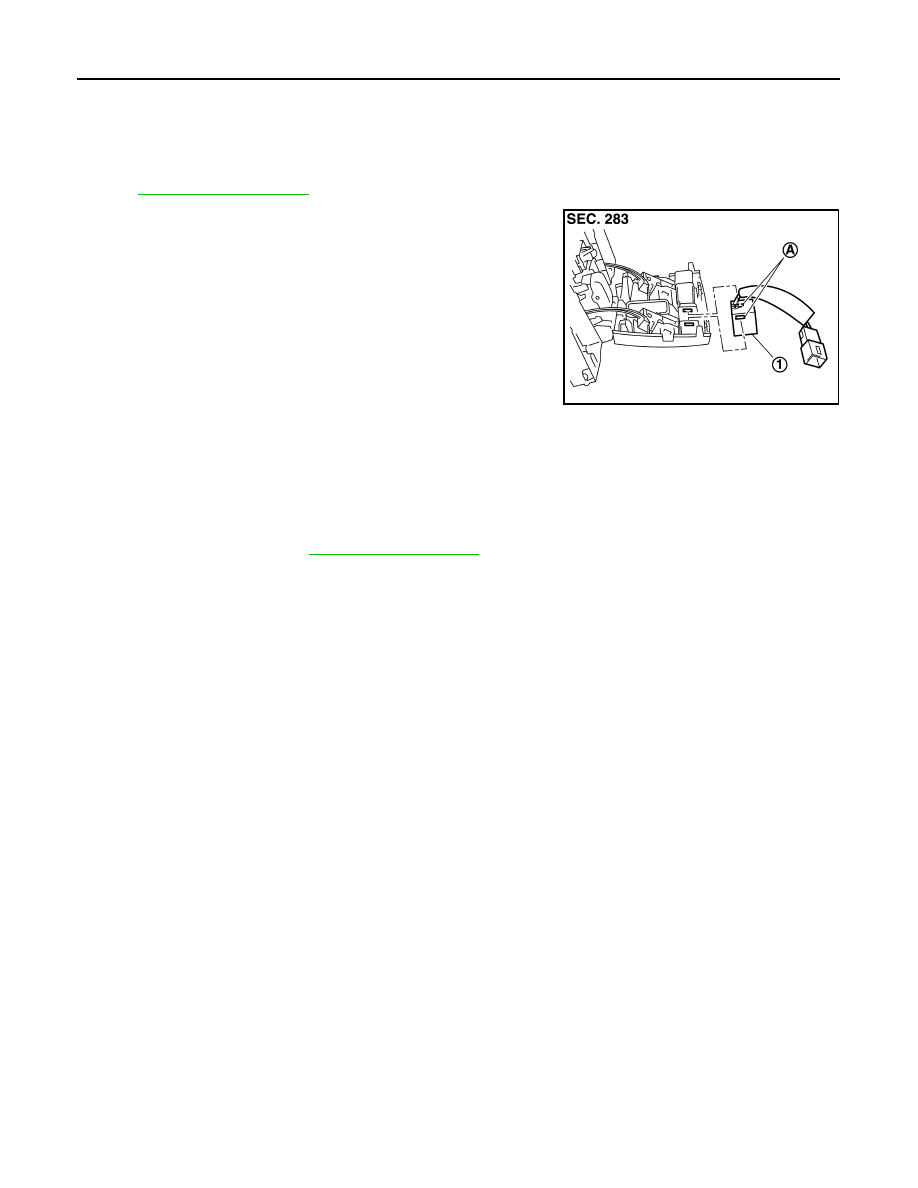

JSNIA0132ZZ

1.

Microphone

A.

Pawl

AV

GPS ANTENNA

AV-547

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

GPS ANTENNA

Exploded View

INFOID:0000000000964941

Harness Layout

INFOID:0000000000964942

Removal and Installation

INFOID:0000000000964943

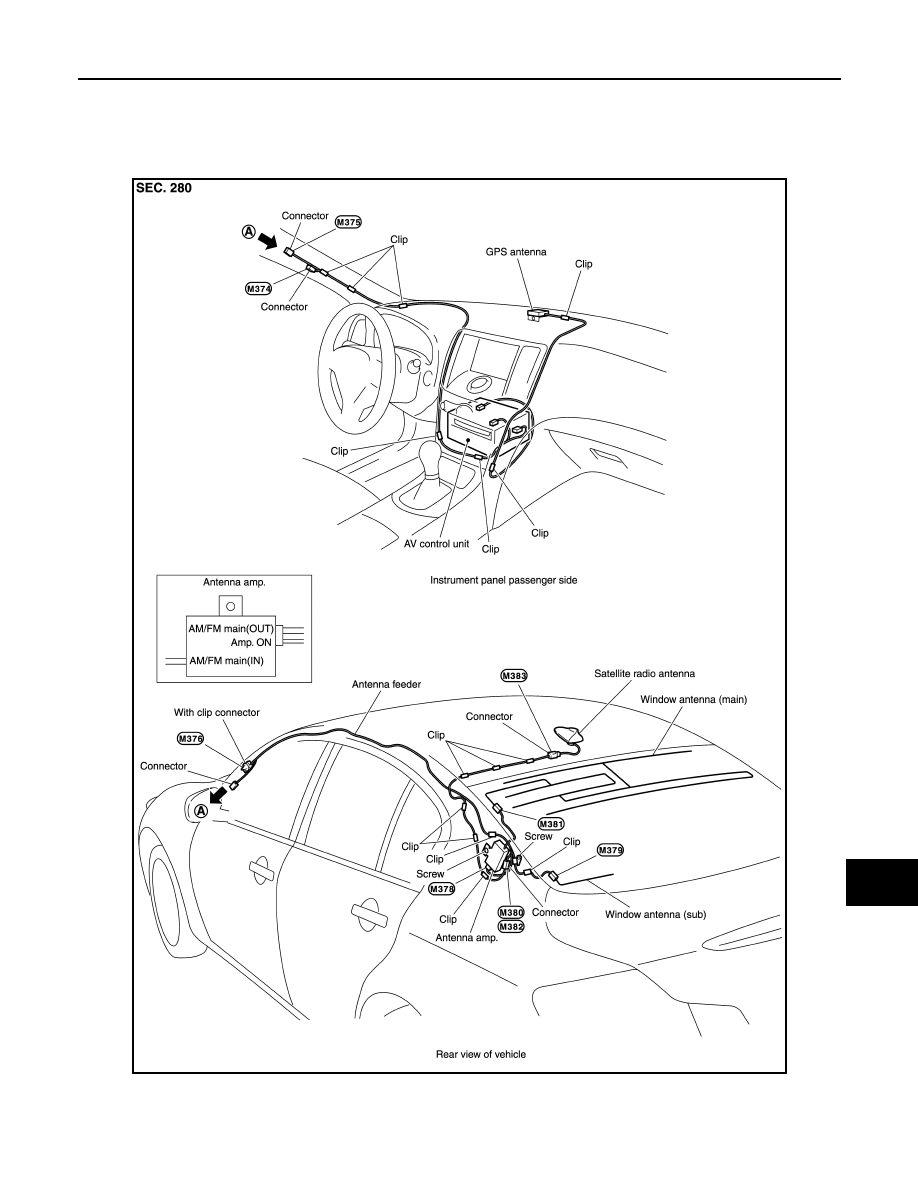

JSNIA0125GB
