ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000000960563

BASIC INSPECTION

1.

INSPECTION START

1.

Check the service history.

2.

Check the following parts.

• Fuse/circuit breaker blown.
• Poor connection, open or short circuit of harness connector.
• Battery voltage.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Repair or replace the malfunctioning parts.

SE-92

< ON-VEHICLE REPAIR >

FRONT SEAT

ON-VEHICLE REPAIR

FRONT SEAT

Exploded View

INFOID:0000000000960564

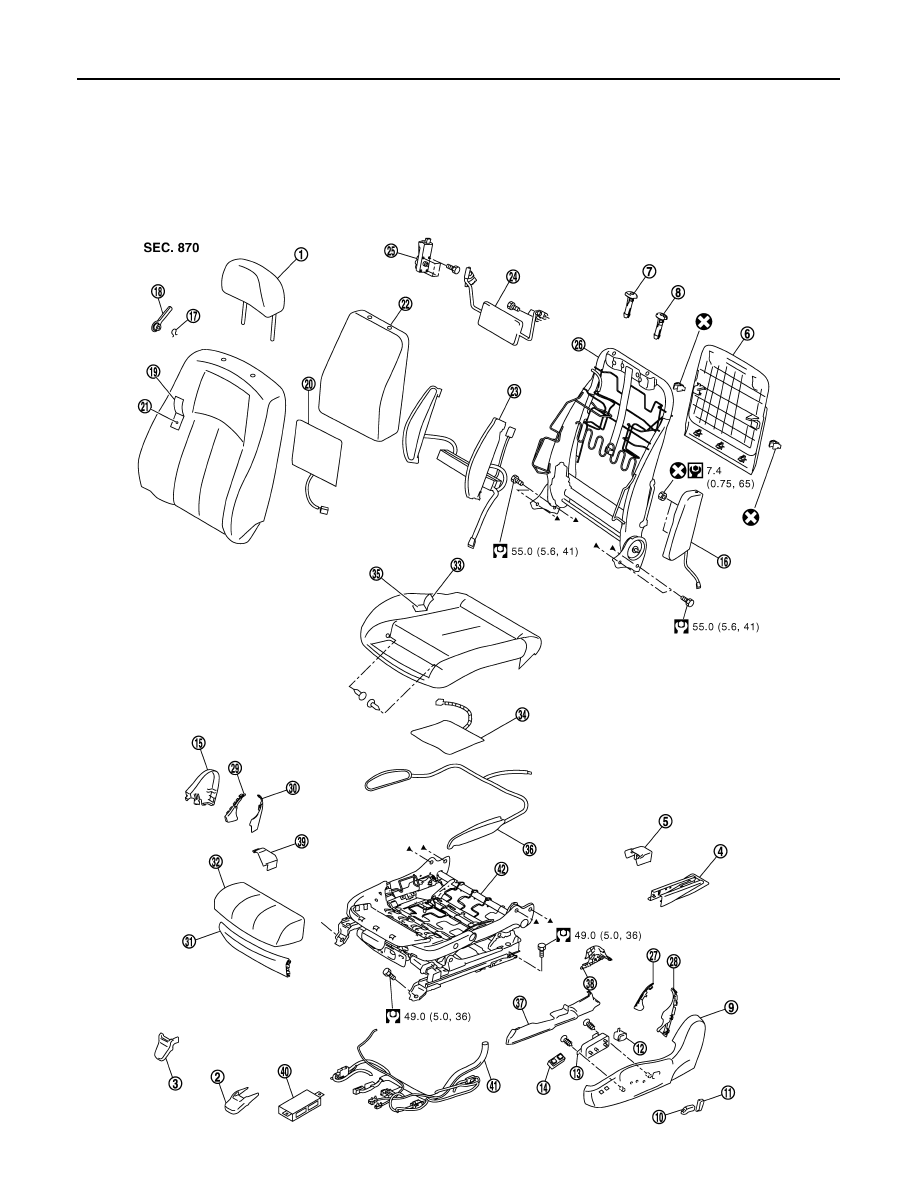

DRIVER'S SEAT

JMJIA0001GB

FRONT SEAT

SE-93

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

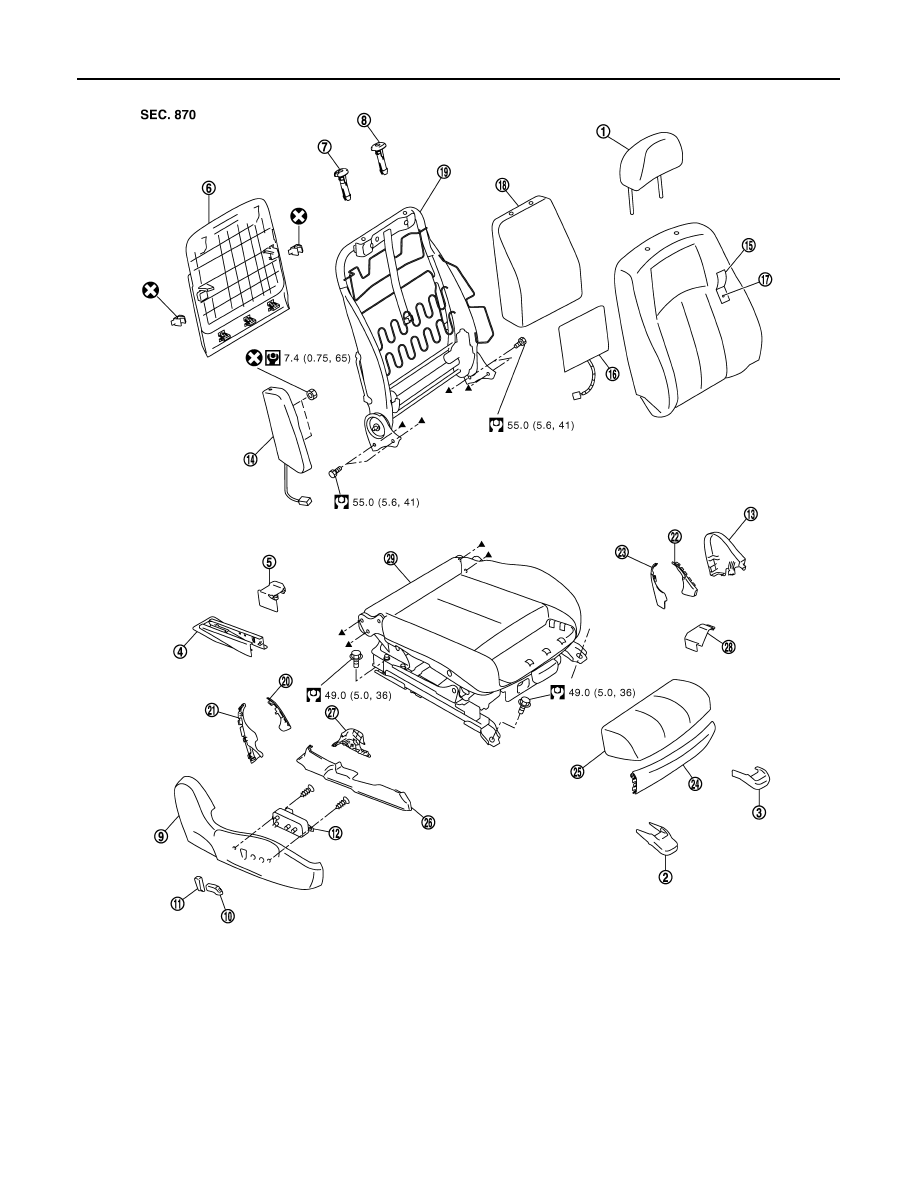

PASSENGER'S SEAT

1.

Headrest

2.

Front outer slide cover

3.

Front inner slide cover

4.

Rear outer slide cover

5.

Rear inner slide cover

6.

Seatback board

7.

Headrest holder (free)

8.

Headrest holder (locked)

9.

Seat cushion outer finisher

10. Seat slide and lifter switch knob

11.

Seat reclining switch knob

12. Lumbar support switch

13. Seat control switch

14. Side support switch

15. Seat cushion inner finisher

16. Side air bag module

17. Snap ring

18. Lumbar support lever knob

19. Seatback trim

20. Seatback heater unit

21. Seatback pad

22. Seatback silencer

23. Seatback side support bag and unit

24. Lumbar support unit

25. Lumbar support motor

26. Seatback frame

27. Reclining device outer cover (front)

28. Reclining device outer cover (rear)

29. Reclining device inner cover (front)

30. Reclining device inner cover (rear)

31. Seat cushion front finisher

32. Thigh extension pad

33. Seat cushion trim

34. Seat cushion heater unit

35. Seat cushion pad

36. Seat cushion side support bag

37. Seat slide outer finisher (outside)

38. Seat slide outer finisher (inside)

39. Seat slide inner finisher

40. Seat control unit

41. Seat harness

42. Seat cushion frame

Refer to

GI-4, "Components"

 for symbols in the figure.

SE-94

< ON-VEHICLE REPAIR >

FRONT SEAT

1.

Headrest

2.

Front outer slide cover

3.

Front inner slide cover

4.

Rear outer slide cover

5.

Rear inner slide cover

6.

Seatback board

7.

Headrest holder (free)

8.

Headrest holder (locked)

9.

Seat cushion outer finisher

10. Seat slide and lifter switch knob

11.

Seat reclining switch knob

12. Seat control switch

13. Seat cushion inner finisher

14. Side air bag module

15. Seatback trim

16. Seatback heater unit

17. Seatback pad

18. Seatback silencer

JMJIA0002GB
