REAR WHEEL HUB AND HOUSING

RAX-5

< ON-VEHICLE MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

ON-VEHICLE MAINTENANCE

REAR WHEEL HUB AND HOUSING

Exploded View

INFOID:0000000000957502

Refer to

RAX-7, "Exploded View"

.

Inspection

INFOID:0000000000957503

MOUNTING INSPECTION

Make sure the mounting conditions (looseness, back lash) of each component and component conditions
(wear, damage) are normal.

WHEEL BEARING INSPECTION

• Move wheel hub and bearing assembly in the axial direction by hand. Make sure there is no looseness of

wheel bearing.

• Rotate wheel hub, and make sure that is no unusual noise or other irregular conditions. If there is any of

irregular conditions, replace wheel hub and bearing assembly.

Standard

Axial end play

: Refer to

RAX-15, "Wheel Bearing"

.

RAX-6

< ON-VEHICLE MAINTENANCE >

REAR DRIVE SHAFT

REAR DRIVE SHAFT

Inspection

INFOID:0000000000957504

• Check drive shaft mounting point and joint for looseness and other damage.
• Check boot for cracks and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occur from drive shaft.

REAR WHEEL HUB AND HOUSING

RAX-7

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

ON-VEHICLE REPAIR

REAR WHEEL HUB AND HOUSING

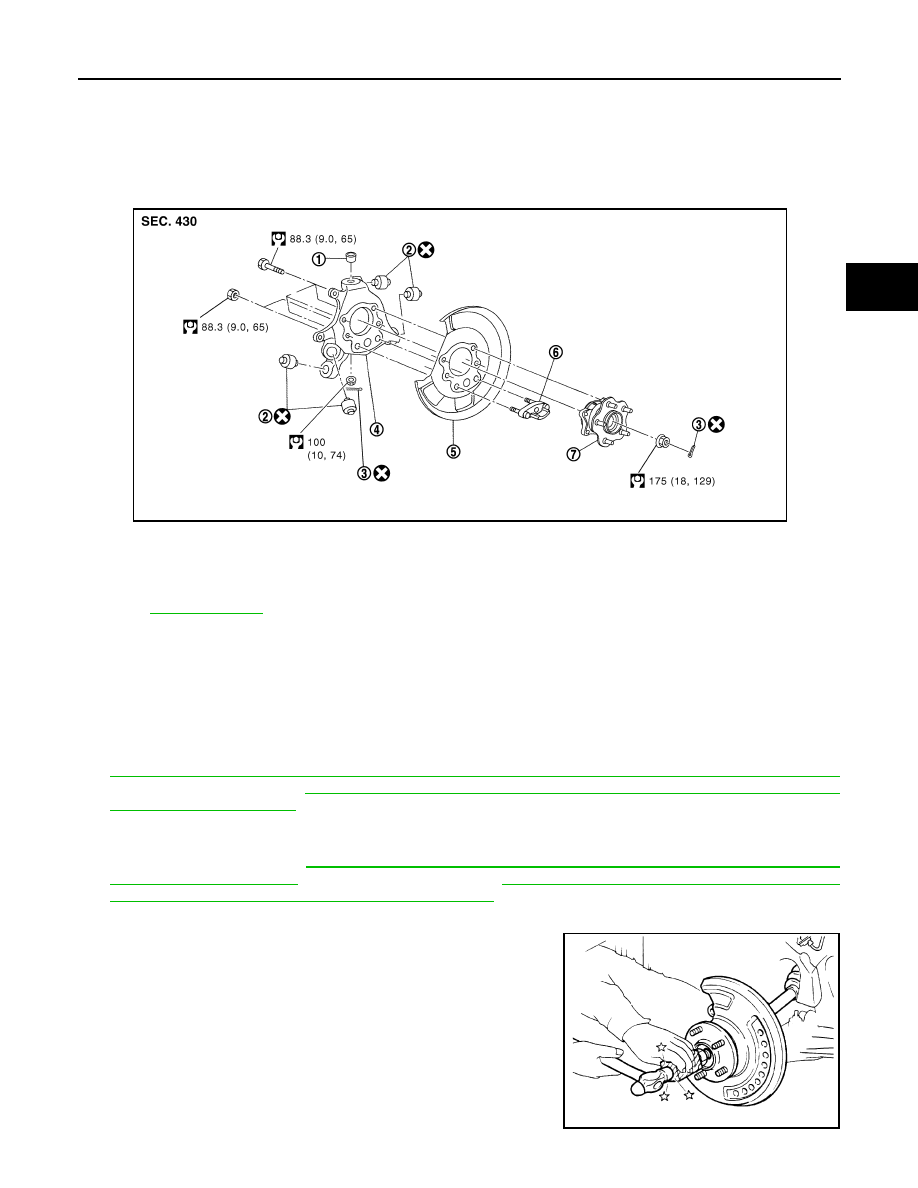

Exploded View

INFOID:0000000000957505

Removal and Installation

INFOID:0000000000957506

REMOVAL

Wheel Hub and Bearing Assembly

1.

Remove tire from vehicle with power tool.

2.

Remove rear brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to

BR-53, "BRAKE CALIPER ASSEMBLY (FRONT CALIPER 1 PISTON TYPE) : Removal and Installation"

(front caliper 1 piston type),

BR-57, "BRAKE CALIPER ASSEMBLY (FRONT CALIPER 2 PISTON TYPE)

: Removal and Installation"

 (front caliper 2 piston type).

CAUTION:

Never depress brake pedal while brake caliper is removed.

3.

Remove disc rotor. Refer to

BR-53, "BRAKE CALIPER ASSEMBLY (FRONT CALIPER 1 PISTON TYPE)

: Removal and Installation"

 (front caliper 1 piston type),

BR-57, "BRAKE CALIPER ASSEMBLY (FRONT

CALIPER 2 PISTON TYPE) : Removal and Installation"

 (front caliper 2 piston type).

4.

Remove cotter pin, then loosen hub lock nut with a power tool.

5.

Patch hub lock nut with a piece of wood. Hammer the wood to
disengage wheel hub and bearing assembly from drive shaft.
Take out the hub lock nut.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be

careful not to overextend slide joint.

• Never allow drive shaft to hang down without support for

housing (or joint sub-assembly), shaft and other parts.

NOTE:
Use a suitable puller, if the wheel hub and bearing assembly and
drive shaft cannot be separated even after performing the above
procedure.

1.

Ball seat

2.

Bushing

3.

Cotter pin

4.

Axle housing

5.

Back plate

6.

Anchor block

7.

Wheel hub and bearing assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIG0001GB

JPDIF0003ZZ

RAX-8

< ON-VEHICLE REPAIR >

REAR WHEEL HUB AND HOUSING

6.

Remove cotter pin, then loosen suspension arm mounting nut of axle housing.

7.

Remove the wheel hub and bearing assembly.

Axle Housing

1.

Remove wheel hub and bearing assembly.

2.

Remove parking brake shoe and parking brake cable from back plate. Refer to

BR-25, "REAR BRAKE :

Removal and Installation"

.

3.

Remove mounting nuts in stabilizer side of stabilizer connecting rod with power tool. Refer to

RSU-15,

"Removal and Installation"

.

4.

Remove radius rod. Refer to

RSU-13, "Removal and Installation"

.

5.

Remove coil spring. Refer to

RSU-8, "Removal and Installation"

.

6.

Set suitable jack under axle housing.

7.

Remove mounting bolts and nuts in axle housing side of shock absorber with power tool. Refer to

RSU-9,

"Removal and Installation"

.

8.

Separate front lower link from axle housing. Refer to

RSU-14, "Removal and Installation"

.

9.

Separate suspension arm from axle housing so as not to damage ball joint boot using ball joint remover,
and then remove axle housing from the vehicle.

CAUTION:

Temporarily tighten nuts to prevent damage to threads and to prevent the ball joint remover from
coming off.

10. Remove anchor block mounting nuts, and then remove anchor block and back plate from axle housing.

INSTALLTION

Note the following, and install in the reverse order of removal.
• Perform the final tightening of each of parts under unladen conditions, which were removed when removing

wheel hub and bearing assembly and steering knuckle.

Inspection

INFOID:0000000000957507

INSPECTION AFTER REMOVAL

Check the wheel hub and bearing assembly for wear, cracks, and damage. Replace if there are.

Ball Joint Inspection

Check for boot breakage, axial looseness, and torque of suspension arm ball joint. Refer to

RSU-11, "Removal

and Installation"

.

INSPECTION AFTER INSTALLATION

• Check wheel alignment. Refer to

RSU-19, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking wheel alignment. Refer to

BRC-8, "ADJUST-

MENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

• Adjust parking brake operation (stroke). Refer to

PB-3, "PEDAL TYPE : Inspection and Adjustment"

 (pedal

type),

PB-4, "LEVER TYPE : Inspection and Adjustment"

 (lever type).
