SRS-42

DRIVER AIR BAG MODULE

DRIVER AIR BAG MODULE

PFP:K8510

Removal and Installation

NHS0001Y

REMOVAL

CAUTION:

●

Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.

●

Always work from the side of driver air bag module.

●

Do not use air tools or electric tools for servicing.

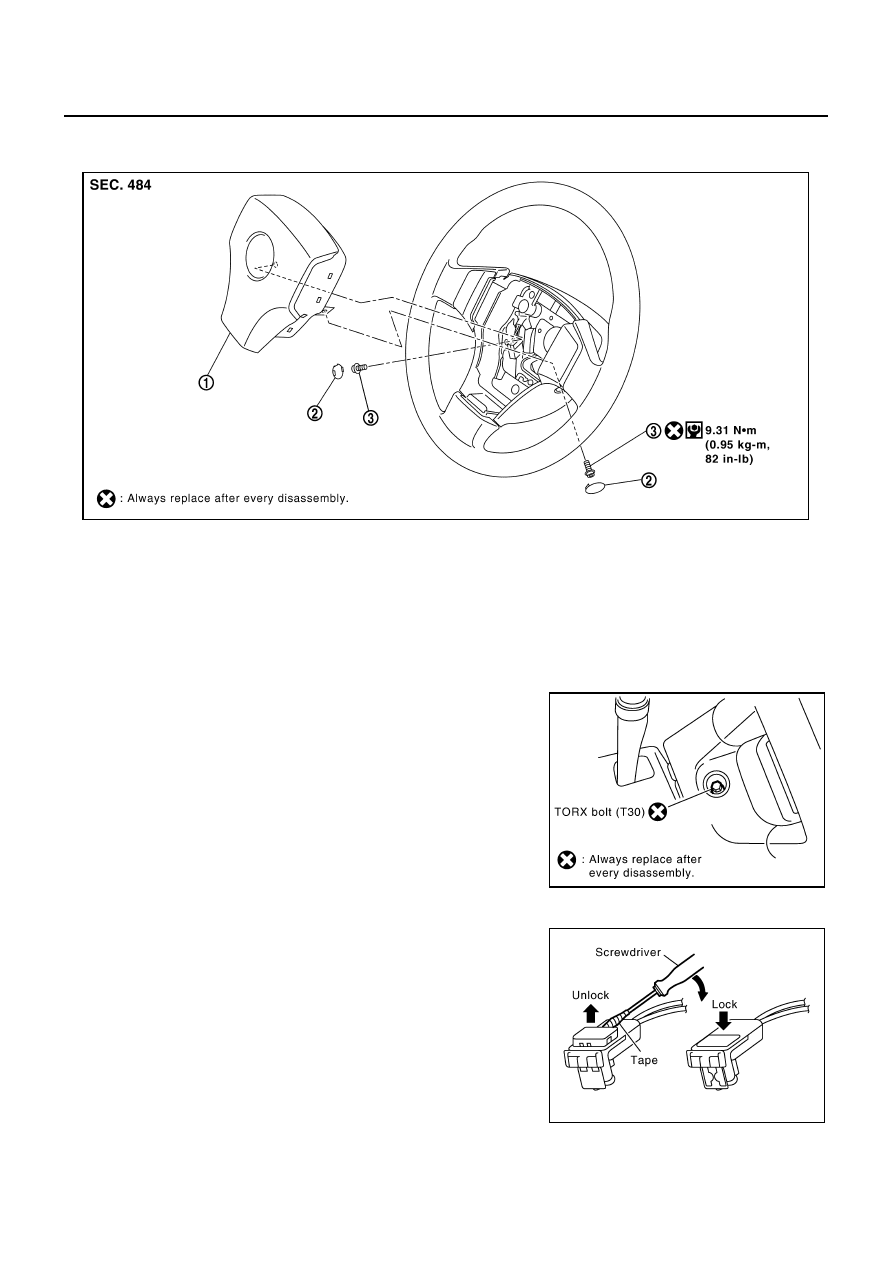

1.

Remove the side lids (LH/RH).

2.

Using Tamper resistant TORX bit (T30), remove the TORX bolts
(T30) at right and left.

3.

Disconnect the steering wheel switch sub-harness connector.

4.

Disconnect the air bag harness connector, and remove the
driver air bag module.
NOTE:

●

For installing / removing driver air bag module connector,
insert thin screwdriver wrapped in tape into notch, lift lock and
remove connector.

●

Install connector with lock raised, and push lock into connec-
tor.

●

After installing the connector, make sure that the lock is
pushed securely into it.

PHIA0716E

1.

Driver air bag module

2.

Side lid (LH/RH)

3.

TORX bolt (T30)

PHIA0714E

PHIA0308E

DRIVER AIR BAG MODULE

SRS-43

C

D

E

F

G

I

J

K

L

M

A

B

SRS

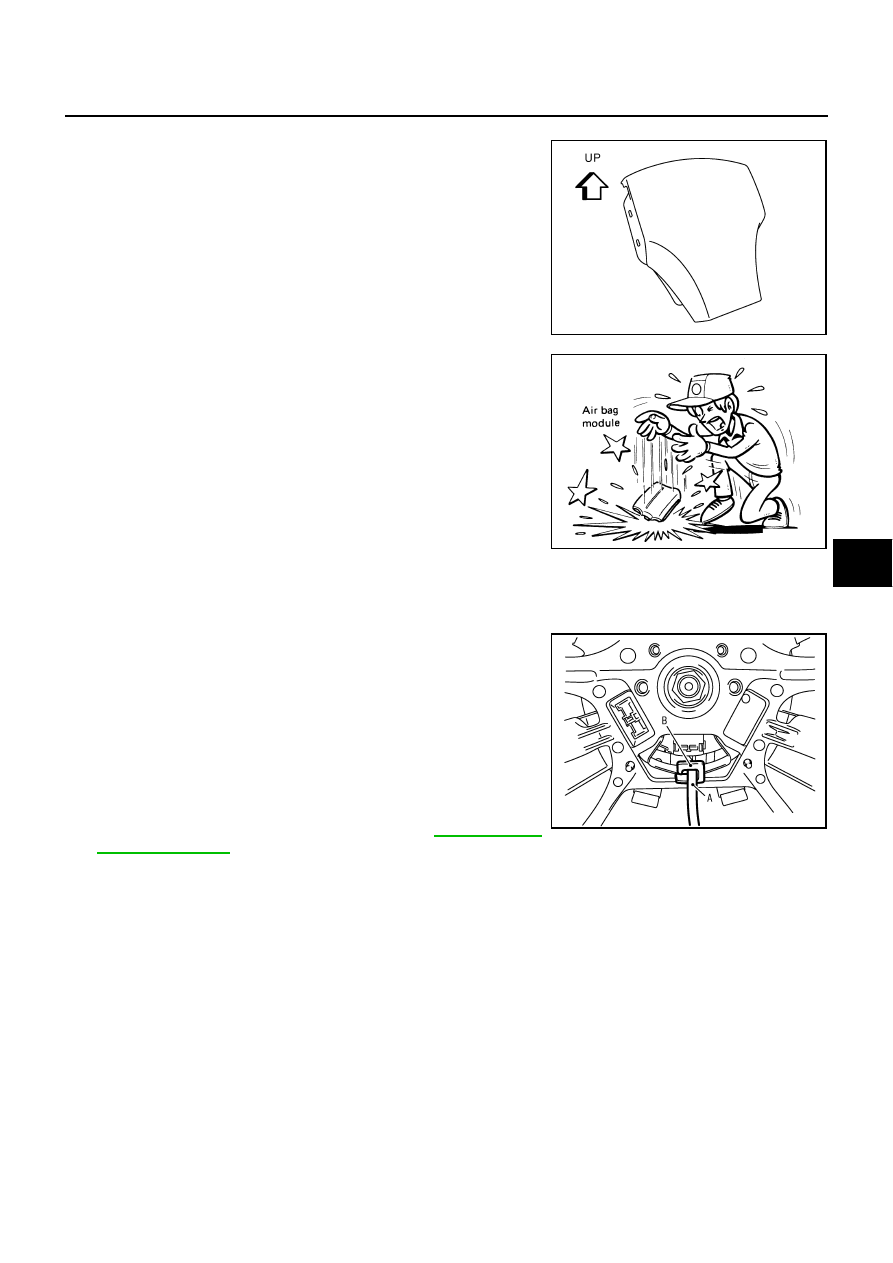

CAUTION:

●

Always place driver air bag module with pad side facing
upward.

●

Do not insert any foreign objects (screwdriver, etc.) into
driver air bag module.

●

Do not disassemble driver air bag module.

●

Do not use old bolts after removal; replace with new bolts.

●

Do not expose the driver air bag module to temperatures
exceeding 90

°

C (194

°

F).

●

Replace driver air bag module if it has been dropped or sus-
tained an impact.

●

Do not allow oil, grease or water to come in contact with the
front passenger air bag module.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

●

Fix the air bag module harness (shown as A in the figure) to
the harness fixing hook (shown as B in the figure).

●

Be careful not to damage the harness while installing.

●

For installing the air bag module, tighten the TORX bolts
(T30).

●

Tighten the special bolts after exactly adjusting the centers
of fixing holes on the air bag module side and the steering
wheel side. If the holes are misaligned, the bolt threads are
damaged and the module is not installed securely.

●

After the work is completed, perform self-diagnosis to make
sure no malfunction is detected. Refer to

SRS-20, "SRS

Operation Check"

 .

PHIA0707E

SBF814E

PHIA0885J

SRS-44

SPIRAL CABLE

SPIRAL CABLE

PFP:25554

Removal and Installation

NHS0001Z

REMOVAL

CAUTION:

●

Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3
minutes.

●

Do not use air tools or electric tools for servicing.

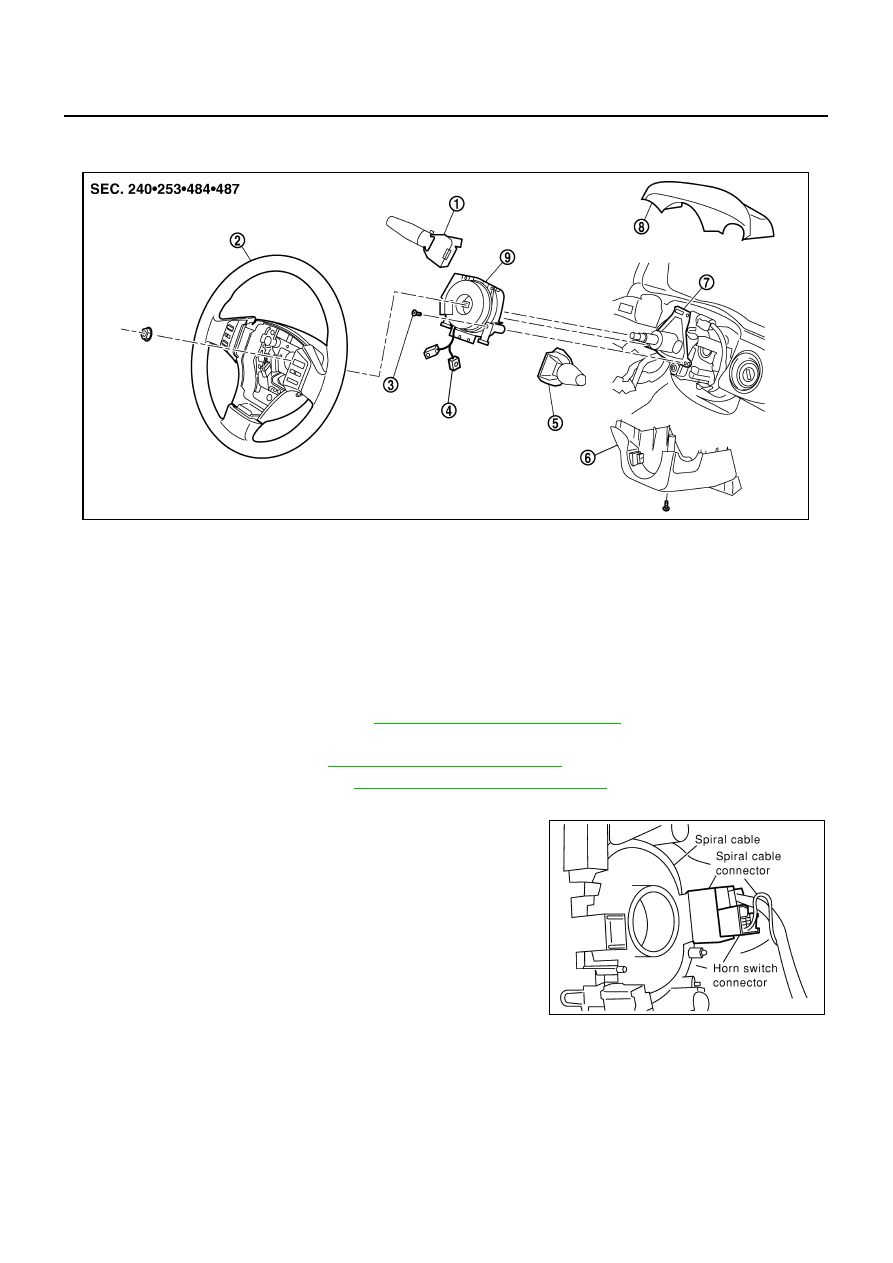

1.

Remove driver air bag module. Refer to

SRS-42, "Removal and Installation"

 .

2.

Set the steering wheel in the neutral position.

3.

Remove steering wheel. Refer to

PS-11, "Removal and Installation"

 .

4.

Remove the column covers. Refer to

IP-13, "(K) Steering Column Covers"

 .

5.

Loosen the spiral cable fixing screws, then remove the spiral cable.

6.

Disconnect the horn switch connector, and then the spiral cable
connector.

7.

Remove the wiper washer switch and lighting switch from the spiral cable.

CAUTION:

●

The spiral cable may snap due to steering operation if the cable is installed in an improper posi-
tion.

●

Do not disassemble spiral cable.

●

Do not apply lubricant to the spiral cable.

●

Do not arrow oil, grease, detergent or water to come in contact with the spiral cable.

PHIA1256E

1.

Lighting switch

2.

Steering wheel

3.

Screw (Do not remove)

4.

Driver air bag module connector

5.

Wiper washer switch

6.

Steering column cover (lower)

7.

Steering column assembly

8.

Steering column cover (upper)

9.

Spiral cable

SHIA0193E

SPIRAL CABLE

SRS-45

C

D

E

F

G

I

J

K

L

M

A

B

SRS

●

Do not make an impact to the spiral cable by dropping etc. Replace the spiral cable if it has been
dropped or sustained an impact.

INSTALLATION

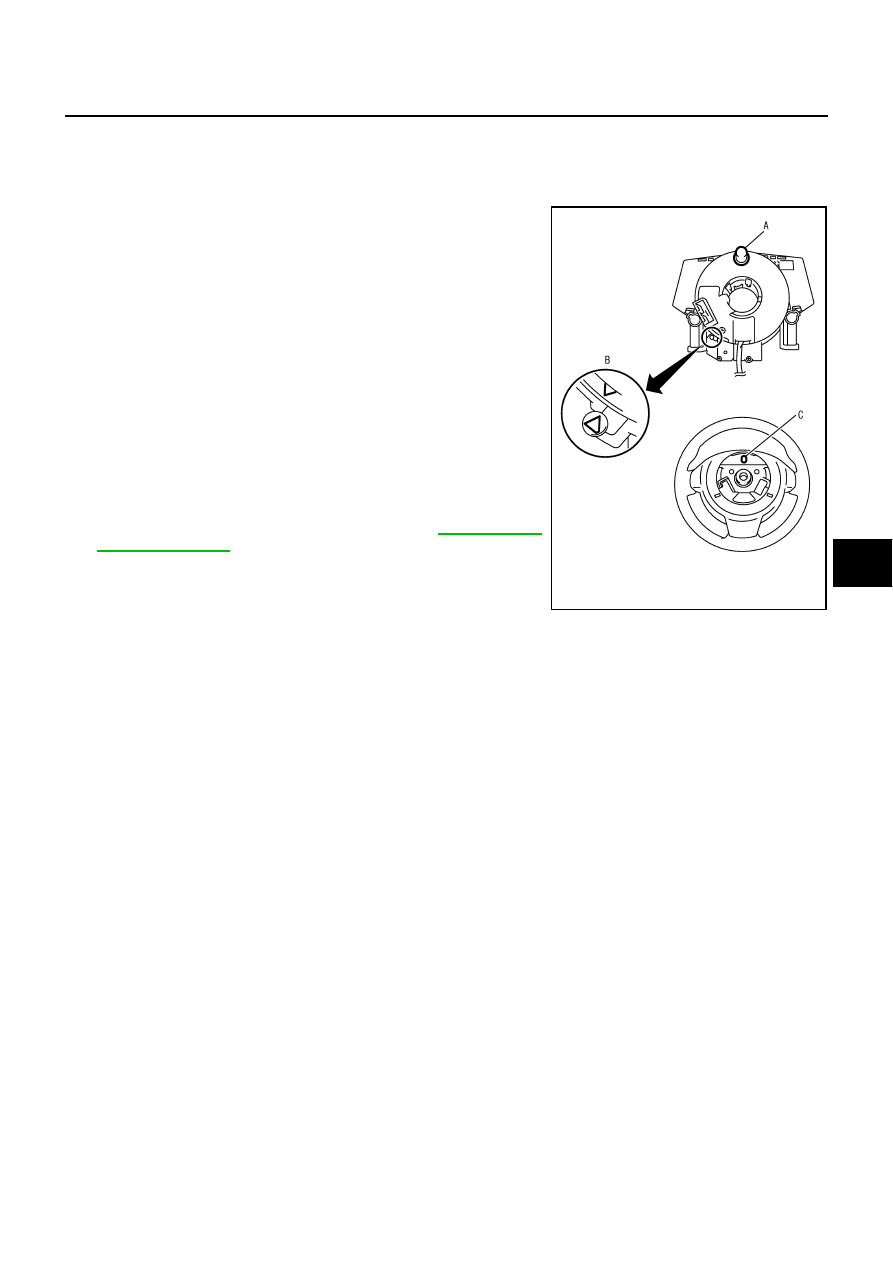

CAUTION:

●

The spiral cable may snap by steering operation if the cable
is installed in an improper position.

●

The neutral position is set as follows.
Turn quietly the spiral cable clockwise to the end position.
then turn it counterclockwise (about 2 and harf turns) and
stop turning at the point on which the stopper insertion
holes are in the same position.
The service part is installed in the neutral position by the
stopper and can be set without adjusting after the stopper
is removed.

●

Do not turn the spiral cable rashly and also beyond the limit
number of turns. (These will cause cable snap.)

●

Adjust the spiral cable locating pin hole (shown as A in the
figure) to the steering wheel locating pin hole (shown as C
in the figure).

●

Secure the air bag harness with the harness fixing hook.

●

After the work is completed, perform self-diagnosis to make
sure that no malfunction is detected. Refer to

SRS-20, "SRS

Operation Check"

 .

PHIA1024J
