Infiniti G35 (V35). Manual - part 745





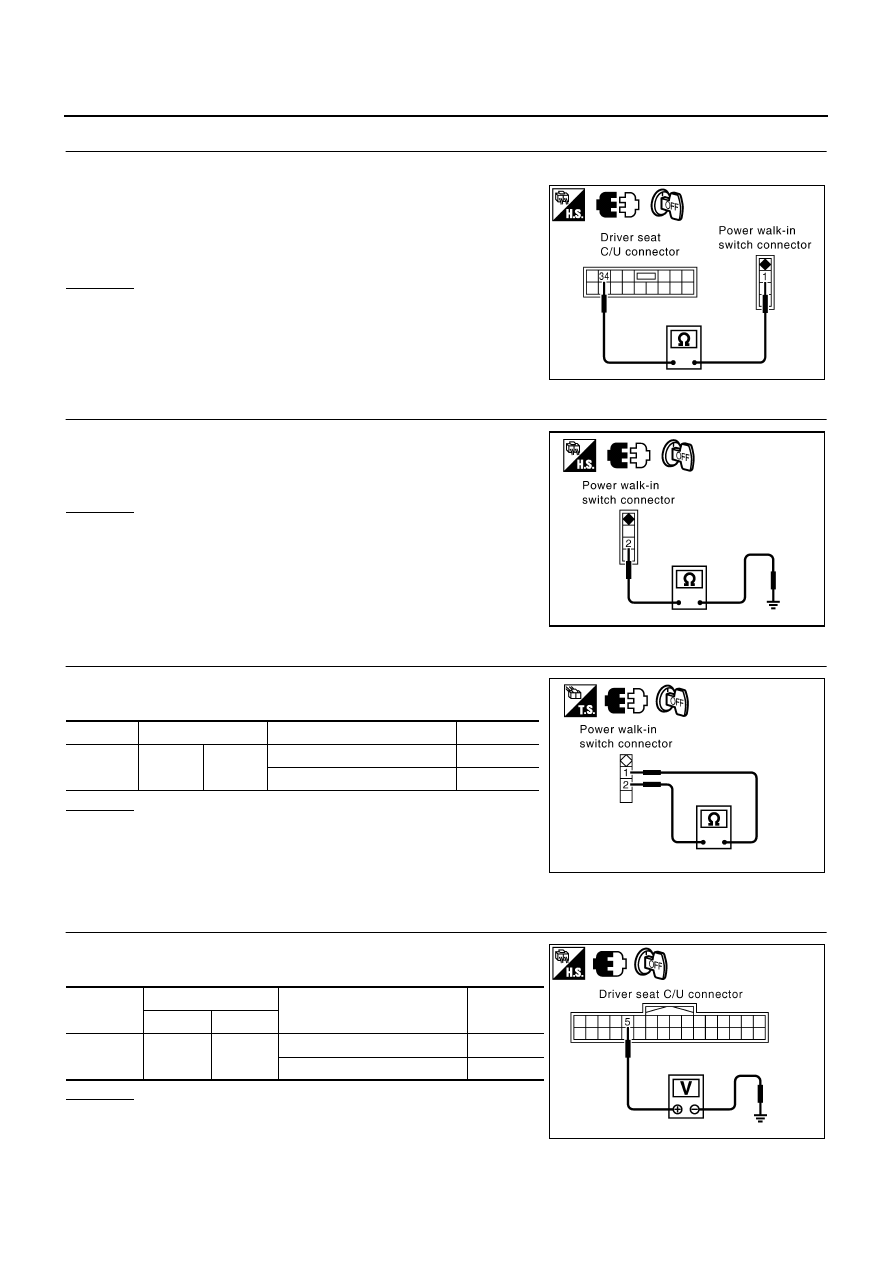

SE-82

AUTOMATIC DRIVE POSITIONER

2.

CHECK HARNESS CONTINUITY

1.

Disconnect driver seat control unit and power walk-in switch connector.

2.

Check continuity between driver seat control unit connector
B353 terminal 34 and power walk-in switch connector B349 ter-
minal 1.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness between driver seat control

unit and power walk-in switch.

3.

CHECK POWER WALK-IN SWITCH CIRCUIT

Check continuity between power walk-in switch connector B349 ter-
minal 2 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK POWER WALK-IN SWITCH

Check continuity between power walk-in switch connector B349 ter-
minals 1 and 2.

OK or NG

OK

>> Check the condition of the harness and the connector.

NG

>> Replace power walk-in switch.

Check Seat Belt Buckle Switch Signal

NIS001IN

1.

CHECK SEAT BULT BUCKLE SWITCH SIGNAL

Check voltage between driver seat control unit connector B352 ter-
minal 5 and ground.

OK or NG

OK

>> Seat belt buckle switch signal is OK.

NG

>> GO TO 2.

34 (G) - 1 (G)

: Continuity should exist.

PIIB7380E

2 (B) - Ground

: Continuity should exist.

PIIB4564E

Connector

Terminals

Condition

Continuity

B349

1

2

When power walk-in switch ON

Yes

Other than above

No

PIIB4565E

Connector

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(–)

B352

5 (LG)

Ground

When seat belt is fastened

5

Other than above

0

PIIB7381E

AUTOMATIC DRIVE POSITIONER

SE-83

C

D

E

F

G

H

J

K

L

M

A

B

SE

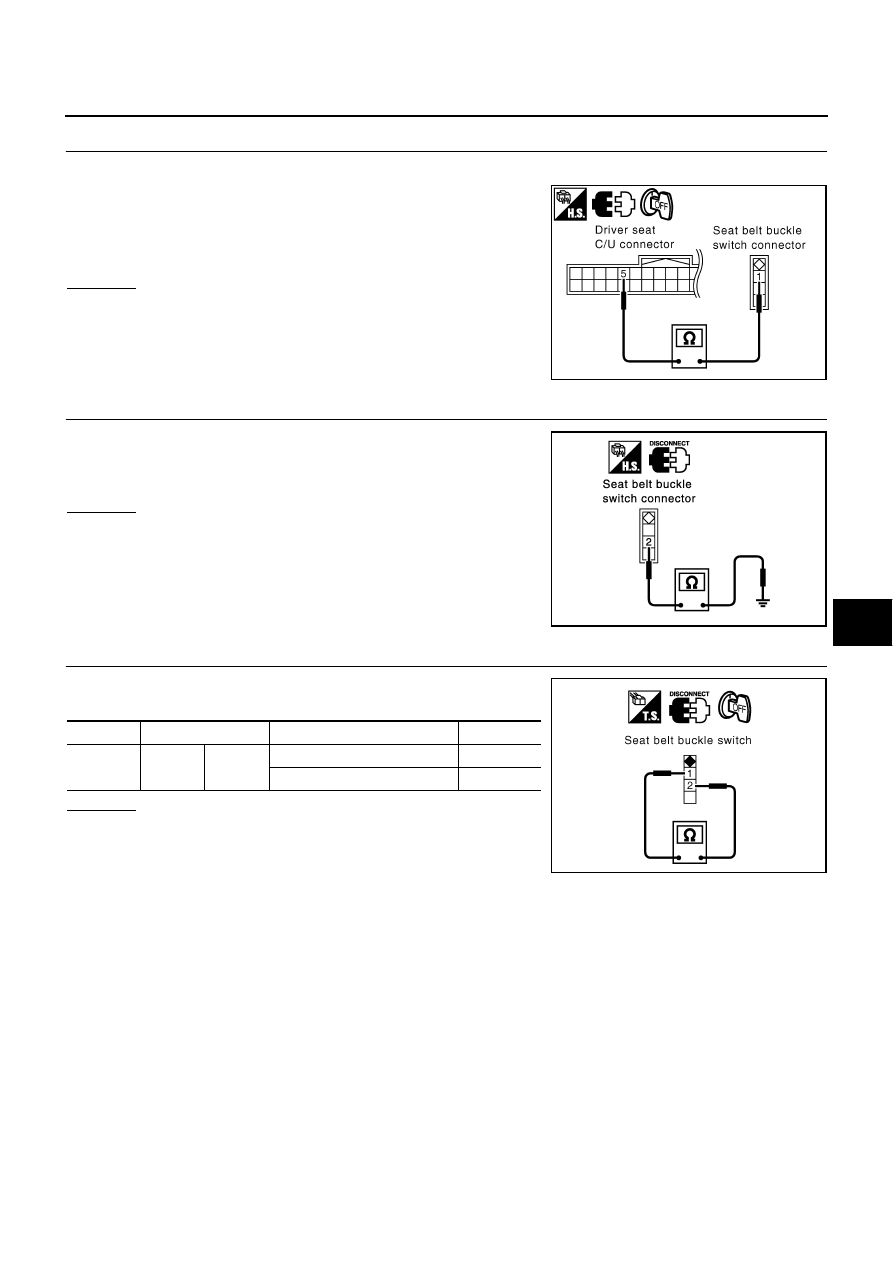

2.

CHECK HARNESS CONTINUITY

1.

Disconnect driver seat control unit and seat belt buckle switch connector.

2.

Check continuity between driver seat control unit connector
B352 terminal 5 and seat belt buckle switch connector B8 termi-
nal 1.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness between driver seat control

unit and seat belt buckle switch.

3.

CHECK SEAT BELT BUCKLE SWITCH CIRCUIT

Check continuity between seat belt buckle switch connector B8 ter-
minal 2 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness seat belt buckle switch.

4.

CHECK SEAT BELT BUCKLE SWITCH

Check continuity between seat belt buckle switch connector B8 ter-
minals 1 and 2.

OK or NG

OK

>> Check the condition of the harness and the connector.

NG

>> Replace seat belt buckle switch.

5 (LG) - 1 (BR)

: Continuity should exist.

PIIB7382E

2 (B/R) - Ground

: Continuity should exist.

PIIA4662E

Connector

Terminals

Condition

Continuity

B8

1

2

When seat belt is fastened

No

Other than above

Yes

PIIA4072E

SE-84

POWER SEAT

POWER SEAT

PFP:87016

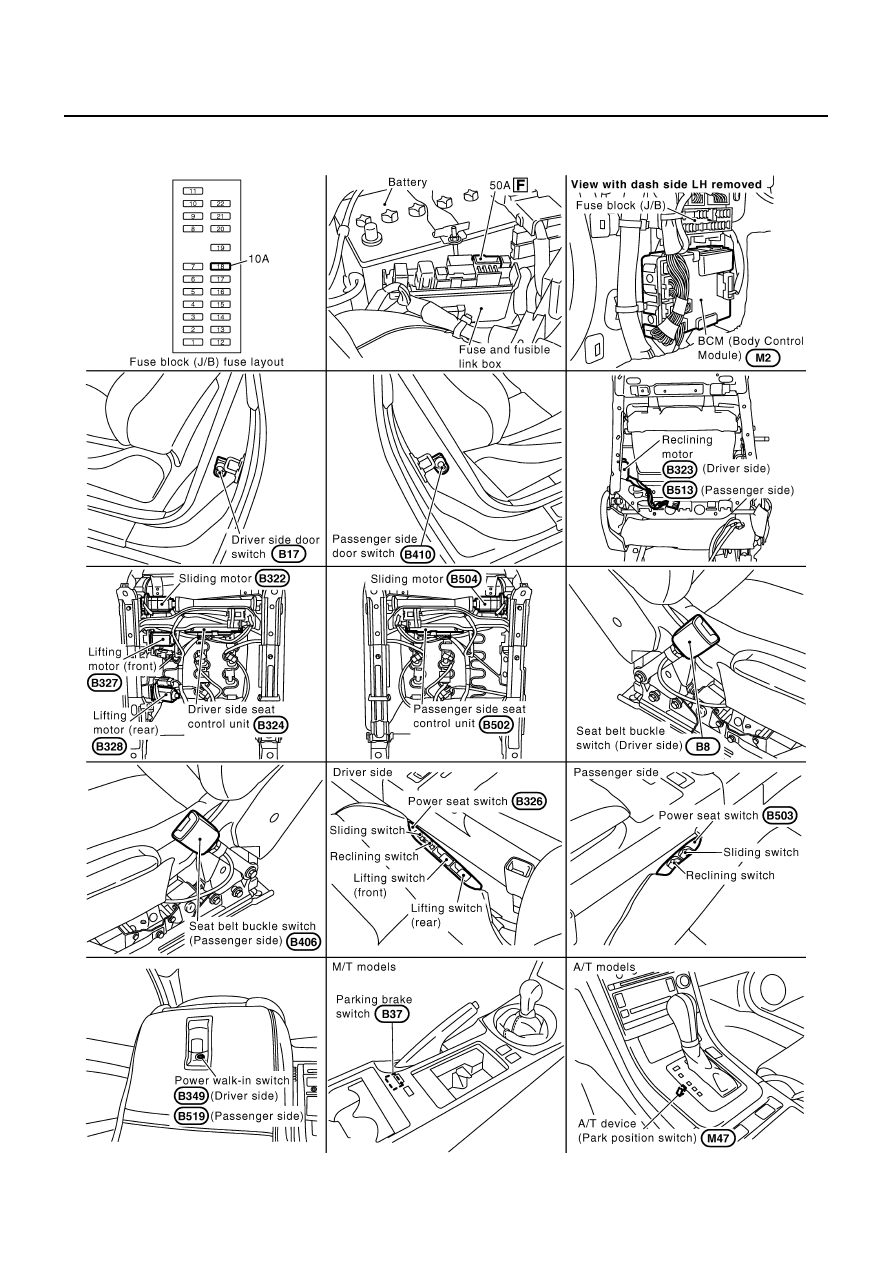

Component Parts and Harness Connector Location

NIS000HP

PIIB7395E

POWER SEAT

SE-85

C

D

E

F

G

H

J

K

L

M

A

B

SE

System Description

NIS000HQ

POWER WORK–IN SYSTEM

This system is a mechanism on the benefit and convenience inclination when the rear seat gotten on and off.
The seat is made to advance when the seat back of front seat is folded down.
The seat is made to retreat to former position when the seat back of front seat is folded up.
After forward movement has been operated, seat does not move backward when reclining the seat back for
more than 26

°

 from first locking position.

FORWARD OPERATION

When condition of power walk-in system operating permission is satisfied, the seat advances to the front most
at the following condition.

●

the seat back is fold down when the door is open

●

the door is closed and when the seat is fold down, and then the door is opened.

BACKWARD OPERATION

When condition of power walk-in system operating permission is satisfied, the seat retreats to former position
at the following condition.

●

Return based on the fold down seat back within 60 seconds after door is opened.

The backward distance of the passenger seat is different according to the seat position of beginning of the
power walk-in system.

●

Return to former position when the seat position of beginning of the power walk-in system is from the front
most position to within 175mm (6.89in).

●

Return to 175mm (6.89in) position when the seat position of beginning of the power walk-in system
exceeds 175mm (6.89in) from the front most position.

CONDITION OF POWER WALK-IN SYSTEM OPERATING PERMISSION

Common of driver side and passenger side condition

●

When seat belt is unfastened

●

When vehicle speed is less than 7km/h (4MPH)

●

When does not operates sliding switch

Condition only of driver side

●

When shift lever is in P position. (with A/T models)

●

When pull the parking brake. (with M/T models)

OPERATION STOP CONDITION OF POWER WORK–IN SYSTEM

Common of driver side and passenger side condition

●

When vehicle speed is more than 7km/h (4MPH)

●

When operates sliding switch

●

When the sliding motor locks

●

When the operation time is consecutive and 60 seconds or more pass

●

When reclining behind the seat back

Condition only of driver side

●

When shift lever besides P position. (with A/T models)

●

When release the parking brake. (with M/T modes)

Condition only of passenger side

●

When seat belt is fastened.
