SE-58

AUTOMATIC DRIVE POSITIONER

2.

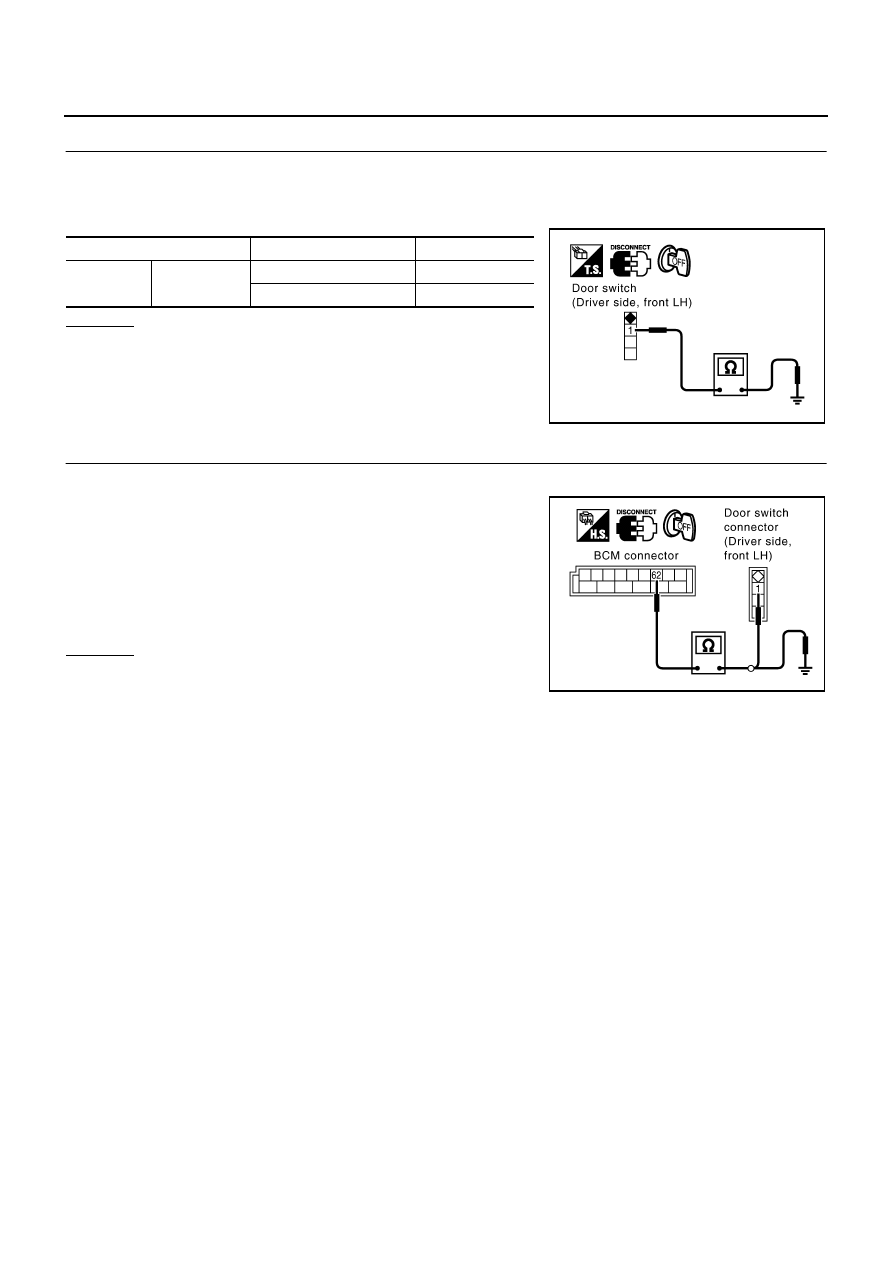

CHECK DOOR SWITCH (DRIVER SIDE)

1.

Turn ignition switch OFF.

2.

Disconnect door switch connector.

3.

Check continuity between door switch connector and ground part of door switch.

OK or NG

OK

>> GO TO 3.

NG

>> Replace door switch (driver side).

3.

CHECK DOOR SWITCH (DRIVER SIDE) HARNESS CONTINUITY

1.

Disconnect BCM connector.

2.

Check continuity between BCM connector B4 terminal 62 and
door switch connector B17 terminal 1.

3.

Check continuity between BCM connector B4 terminal 62 and
ground.

OK or NG

OK

>> Door switch (driver side) circuit is OK.

NG

>> Repair or replace harness between BCM and door

switch (driver side).

Terminals

Door switch

Continuity

1

Ground part of

door switch

Pushed

No

Released

Yes

PIIA5091E

62 (Y) – 1 (G/B)

: Continuity should exist.

62 (Y) – Ground

: Continuity should not exist.

PIIA5090E

AUTOMATIC DRIVE POSITIONER

SE-59

C

D

E

F

G

H

J

K

L

M

A

B

SE

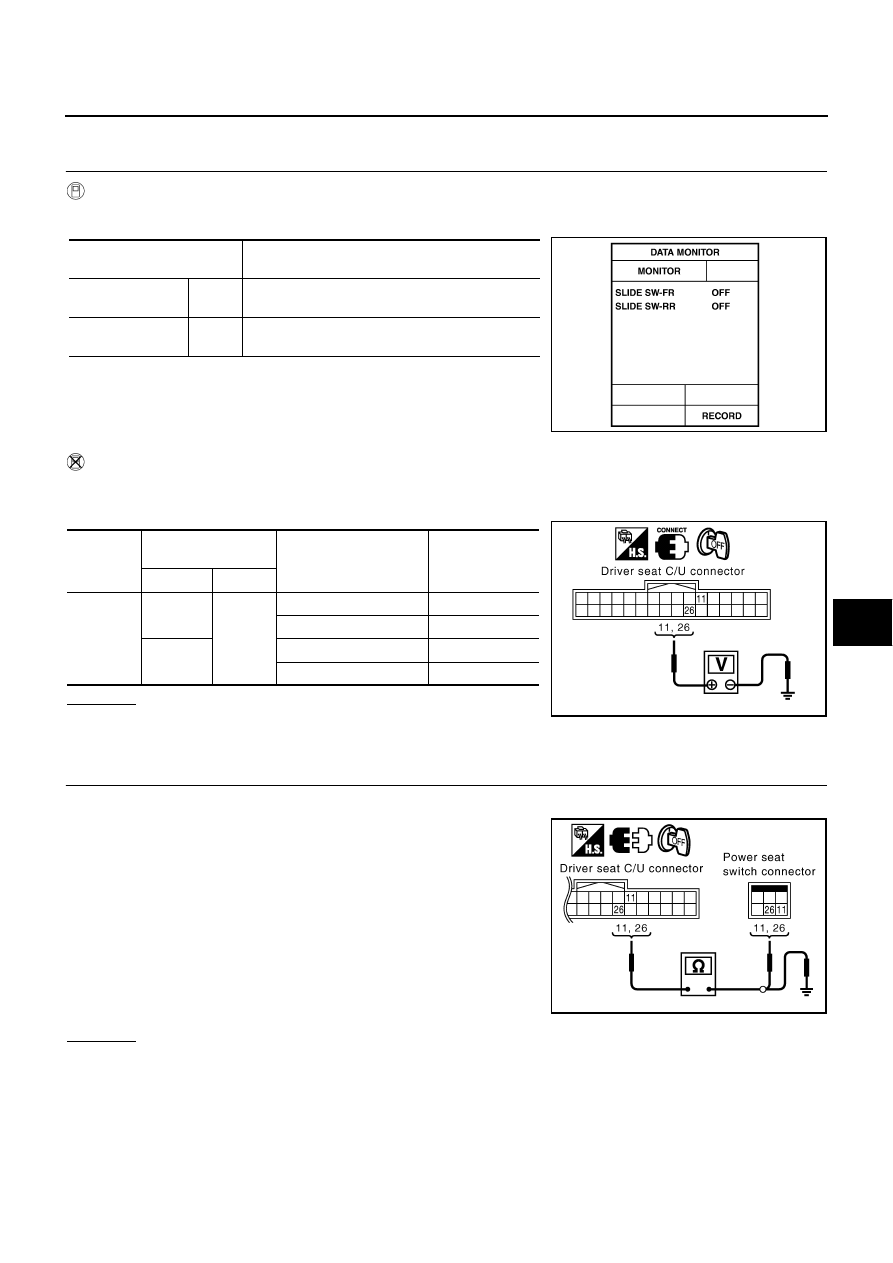

Check Sliding Switch Circuit

NIS001I1

1.

CHECK FUNCTION

 With CONSULT-II

With “SLIDE SW-FR, SLIDE SW-RR” on the DATA MONITOR, operate the sliding switch to check ON/OFF
operation.

 Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Sliding switch operate, check voltage between driver seat control unit connector and ground.

OK or NG

OK

>> Sliding switch circuit is OK.

NG

>> GO TO 2.

2.

CHECK HARNESS CONTINUITY

1.

Disconnect driver seat control unit connector and power seat switch connector.

2.

Check continuity between driver seat control unit connector
B352 terminals 11, 26 and power seat switch connector B355
terminals 11, 26.

3.

Check continuity between driver seat control unit connector
B352 terminals 11, 26 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness between driver seat control unit and power seat switch.

Monitor item

 [OPERATION or UNIT]

Contents

SLIDE SW – FR

“ON/

OFF”

ON/OFF status judged from the sliding switch
 (FR) signal is displayed.

SLIDE SW – RR

“ON/

OFF”

ON/OFF status judged from the sliding switch
 (RR) signal is displayed.

PIIB2055E

Connector

Terminals

 (Wire color)

Sliding switch condition

Voltage (V)

(Approx.)

(+)

(-)

B352

26 (Y)

Ground

FORWARD

0

Other than above

Battery voltage

11 (BR)

BACKWARD

0

Other than above

Battery voltage

PIIA4577E

11 (BR) – 11 (BR)

: Continuity should exist.

26 (Y) – 26 (Y)

: Continuity should exist.

11 (BR) – Ground

: Continuity should not exist.

26 (Y) – Ground

: Continuity should not exist.

PIIB4195E

SE-60

AUTOMATIC DRIVE POSITIONER

3.

CHECK SLIDING SWITCH

Check continuity between power seat switch as follows.

OK or NG

OK

>> Check the condition of the harness and connector.

NG

>> Replace power seat switch.

Check Reclining Switch

NIS001I2

1.

CHECK FUNCTION

 With CONSULT-II

With “RECLINING SW-FR, RECLINING SW-RR” on the DATA MONITOR, operate the reclining switch to
check ON/OFF operation.

 Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Reclining switch operate, check voltage between driver seat control unit connector and ground.

OK or NG

OK

>> Reclining switch is OK.

NG

>> GO TO 2.

Terminal

Sliding switch condition

Continuity

26

32D

FORWARD

Yes

Other than above

No

11

BACKWARD

Yes

Other than above

No

PIIB4196E

Monitor item

 [OPERATION or UNIT]

Contents

RECLN SW – FR

“ON/

OFF”

ON/OFF status judged from the reclining switch
(FR) signal is displayed.

RECLN SW – RR

“ON/

OFF”

ON/OFF status judged from the reclining switch
(RR) signal is displayed.

PIIB2056E

Connector

Terminals

(Wire color)

Reclining switch

condition

Voltage (V)

(Approx.)

(+)

(–)

B352

27 (R/G)

Ground

FORWARD

0

Other than above

Battery voltage

12 (SB)

BACKWARD

0

Other than above

Battery voltage

PIIA4580E

AUTOMATIC DRIVE POSITIONER

SE-61

C

D

E

F

G

H

J

K

L

M

A

B

SE

2.

CHECK HARNESS CONTINUITY

1.

Disconnect driver seat control unit connector and power seat switch connector.

2.

Check continuity between driver seat control unit connector
B352 terminals 12, 27 and power seat switch connector B355
terminals 12, 27.

3.

Check continuity between driver seat control unit connector
B352 terminals 12, 27 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness between driver seat control unit and power seat switch.

3.

CHECK RECLINING SWITCH

Check continuity between power seat switch as follows.

OK or NG

OK

>> Check the condition of the harness and connector.

NG

>> Replace power seat switch.

12 (SB) – 12 (SB)

: Continuity should exist.

27 (R/G) – 27 (R/G)

: Continuity should exist.

12 (SB) – Ground

: Continuity should not exist.

27 (R/G) – Ground

: Continuity should not exist.

PIIB4197E

Terminal

Reclining switch condition

Continuity

27

32D

FORWARD

Yes

Other than above

No

12

BACKWARD

Yes

Other than above

No

PIIB4198E
