Infiniti G35 (V35). Manual - part 727

SE-10

SQUEAK AND RATTLE TROUBLE DIAGNOSES

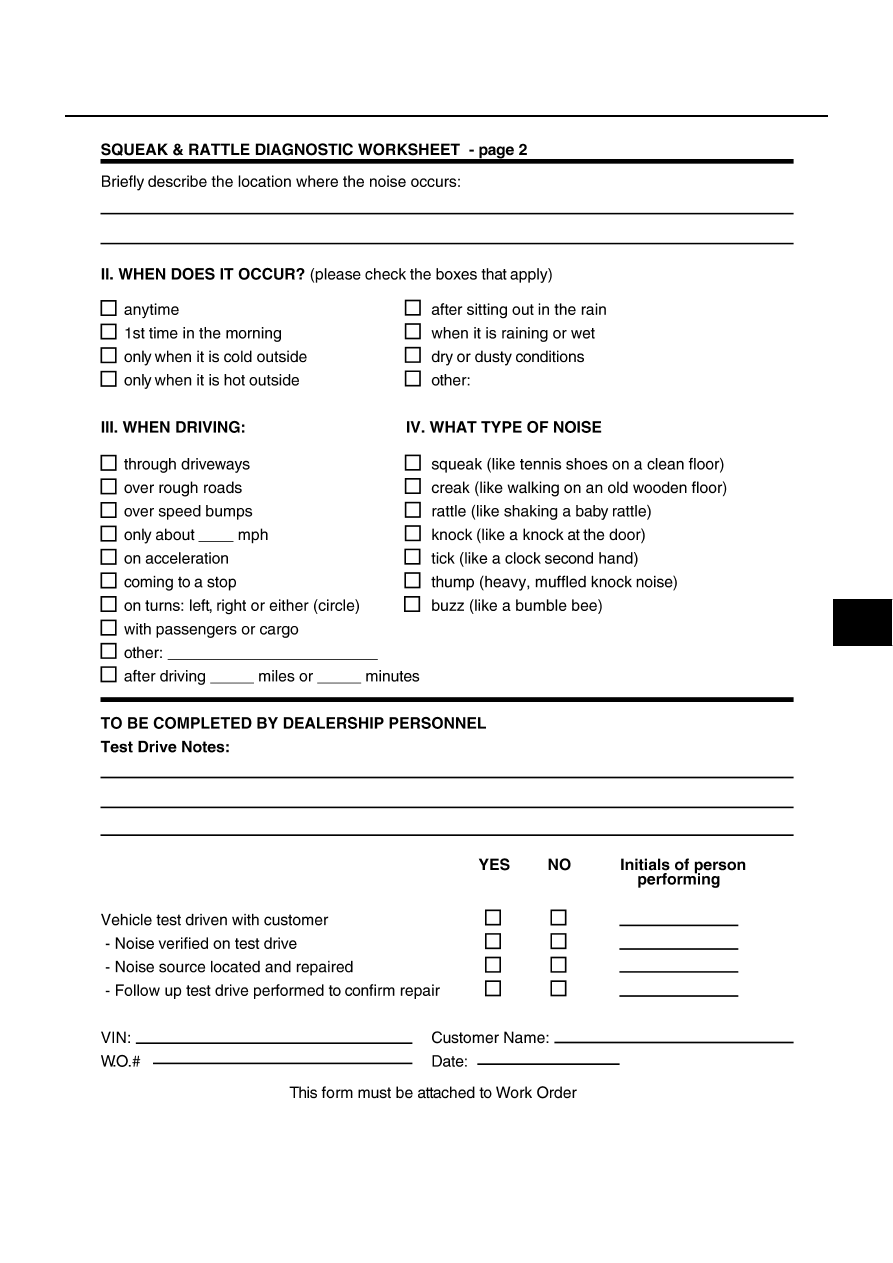

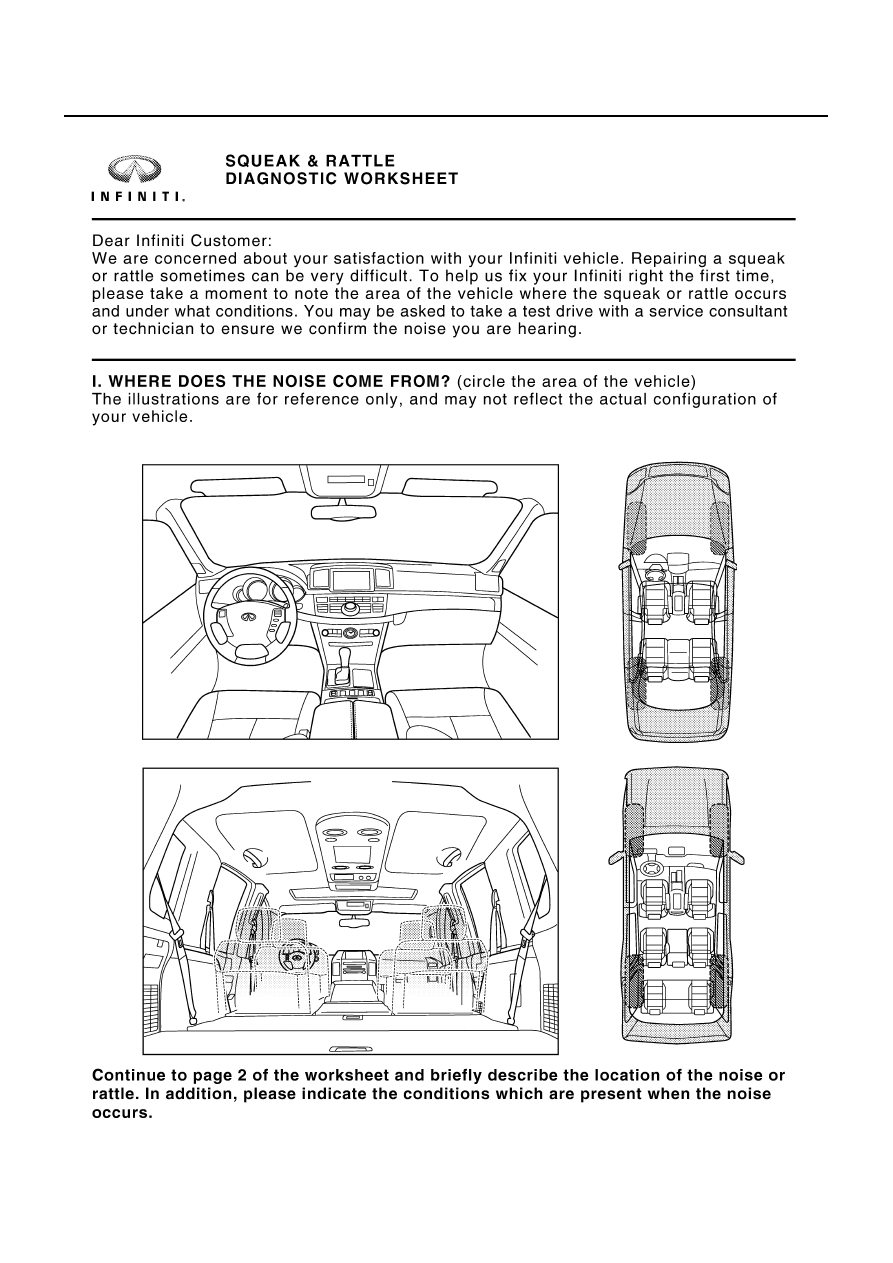

Diagnostic Worksheet

NIS00297

PIIB8741E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SE-11

C

D

E

F

G

H

J

K

L

M

A

B

SE

PIIB8742E

SE-12

CLIP AND FASTENER

CLIP AND FASTENER

PFP:76906

Description

NIS000HO

●

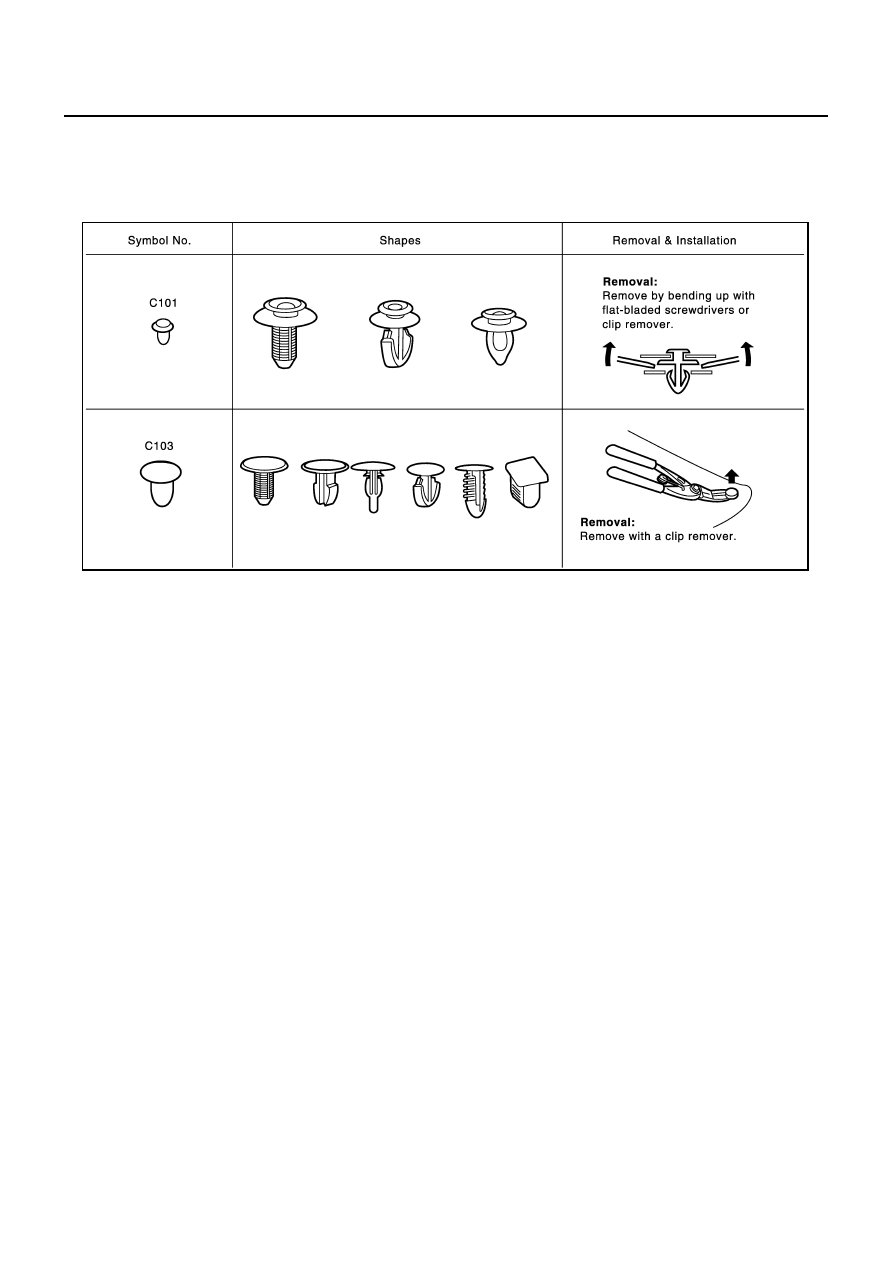

Clips and fasteners in SE section correspond to the following numbers and symbols.

●

Replace any clips and/or fasteners which are damaged during removal or  installation.

PIIA3432E

AUTOMATIC DRIVE POSITIONER

SE-13

C

D

E

F

G

H

J

K

L

M

A

B

SE

AUTOMATIC DRIVE POSITIONER

PFP:28491

System Description

NIS001H9

●

The system automatically moves the driver seat. The automatic drive positioner control unit can also store
the optimum driving positions (driver seat) for 2 people. If the driver is changes, one-touch operation
allows changing to the other driving position.

MANUAL OPERATION

The driving position [seat position, steering wheel position (tilt, telescopic)] can be adjusted with the power
seat switch or ADP steering switch.

NOTE:
The seat can be manually operated with the ignition switch OFF.

AUTOMATIC OPERATION

NOTE:

●

Disconnecting the battery erases the stored memory.

●

After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open)

→

OFF (close)

→

ON

(open), the memory becomes possible.

NOTE:
During automatic operation, if the ignition switch is turned ON

→

START, the automatic operation is suspended. When the ignition switch

returns to ON, it resumes.

Function Description

Memory switch operation

The seat, steering move to the stored driving position by pushing memory switch (1 or 2).

Keyfob interlock operation

Perform memory operation by pressing keyfob unlock button or driver side door request switch.

Auto operation temporary stop conditions.

When ignition switch turned to START position. (With A/T)

Auto operation stop conditions.

●

When ignition switch turned to START position. (With M/T)

●

When the vehicle speed becomes 7 km/h (4 MPH) or higher.

●

When the setting switch, memory switch 1, or 2 are pressed.

●

When A/T selector lever is in any position other than P. (With A/T)

●

When the parking brake switch is in the released (With M/T)

●

When power seat switch turned ON.

●

When ADP steering switch turned ON (telescopic operation or tilt operation).

●

When the tilt and telescopic sensor malfunction is detected.

●

When the driver's seatback fold down.
