SC-32

CHARGING SYSTEM

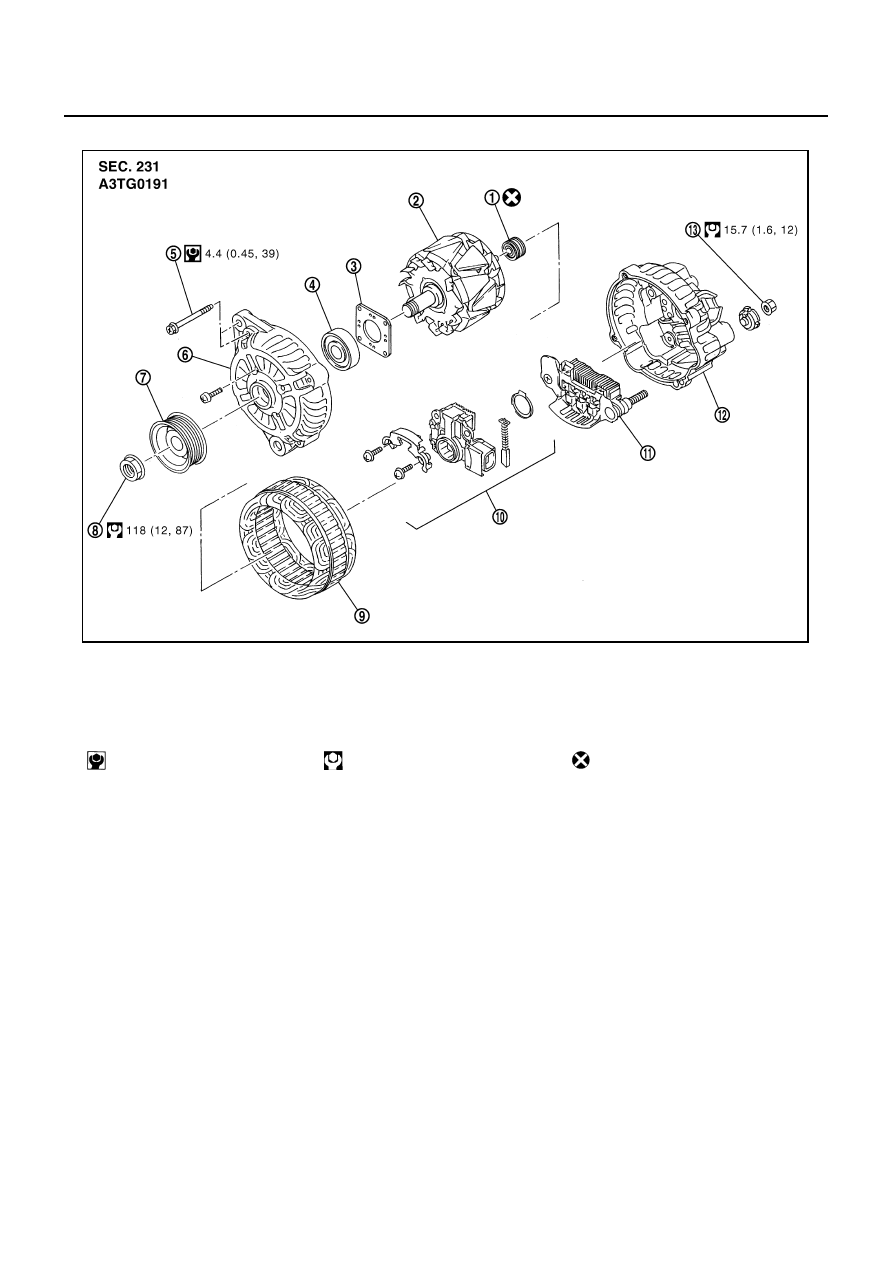

Disassembly and Assembly

NKS000F6

1.

Rear bearing

2.

Rotor assembly

3.

Retainer

4.

Front bearing

5.

Through-bolt

6.

Front bracket assembly

7.

Pulley

8.

Pulley nut

9.

Stator assembly

10. IC voltage regulator assembly

11. Diode assembly

12. Rear bracket assembly

13. B terminal nut

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disas-
sembly

SKIB6480E

SERVICE DATA AND SPECIFICATIONS (SDS)

SC-33

C

D

E

F

G

H

I

J

L

M

A

B

SC

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Battery

NKS000F7

Starter

NKS000F8

Alternator

NKS000F9

Type

80D23L

20 hour rate capacity

12 V - 62 AH

Cold cranking current (For reference value)

582 A

Type

S114-880

HITACHI make

Reduction gear type

System voltage

12 V

No-load

Terminal voltage

11 V

Current

Less than 90 A

Revolution

More than 2,880 rpm

Minimum diameter of commutator

28.0 mm (1.102 in)

Minimum length of brush

10.5 mm (0.413 in)

Brush spring tension

16.2 N (1.65 kg, 3.6 lb)

Clearance between bearing metal and armature shaft

Less than 0.2 mm (0.008 in)

Clearance between pinion front edge and pinion stopper

0.3 - 2.5 mm (0.012 - 0.098 in)

Type

A3TG0191

MITSUBISHI make

Nominal rating

12 V - 110 A

Ground polarity

Negative

Minimum revolution under no-load (When 13.5 V is applied)

 Less than 1,000 rpm

Hot output current (When 13.5 V is applied)

More than 37 A/1,300 rpm
More than 92 A/2,500 rpm

More than 103 A/5,000 rpm

Regulated output voltage

14.1 - 14.7 V

Minimum length of brush

More than 5.00 mm (0.197 in)

Brush spring pressure

4.8 - 6.0 N (490 - 612 g, 17.28 - 21.60 oz)

Slip ring minimum outer diameter

More than 22.1 mm (0.870 in)

Rotor (Field coil) resistance

1.7 - 2.1

Ω

SC-34

SERVICE DATA AND SPECIFICATIONS (SDS)

SE-1

SEAT

I  BODY

CONTENTS

C

D

E

F

G

H

J

K

L

M

SECTION

A

B

SE

SEAT

PRECAUTIONS .......................................................... 3

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Service Notice  .......................................................... 3
Precautions for Battery Service ................................ 3
Precautions for Work ................................................ 3

PREPARATION ........................................................... 5

Special Service Tools  ............................................... 5
Commercial Service Tools ........................................ 5

SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 6

Work Flow  ................................................................ 6

CUSTOMER INTERVIEW ..................................... 6
DUPLICATE THE NOISE AND TEST DRIVE  ....... 7
CHECK RELATED SERVICE BULLETINS  ........... 7
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE  ...................................................... 7
REPAIR THE CAUSE  ........................................... 7
CONFIRM THE REPAIR  ....................................... 8

Generic Squeak and Rattle Troubleshooting  ........... 8

INSTRUMENT PANEL  .......................................... 8
CENTER CONSOLE ............................................. 8
DOORS ................................................................. 8
TRUNK .................................................................. 9
SUNROOF/HEADLINING ..................................... 9
SEATS ................................................................... 9
UNDERHOOD ....................................................... 9

Diagnostic Worksheet  ............................................ 10

CLIP AND FASTENER  ............................................. 12

Description ............................................................. 12

AUTOMATIC DRIVE POSITIONER  .......................... 13

System Description  ................................................ 13

MANUAL OPERATION  ....................................... 13
AUTOMATIC OPERATION  ................................. 13
MEMORY STORING AND KEYFOB INTER-
LOCK STORING  ................................................. 14
MEMORY SWITCH OPERATION  ....................... 15
KEYFOB INTERLOCK OPERATION  .................. 15
FAIL- SAFE MODE  ............................................. 16
CANCEL OF FAIL-SAFE MODE ......................... 16

Component Parts and Harness Connector Location

... 17

CAN Communication System Description  .............. 18
CAN Communication Unit ....................................... 18
Schematic ............................................................... 19
Wiring Diagram — AUT/DP —  ............................... 21
Terminals and Reference Values for BCM .............. 30
Terminals and Reference Values for Automatic
Drive Positioner Control Unit  .................................. 30
Terminals and Reference Values for Driver Seat
Control Unit ............................................................. 31
Work Flow ............................................................... 35
Preliminary Check  .................................................. 35

CHECK POWER SUPPLY AND GROUND ......... 35

CONSULT-II Function (AUTO DRIVE POS.)  .......... 37

CONSULT-II START PROCEDURE  .................... 37
SELF-DIAGNOSIS RESULTS  ............................. 38
DATA MONITOR  ................................................. 38
ACTIVE TEST  ..................................................... 39

Check Can Communication System ....................... 40
Symptom Chart ....................................................... 40
Check Sliding Motor Circuit  .................................... 41
Check Reclining Motor Circuit  ................................ 43
Check Front Lifting Motor Circuit  ............................ 44
Check Rear Lifting Motor Circuit ............................. 46
Check Telescopic Motor Circuit  .............................. 47
Check Tilt Motor Circuit  .......................................... 48
Check Sliding Sensor Circuit  .................................. 50
Check Reclining Sensor Circuit  .............................. 51
Check Front Lifting Sensor Circuit .......................... 52
Check Rear Lifting Sensor Circuit  .......................... 53
Check Telescopic Sensor Circuit  ............................ 54
Check Tilt Sensor Circuit  ........................................ 55
Check Tilt Sensor and Telescopic Sensor Power
and Ground Circuit  ................................................. 56
Check Door Switch (Driver Side) Circuit ................. 57
Check Sliding Switch Circuit ................................... 59
Check Reclining Switch  .......................................... 60
Check Front Lifting Switch Circuit ........................... 62
Check Rear Lifting Switch Circuit  ........................... 63
Check Sliding and Reclining Switch Ground Circuit

... 64
