Infiniti G35 (V35). Manual - part 713

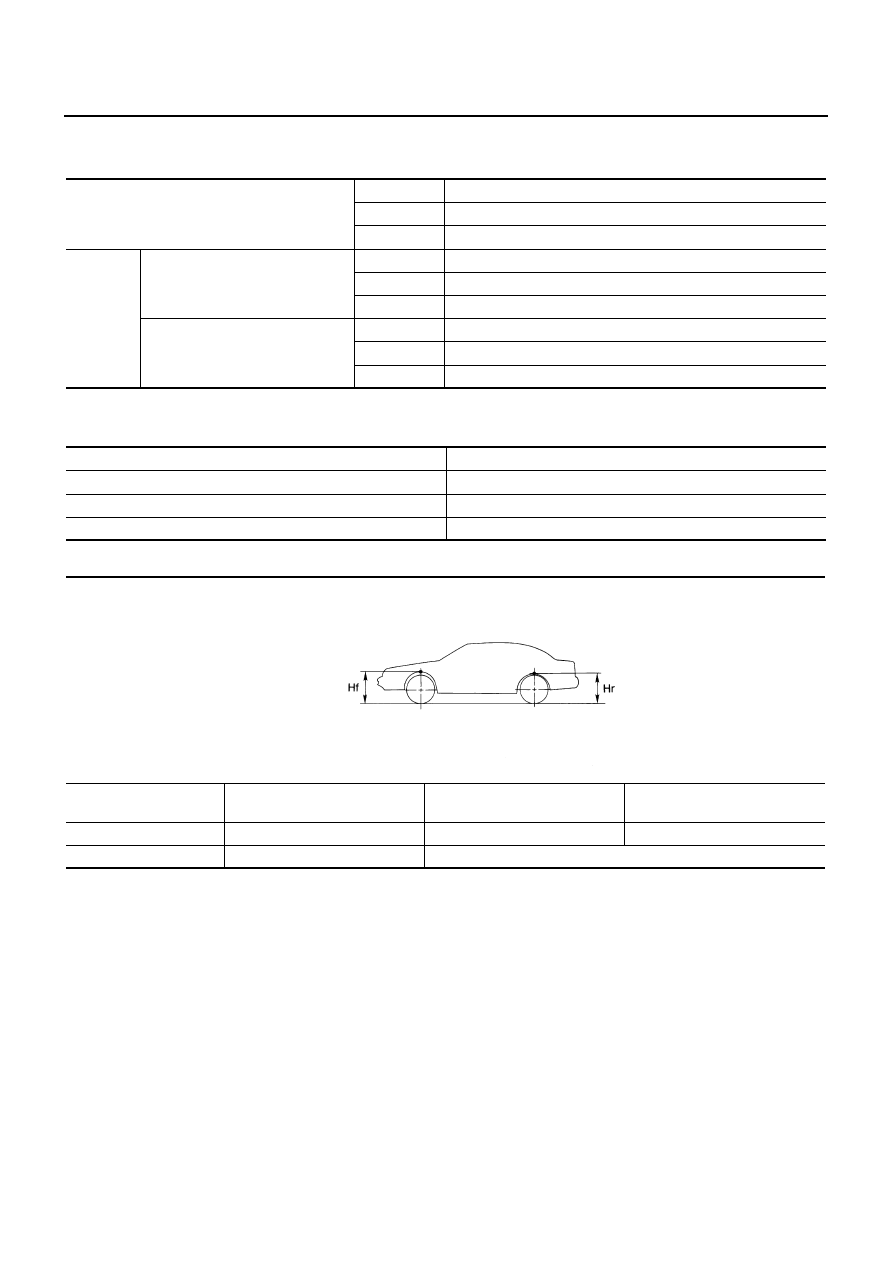

RSU-18

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Wheel Alignment (Unladen*)

NES000A5

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Ball Joint

NES000A6

Wheelarch Height (Unladen*)

NES000A7

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Camber
Degree minute (Decimal degree)

Minimum

−

′

(

−

1.75

)

Nominal

−

′

(

−

1.25

)

Maximum

−

′

(

−

0.75

)

Total toe-in

Distance

Minimum

0.1 mm (0.004 in)

Nominal

2.8 mm (0.110 in)

Maximum

5.5 mm (0.217 in)

Angle (left wheel or right wheel)
Degree minute (Decimal degree)

Minimum

′

(0.00

)

Nominal

′

(0.12

)

Maximum

′

(0.23

)

Axial end play

0 mm (0 in)

Swing torque

0.5 - 3.4 N·m (0.06 - 0.34 kg-m, 5 - 30 in-lb)

Measurement on spring balance (cotter pinhole position)

8.06 - 54.8 N (0.83 - 5.5 kg, 1.81 - 12.32 lb)

Rotating torque

0.5 - 3.4 N·m (0.06 - 0.34 kg-m, 5 - 30 in-lb)

Applied model

225/50R17 (Front)

235/50R17 (Rear)

225/45R18 (Front)

245/45R18 (Rear)

225/40R19 (Front)

245/40R19 (Rear)

Front (Hf)

691 mm (27.20 in)

694 mm (27.32 in)

699 mm (27.52 in)

Rear (Hr)

702 mm (27.64 in)

710 mm (27.95 in)

SFA818A

SB-1

SEAT BELTS

H RESTRAINTS

CONTENTS

SECTION

SEAT BELTS

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions for Seat Belt Service ............................ 2

AFTER A COLLISION ........................................... 2

Precautions for Battery Service ................................ 3

SEAT BELTS .............................................................. 4

System Description .................................................. 4

SEAT BELT WARNING CHIME ............................ 4
SEAT BELT WARNING LAMP .............................. 4

Removal and Installation of Front Seat Belt ............. 4

REMOVAL OF SEAT BELT RETRACTOR ............ 4
INSTALLATION OF SEAT BELT RETRACTOR ..... 5
REMOVAL OF SEAT BELT BUCKLE .................... 5
INSTALLATION OF SEAT BELT BUCKLE ............ 5

Removal and Installation of Rear Seat Belt ............. 6

REMOVAL ............................................................. 6

INSTALLATION ..................................................... 6

Seat Belt Inspection .................................................. 7

AFTER A COLLISION ........................................... 7
PRELIMINARY CHECKS ...................................... 7
SEAT BELT RETRACTOR ON-VEHICLE
CHECK .................................................................. 8
SEAT BELT RETRACTOR OFF-VEHICLE
CHECK .................................................................. 9

LATCH (LOWER ANCHORS AND TETHER FOR
CHILDREN) SYSTEM ............................................... 10

Removal and Installation ........................................ 10

REMOVAL ........................................................... 10
INSTALLATION ................................................... 10

TOP TETHER STRAP CHILD RESTRAINT ............. 11

Removal and Installation ........................................ 11

REMOVAL ........................................................... 11
INSTALLATION ................................................... 11

SB-2

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NHS00013

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Seat Belt Service

NHS00014

CAUTION:

●

Before removing the front seat belt pre-tensioner assembly, turn the ignition switch off, discon-
nect the both battery cables and wait at least 3 minutes.

●

Do not use electrical test equipment for front seat belt pre-tensioner connector.

●

After replacing or reinstalling front seat belt pre-tensioner assembly, or reconnecting front seat
belt pre-tensioner connector, check the system function. Refer to

SRS-20, "SRS Operation Check"

●

Do not use disassemble buckle or seat belt assembly.

●

Replace anchor bolts if they are deformed or worn out.

●

Never oil tongue and buckle.

●

If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt
assembly.

●

If webbing is cut, frayed, or damaged, replace seat belt assembly.

●

When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-
lision was minor and the belts show no damage and continue to operate properly. Failure to do so
could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-
sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioner
should be replaced even if the seat belts are not in use during a frontal collision in which the air bags
are deployed.
Replace any seat belt assembly (including anchor bolts) if:

●

The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).

●

The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide).

●

The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair as necessary before installing a new seat belt assembly.

●

Anchor bolts are deformed or worn out.

●

The front seat belt pre-tensioner should be replaced even if the seat belts are not in use during the colli-
sion in which the air bags are deployed.

PRECAUTIONS

SB-3

Precautions for Battery Service

NHS00015

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.
