RF-12

SUNROOF

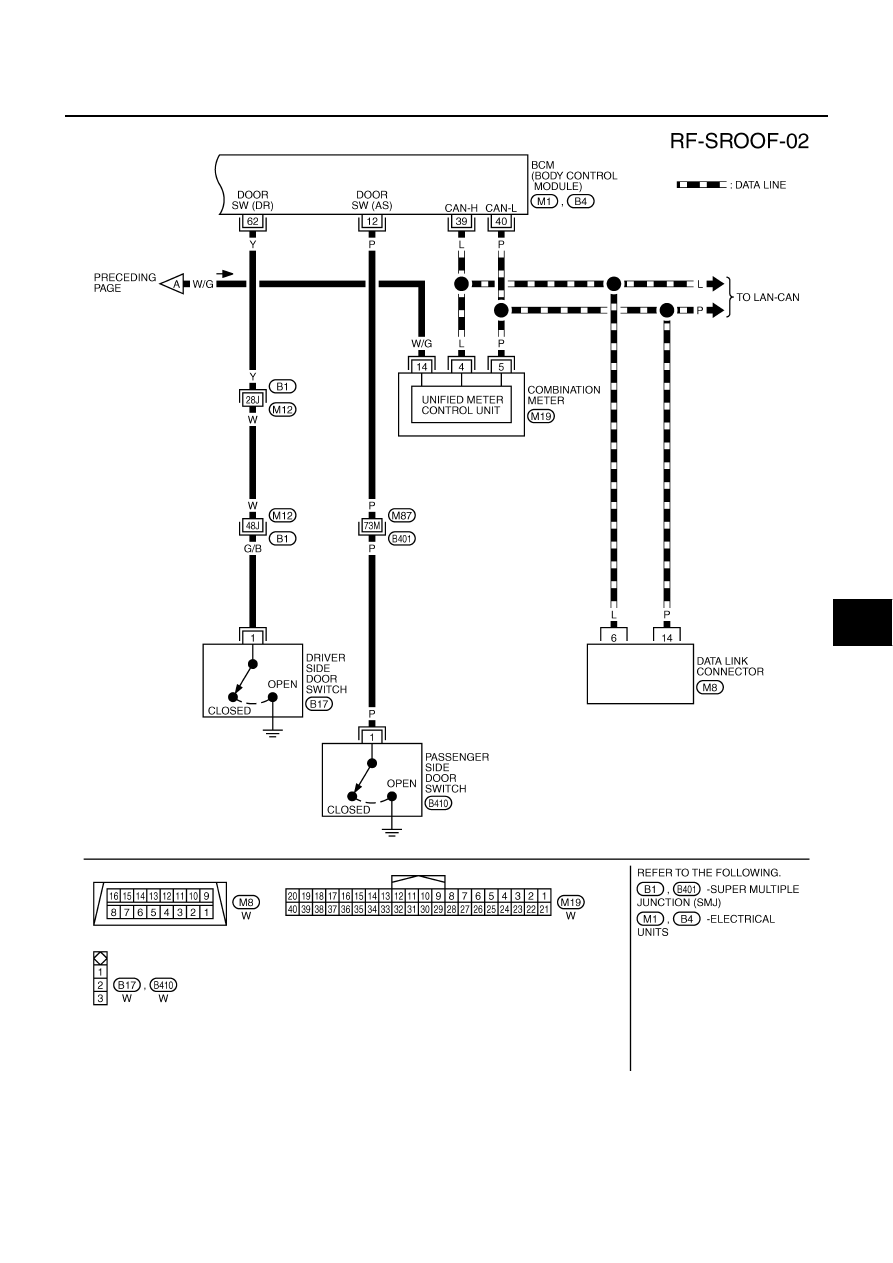

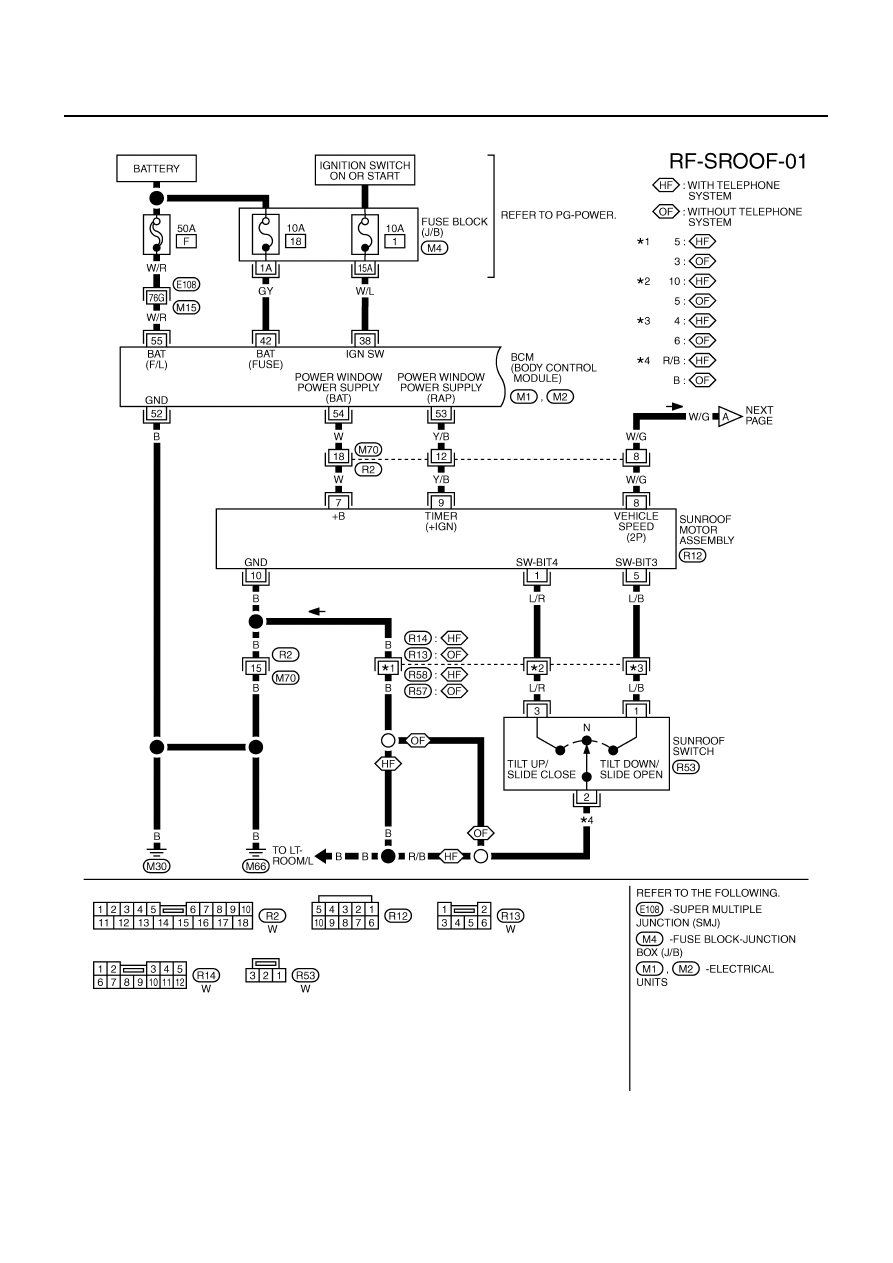

Wiring Diagram — SROOF —

NIS000FZ

TIWM1895E

SUNROOF

RF-13

C

D

E

F

G

H

J

K

L

M

A

B

RF

TIWM1492E

RF-14

SUNROOF

Terminals and Reference Value for BCM

NIS000G0

Terminals and Reference Value for Sunroof Motor Assembly

NIS000G1

Termi-

nal

Wire

color

Item

Signal

input/out-

put

Condition

Voltage (V)

(Approx.)

Ignition

switch

Operation or condition

12

P

Passenger side door
switch

Input

OFF

OPEN (ON)

0

CLOSE (OFF)

5

38

W/L

Ignition switch ON or
START

Input

Ignition switch (ON or START position)

Battery voltage

39

L

CAN-H

Input/Out-

put

—

—

—

40

P

CAN-L

Input/Out-

put

—

—

—

42

GY

BAT power supply

Input

OFF

—

Battery voltage

52

B

Ground

—

ON

—

0

53

Y/B

RAP signal

Output

Ignition switch ON

Battery voltage

OFF

Within 45 second after ignition switch
is turned to OFF position

Battery voltage

When driver side or passenger side
door is open in power window timer
operates

0

54

W

Power window power sup-
ply

Input

OFF

—

Battery voltage

55

W/R

BAT power supply

Input

OFF

—

Battery voltage

62

Y

Driver side door switch

Input

OFF

OPEN (ON)

0

CLOSE (OFF)

5

Ter-

minal

Wire

color

Item

Signal

input/

output

Condition

Voltage (V)

(Approx.)

Ignition

switch

Operation or condition

1

L/R

Sunroof (BIT 4) switch
signal

Input

ON

Ignition switch ON and sunroof
switch in
TILT UP / SLIDE CLOSE position

0

Other than above

Battery voltage

5

L/B

Sunroof (BIT 3) switch
signal

Input

ON

Ignition switch ON and sunroof
switch in
TILT DOWN / SLIDE OPEN position

0

Other than above

Battery voltage

7

W

Power window power
supply

Input

OFF

—

Battery voltage

8

W/G

Vehicle speed signal
(2 pulse)

Input

ON

Speedometer operated [When vehi-
cle speed is Approx. 40 km/h (25
MPH)]

ELF1080D

SUNROOF

RF-15

C

D

E

F

G

H

J

K

L

M

A

B

RF

9

Y/B

RAP signal

Input

Ignition switch ON

Battery voltage

OFF

Within 45 second after ignition
switch is turned to OFF position

Battery voltage

When driver side or passenger side
door is open in power window timer
is operates

0

10

B

Ground

—

ON

—

—

Ter-

minal

Wire

color

Item

Signal

input/

output

Condition

Voltage (V)

(Approx.)

Ignition

switch

Operation or condition
