Infiniti G35 (V35). Manual - part 672





PR-8

REAR PROPELLER SHAFT

ASSEMBLY

1.

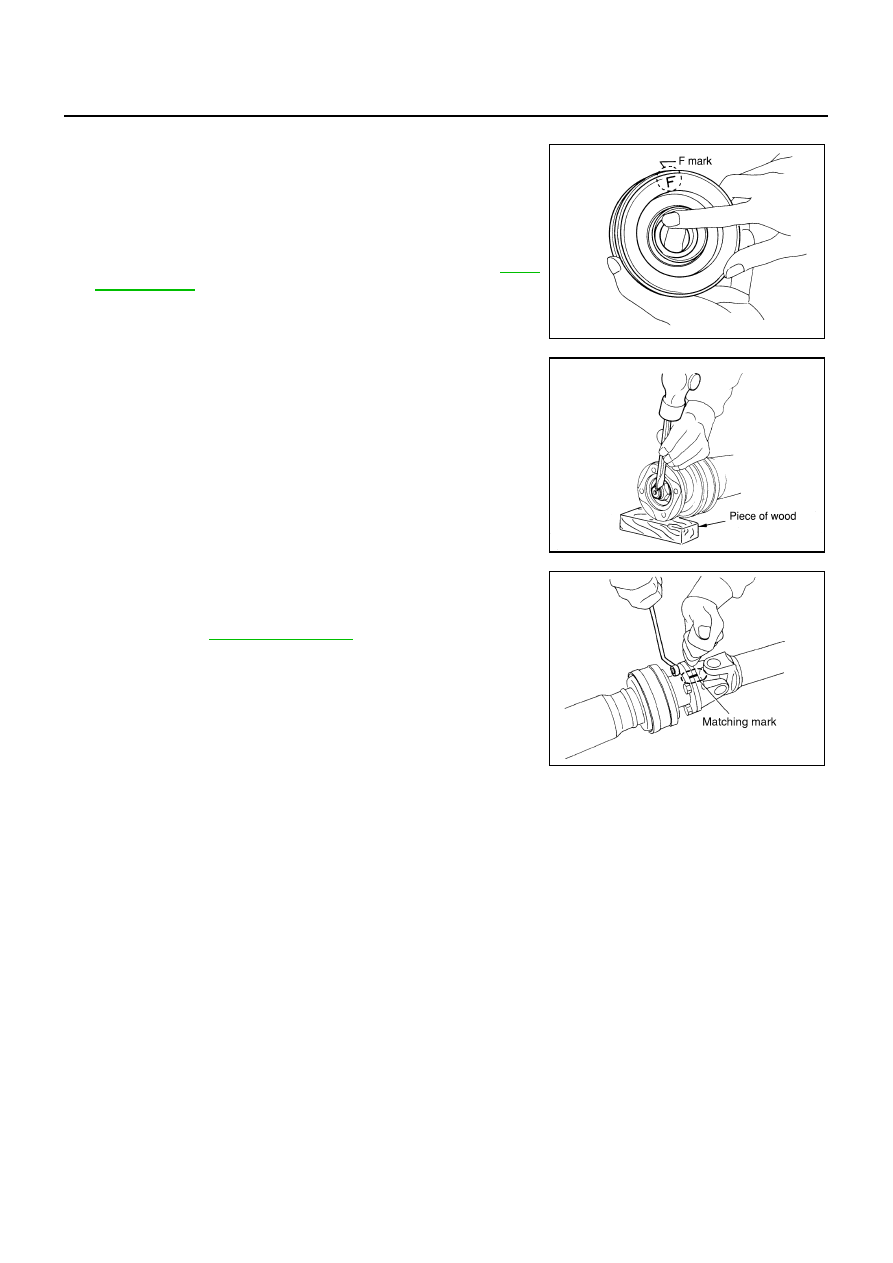

Install the center bearing with its “F” mark facing the rear of the
vehicle.

2.

Apply multi-purpose grease to the each face of the washer, then
install washer.

3.

Install the center flange onto the propeller shaft with aligning the
marks that are marked while removal.

4.

Install and tighten the lock nut to specified torque. Refer to

PR-4,

"Components"

 .

CAUTION:

Do not use the lock nut.

5.

Place a piece of wood under the center flange, stake the lock
nut against the propeller shaft groove.

6.

Assemble the 1st and 2nd shaft propeller shafts while aligning
the matching marks that are marked during removal.

7.

Install and tighten the bolts/nuts and tighten them to specified
torque. Refer to

PR-4, "Components"

 .

CAUTION:

Do not reuse the bolts, nuts and washers.

SDIA1542E

SDIA1543E

SDIA1538E

SERVICE DATA AND SPECIFICATIONS (SDS)

PR-9

C

E

F

G

H

I

J

K

L

M

A

B

PR

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

NDS0001C

Journal Axial Play

NDS0001D

Propeller Shaft Runout

NDS0001E

Applied model

VQ35DE

M/T

A/T

Propeller shaft model

3S80A

Number of joints

3

Coupling method with transmission

Sleeve type

Shaft length

1st (Spider to spider)

619 mm (24.37 in)

581 mm (22.87 in)

2nd (Spider to spider)

902 mm (35.51 in)

Shaft outer diameter

1st

82.6 mm (3.25 in)

2nd

82.6 mm (3.25 in)

Item

Specification

Journal axial play

0 mm (0 in)

Item

Specification

Propeller shaft runout limit

0.8 mm (0.031 in) or less

PR-10

SERVICE DATA AND SPECIFICATIONS (SDS)

PS-1

POWER STEERING SYSTEM

G  STEERING

CONTENTS

C

D

E

F

H

I

J

K

L

M

SECTION

A

B

PS

POWER STEERING SYSTEM

PRECAUTIONS .......................................................... 3

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for Battery Service ................................ 3
Service Notice or Precautions for Steering System

..... 3

PREPARATION ........................................................... 4

Special Service Tools  ............................................... 4
Commercial Service Tools ........................................ 5

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 6

NVH Troubleshooting Chart  ..................................... 6

POWER STEERING FLUID ........................................ 7

Checking Fluid Level  ................................................ 7
Checking Fluid Leakage ........................................... 7
Air Bleeding Hydraulic System  ................................. 7

STEERING WHEEL  .................................................... 9

On-Vehicle Inspection and Service  .......................... 9

CHECKING CONDITION OF INSTALLATION  ...... 9
CHECKING STEERING WHEEL PLAY  ................ 9
CHECKING NEUTRAL POSITION ON STEER-
ING WHEEL  .......................................................... 9
CHECKING STEERING WHEEL TURNING
FORCE .................................................................. 9
CHECKING FRONT WHEEL TURNING ANGLE

... 10

Removal and Installation  .........................................11

REMOVAL ............................................................11
INSTALLATION ....................................................11

Disassembly and Assembly  ....................................11

COMPONENTS ...................................................11
DISASSEMBLY ................................................... 12
ASSEMBLY ......................................................... 12

STEERING COLUMN  ............................................... 13

Removal and Installation  ........................................ 13

COMPONENTS .................................................. 13
REMOVAL OF LOWER JOINT, LOWER SHAFT,
HOLE COVER, CLAMP, HOLE COVER SEAL,
COLLAR AND UPPER JOINT  ............................ 14
INSTALLATION OF LOWER JOINT, LOWER

SHAFT, HOLE COVER, CLAMP, HOLE COVER
SEAL, COLLAR AND UPPER JOINT  ................. 14
REMOVAL OF STEERING COLUMN ASSEM-
BLY ...................................................................... 14
INSPECTION AFTER REMOVAL OF STEER-
ING COLUMN ASSEMBLY  ................................. 15
INSTALLATION OF STEERING COLUMN
ASSEMBLY ......................................................... 15
INSPECTION AFTER INSTALLATION OF
STEERING COLUMN ASSEMBLY  ..................... 15

Disassembly and Assembly .................................... 15

COMPONENTS ................................................... 15
DISASSEMBLY ................................................... 16
INSPECTION AFTER DISASSEMBLY ................ 16
ASSEMBLY ......................................................... 16
INSPECTION AFTER ASSEMBLY ...................... 16
COMPONENTS (ELECTRICITY TYPE) .............. 17
DISASSEMBLY ................................................... 18
INSPECTION AFTER DISASSEMBLY ................ 18
ASSEMBLY ......................................................... 18
INSPECTION AFTER ASSEMBLY ...................... 18

POWER STEERING GEAR AND LINKAGE  ............ 19

Removal and Installation  ........................................ 19

COMPONENTS (WITHOUT EPS)  ...................... 19
COMPONENTS (WITH EPS)  .............................. 19
REMOVAL ........................................................... 19
INSTALLATION ................................................... 21

POWER STEERING GEAR  ...................................... 22

Disassembly and Assembly .................................... 22

COMPONENTS ................................................... 22
DISASSEMBLY ................................................... 23
INSPECTION AFTER DISASSEMBLY ................ 24
ASSEMBLY ......................................................... 26

POWER STEERING OIL PUMP  ............................... 31

On-Vehicle Inspection and Service ......................... 31

CHECKING RELIEF OIL PRESSURE  ................ 31

Removal and Installation  ........................................ 31

REMOVAL ........................................................... 31
