PG

STANDARDIZED RELAY

PFP:00011

Description

NKS000QW

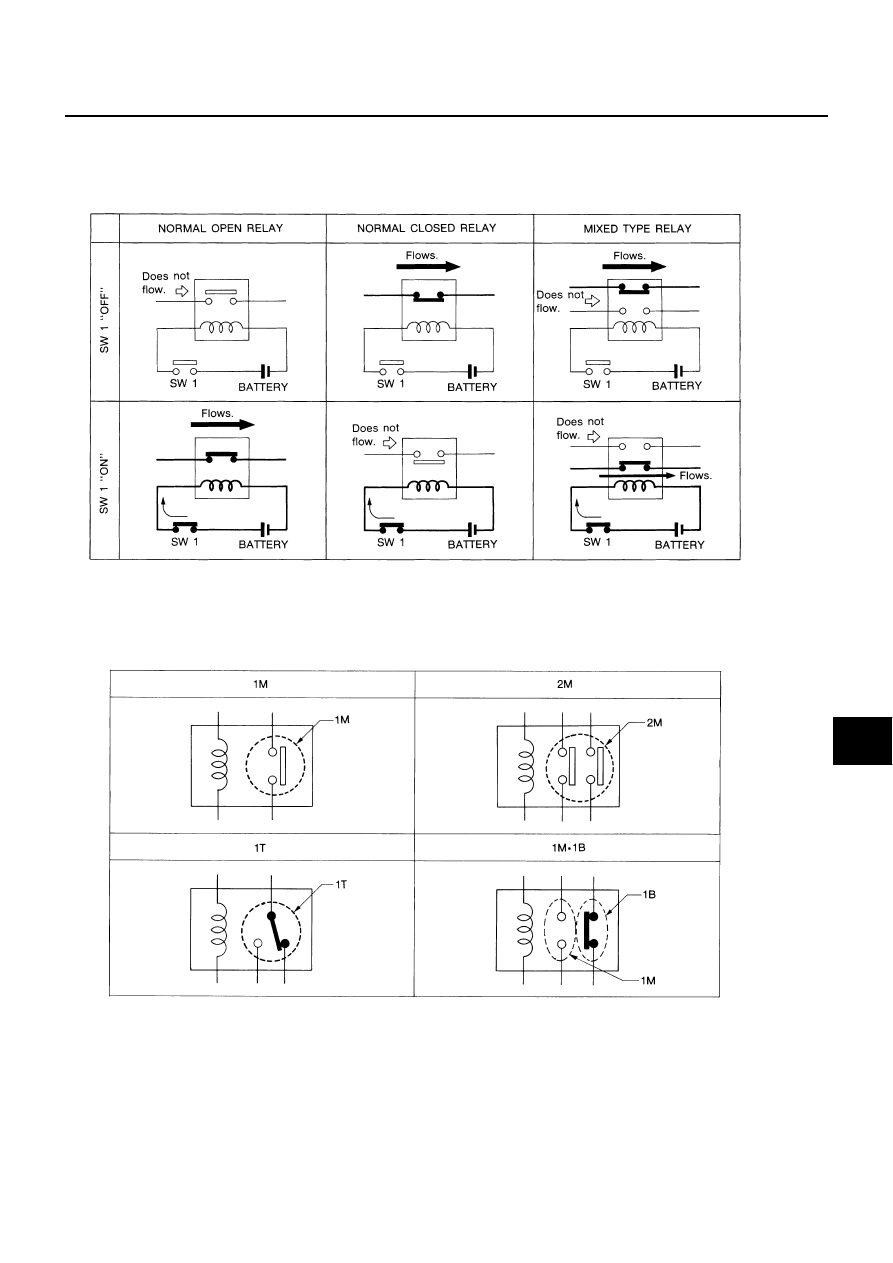

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

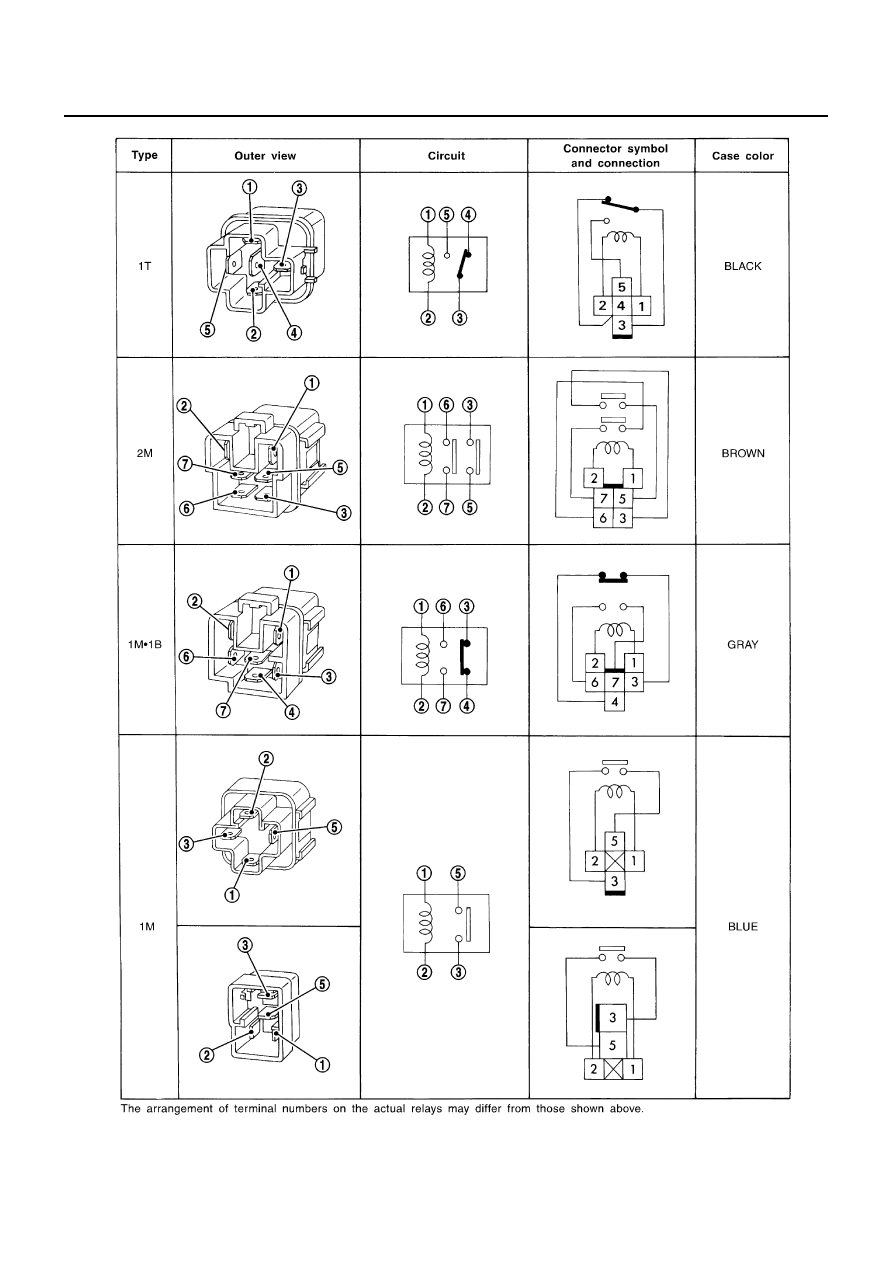

TYPE OF STANDARDIZED RELAYS

SEL881H

1M  ····················  1 Make

2M       ····················  2 Make

1T   ····················  1 Transfer

1M·1B  ····················  1 Make 1 Break

SEL882H

PG-72

STANDARDIZED RELAY

SEL188W

FUSE BLOCK - JUNCTION BOX (J/B)

PG-73

C

D

E

F

G

H

I

J

L

M

A

B

PG

FUSE BLOCK - JUNCTION BOX (J/B)

PFP:24350

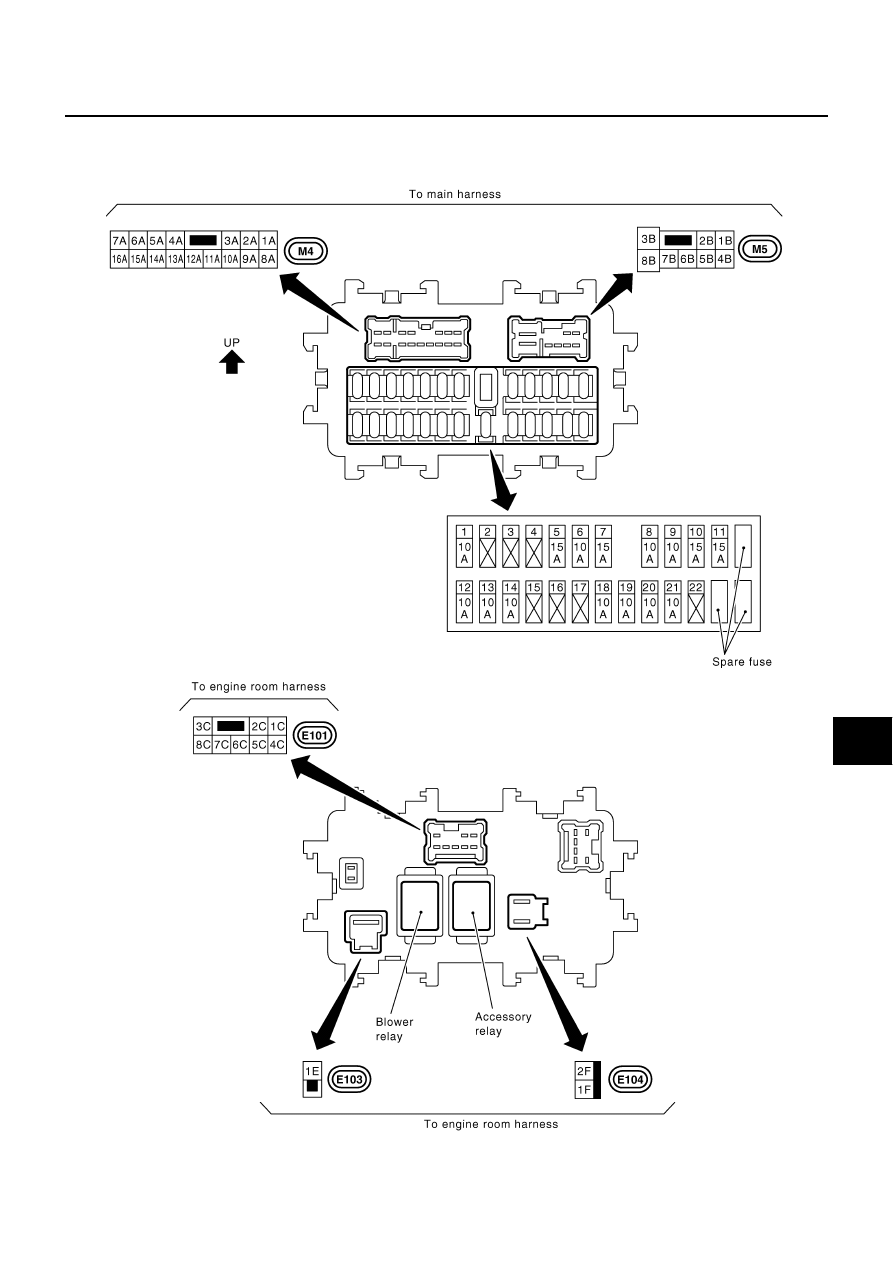

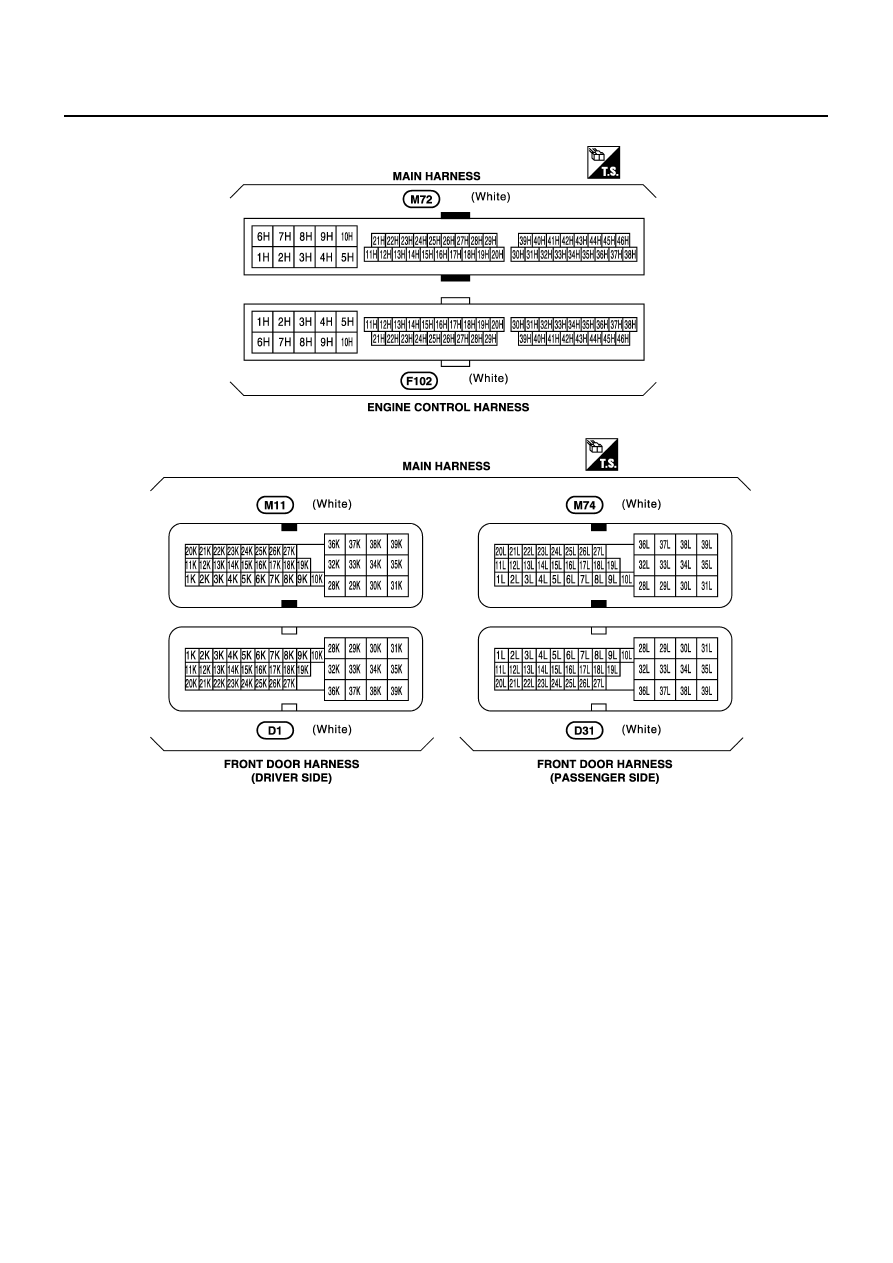

Terminal Arrangement

NKS000QX

CKIM0721E
