Bulb Replacement

NKS0026I

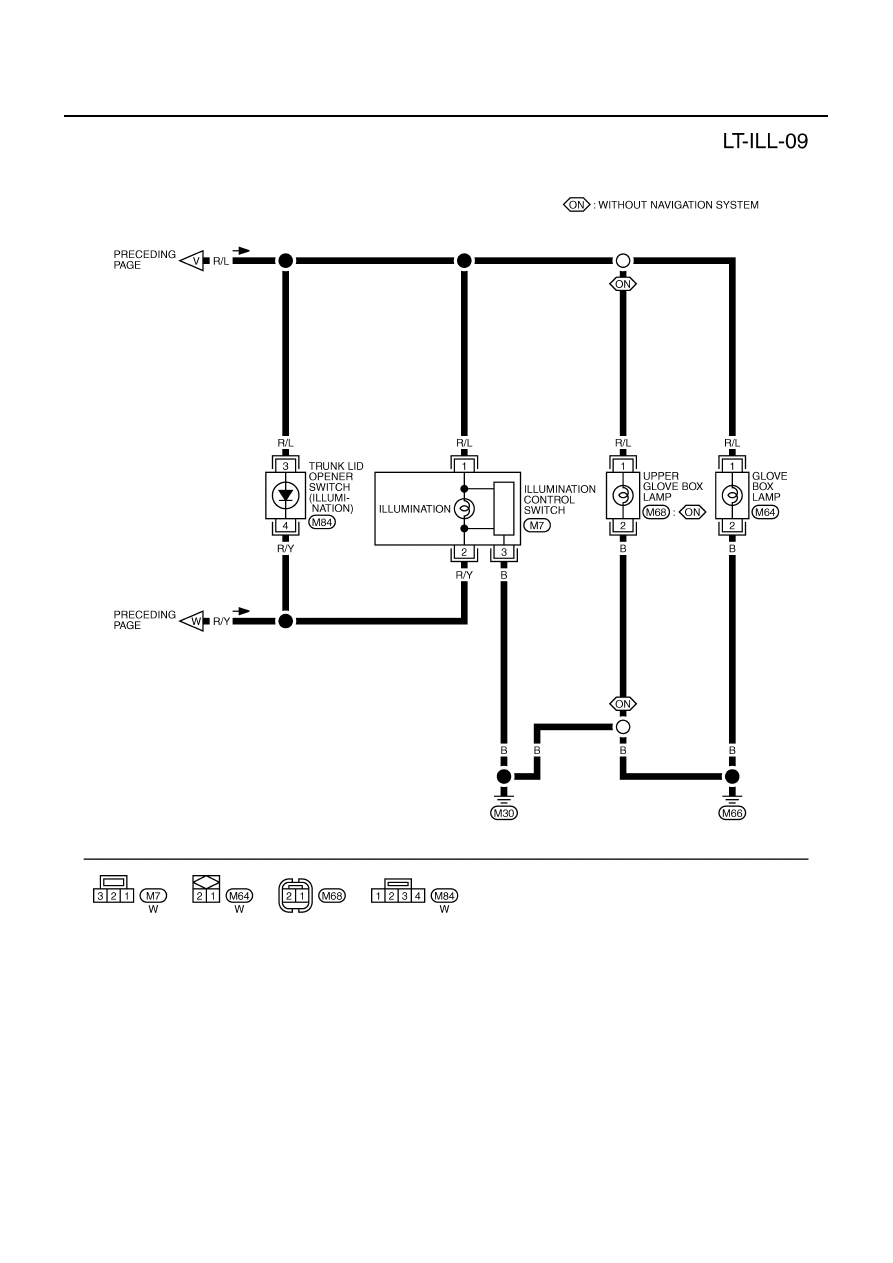

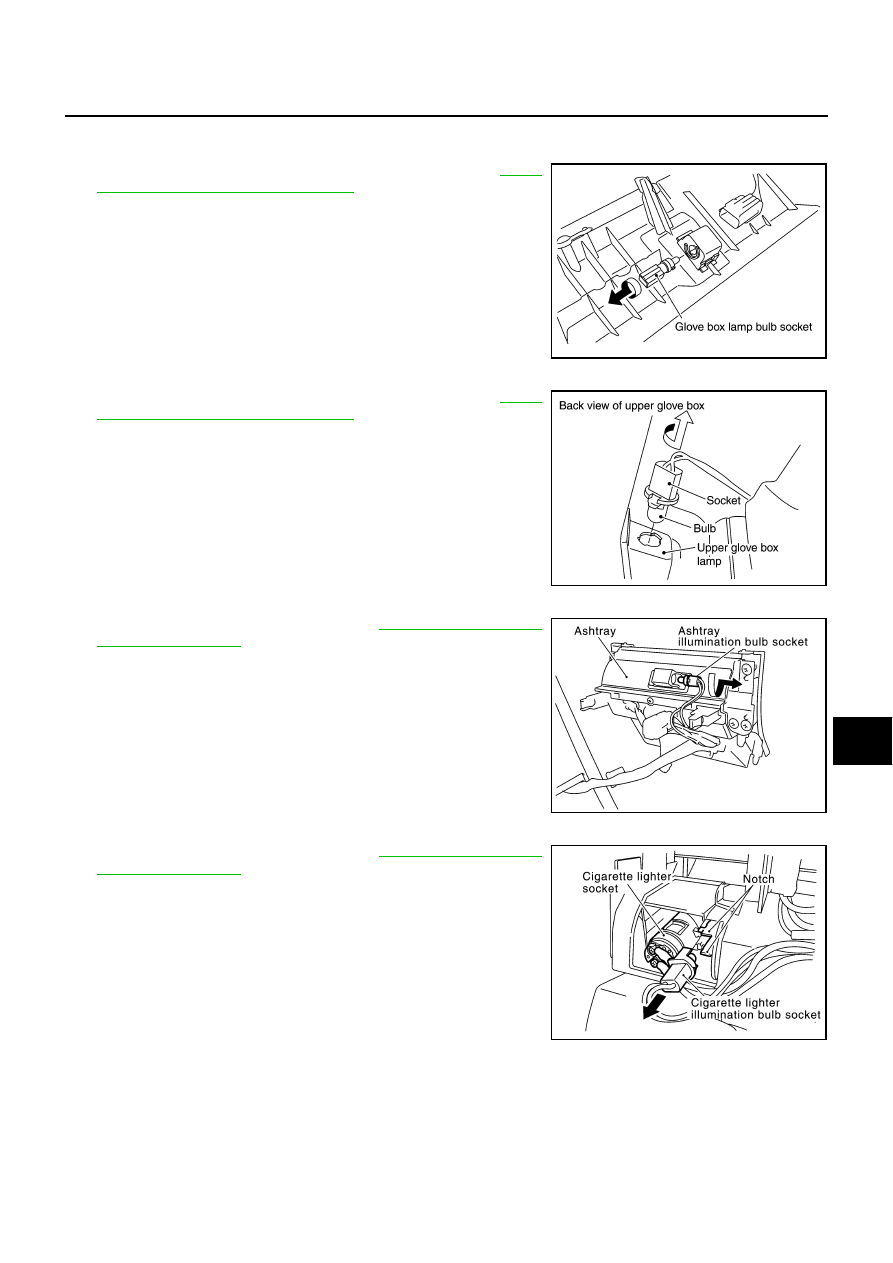

GLOVE BOX LAMP

1.

Remove instrument lower passenger panel. Refer to

IP-10,

"INSTRUMENT PANEL ASSEMBLY"

 .

2.

Turn bulb socket counterclockwise and remove it.

3.

Installation is the reverse order of removal.

UPPER GLOVE BOX LAMP

1.

Remove instrument lower passenger panel. Refer to

IP-10,

"INSTRUMENT PANEL ASSEMBLY"

 .

2.

Turn bulb socket counterclockwise and remove it.

3.

Installation is the reverse order of removal.

ASHTRAY ILLUMINATION

1.

Remove console finisher. Refer to

IP-10, "INSTRUMENT

PANEL ASSEMBLY"

 .

2.

Turn bulb socket to counterclockwise and remove it.

3.

Installation is the reverse order of removal.

CIGARETTE LIGHTER ILLUMINATION

1.

Remove console finisher. Refer to

IP-10, "INSTRUMENT

PANEL ASSEMBLY"

 .

2.

Open hooks and remove bulb socket.

CAUTION:

When replacing bulb, replace assembly together with illu-
mination ring.

3.

Installation is the reverse order of removal.

Glove box lamp

: 12 V - 1.4 W

PKIC0411E

Upper glove box lamp

: 12 V - 3.4 W

PKIC0538E

Ashtray illumination

: 12 V - 1.4 W

PKIB6109E

Cigarette lighter illumination

: 12 V - 0.8 W

PKIB6110E

LT-166

BULB SPECIFICATIONS

BULB SPECIFICATIONS

PFP:26297

Headlamp

NKS000K5

Exterior Lamp

NKS000K6

Interior Lamp/Illumination

NKS000K7

Item

Wattage (W)

Low / High

35 (D2R)

FOG

55 (H1)

Item

Wattage (W)

Front combination lamp

Turn signal

21 (amber)

Parking lamp

5

Rear combination lamp

Stop/Tail lamp

LED

Turn signal lamp

21

Back-up lamp

18

Rear side marker lamp

3.8

Front side marker lamp

3.8

License plate lamp

5

High-mounted stop lamp

LED

Item

Wattage (W)

Glove box lamp

1.4

Upper glove box lamp

3.4

Ignition key hole illumination lamp

1.4

Ashtray illumination lamp

1.4

Cigarette lighter illumination lamp

0.8

Map lamp

8

Step lamp

5

Trunk room lamp

3.4

Vanity mirror lamp

1.32
