PARKING, LICENSE PLATE AND TAIL LAMPS

4.

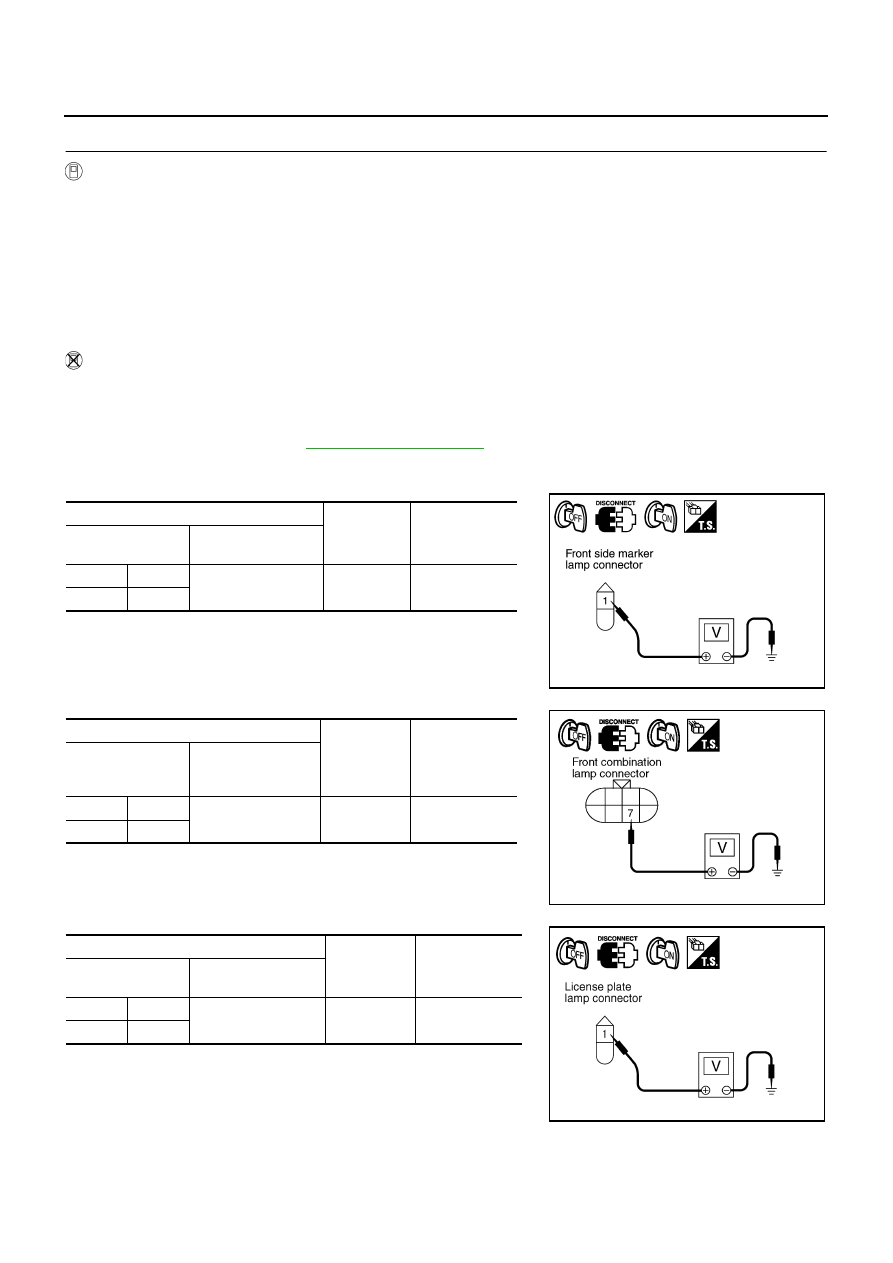

CHECK INPUT SIGNAL

With CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect front side marker lamp RH and LH, front combination lamp RH and LH, license plate lamp RH
and LH, and rear combination lamp RH and LH connectors.

3.

Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.

4.

Select “TAIL LAMP” on “SELECT TEST ITEM” screen.

5.

Touch “ON” screen.

6.

When tail lamp relay is operating, check voltage between front side marker lamp, front combination lamp,
license plate lamp and rear combination lamp harness connector and ground.

Without CONSULT-II

1.

Turn ignition switch OFF.

2.

Disconnect front side marker lamp RH and LH, front combination lamp RH and LH, license plate lamp RH
and LH, and rear combination lamp RH and LH connectors.

3.

Start auto active test. Refer to

PG-21, "Auto Active Test"

 .

4.

When tail lamp relay is operating, check voltage between front side marker lamp, front combination lamp,
license plate lamp, rear combination lamp harness connector and ground.

 (+)

(

−

)

Voltage

Front side marker

lamp connector

Terminal

RH

E28

1

Ground Battery

voltage

LH

E40

PKIA4916E

 (+)

(

−

)

Voltage

Front side marker

lamp connector

(Parking)

Terminal

RH

E24

7

Ground Battery

voltage

LH

E41

PKIA4917E

 (+)

(

−

)

Voltage

License plate lamp

connector

Terminal

RH

B153

1 Ground

Battery

voltage

LH

B152

PKIA5613E

PARKING, LICENSE PLATE AND TAIL LAMPS

LT-121

C

D

E

F

G

H

I

J

L

M

A

B

LT

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

 (+)

(

−

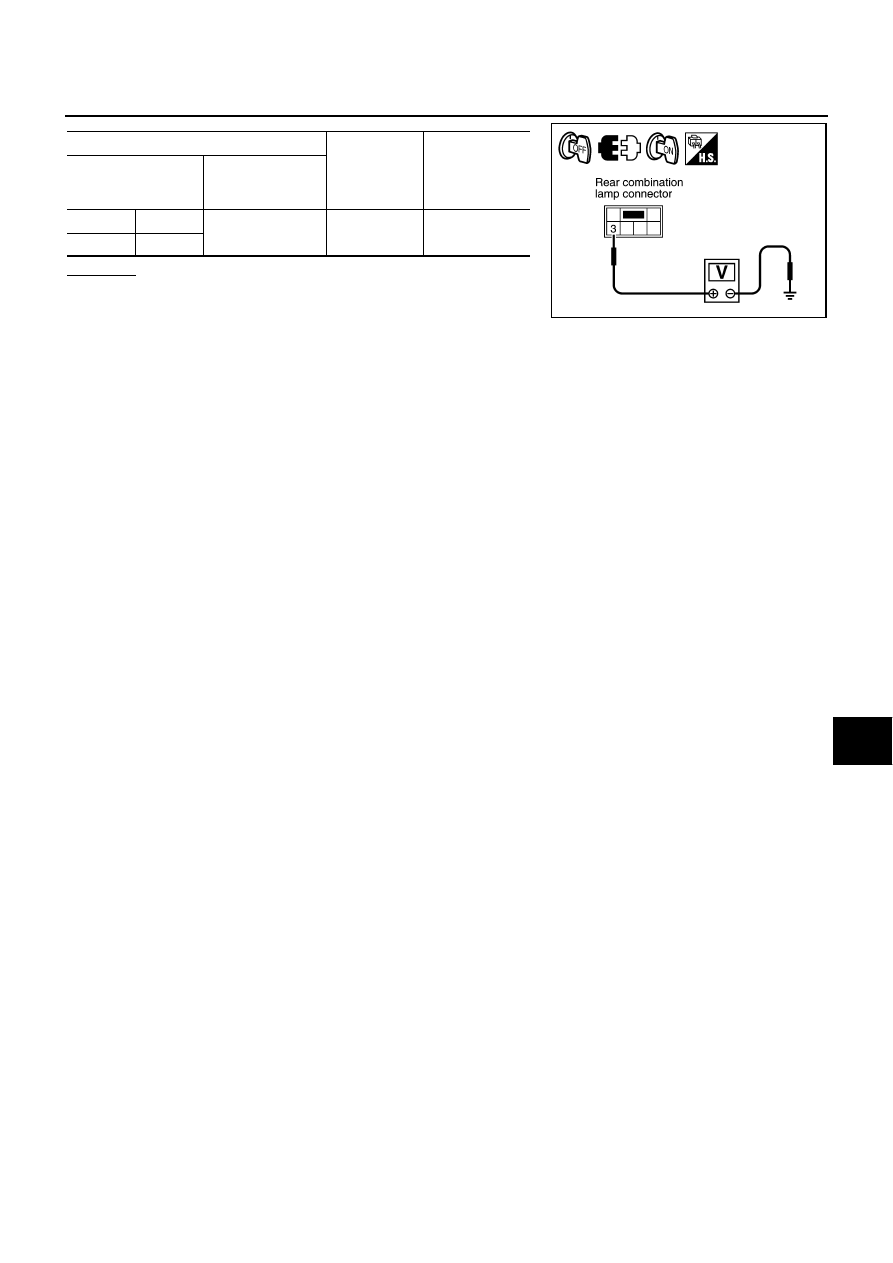

) Voltage

Rear combination

lamp connector

(Tail and side marker)

Terminal

RH

B127

3

Ground

Battery voltage

LH

B125

PKIB6500E

LT-122

PARKING, LICENSE PLATE AND TAIL LAMPS

5.

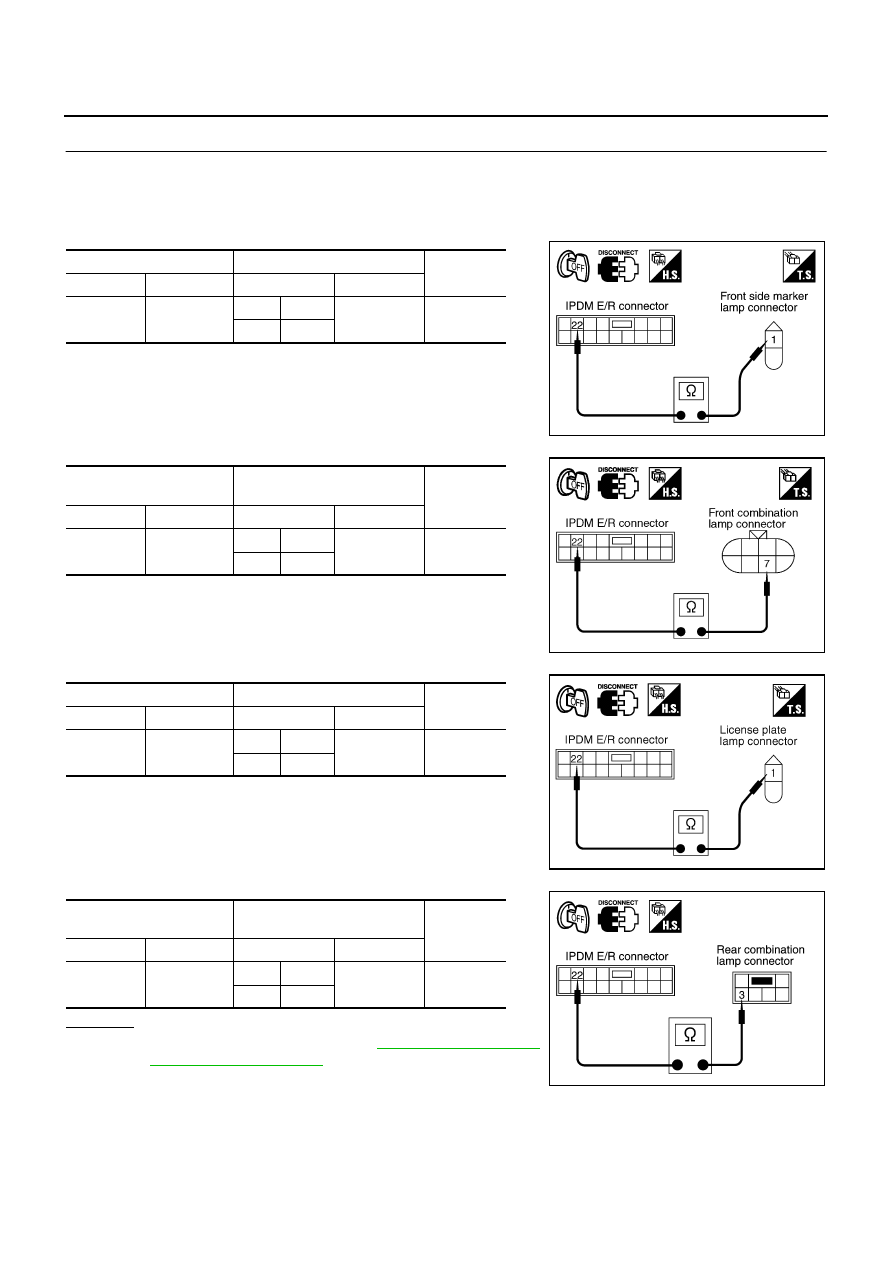

CHECK PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMP CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between IPDM E/R harness connector and front side marker lamp, front combination
lamp, license plate lamp and rear combination lamp harness connector.

OK or NG

OK

>> Replace IPDM E/R. Refer to

PG-27, "Removal and

Installation of IPDM E/R"

 .

NG

>> Repair harness or connector.

IPDM E/R

Front side marker lamp

Continuity

Connector

Terminal Connector

Terminal

E7

22

RH

E28

1

Yes

LH

E40

PKIA4918E

IPDM E/R

Front combination lamp

(Parking)

Continuity

Connector

Terminal Connector

Terminal

E7

22

RH

E24

7 Yes

LH

E41

PKIA4919E

IPDM E/R

License plate lamp

Continuity

Connector

Terminal Connector

Terminal

E7

22

RH

B153

1

Yes

LH

B152

PKIA5614E

IPDM E/R

Rear combination lamp

(Tail and side marker)

Continuity

Connector

Terminal Connector

Terminal

E7

22

RH

B127

3

Yes

LH

B125

PKIA5084E

PARKING, LICENSE PLATE AND TAIL LAMPS

LT-123

C

D

E

F

G

H

I

J

L

M

A

B

LT

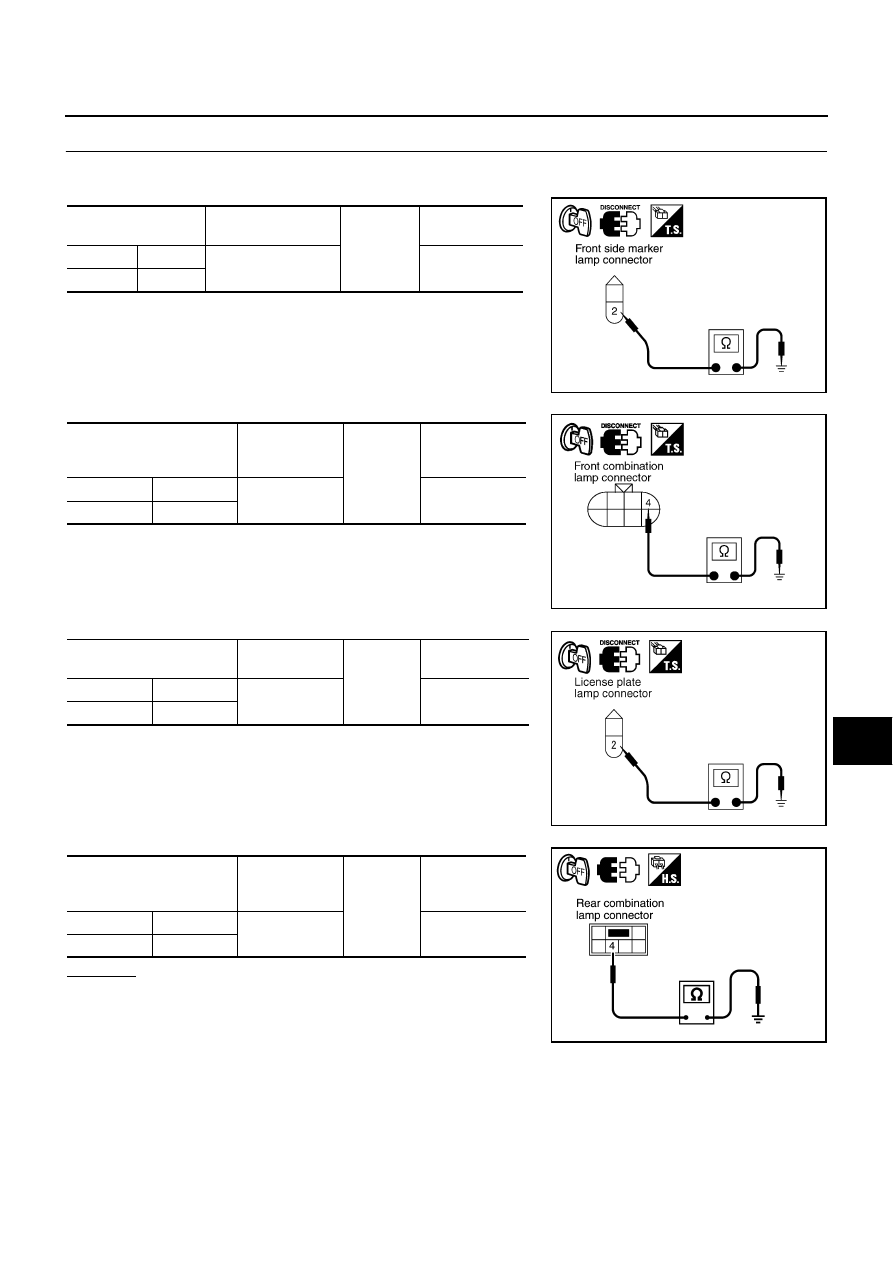

6.

CHECK GROUND

Check continuity between front side maker lamp, front combination lamp, license plate lamp and rear combi-
nation lamp harness connector and ground.

OK or NG

OK

>> Check bulb and replace rear combination lamp.

NG

>> Repair harness or connector.

Front side marker

lamp connector

Terminal

Ground

Continuity

RH

E28

2 Yes

LH

E40

PKIA4920E

Front combination lamp

connector

(Parking)

Terminal

Ground

Continuity

RH

E24

8 Yes

LH

E41

PKIA4921E

License plate lamp

 connector

Terminal

Ground

Continuity

RH

B153

2

Yes

LH

B152

PKIA5615E

Rear combination lamp

connector

(Tail and side marker)

Terminal

Ground

Continuity

RH

B127

4

Yes

LH

B125

PKIB6586E
