LT-92

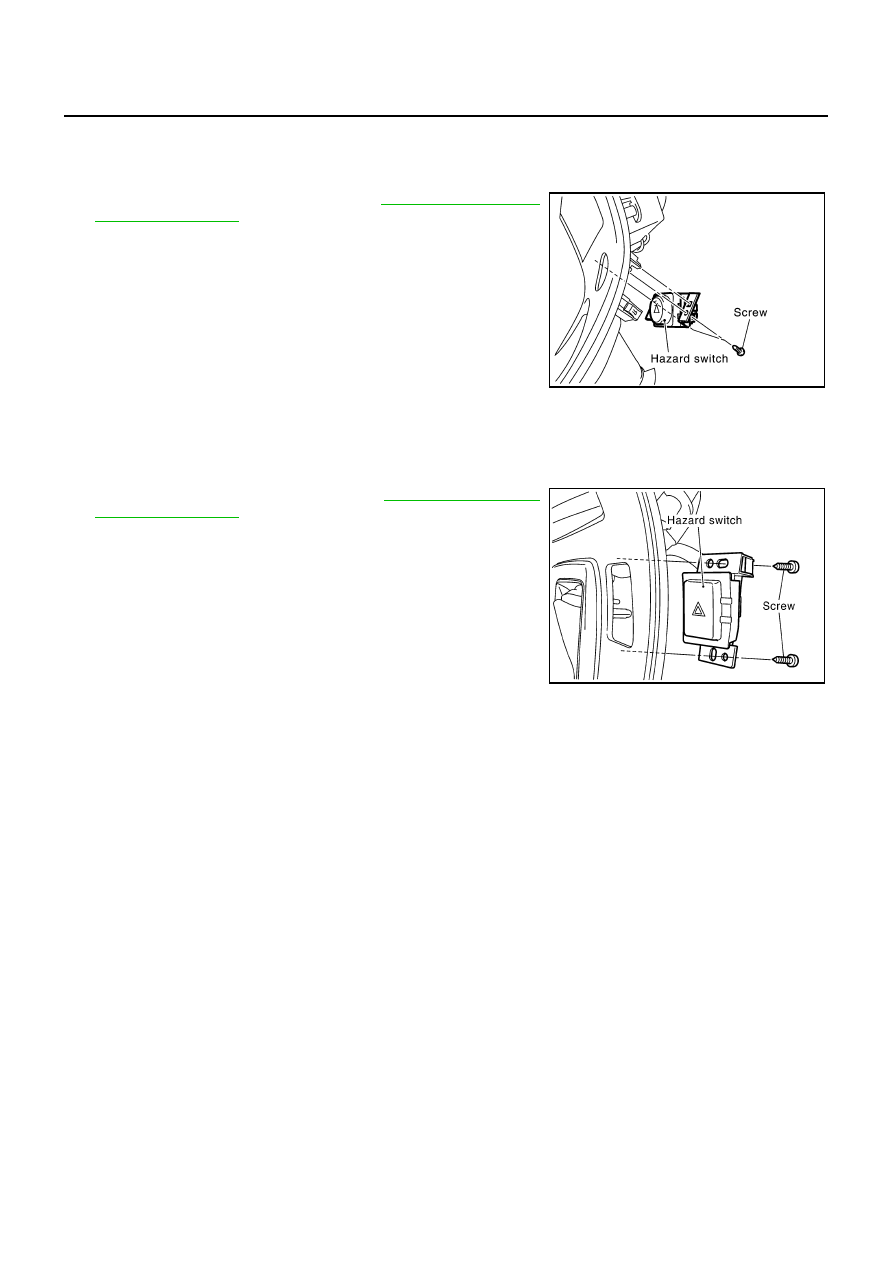

HAZARD SWITCH

HAZARD SWITCH

PFP:25290

Removal and Installation (M/T)

NKS000IE

REMOVAL

1.

Remove console boot (M/T). Refer to

IP-10, "INSTRUMENT

PANEL ASSEMBLY"

 .

2.

Disconnect hazard switch connector.

3.

Remove screws.

4.

Remove hazard switch.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation (A/T)

NKS000IF

REMOVAL

1.

Remove console finisher (A/T). Refer to

IP-10, "INSTRUMENT

PANEL ASSEMBLY"

 .

2.

Disconnect hazard switch connector.

3.

Remove screws.

4.

Remove hazard switch.

INSTALLATION

Installation is the reverse order of removal.

PKIB6497E

PKIB6111E

COMBINATION SWITCH

LT-93

C

D

E

F

G

H

I

J

L

M

A

B

LT

COMBINATION SWITCH

PFP:25567

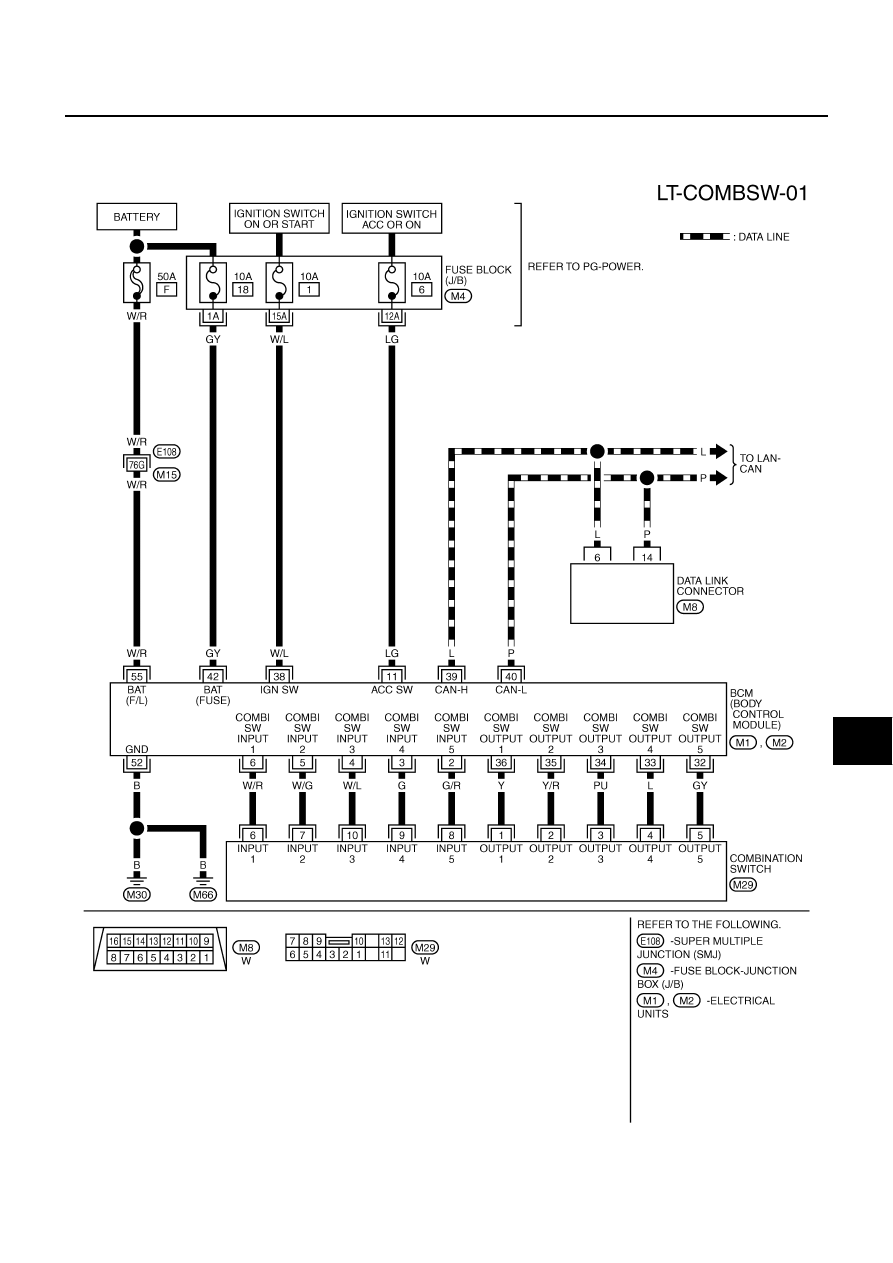

Wiring Diagram — COMBSW —

NKS002P1

TKWM2183E

LT-94

COMBINATION SWITCH

Combination Switch Reading Function

NKS002P2

For details, refer to

BCS-3, "COMBINATION SWITCH READING FUNCTION"

 .

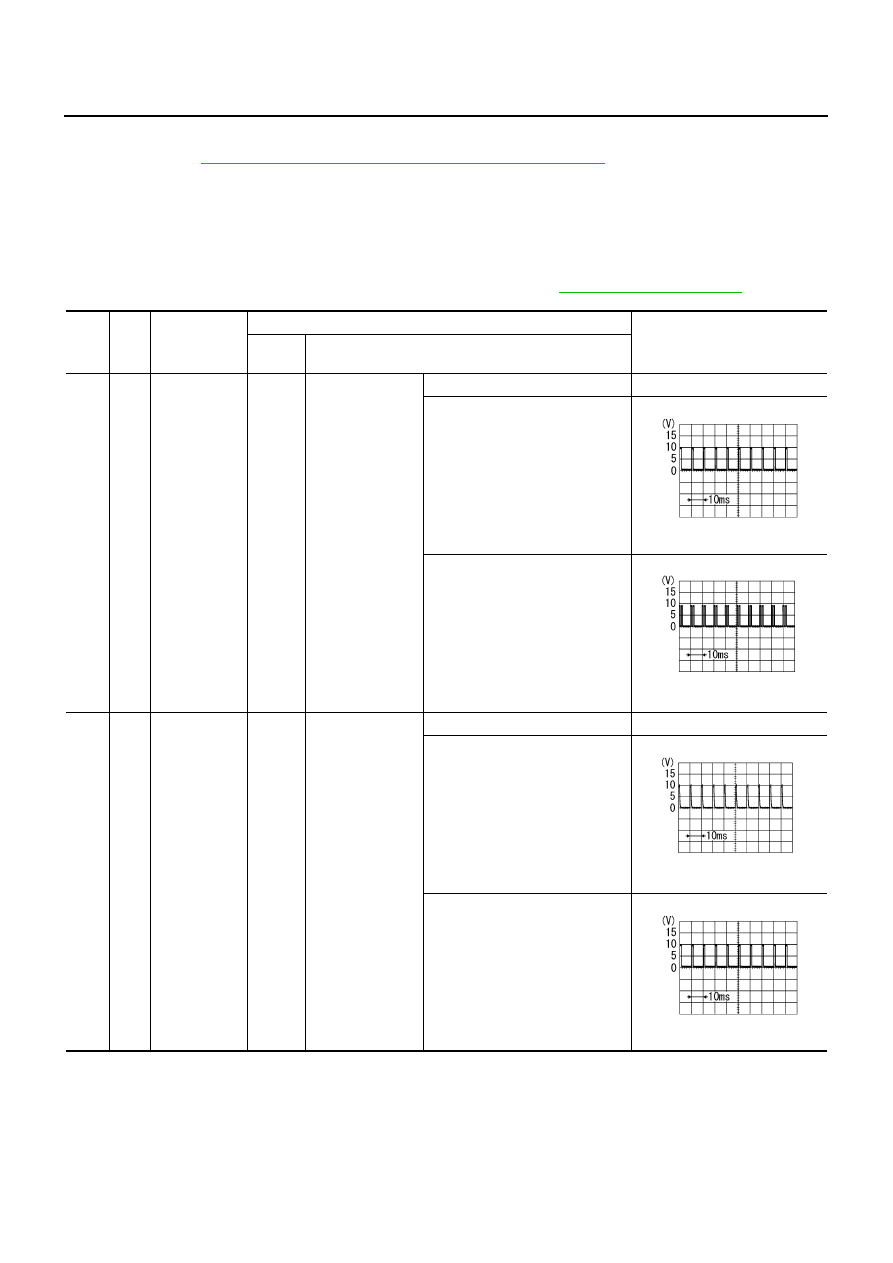

Terminals and Reference Values for BCM

NKS002Q1

CAUTION:

●

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal and wiper switch OFF not to be fluctuated by overloaded.

●

Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to

LT-99, "DATA MONITOR"

 .

Ter-

minal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

2

G/R

Combination
switch input 5

ON

Lighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4)

OFF

Approx. 0 V

Any of the conditions below

●

Lighting switch 1ST

●

Lighting switch HIGH beam
(Operates only HIGH beam
switch)

●

Turn signal switch to right

Approx. 1.0 V

Lighting switch 2ND

Approx. 2.0 V

3

G

Combination
switch input 4

ON

Lighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4)

OFF

Approx. 0 V

Front fog lamp switch (Operates
only front fog lamp switch)

Approx. 0.8 V

Any of the conditions below

●

Lighting switch 2ND

●

Lighting switch PASSING
(Operates only PASSING
switch)

●

Turn signal switch to left

Approx. 1.0 V

PKIB4959J

PKIB4953J

PKIB4955J

PKIB4959J

COMBINATION SWITCH

LT-95

C

D

E

F

G

H

I

J

L

M

A

B

LT

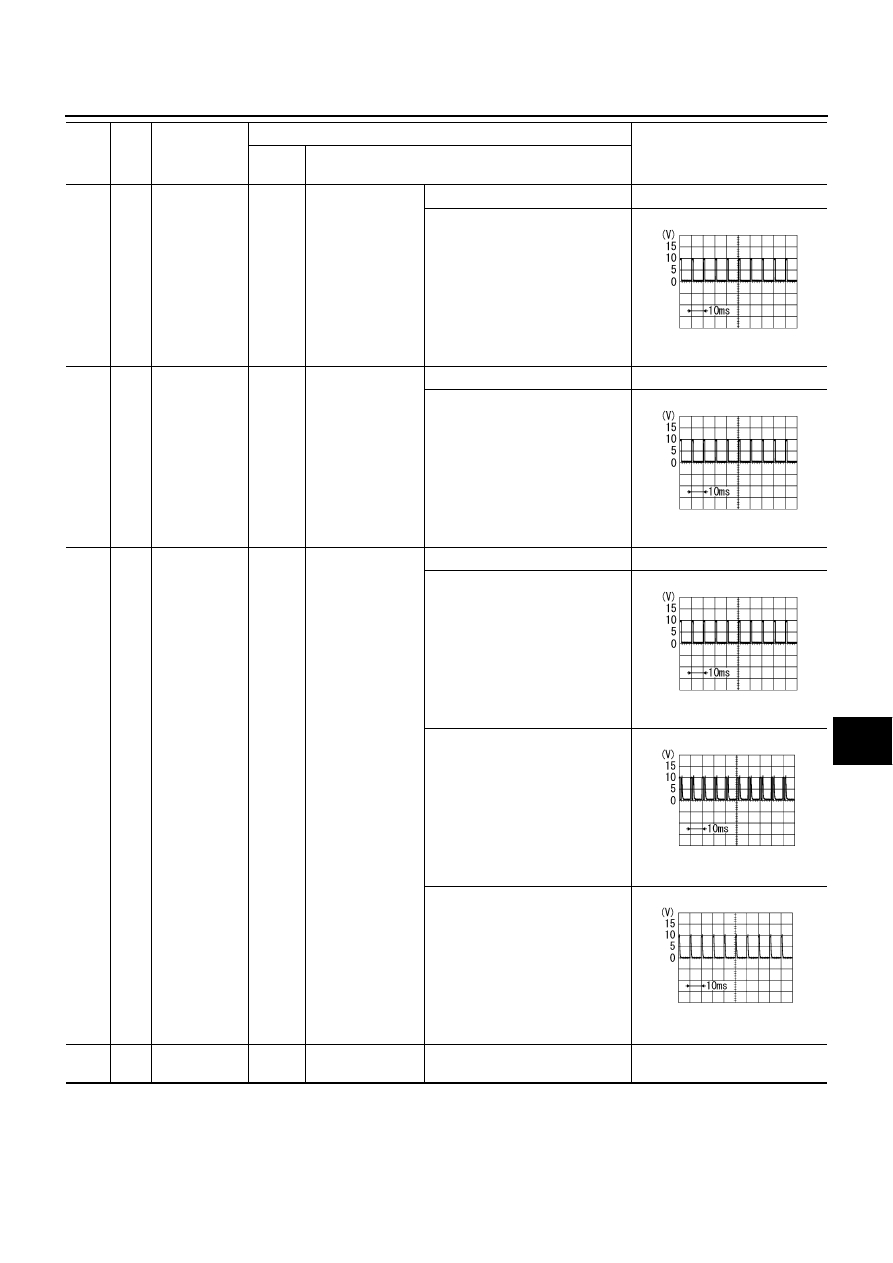

4

W/L

Combination
switch input 3

ON

Lighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4)

OFF

Approx. 0 V

Any of the conditions below

●

Lighting switch AUTO

●

Front wiper switch MIST

●

Front wiper switch INT

●

Front wiper switch LO

Approx. 1.0 V

5

W/G

Combination
switch input 2

ON

Lighting, turn,
wiper switch

OFF

Approx. 0 V

Any of the conditions below

●

Front washer switch
(Wiper intermittent dial position
4)

●

Wiper intermittent dial position 1

●

Wiper intermittent dial position 5

●

Wiper intermittent dial position 6

Approx. 1.0 V

6

W/R

Combination
switch input 1

ON

Lighting, turn,
wiper switch

OFF

Approx. 0 V

Any of the conditions below

●

Front wiper switch HI
(Wiper intermittent dial position
4)

●

Wiper intermittent dial position 3

Approx. 1.0 V

Any of the conditions below

●

Wiper intermittent dial position 1

●

Wiper intermittent dial position 2

Approx. 1.7 V

Any of the conditions below

●

Wiper intermittent dial position 6

●

Wiper intermittent dial position 7

Approx. 0.8 V

11

LG

Ignition switch
(ACC)

ACC

—

Battery voltage

Ter-

minal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

PKIB4959J

PKIB4959J

PKIB4959J

PKIB4952J

PKIB4955J
