TROUBLE DIAGNOSES WORK FLOW

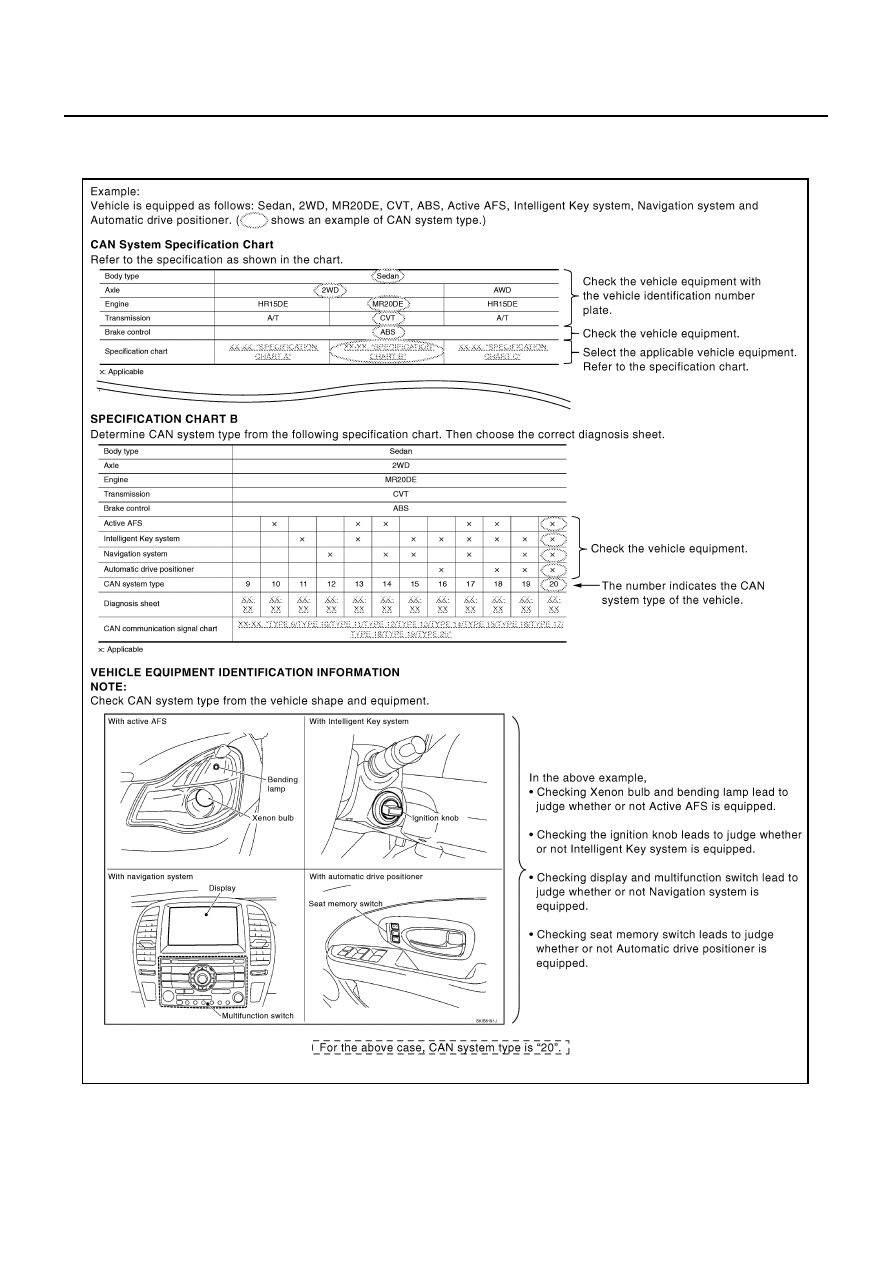

CAN System Type Specification Chart (Style B)

NOTE:
CAN system type is easily checked with the vehicle equipment identification information shown in the chart.

SKIB8889E

TROUBLE DIAGNOSES WORK FLOW

LAN-21

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

CREATE INTERVIEW SHEET

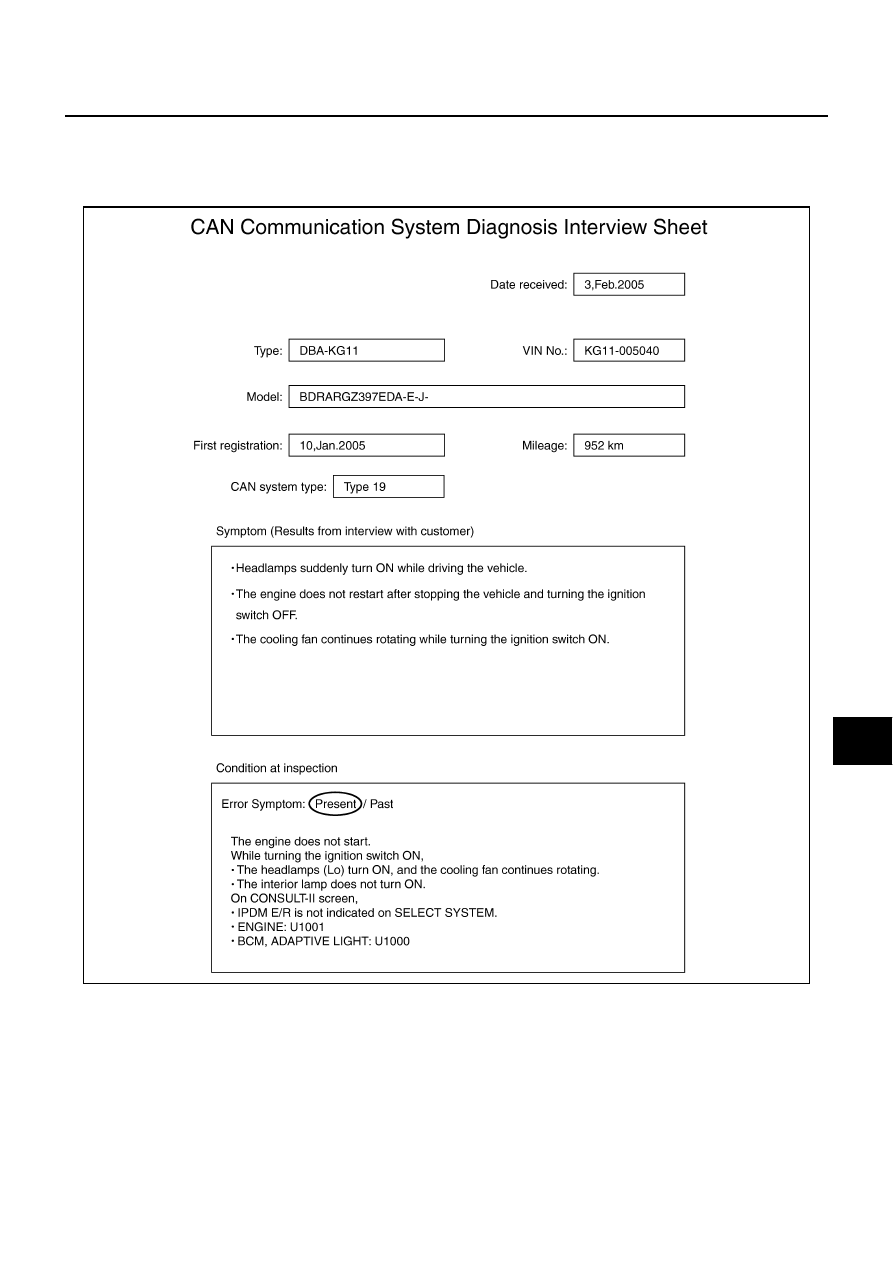

Fill out the symptom described by the customer, vehicle condition, and CAN system type on the interview
sheet.

Interview Sheet (Example)

SKIB8890E

LAN-22

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSES WORK FLOW

CREATE DATA SHEET
Create CONSULT-II Data Attachment Sheet

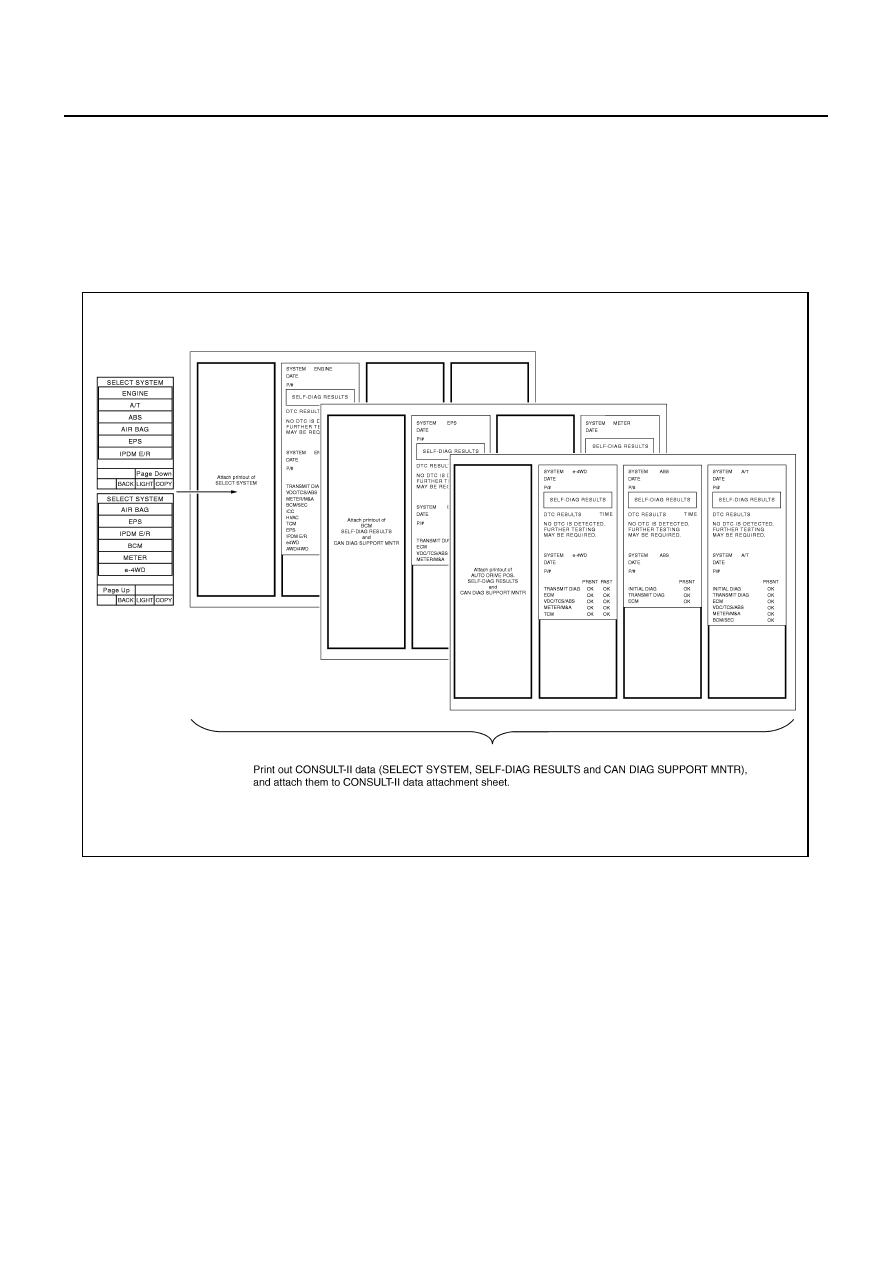

Print out the following CONSULT-II screens, and attach them to the CONSULT-II data attachment sheet.

●

SELECT SYSTEM

●

SELF-DIAG RESULTS

●

CAN DIAG SUPPORT MNTR

NOTE:
Some items may not be needed depending on CAN system type of vehicle.

SKIB8721E

TROUBLE DIAGNOSES WORK FLOW

LAN-23

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Create On-board Diagnosis Copy Sheet

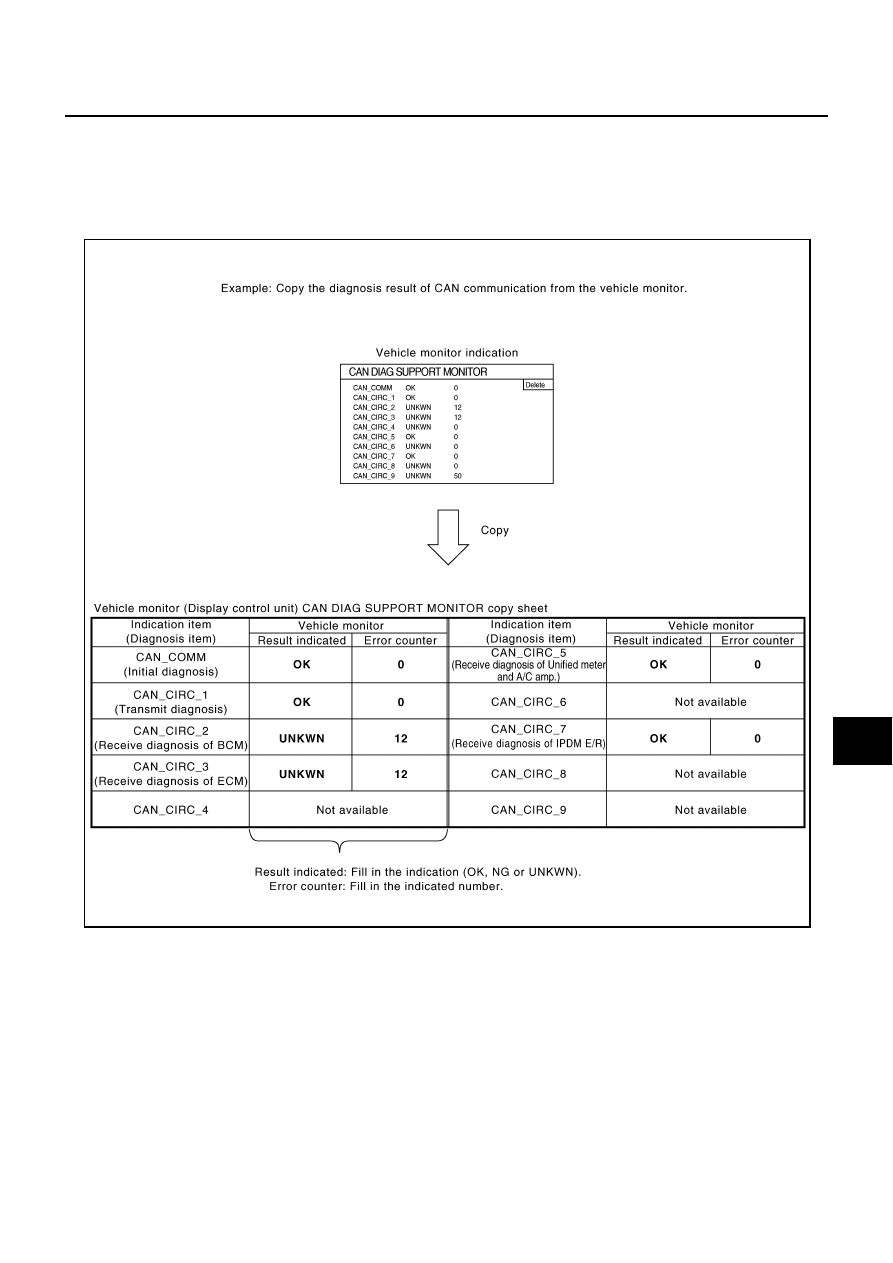

Display the trouble diagnosis result of CAN communication with the on-board diagnosis function on the vehicle
monitor, etc. Copy them on the on-board diagnosis copy sheet.
NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-II is
not available.)

SKIB8722E
