IP-18

INSTRUMENT PANEL ASSEMBLY

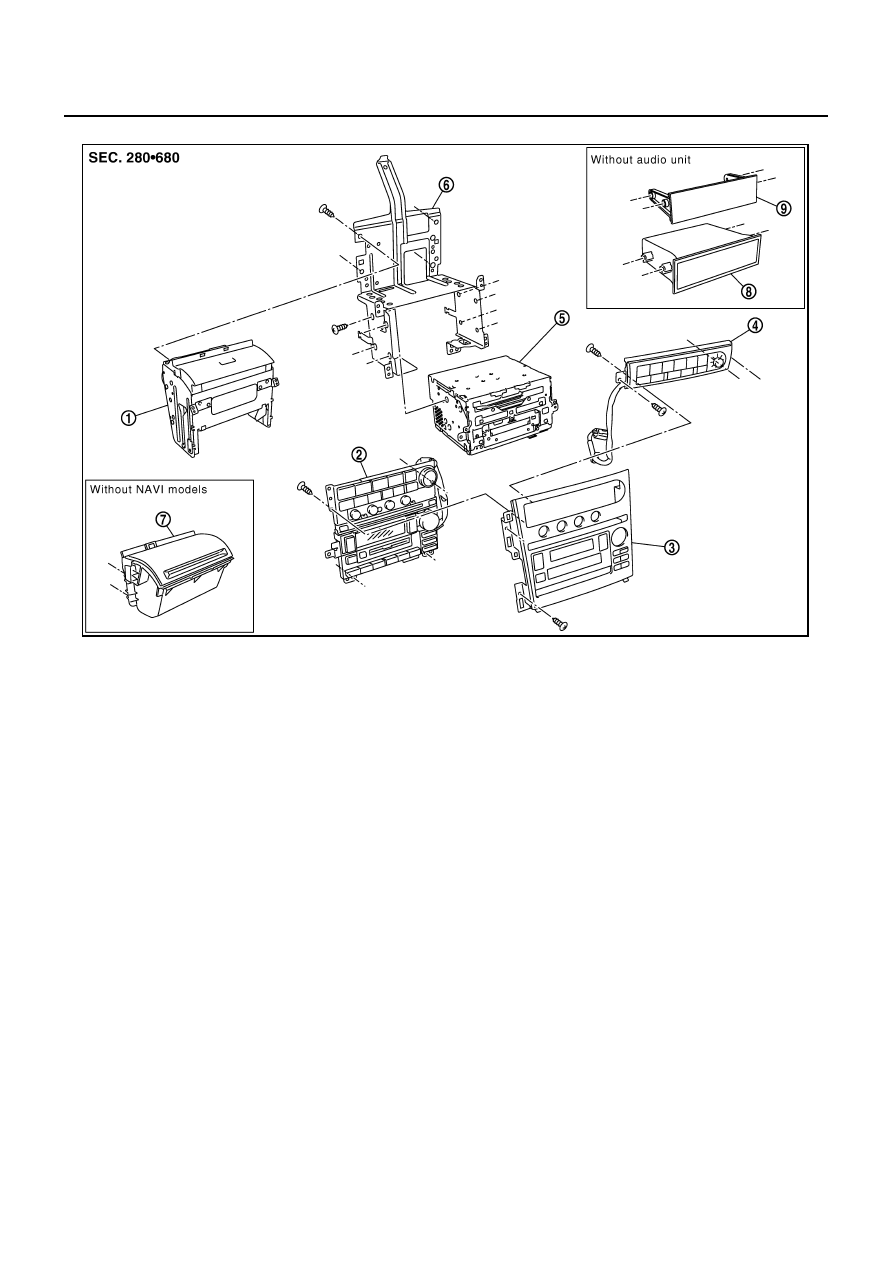

CLUSTER LID C ASSEMBLY

Disassembly

1.

Remove cluster lid C panel.

2.

Remove NAVI switch.

3.

Remove A/C and audio controller.

4.

Remove display unit.

5.

Remove instrument upper pocket (without NAVI models).

6.

Remove audio assembly.

7.

Remove instrument mask (without audio models).

8.

Remove pocket deck.

Assembly

Assemble in the reverse order of disassembly.

1.

Display unit assembly

2.

A/C and audio controller

3.

Cluster lid C

4.

NAVI SW

5.

Audio assembly

6.

Audio bracket

7.

Instrument upper pocket

8.

Pocket deck

9.

Instrument mask

PIIB2717E

INSTRUMENT PANEL ASSEMBLY

IP-19

C

D

E

F

G

H

J

K

L

M

A

B

IP

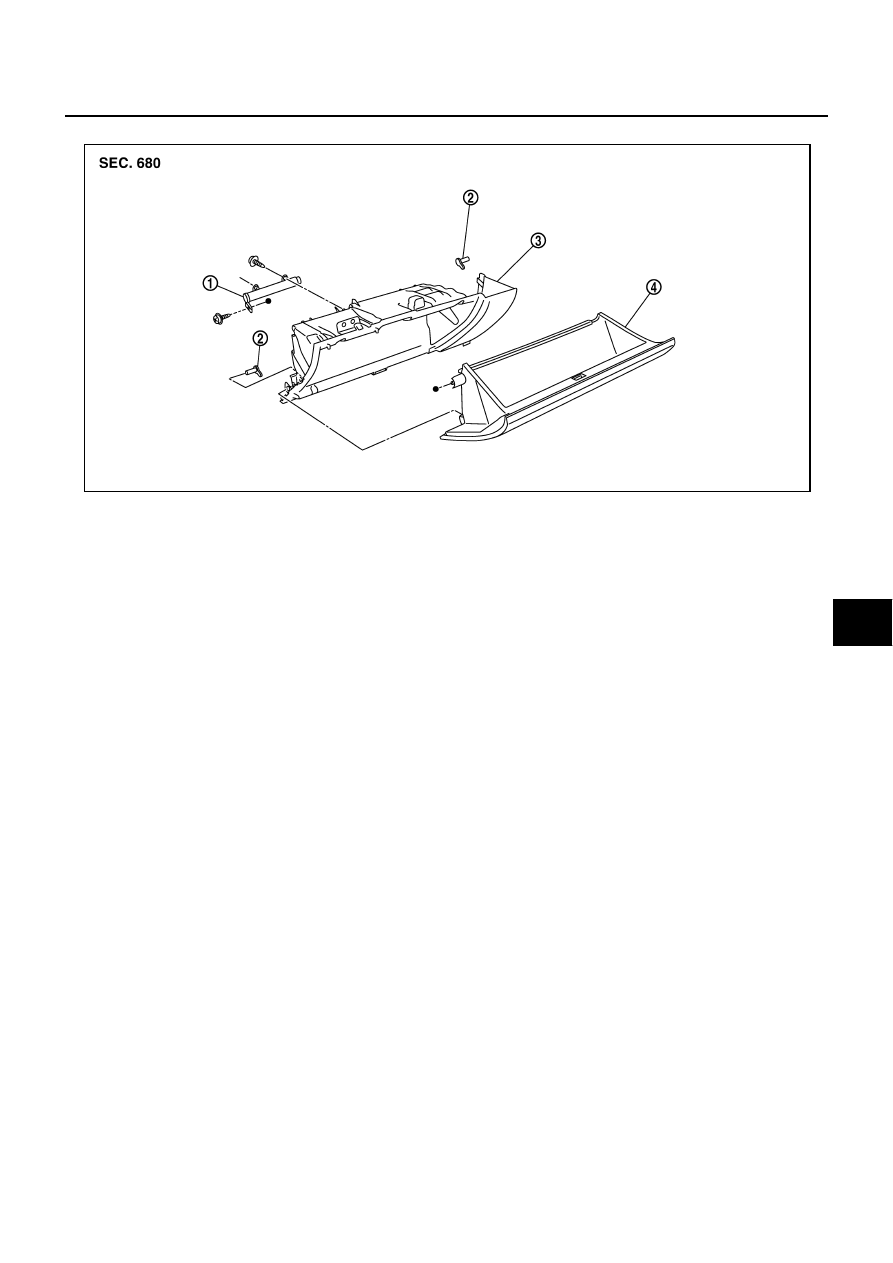

GLOVE BOX ASSEMBLY

Disassembly

1.

Remove screws of damper wire portion.

2.

Disconnect glove box pins, and remove glove box.

3.

Remove screws on back side of instrument lower passenger panel, and remove damper.

Assembly

Assemble in the reverse order of disassembly.

1.

Damper

2.

Pin

3.

Instrument lower passenger panel

4.

Glove box

PIIB2716E

IP-20

INSTRUMENT PANEL ASSEMBLY

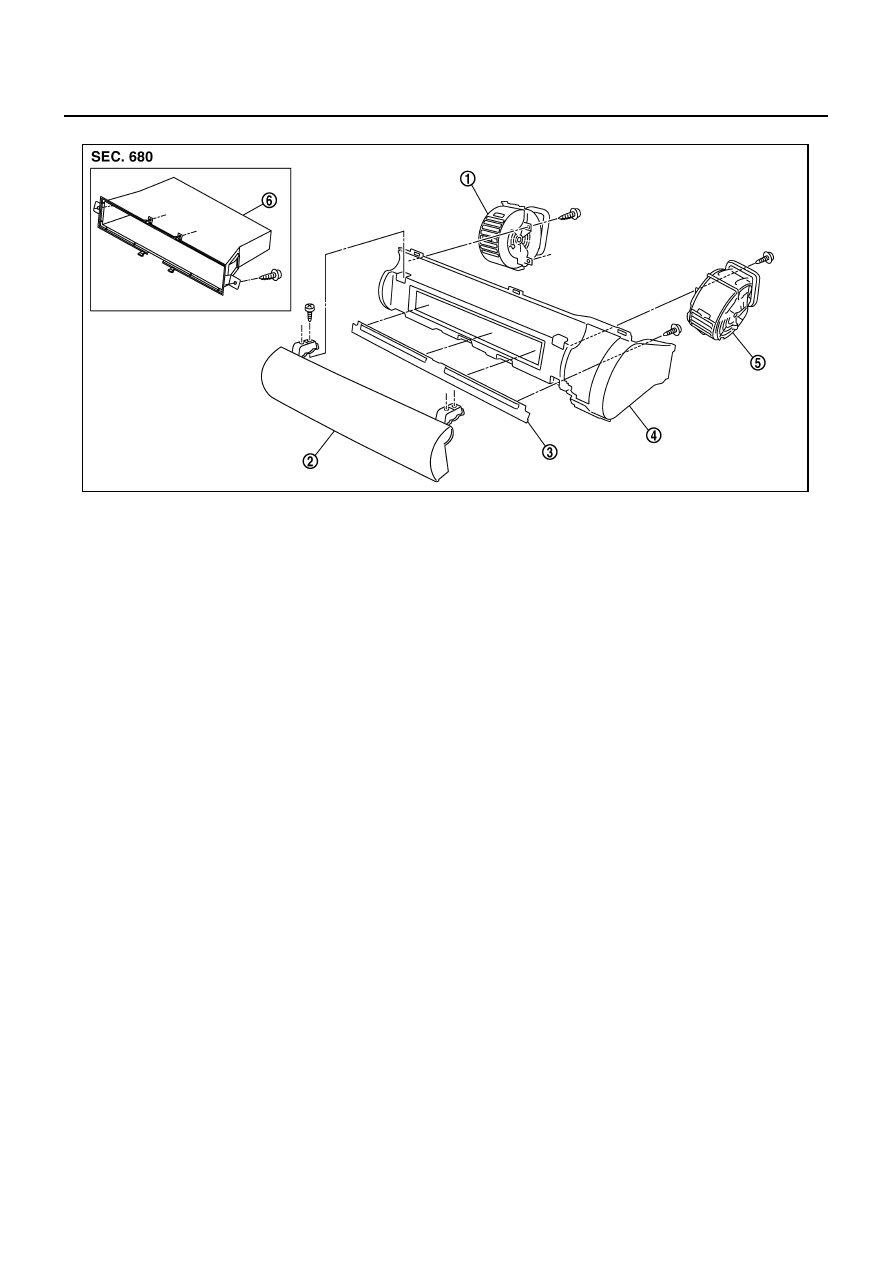

CENTER BOX ASSEMBLY

Disassembly

1.

Remove screws and pawls, and then remove side ventilator grille (RH) and center ventilator grille.

2.

Remove screws, and then remove pocket (without NAVI models).

3.

Remove screws, and then remove center box upper and lower lid.

Assembly

Assemble in the reverse order of disassembly.

1.

Center ventilator grille (RH)

2.

Center box upper lid

3.

Center box lower lid

4.

Center box

5.

Side ventilator grille (RH)

6.

Pocket

PIIB2714E

INSTRUMENT PANEL ASSEMBLY

IP-21

C

D

E

F

G

H

J

K

L

M

A

B

IP

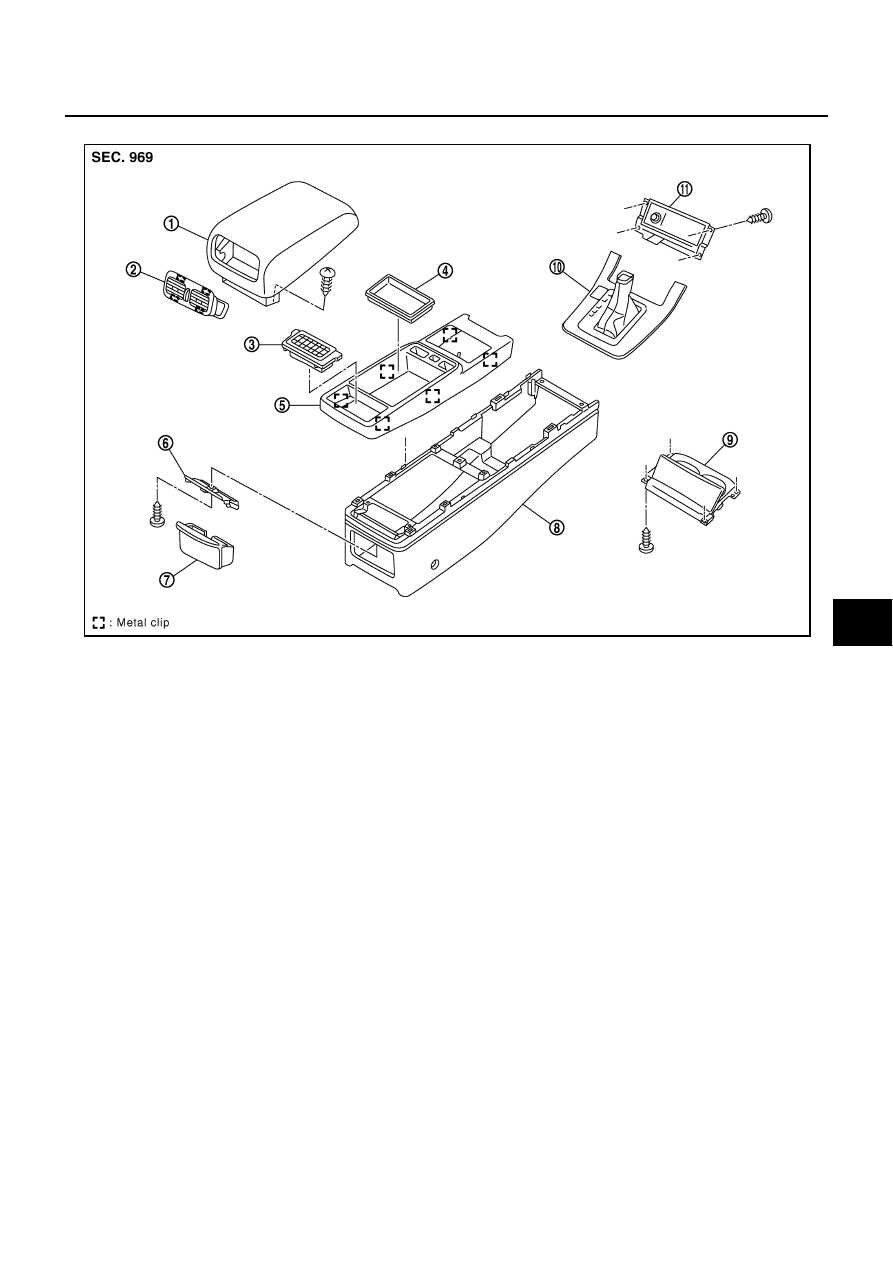

CENTER CONSOLE (A/T MODELS)

Disassembly

1.

Remove screws of back side (front), and remove ashtray (front portion).

2.

Remove console mask.

3.

Remove screws and remove console lid.

4.

Disconnect metal clips and remove rear ventilator from console lid.

5.

Remove ashtray.

6.

Remove screws and remove ashtray bracket.

7.

Disconnect metal clips (back side), and remove console tray.

8.

Remove screws of back side (lower), and remove cup holder.

Assembly

Assemble in the reverse order of disassembly.

1.

Console lid

2.

Rear ventilator grille

3.

Console mask

4.

Console pocket

5.

Console tray

6.

Ashtray bracket

7.

Ashtray (rear)

8.

Center console

9.

Cup holder

10. Console finisher

11.

Ashtray (front)

PIIB2715E
