REAR WINDOW DEFOGGER

GW-79

C

D

E

F

G

H

J

K

L

M

A

B

GW

Filament Repair

NIS000FJ

REPAIR EQUIPMENT

●

Conductive silver composition (Dupont No. 4817 or equivalent)

●

Ruler 30 cm (11.8 in) long

●

Drawing pen

●

Heat gun

●

Alcohol

●

Cloth

REPAIRING PROCEDURE

1.

Wipe broken heat wire and its surrounding area clean with a
cloth dampened in alcohol.

2.

Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.

3.

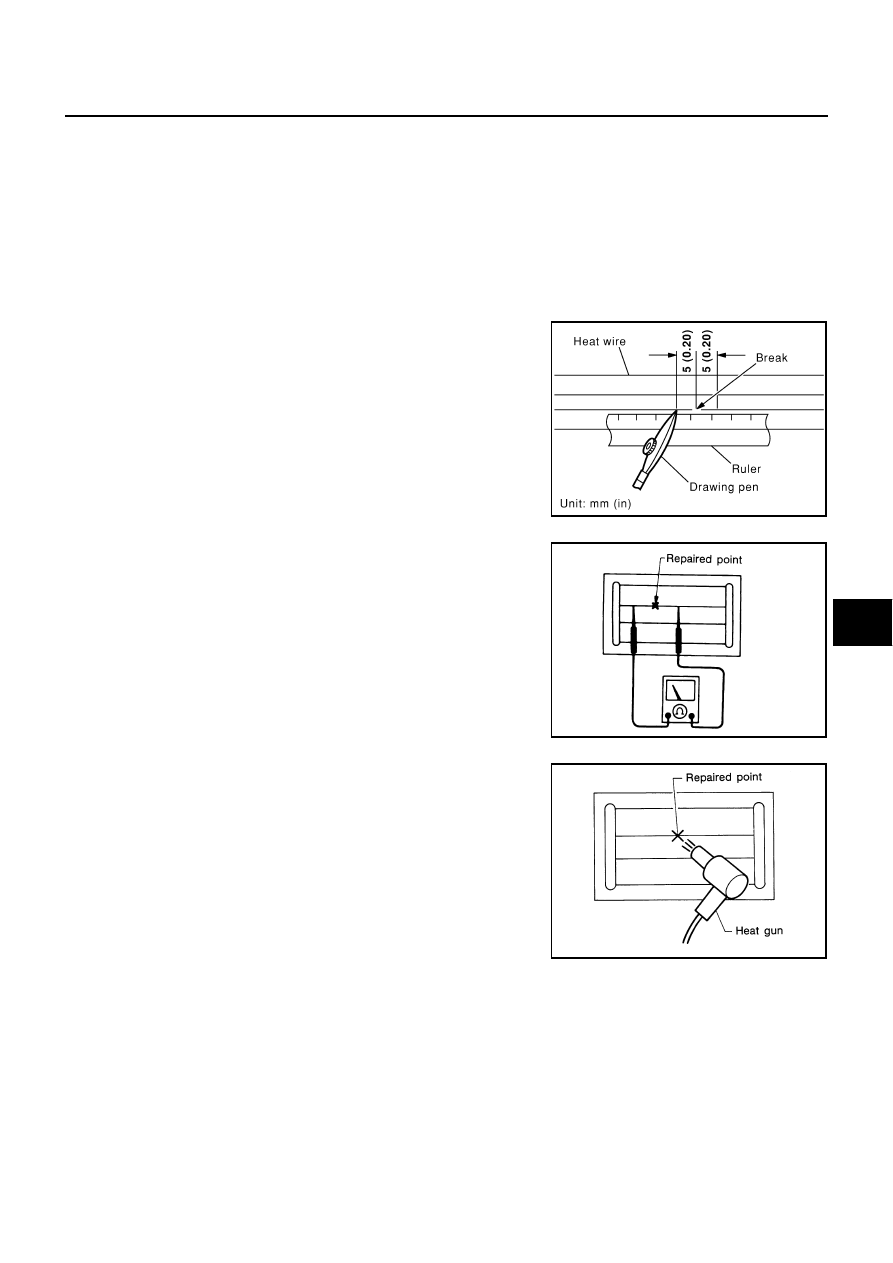

Place ruler on glass along broken line. Deposit conductive silver
composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

4.

After repair has been completed, check repaired wire for conti-
nuity. This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.

5.

Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.

PIIA0215E

SEL012D

SEL013D

GW-80

DOOR MIRROR

DOOR MIRROR

PFP:96301

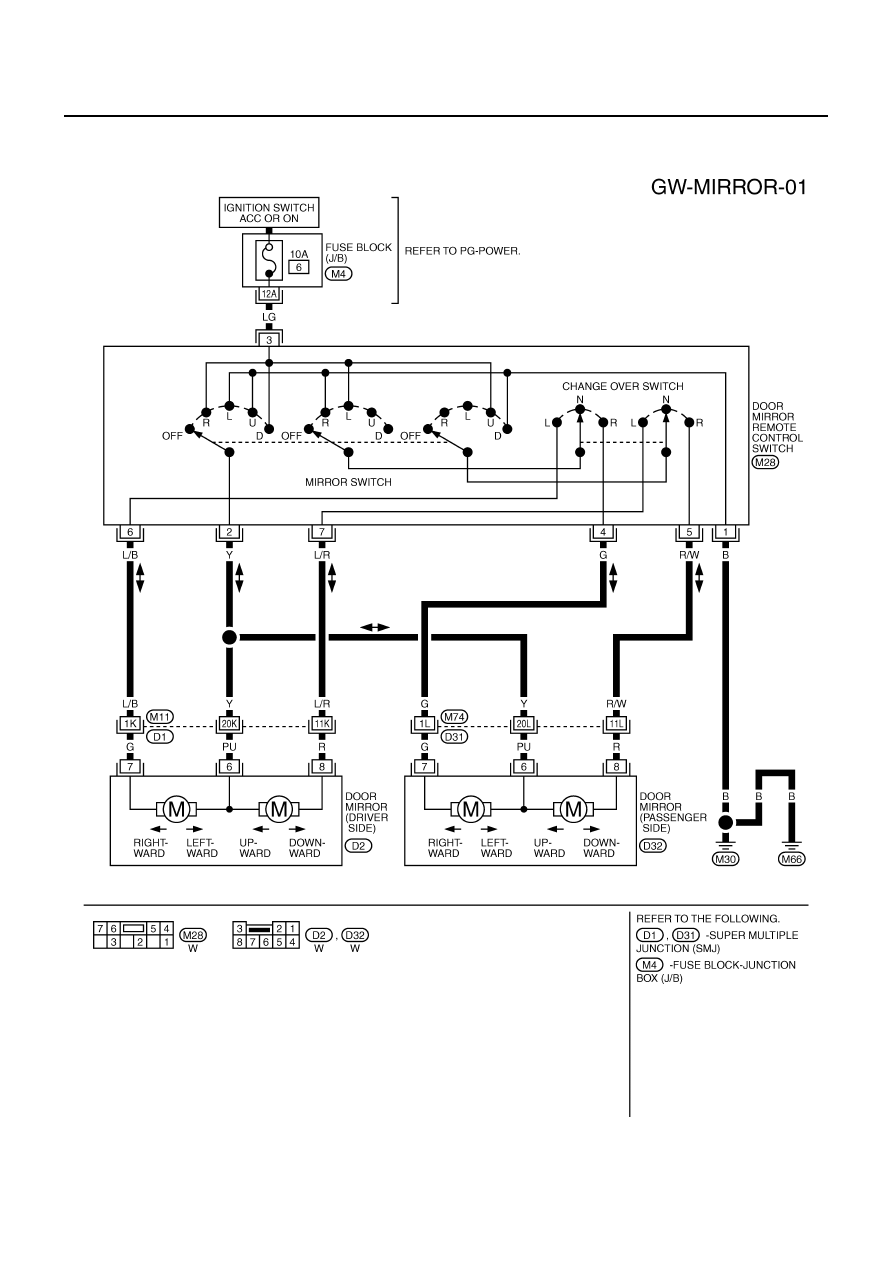

Wring Diagram –MIRROR–

NIS000FK

TIWM0478E

DOOR MIRROR

GW-81

C

D

E

F

G

H

J

K

L

M

A

B

GW

Removal and Installation

NIS000FL

CAUTION:

Be careful not to damage the mirror bodies.

REMOVAL

1.

Remove the door finisher. Refer to

EI-29, "DOOR FINISHER"

 .

2.

Remove the front door sash cover.

3.

Disconnect the door mirror harness connector.

4.

Remove the door mirror mounting nuts, and remove the door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

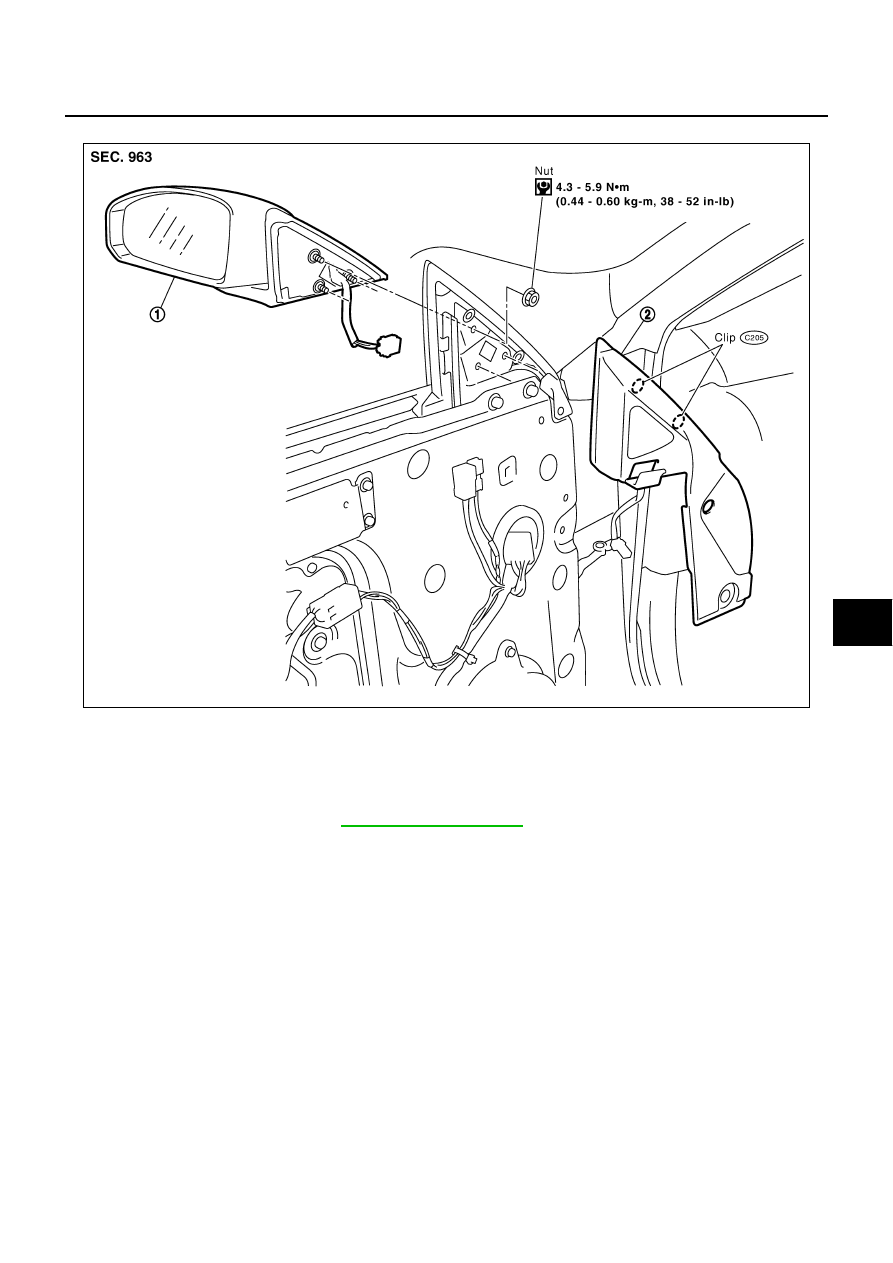

PIIB0100E

1.

Door mirror assembly

2.

Front door sash cover

GW-82

DOOR MIRROR

Disassembly and Assembly

NIS000FM

DISASSEMBLY

1.

Place the mirror body with mirror glass facing upward.

2.

Put a strip of protective tape on mirror body.

3.

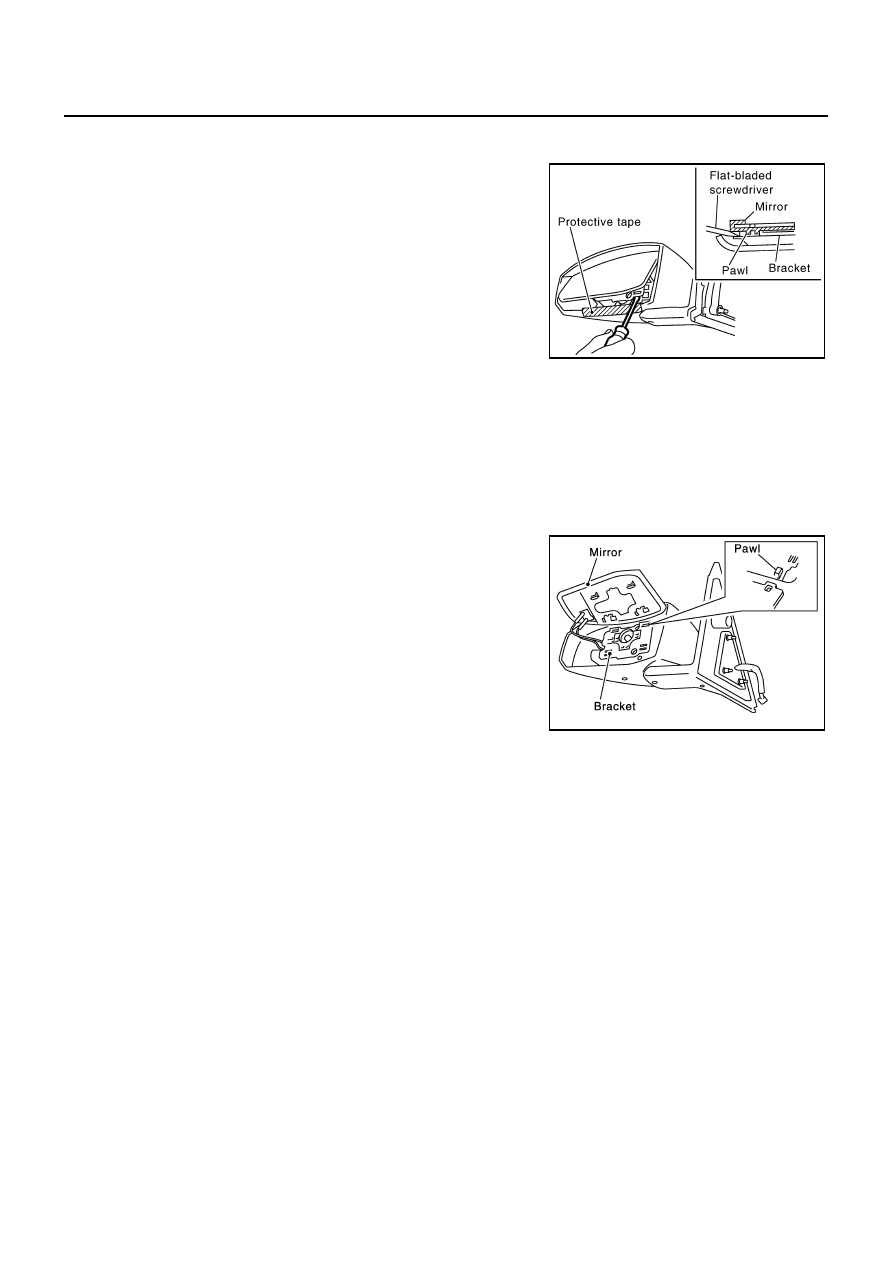

As shown in the figure insert a small slotted screwdriver into the
recess between mirror base (mirror holder) and mirror holder
bracket and push up pawls to remove mirror holder lower half
side.

NOTE:
When pushing up pawls, do not attempt to use 1 recess only, be sure
to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating (twist) to
make work easier.

4.

Remove terminals of mirror heater attachment.

5.

Lightly lift up lower side of mirror surface, and detach pawls of upper side as if pulling it out. Remove mir-
ror surface from mirror body.

NOTE:
Be certain not to allow grease on sealing agent in center of mirror body assembly (actuator) or back side of
mirror surface (mirror holder).

ASSEMBLY

1.

Place  mirror holder bracket and mirror body assembly (actuator) in a horizontal position.

2.

Connect terminals of heater installed mirror.

3.

Fit the upper pawls on the mirror face onto the mirror holder
bracket first, then press the lower side of mirror face until a click
sound is heard to engage the lower pawls.

NOTE:
After installation, visually check that lower pawls are securely
engaged from the bottom of mirror face.

PIIA2159E

PIIA2160E
