Infiniti G35 (V35). Manual - part 544

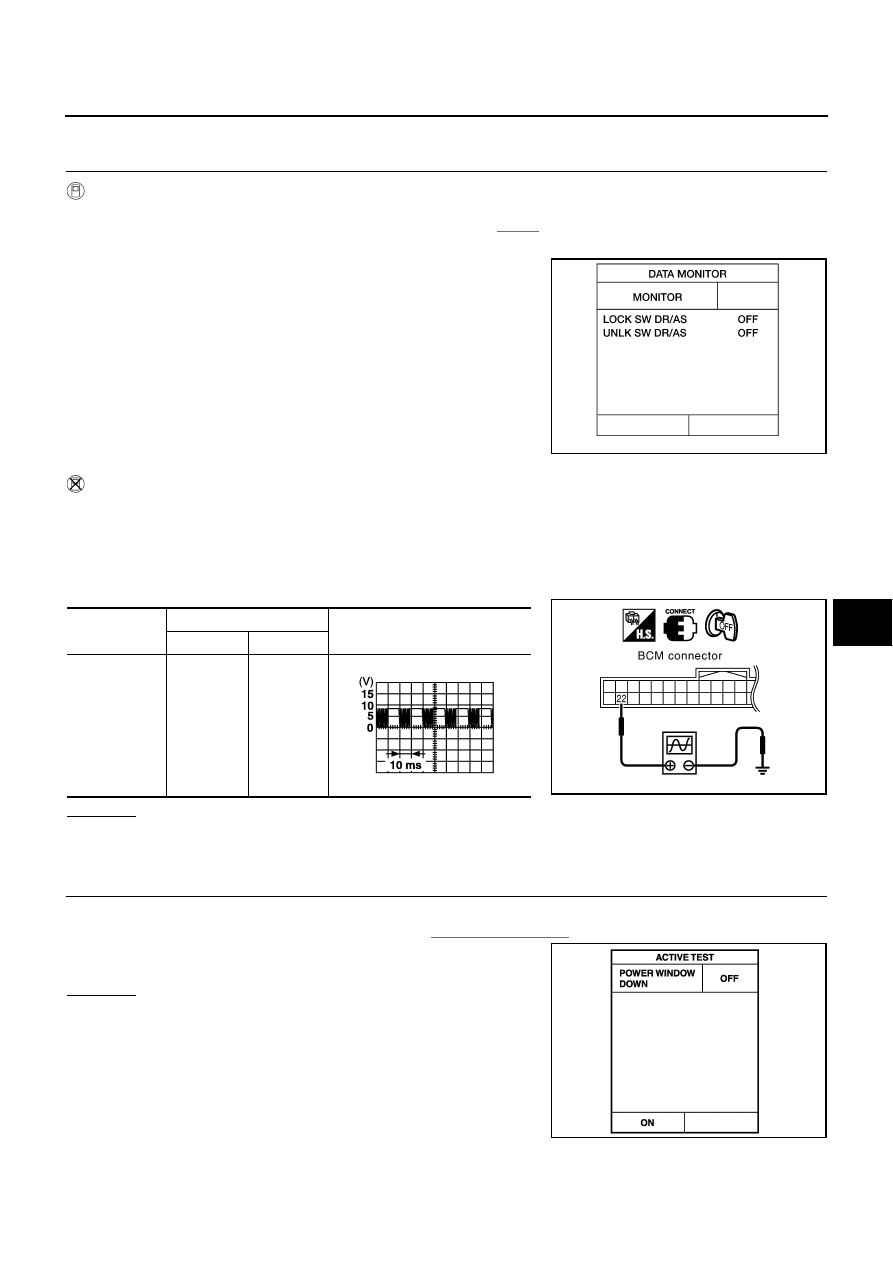

POWER WINDOW SYSTEM

GW-47

C

D

E

F

G

H

J

K

L

M

A

B

GW

Check Power Window Serial Link

NIS000ES

1.

CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

 With CONSULT-II

Check door lock and unlock switch (“LOCK SW DR/AS”, “UNLK SW DR/AS”) in DATA MONITOR mode for
“POWER DOOR LOCK SYSTEM” with CONSULT-II. Refer to

BL-36

 .

●

When door lock and unlock switch is turned to LOCK

●

When door lock and unlock switch is turned to UNLOCK

 Without CONSULT-II

1.

Remove key from ignition switch, and the door of driver side and passenger side is closed.

2.

Check the signal between BCM connector and ground with oscilloscope when door lock and unlock
switch (driver side and passenger side) is turned “LOCK” or “UNLOCK”.

3.

Make sure signals which are shown in the figure below can be detected during 10 second just after door
lock and unlock switch (driver side and passenger side) is turned “LOCK” or “UNLOCK”.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK BCM OUTPUT SIGNAL

Check power window serial link (“POWER WINDOW DOWN”) in “ACTIVE TEST” mode for “REMOTE KEY-
LESS ENTRY SYSTEM” with CONSULT-II. Refer to

BL-63, "Active Test"

 .

When “ACTIVE TEST” is executed, is the window of driver side and
passenger side lowered.

OK or NG

OK

>> Further inspection is necessary. Refer to symptom

chart.

NG

>> Replace BCM.

LOCK SW DR/AS

:ON

UNLK SW DR/AS

:ON

LIIA0172E

Connector

Terminals (Wire color)

Signal

(Reference valve)

(+)

(–)

M1

22 (Y)

Ground

PIIA6290E

PIIA1297E

PIIA3080E

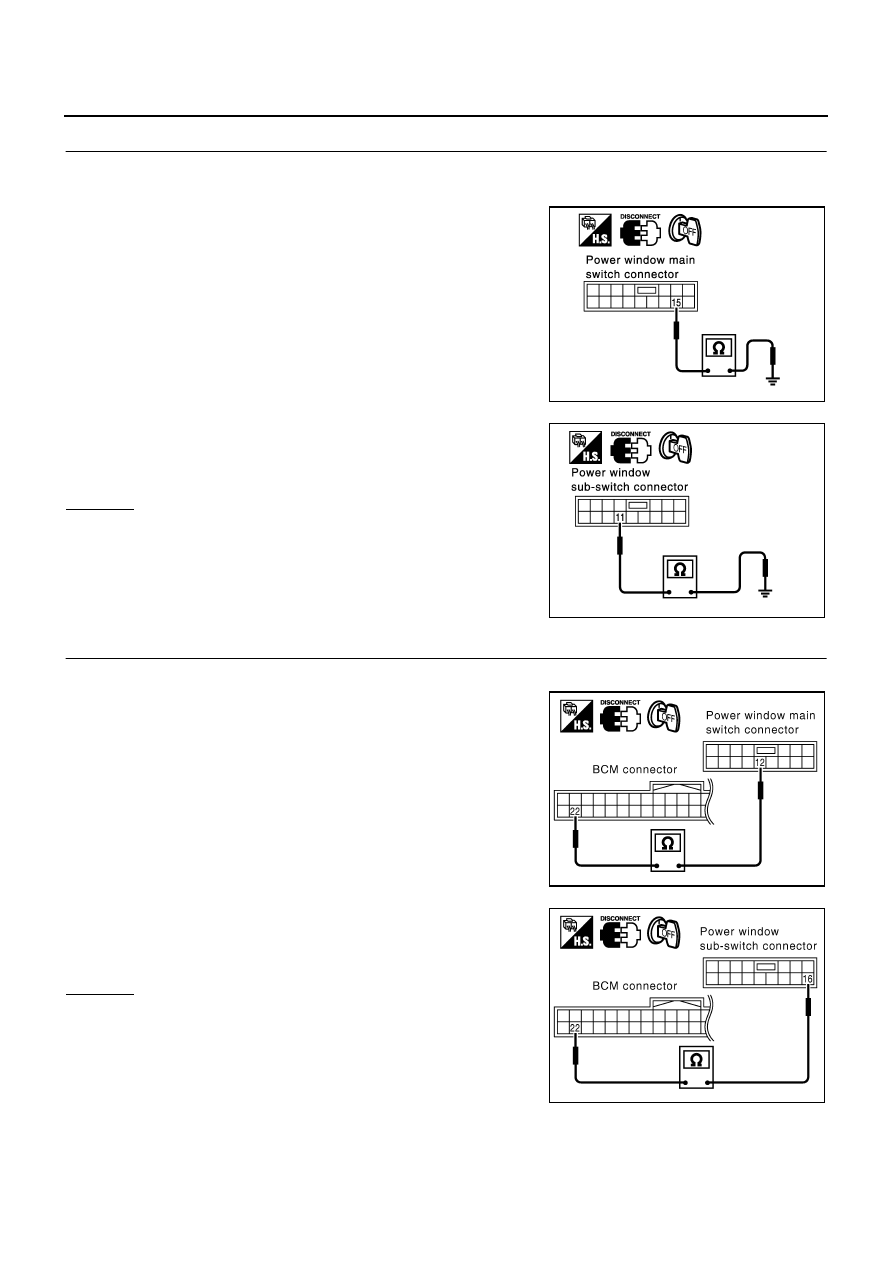

GW-48

POWER WINDOW SYSTEM

3.

CHECK POWER WINDOW SWITCH GROUND

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch and power window sub-switch connector.

3.

Check continuity between power window main switch connector
D7 terminals 15 and ground.

4.

Check continuity between power window sub-switch connector
D43 terminal 11 and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace harness.

4.

CHECK POWER WINDOW SERIAL LINK CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM connector M1 terminal 22 and
power window main switch connector D7 terminal 12.

3.

Check continuity between BCM connector M1 terminal 22 and
power window sub-switch connector D43 terminal 16.

OK or NG

OK

>> Replace power window main switch.

NG

>> Repair or replace harness.

15 (B) – Ground

: Continuity should exist.

PIIA2358E

11 (B) – Ground

: Continuity should exist.

PIIA2359E

22 (Y) – 12 (BR)

: Continuity should exist.

PIIA9475E

22 (Y) – 16 (Y)

: Continuity should exist.

PIIA9476E

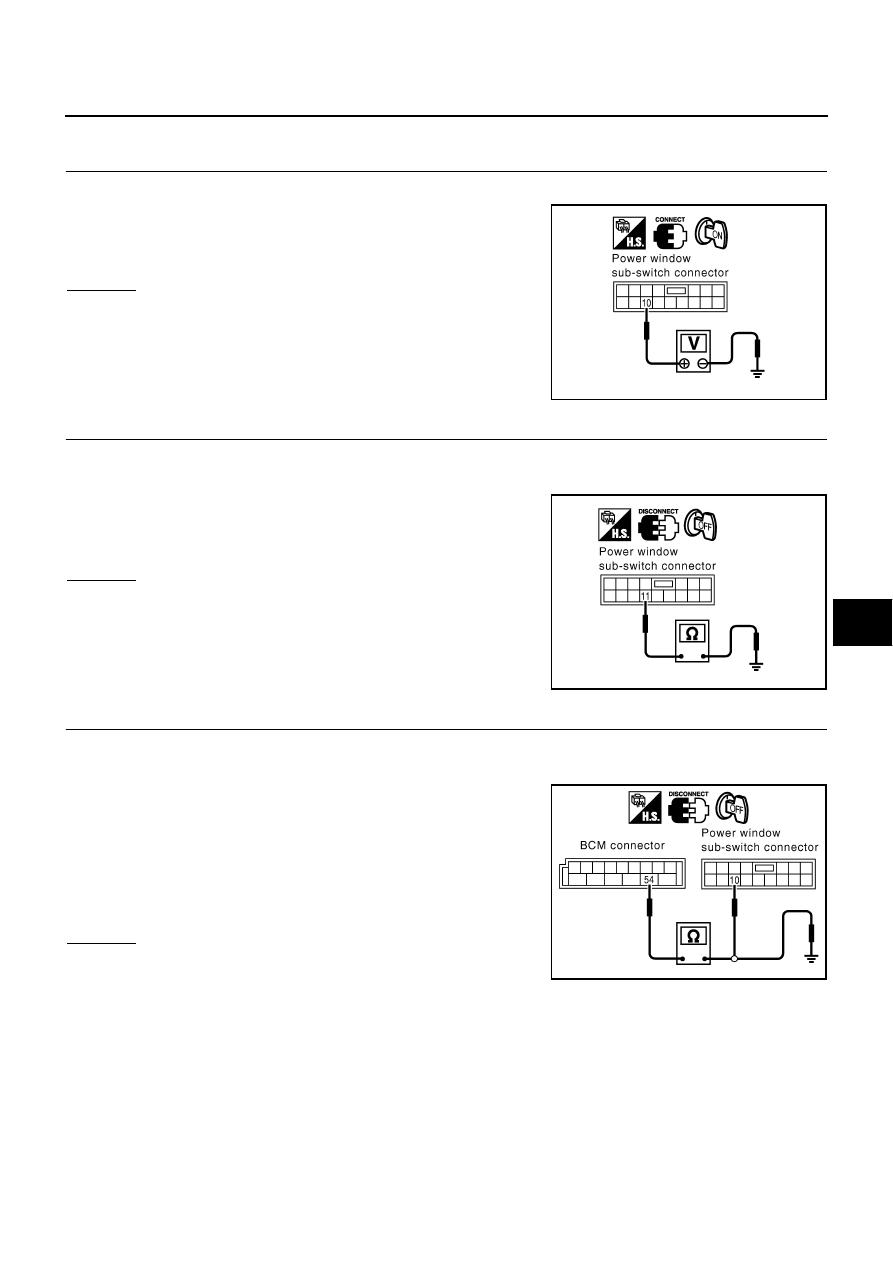

POWER WINDOW SYSTEM

GW-49

C

D

E

F

G

H

J

K

L

M

A

B

GW

Check Power Window Sub-Switch Power Supply and Ground Circuit

NIS000ET

1.

POWER SUPPLY CIRCUIT CHECK

1.

Turn ignition switch ON.

2.

Check voltage between power window sub-switch connector
D43 terminal 10 and ground.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

GROUND CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Disconnect power window sub-switch connector.

3.

Check continuity between power window sub-switch connector
D43 terminal 11 and ground.

OK or NG

OK

>> Power window sub-switch power supply and ground cir-

cuit are OK. Further inspection is necessary. Refer to
symptom chart.

NG

>> Repair or replace harness.

3.

POWER WINDOW SUB-SWITCH POWER SUPPLY CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Disconnect BCM and power window sub-switch connector.

3.

Check continuity between BCM connector M2 terminal 54 and
power window sub-switch connector D43 terminal 10.

4.

Check continuity between BCM connector M2 terminal 54 and
ground.

OK or NG

OK

>> Check the condition of the harness and the connector.

NG

>> Repair or replace harness.

10 (W) – Ground

: Battery voltage.

PIIA2754E

11 (B) – Ground

: Continuity should exist.

PIIA2755E

54 (W) – 10 (W)

: Continuity should exist.

54 (W) – Ground

: Continuity should not exist.

PIIA9477E

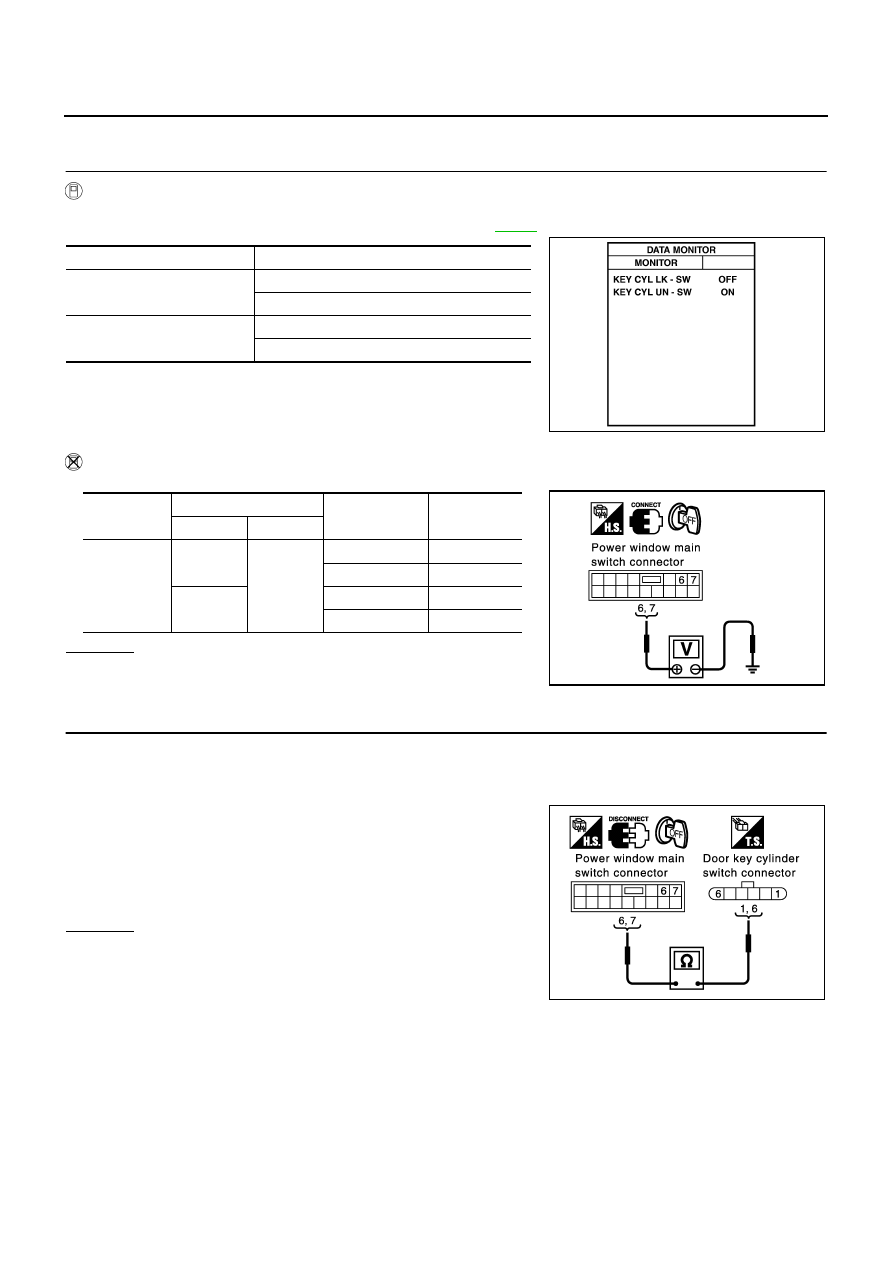

GW-50

POWER WINDOW SYSTEM

Check Door Key Cylinder Switch

NIS000EU

1.

CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

 With CONSULT-II

Check door key cylinder switch (“KEY CYL LK-SW”, "KEY CYL UN-SW") in “DATA MONITOR” mode for
“POWER DOOR LOCK SYSTEM” with CONSULT-II. Refer to

BL-36

 Without CONSULT-II

Check voltage between power window main switch (door lock and unlock switch) connector and ground.

OK or NG

OK

>> Door key cylinder switch is OK.

NG

>> GO TO 2.

2.

CHECK DOOR KEY CYLINDER SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch (door lock and unlock switch) and door key cylinder switch con-
nector.

3.

Check continuity between power window main switch (door lock
and unlock switch) connector D7 terminal 6, 7 and door key cyl-
inder switch connector D15 terminals 1, 6.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

Monitor item

Condition

KEY CYL LK-SW

Neutral / Unlock

: OFF

Lock

: ON

KEY CYL UN-SW

Neutral / Lock

: OFF

Unlock

: ON

PIIA6285E

Connector

Terminals (Wire color)

Key position

Voltage (V)

(Approx.)

(+)

(–)

D7

6 (Y)

Ground

Neutral/Unlock

5

Lock

0

7 (SB)

Neutral/Lock

5

Unlock

0

PIIA3352E

6 (Y) – 1 (Y)

: Continuity should exist.

7 (SB) – 6 (SB)

: Continuity should exist.

PIIA3601E
