SIDE WINDOW GLASS
PFP:83300
Removal and Installation
NIS000E6
REMOVAL
1.
Remove rear side finisher. Refer to
EI-31, "BODY SIDE TRIM"
.
2.
Remove rear pillar garnish. Refer to
EI-31, "BODY SIDE TRIM"
.
3.
Remove glass using piano wire or power cutting tool and an inflatable pump bag.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:
●
Be careful not to scratch the glass when removing.
●
Do not set or stand the glass on its edge. Small chips may develop into cracks.

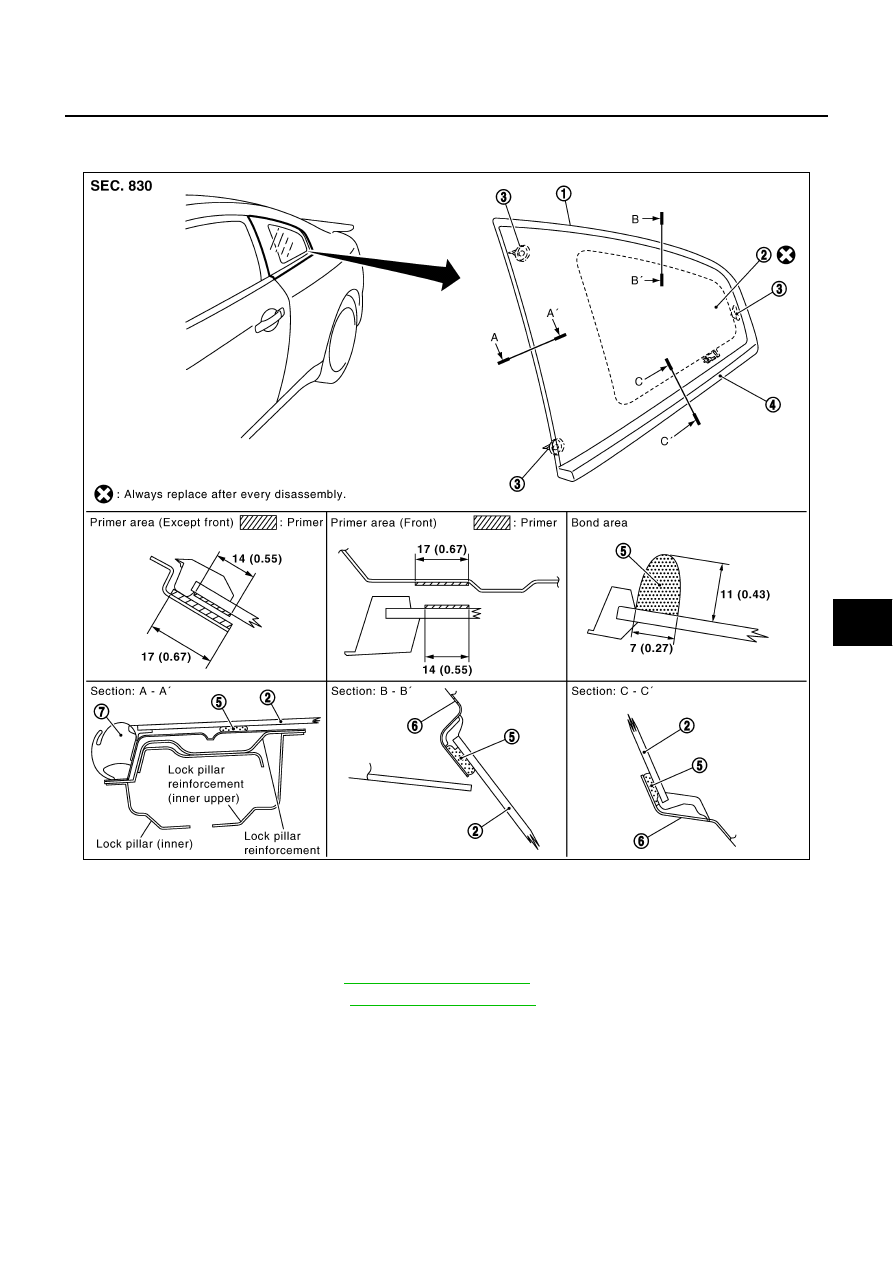

PIIB0099E
1.
Side window glass molding (upper)
2.
Side window glass
3.
Clip
4.
Side window glass molding (lower)
5.
Bond
6.
Rear fender
7.
Weatherstrip
