PREPARATION

FL-3

C

D

E

F

G

H

I

J

K

L

M

A

FL

PREPARATION

PFP:00002

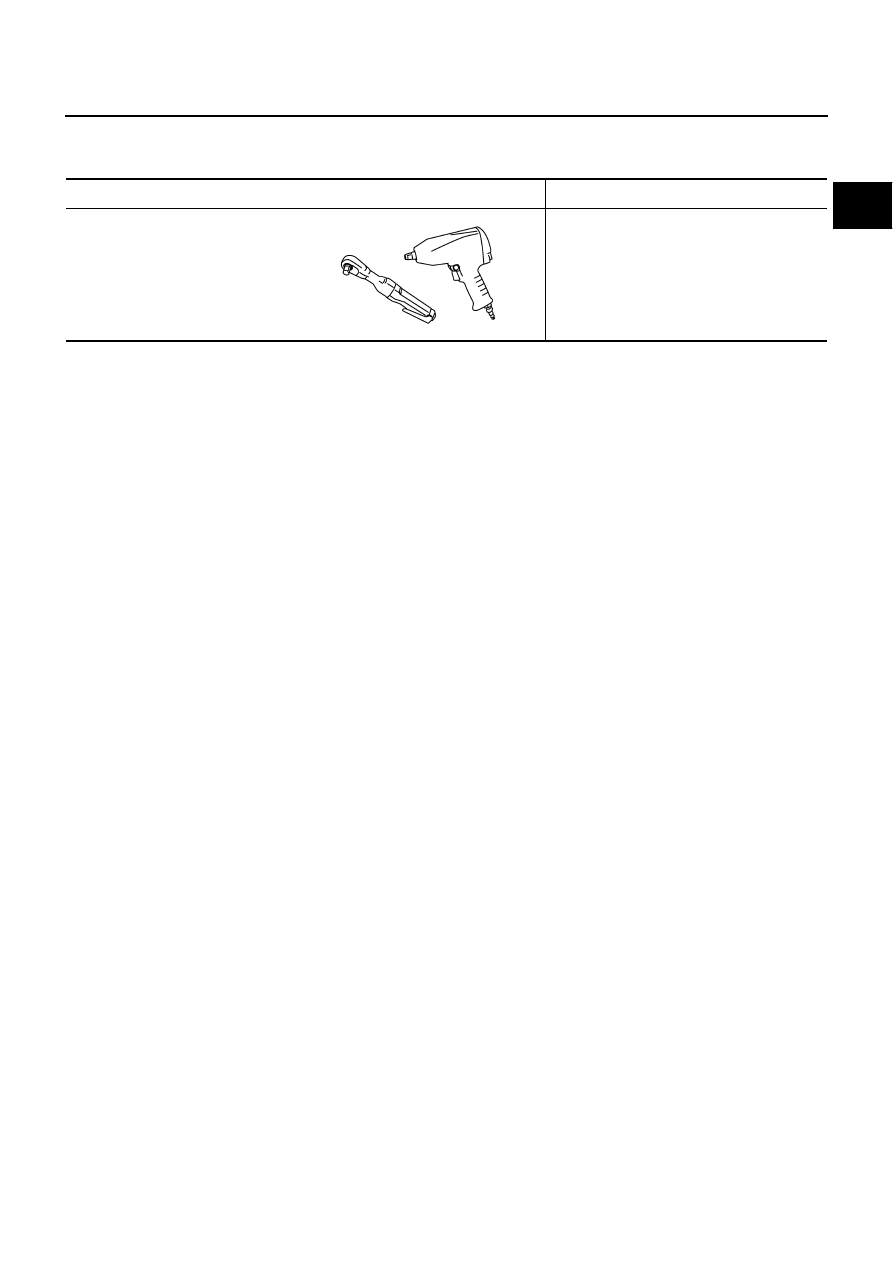

Commercial Service Tools

NBS0012U

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

FL-4

FUEL SYSTEM

FUEL SYSTEM

PFP:17503

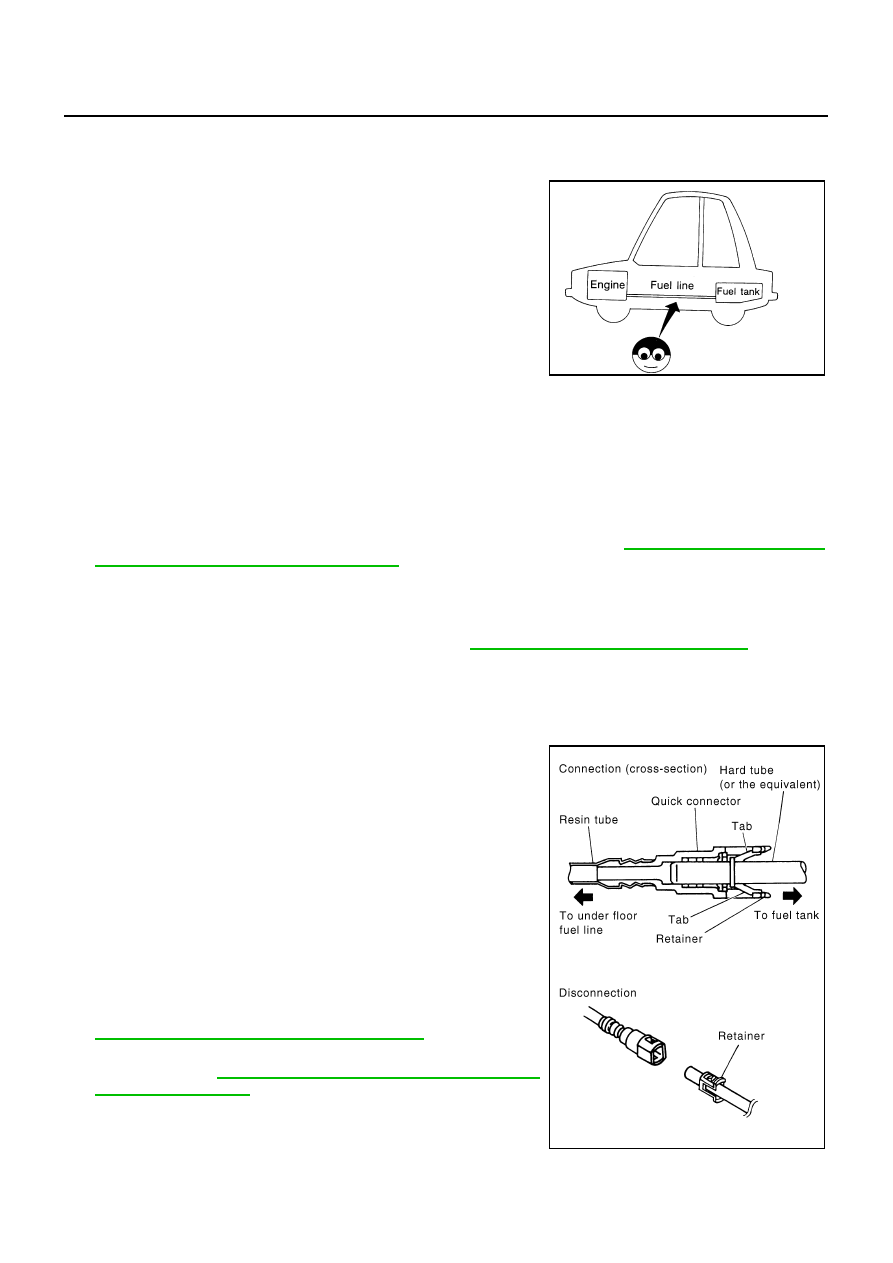

Checking Fuel Lines

NBS0012V

Inspect fuel lines, fuel filler cap and fuel tank for improper attach-
ment, leaks, cracks, damage, loose connections, chafing or deterio-
ration.
If necessary, repair or replace damaged parts.

General Precautions

NBS0012W

WARNING:

When replacing fuel line parts, be sure to observe the following.

●

Put a “CAUTION: FLAMMABLE” sign in the workshop.

●

Be sure to work in a well ventilated area and furnish workshop with a CO

2

   fire extinguisher.

●

Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.

CAUTION:

●

Use gasoline required by the regulations for octane number. Refer to

GI-6, "Precautions for Fuel

(Unleaded Premium Gasoline Required)"

 .

●

Before removing fuel line parts, carry out the following procedures:

–

Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in
safe area.

–

Release fuel pressure from the fuel lines. Refer to

EC-81, "FUEL PRESSURE RELEASE"

 .

–

Disconnect negative battery terminal.

●

Always replace O-ring and clamps with new ones.

●

Do not kink or twist tubes when they are being installed.

●

Do not tighten hose clamps excessively to avoid damaging hoses.

●

After connecting fuel tube quick connectors, make sure
quick connectors are secure.
Ensure that connector and resin tube do not contact any
adjacent parts.

●

After installing tubes, make sure there is no fuel leakage at
connections in the following steps.

–

Apply fuel pressure to fuel lines with turning ignition switch
“ON” (with engine stopped). Then check for fuel leaks at
connections.

–

Start engine and rev it up and check for fuel leaks at con-
nections.

●

Use only a genuine NISSAN fuel filler cap as a replacement.
If an incorrect fuel filler cap is used, the “MIL” may come
on.

●

For servicing “Evaporative Emission System” parts, refer to

EC-32, "EVAPORATIVE EMISSION SYSTEM"

 .

●

For servicing“On Board Refueling Vapor Recovery (ORVR)”
parts, refer to

EC-39, "ON BOARD REFUELING VAPOR

RECOVERY (ORVR)"

 .

SMA803A

SBIA0504E

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-5

C

D

E

F

G

H

I

J

K

L

M

A

FL

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

PFP:17042

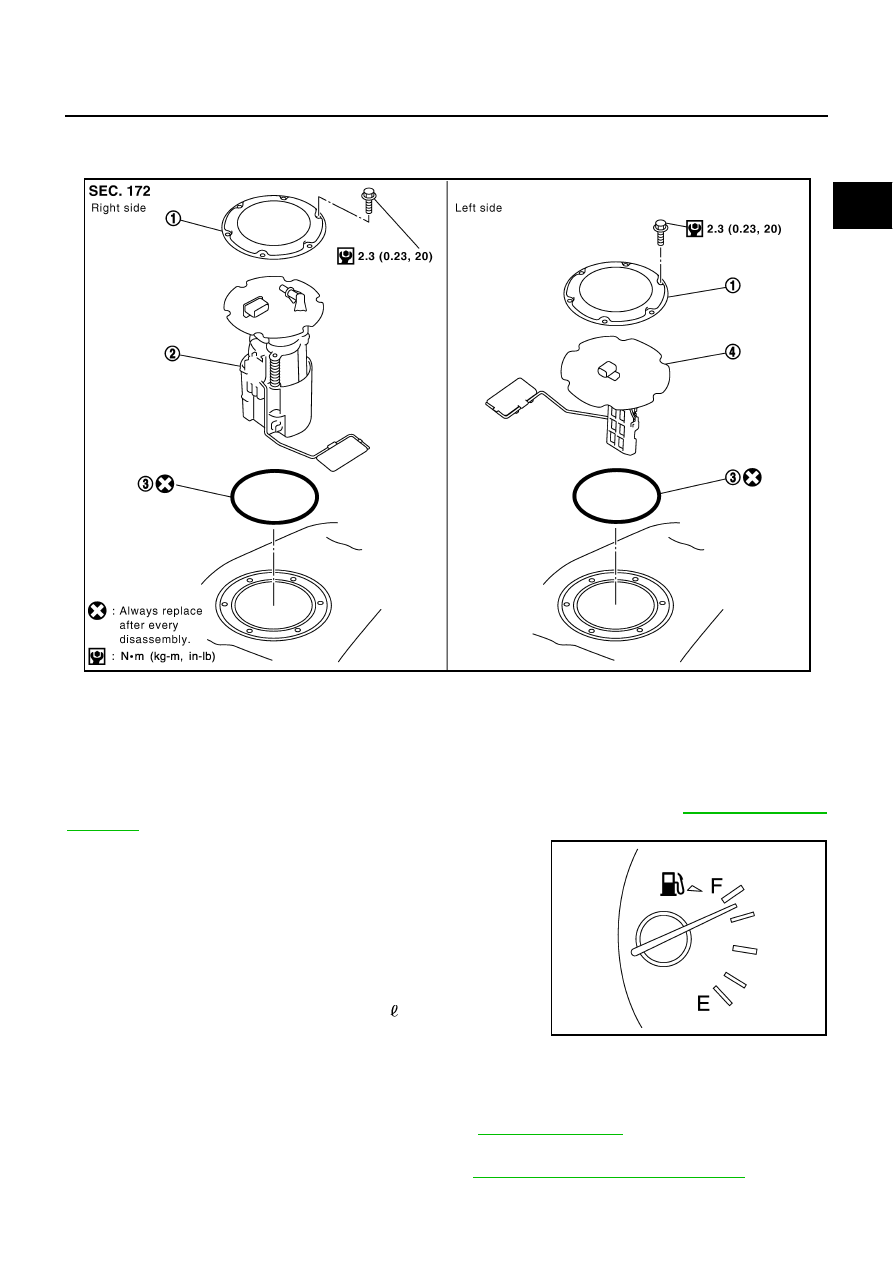

Components

NBS0012X

Removal and Installation

NBS0012Y

REMOVAL

WARNING:

Be sure to read “General Precautions” when working on the fuel system. Refer to

FL-4, "General Pre-

cautions"

 .

1.

Check fuel level on fuel gauge. If fuel gauge indicates more than
the level as shown in the figure (full or almost full), drain fuel
from fuel tank until gauge indicates level as shown in the figure
or below.
NOTE:
Because fuel will be spilled when removing main and sub fuel
level sensor units for the top of the fuel is above the main and
sub fuel level sensor units installation surface.

●

As a guide, fuel level becomes the position as shown in the
figure or below when approximately 20   (5-1/4 US gal, 4-3/8
Imp gal) of fuel are drained from fuel tank.

●

In a case that fuel pump does not operate, perform the follow-
ing procedure.

a.

Insert hose of less than 25 mm (0.98 in) in diameter into fuel filler tube through fuel filler opening to draw
fuel from fuel filler tube.

b.

Disconnect fuel filler hose from fuel filler tube. Refer to

FL-11, "FUEL TANK"

 .

c.

Insert fuel tube into fuel tank through fuel filler hose to draw fuel from fuel tank.

2.

Release the fuel pressure from the fuel lines. Refer to

EC-81, "FUEL PRESSURE RELEASE"

 .

1.

Retainer

2.

Main fuel level sensor unit, fuel filter -
and fuel pump assembly

3.

O-ring

4.

Sub fuel level sensor unit

PBIC1585E

PBIC1139E

FL-6

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

3.

Open fuel filler lid.

4.

Open filler cap and release the pressure inside fuel tank.

5.

Remove rear seat cushion. Refer to

SE-140, "REAR SEAT"

 .

6.

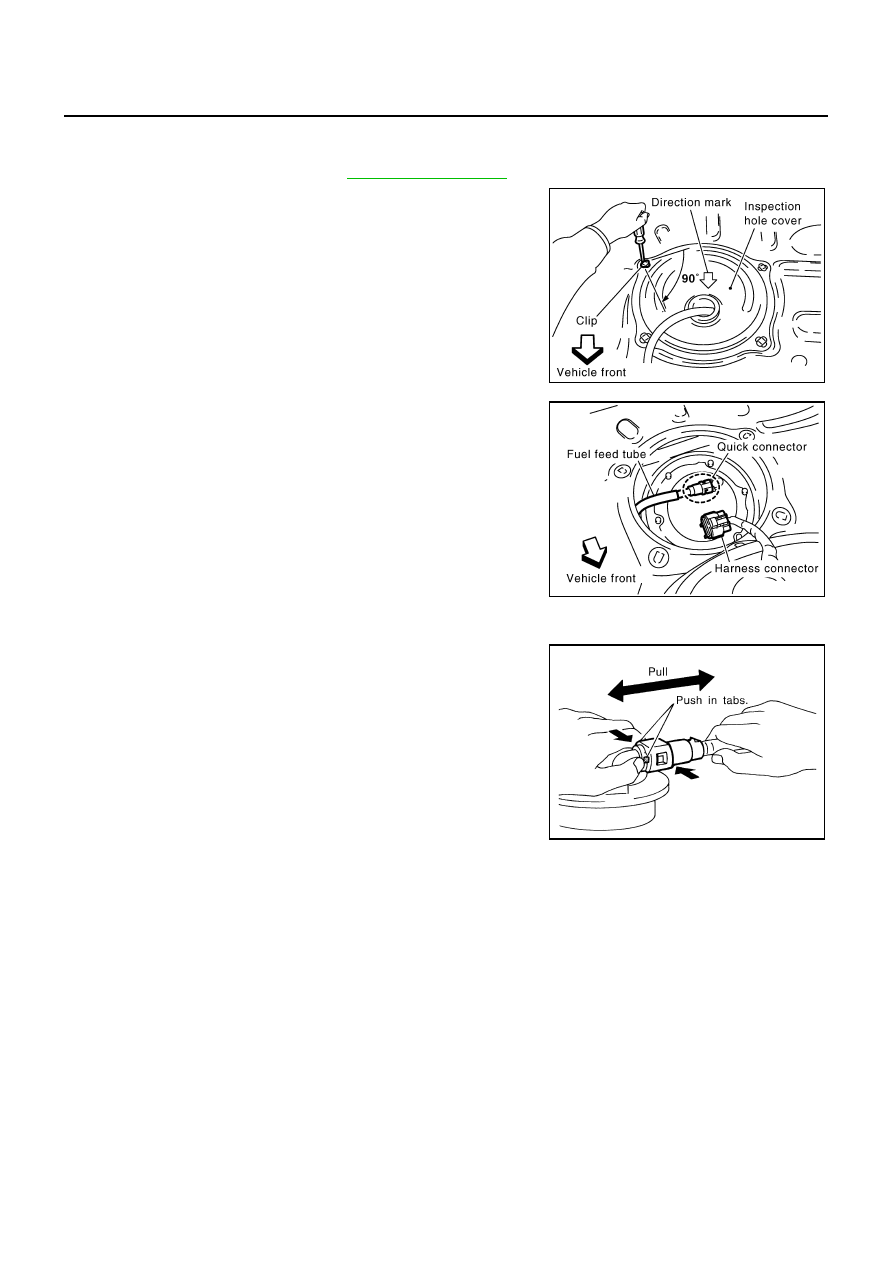

Peel off floor carpet, then remove inspection hole cover for main
and sub fuel level sensor units by turning clips clockwise by 90
degrees.

7.

Disconnect harness connector and fuel feed tube.

Disconnect quick connector as follows:

●

Hold the sides of connector, push in tabs and pull out tube.

●

If quick connector sticks to tube of main fuel level sensor unit,
push and pull quick connector several times until they start to
move.Then disconnect them by pulling.

PBIC1576E

PBIC1577E
