DTC P2138 APP SENSOR

EC-613

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P2138 APP SENSOR

PFP:18002

Component Description

NBS0011A

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.

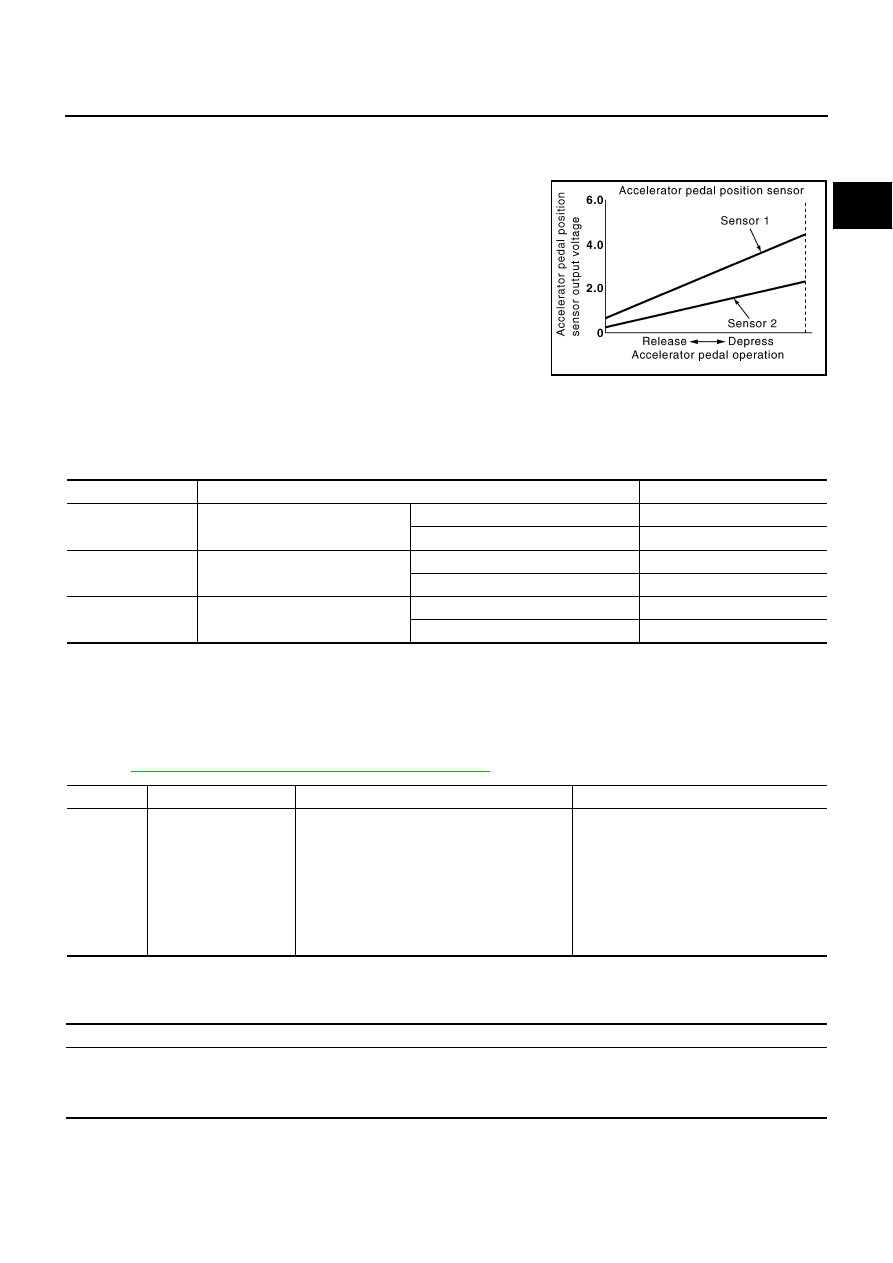

Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.

CONSULT-II Reference Value in Data Monitor Mode

NBS0011B

Specification data are reference values.

*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.

On Board Diagnosis Logic

NBS0011C

This self-diagnosis has the one trip detection logic.
NOTE:
If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to

EC-499, "DTC P0643 SENSOR POWER SUPPLY"

 .

FAIL-SAFE MODE

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

PBIB1741E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL SEN 1

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

0.5 - 1.0V

Accelerator pedal: Fully depressed

4.0 - 4.8V

ACCEL SEN 2*

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

0.3 - 1.2V

Accelerator pedal: Fully depressed

3.9 - 4.8V

CLSD THL POS

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

ON

Accelerator pedal: Slightly depressed

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2138
2138

Accelerator pedal posi-
tion sensor circuit
range/performance

Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor 1
and APP sensor 2.

Harness or connector
(The APP sensor 1 and 2 circuit is open
or shorted.)
(The TP sensor circuit is shorted.)

Accelerator pedal position sensor
(APP sensor 1 and 2)

Electric throttle control actuator
(TP sensor 1 and 2)

Engine operating condition in fail-safe mode

ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

EC-614

DTC P2138 APP SENSOR

DTC Confirmation Procedure

NBS0011D

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

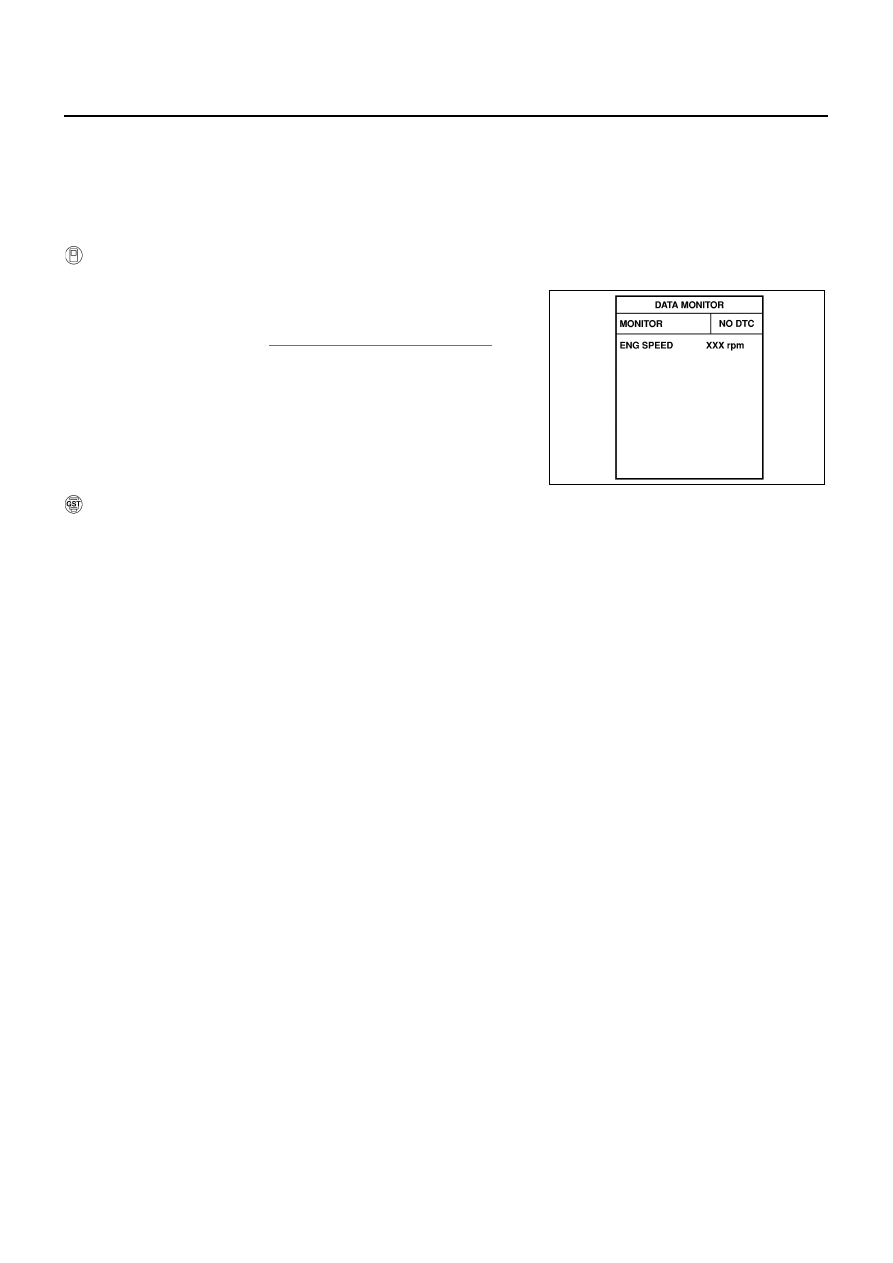

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and let it idle for 1 second.

4.

If DTC is detected, go to

EC-616, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y

DTC P2138 APP SENSOR

EC-615

C

D

E

F

G

H

I

J

K

L

M

A

EC

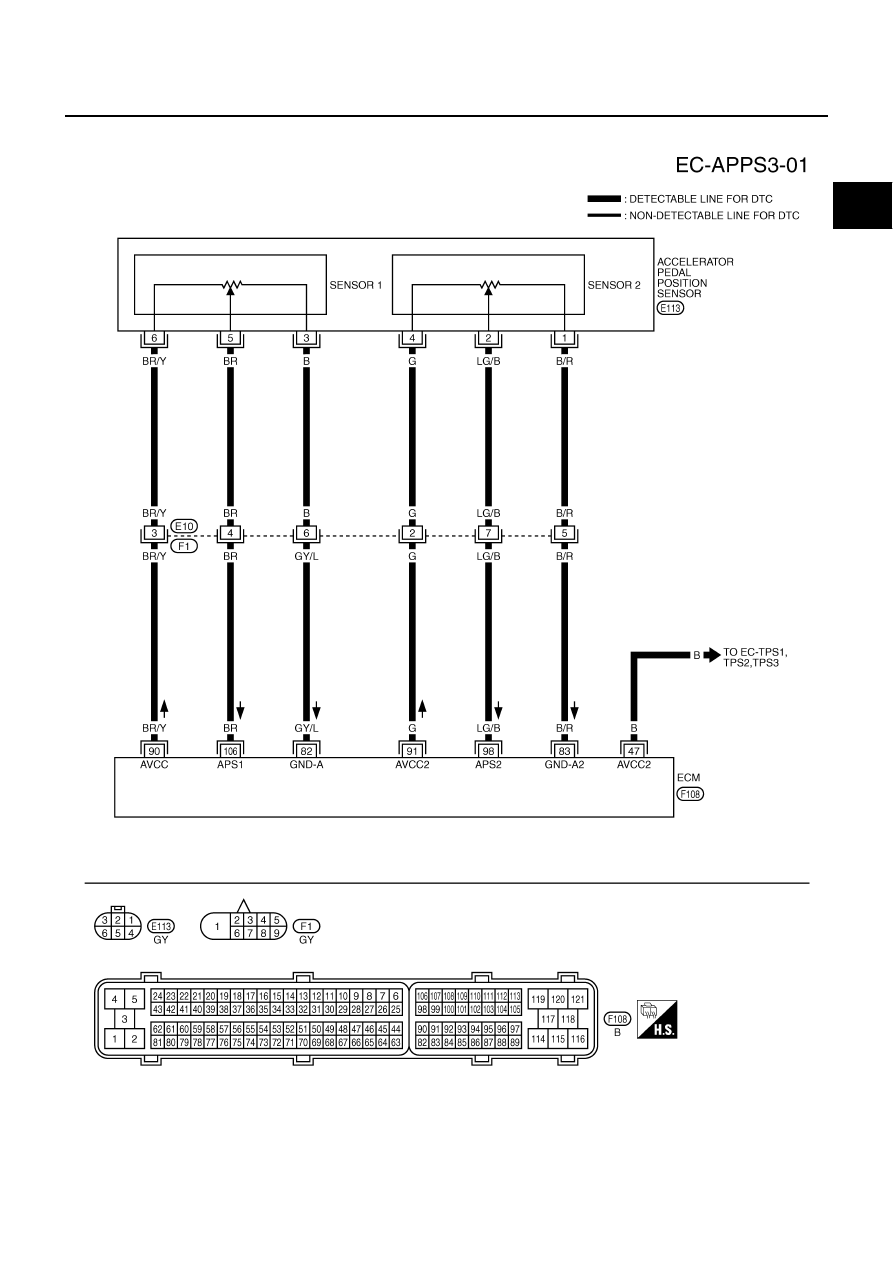

Wiring Diagram

NBS0011E

TBWB0081E

EC-616

DTC P2138 APP SENSOR

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

NBS0011F

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

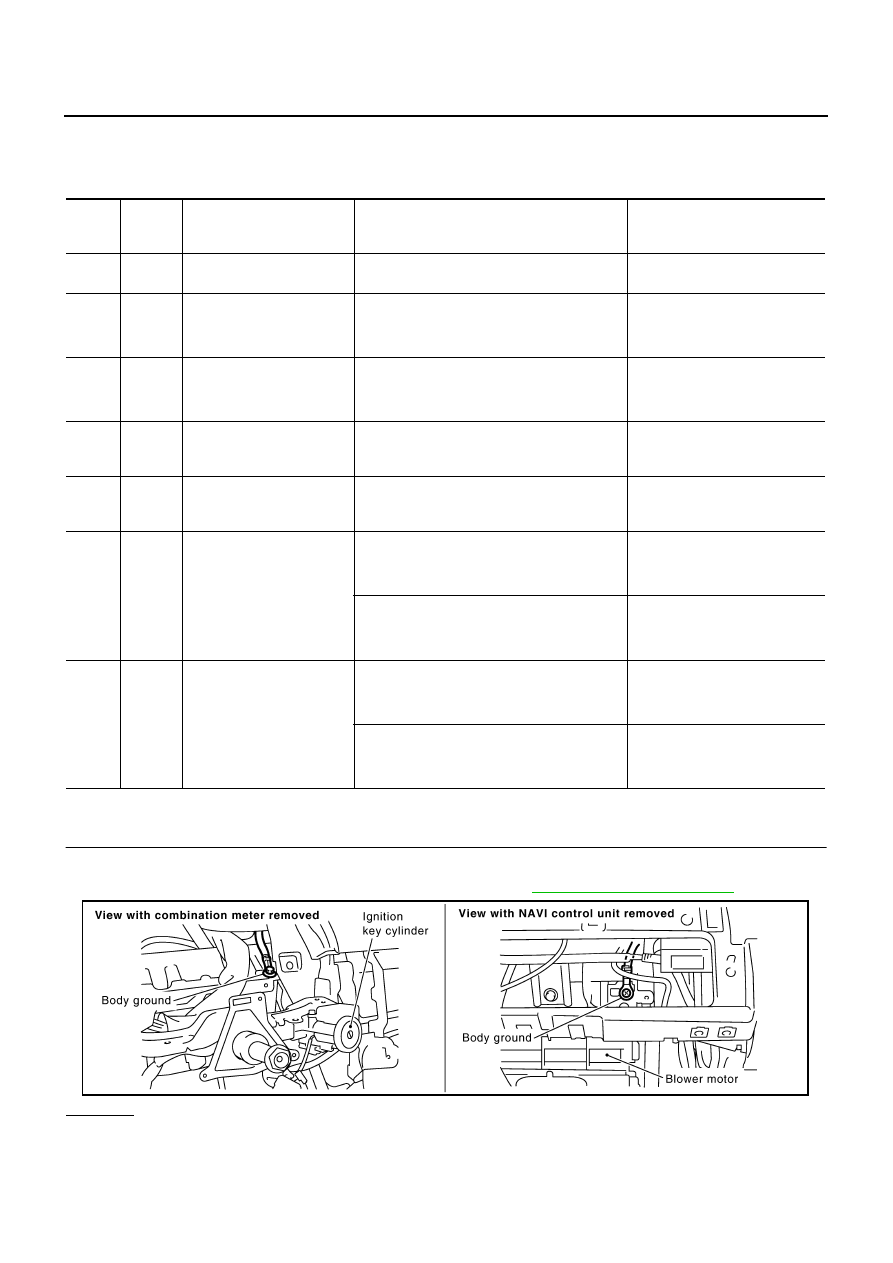

Loosen and retighten two ground screws on the body. Refer to

EC-159, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

47

B

Sensor power supply
(Throttle position sensor)

[Ignition switch: ON]

Approximately 5V

82

GY/L

Sensor ground
(Accelerator pedal position
sensor 1)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

83

B/R

Sensor ground
(Accelerator pedal position
sensor 2)

[Engine is running]

Warm-up condition

Idle speed

Approximately 0V

90

BR/Y

Sensor power supply
(Accelerator pedal position
sensor 1)

[Ignition switch: ON]

Approximately 5V

91

G

Sensor power supply
(Accelerator pedal position
sensor 2)

[Ignition switch: ON]

Approximately 5V

98

LG/B

Accelerator pedal position
sensor 2

[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released

0.15 - 0.60V

[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed

1.95 - 2.40V

106

BR

Accelerator pedal position
sensor 1

[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released

0.5 - 1.0V

[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed

3.9 - 4.7V

PBIB2192E
