DTC P2118 THROTTLE CONTROL MOTOR

EC-589

C

D

E

F

G

H

I

J

K

L

M

A

EC

Removal and Installation

NBS000WJ

ELECTRIC THROTTLE CONTROL ACTUATOR

Refer to

EM-18, "INTAKE MANIFOLD COLLECTOR"

 .

EC-590

DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR

DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR

PFP:16119

Component Description

NBS000VW

Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.

On Board Diagnosis Logic

NBS000VX

This self-diagnosis has the one trip detection logic.

FAIL-SAFE MODE

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

DTC Confirmation Procedure

NBS000VY

NOTE:

●

Perform PROCEDURE FOR MALFUNCTION A AND B first. If the DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION C.

●

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.

PROCEDURE FOR MALFUNCTION A AND B

 With CONSULT-II

1.

Turn ignition switch ON and wait at least 1 second.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Set shift lever to D position (A/T) or 1st position (M/T), and wait
at least 3 seconds.

4.

Set shift lever to P, N position (A/T) or Neutral position (M/T).

5.

Turn ignition switch OFF and wait at least 10 seconds.

6.

Turn ignition switch ON and wait at least 1 second.

7.

Set shift lever to D position (A/T) or 1st position (M/T), and wait
at least 3 seconds.

8.

Set shift lever to P, N position (A/T) or Neutral position (M/T).

9.

Turn ignition switch OFF, wait at least 10 seconds, and then turn
ON.

10. If DTC is detected, go to

EC-591, "Diagnostic Procedure"

 .

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2119
2119

Electric throttle control
actuator

A)

Electric throttle control actuator does not func-
tion properly due to the return spring malfunc-
tion.

●

Electric throttle control actuator

B)

Throttle valve opening angle in fail-safe mode is
not in specified range.

C)

ECM detects the throttle valve is stuck open.

Detected items

Engine operating condition in fail-safe mode

Malfunction A

ECM controls the electric throttle actuator by regulating the throttle opening around the idle position. The
engine speed will not rise more than 2,000 rpm.

Malfunction B

ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.

Malfunction C

While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in N or P (A/T), Neutral (M/T) position, and engine speed will not exceed 1,000
rpm or more.

SEF058Y

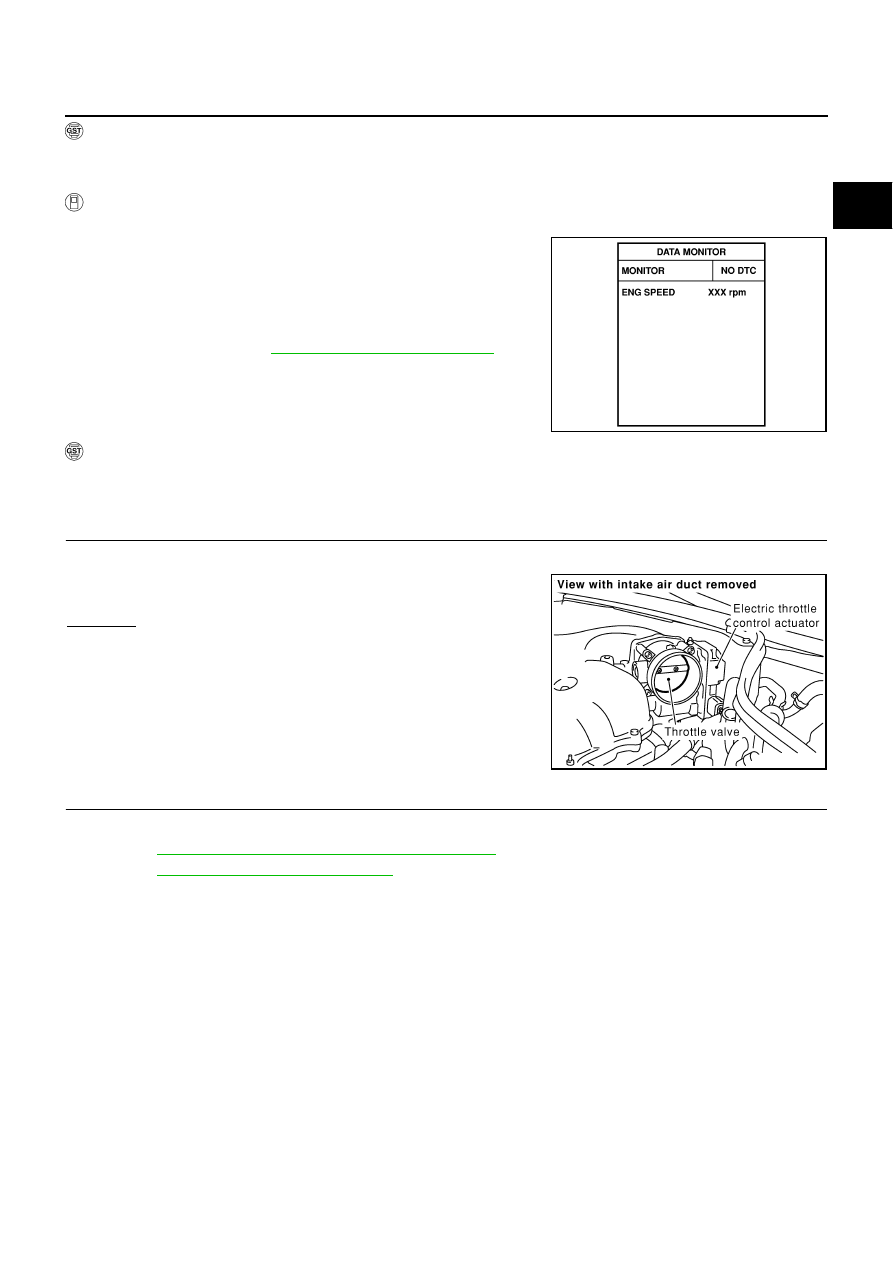

DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR

EC-591

C

D

E

F

G

H

I

J

K

L

M

A

EC

 With GST

Follow the procedure “With CONSULT-II” above.

PROCEDURE FOR MALFUNCTION C

 With CONSULT-II

1.

Turn ignition switch ON and wait at least 1 second.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Set shift lever to D position (A/T) or 1st position (M/T) and wait
at least 3 seconds.

4.

Set shift lever to N, P position (A/T) or Neutral (M/T) position.

5.

Start engine and let it idle for 3 seconds.

6.

If DTC is detected, go to

EC-591, "Diagnostic Procedure"

 .

 With GST

Follow the procedure “With CONSULT-II” above.

Diagnostic Procedure

NBS000VZ

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Remove the intake air duct.

2.

Check if a foreign matter is caught between the throttle valve
and the housing.

OK or NG

OK

>> GO TO 2.

NG

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace the electric throttle control actuator.

2.

Perform

EC-79, "Throttle Valve Closed Position Learning"

 .

3.

Perform

EC-79, "Idle Air Volume Learning"

 .

>> INSPECTION END

SEF058Y

PBIB1015E

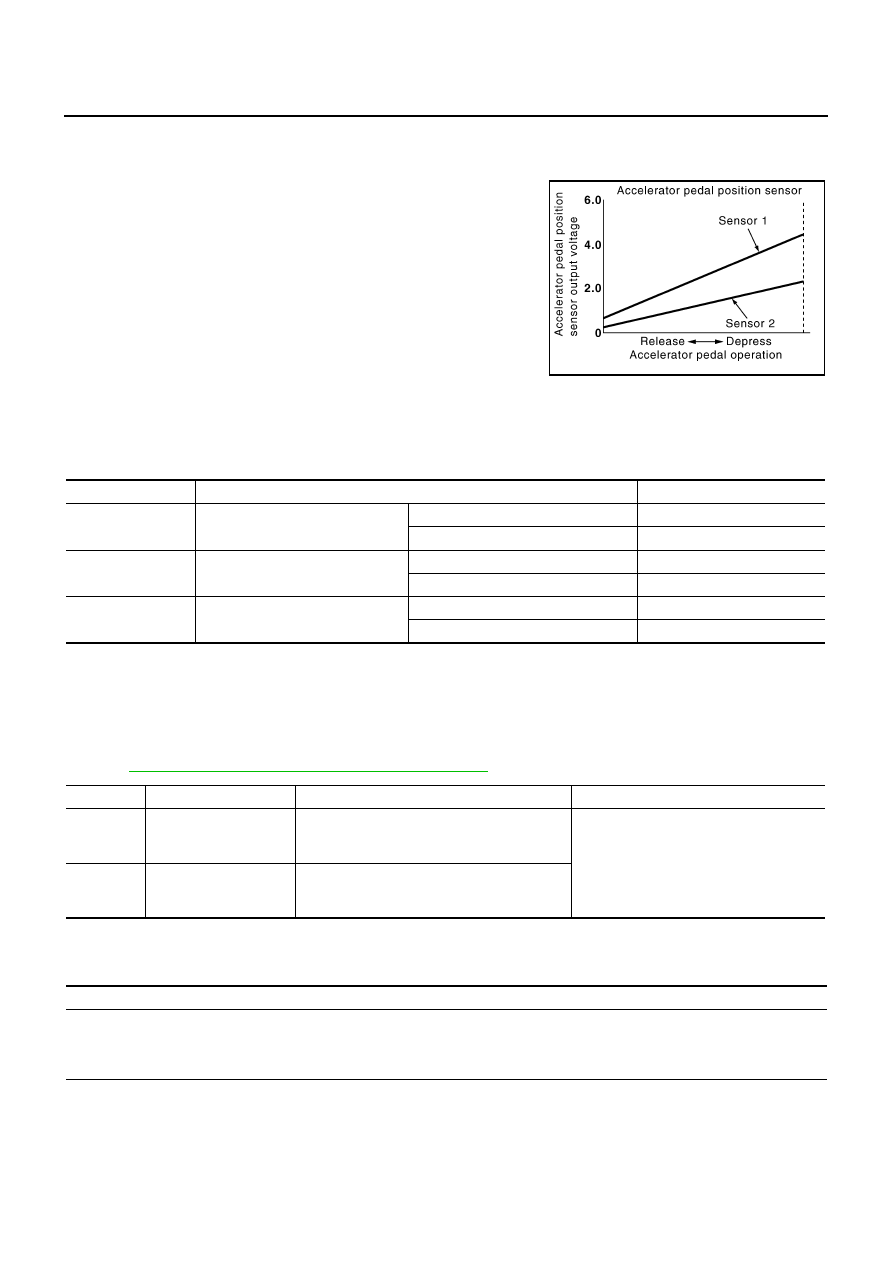

EC-592

DTC P2122, P2123 APP SENSOR

DTC P2122, P2123 APP SENSOR

PFP:18002

Component Description

NBS0010M

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.

CONSULT-II Reference Value in Data Monitor Mode

NBS0010N

Specification data are reference values.

*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.

On Board Diagnosis Logic

NBS0010O

These self-diagnoses have the one trip detection logic.
NOTE:
If DTC P2122 or P2123 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to

EC-499, "DTC P0643 SENSOR POWER SUPPLY"

 .

FAIL-SAFE MODE

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

PBIB1741E

MONITOR ITEM

CONDITION

SPECIFICATION

ACCEL SEN 1

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

0.5 - 1.0V

Accelerator pedal: Fully depressed

4.0 - 4.8V

ACCEL SEN 2*

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

0.3 - 1.2V

Accelerator pedal: Fully depressed

3.9 - 4.8V

CLSD THL POS

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

ON

Accelerator pedal: Slightly depressed

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2122
2122

Accelerator pedal posi-
tion sensor 1 circuit low
input

An excessively low voltage from the APP sen-
sor 1 is sent to ECM.

●

Harness or connectors
(The APP sensor 1 circuit is open or
shorted.)

●

Accelerator pedal position sensor
(APP sensor 1)

P2123
2123

Accelerator pedal posi-
tion sensor 1 circuit high
input

An excessively high voltage from the APP sen-
sor 1 is sent to ECM.

Engine operating condition in fail-safe mode

ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
