DTC P1572 ASCD BRAKE SWITCH

EC-557

C

D

E

F

G

H

I

J

K

L

M

A

EC

7.

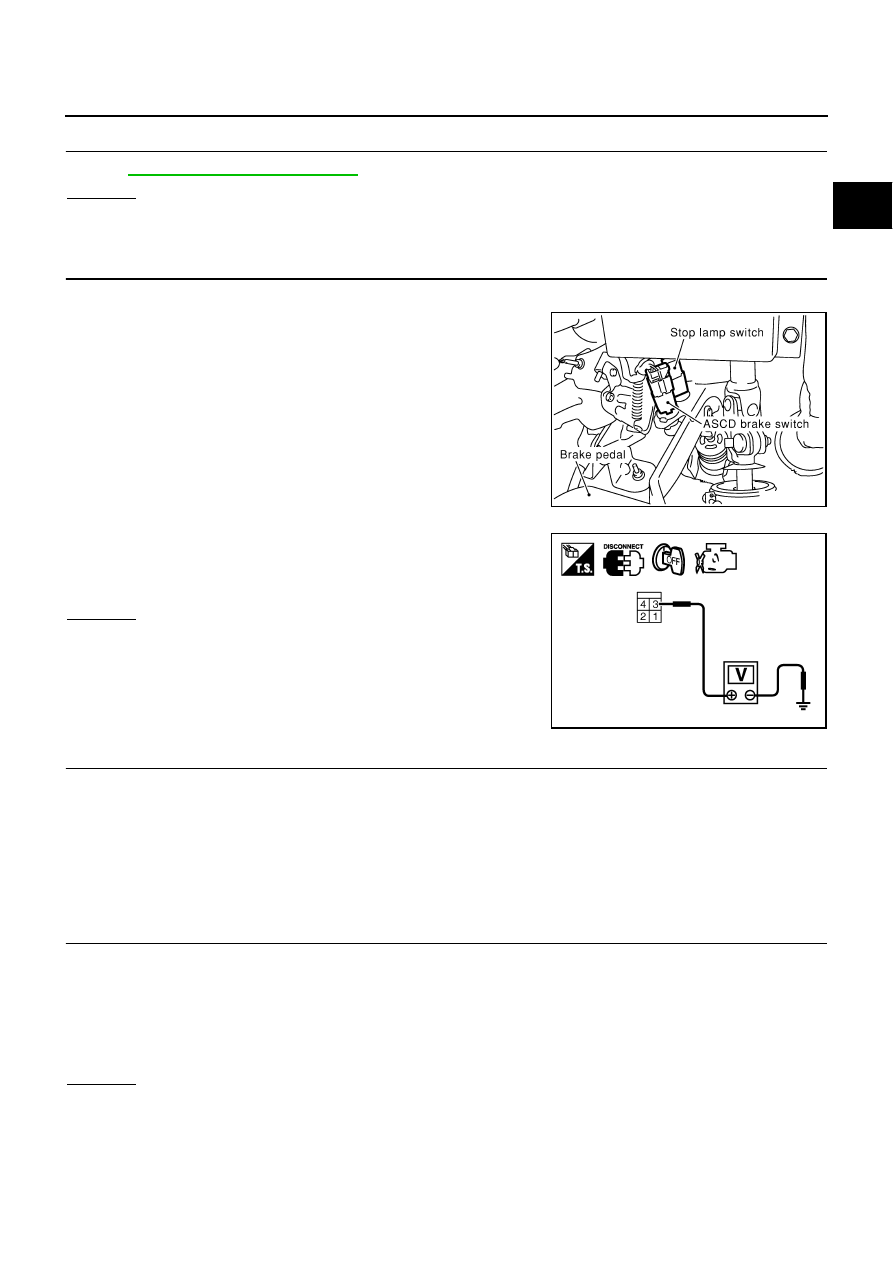

CHECK ASCD BRAKE SWITCH

Refer to

EC-564, "Component Inspection"



OK or NG

OK

>> GO TO 13.

NG

>> Replace ASCD brake switch.

8.

CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check voltage between stop lamp switch terminal 3 and ground
with CONSULT -II or tester.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 9.

9.

DETECT MALFUNCTIONING PART

Check the following.

●

Fuse block (J/B) connector E101

●

10A fuse

●

Harness for open or short between stop lamp switch and battery

>> Repair open circuit or short to ground or short to power in harness or connectors.

10.

CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 101 and stop lamp switch terminal 4.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 11.

PBIB1005E

Voltage: Battery voltage

PBIB2102E

Continuity should exist.

EC-558

DTC P1572 ASCD BRAKE SWITCH

11.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E108, M15

●

Harness connectors M72, F102

●

Harness for open or short between ECM and stop lamp switch

>> Repair open circuit or short to ground or short to power in harness or connectors.

12.

CHECK STOP LAMP SWITCH

Refer to

EC-564, "Component Inspection"



OK or NG

OK

>> GO TO 13.

NG

>> Replace stop lamp switch.

13.

CHECK INTERMITTENT INCIDENT

Refer to

EC-151, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

DTC P1572 ASCD BRAKE SWITCH

EC-559

C

D

E

F

G

H

I

J

K

L

M

A

EC

M/T MODELS

1.

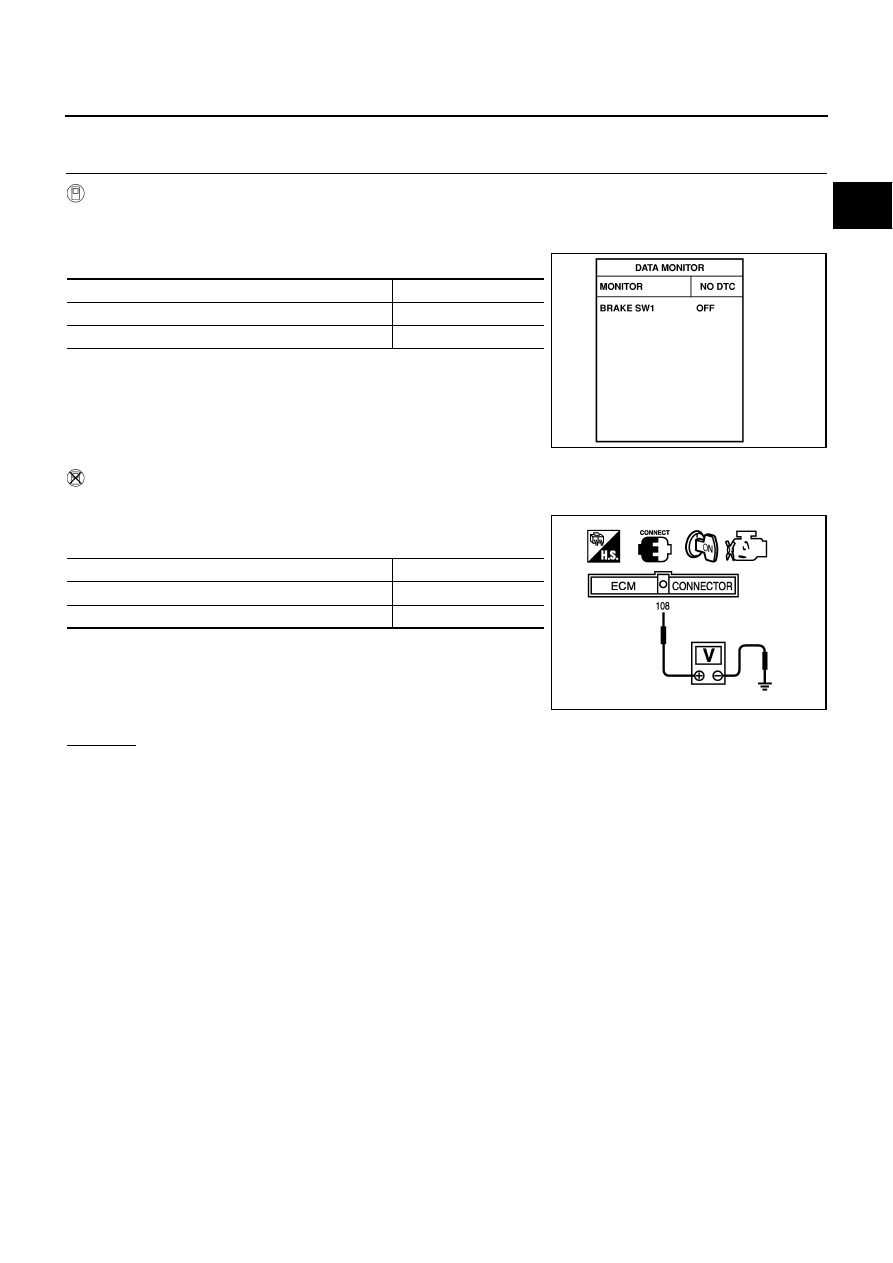

CHECK OVERALL FUNCTION-I

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-II.

3.

Check “BRAKE SW1” indication under the following conditions.

 Without CONSULT-II

1.

Turn ignition switch ON.

2.

Check voltage between ECM terminal 108 and ground under the
following conditions.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

CONDITION

INDICATION

Brake pedal and/or clutch pedal: Slightly depressed

OFF

Brake pedal and clutch pedal: Fully released

ON

SEC011D

CONDITION

VOLTAGE

Brake pedal and/or clutch pedal: Slightly depressed

Approximately 0V

Brake pedal and clutch pedal: Fully released

Battery voltage

MBIB0061E

EC-560

DTC P1572 ASCD BRAKE SWITCH

2.

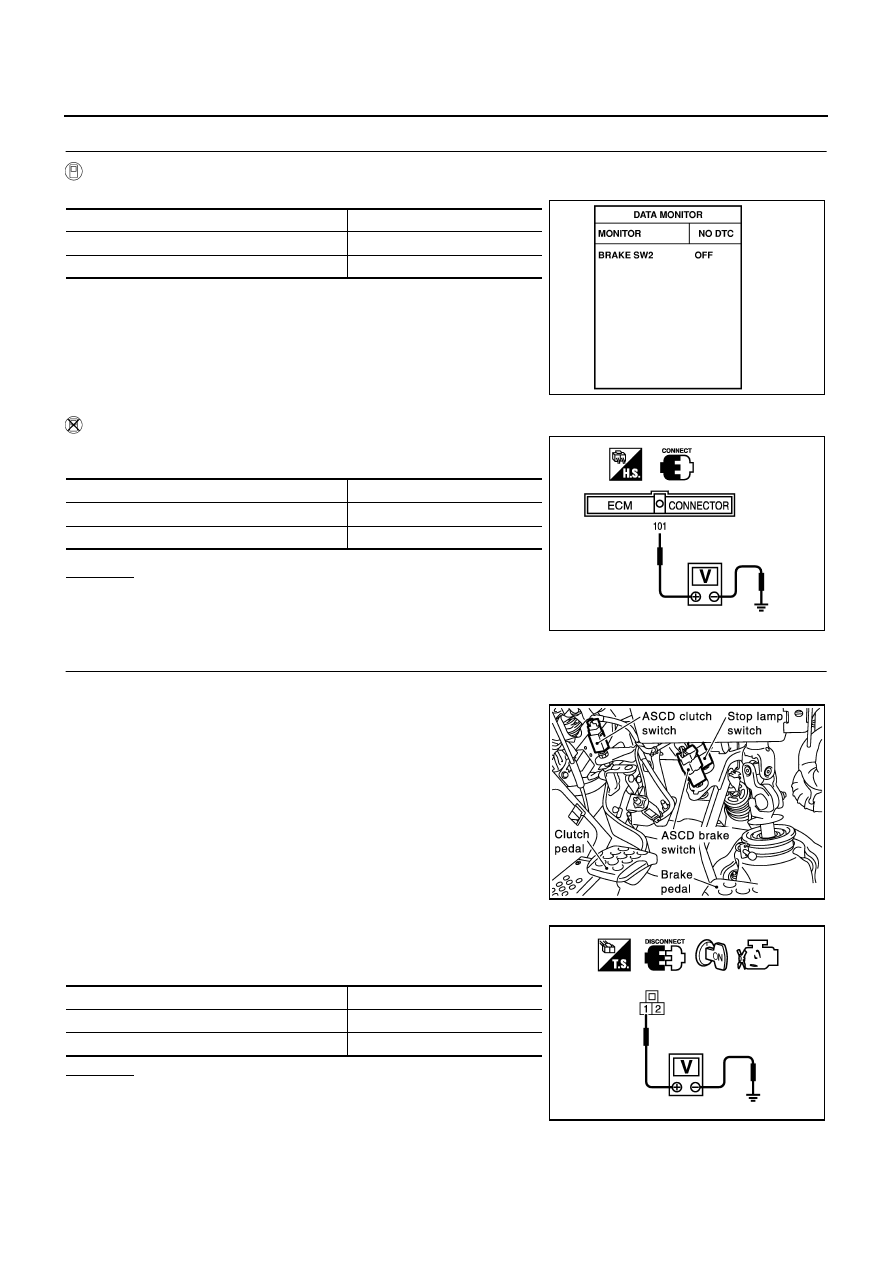

CHECK OVERALL FUNCTION-II

 With CONSULT-II

Check “BRAKE SW2” indication in “DATA MONITOR” mode.

 Without CONSULT-II

Check voltage between ECM terminal 101 and ground under the fol-
lowing conditions.

OK or NG

OK

>> GO TO 16.

NG

>> GO TO 11.

3.

CHECK ASCD BRAKE SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ASCD clutch switch harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between ASCD clutch switch terminal 1 and
ground under the following conditions with CONSULT-II or
tester.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 4.

CONDITION

INDICATION

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

SEC013D

CONDITION

VOLTAGE

Brake pedal: Fully released

Approximately 0V

Brake pedal: Slightly depressed

Battery voltage

MBIB0060E

PBIB1282E

CONDITION

VOLTAGE

Brake pedal: Fully released

Battery voltage

Brake pedal: Slightly depressed

Approximately 0V

PBIB0799E
