Infiniti G35 (V35). Manual - part 386





DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

VALVE

EC-425

C

D

E

F

G

H

I

J

K

L

M

A

EC

Removal and Installation

NBS000T0

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EM-18, "INTAKE MANIFOLD COLLECTOR"

 .

EC-426

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

PFP:14935

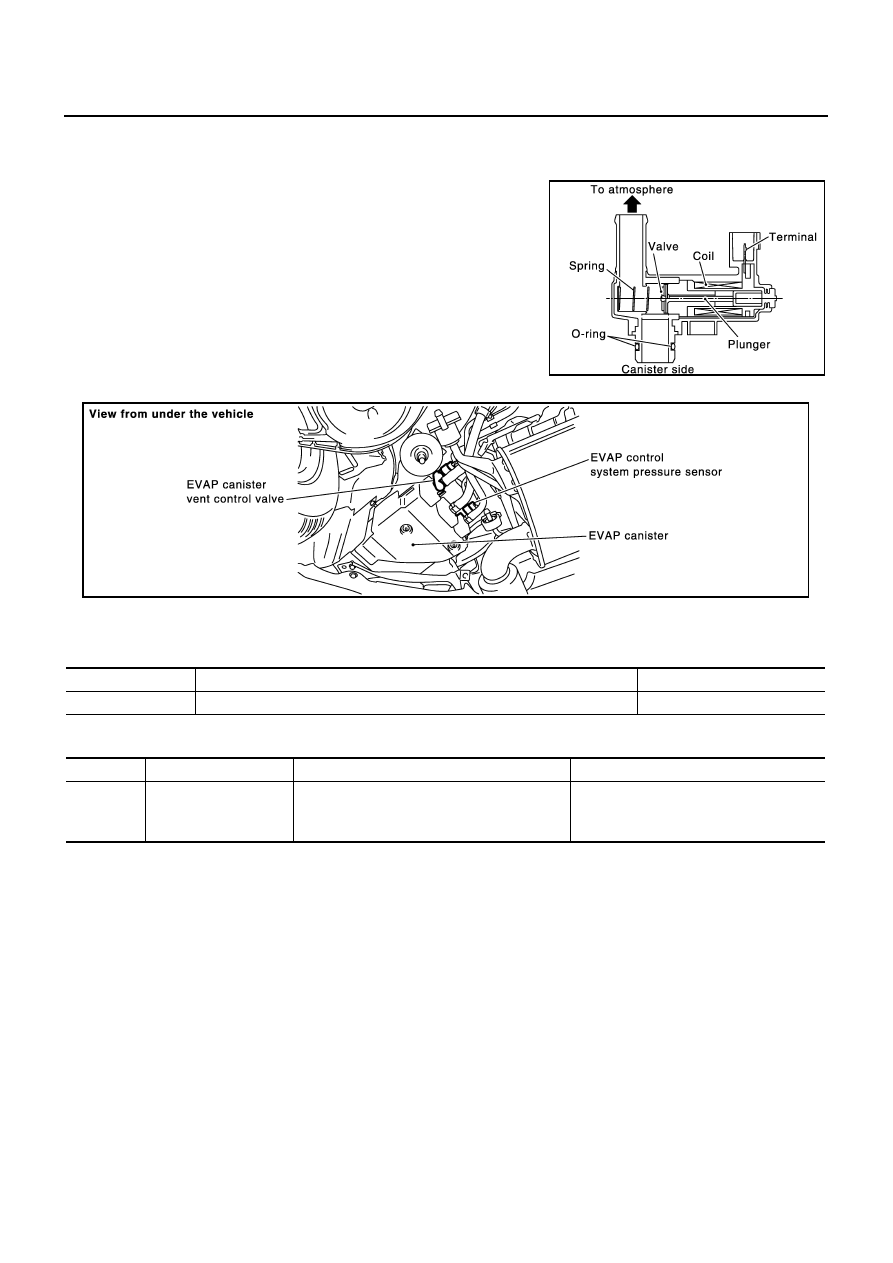

Component Description

NBS000T1

The EVAP canister vent control valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows “EVAP
Control System” diagnosis.

CONSULT-II Reference Value in Data Monitor Mode

NBS000T2

Specification data are reference values.

On Board Diagnosis Logic

NBS000T3

PBIB1263E

PBIB1086E

MONITOR ITEM

CONDITION

SPECIFICATION

VENT CONT/V

Ignition switch: ON

OFF

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0447
0447

EVAP canister vent con-
trol valve circuit open

An improper voltage signal is sent to ECM
through EVAP canister vent control valve.

Harness or connectors
(The valve circuit is open or shorted.)

EVAP canister vent control valve

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

EC-427

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC Confirmation Procedure

NBS000T4

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm battery voltage is more than 11V at idle.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and wait at least 8 seconds.

4.

If 1st trip DTC is detected, go to

EC-429, "Diagnostic Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y

EC-428

DTC P0447 EVAP CANISTER VENT CONTROL VALVE

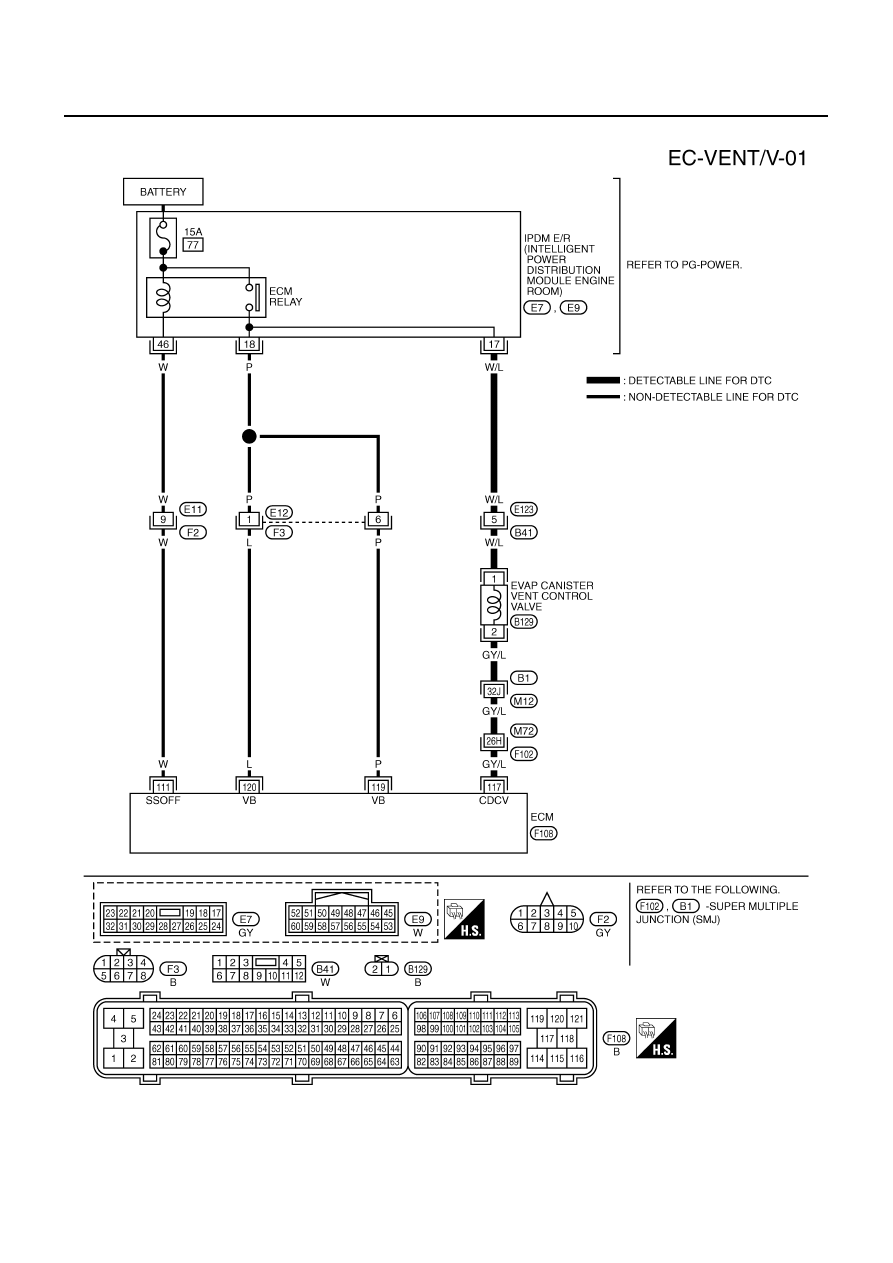

Wiring Diagram

NBS000T5

TBWM1119E
