DTC P0133, P0153 A/F SENSOR 1

EC-281

C

D

E

F

G

H

I

J

K

L

M

A

EC

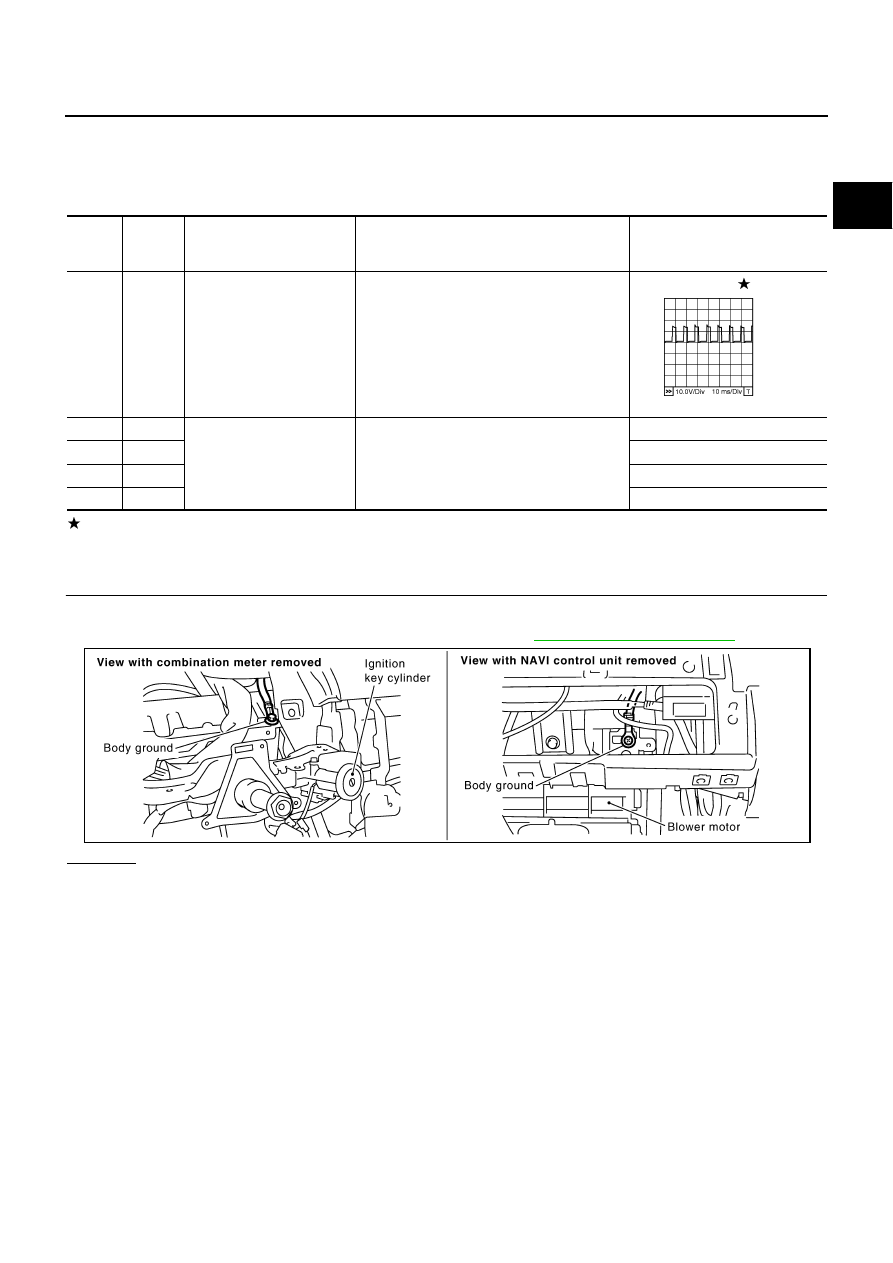

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Diagnostic Procedure

NBS000Z2

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws on the body. Refer to

EC-159, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

24

OR

A/F sensor 1 heater
(bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 5V

57

R

A/F sensor 1 (bank 2)

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 2.6V

58

L

Approximately 2.3V

76

W

Approximately 3.1V

77

Y

Approximately 2.3V

PBIB1584E

PBIB2192E

EC-282

DTC P0133, P0153 A/F SENSOR 1

2.

RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1

Loosen and retighten the air fuel ratio (A/F) sensor 1.

>> GO TO 3.

3.

CHECK EXHAUST GAS LEAK

1.

Start engine and run it at idle.

2.

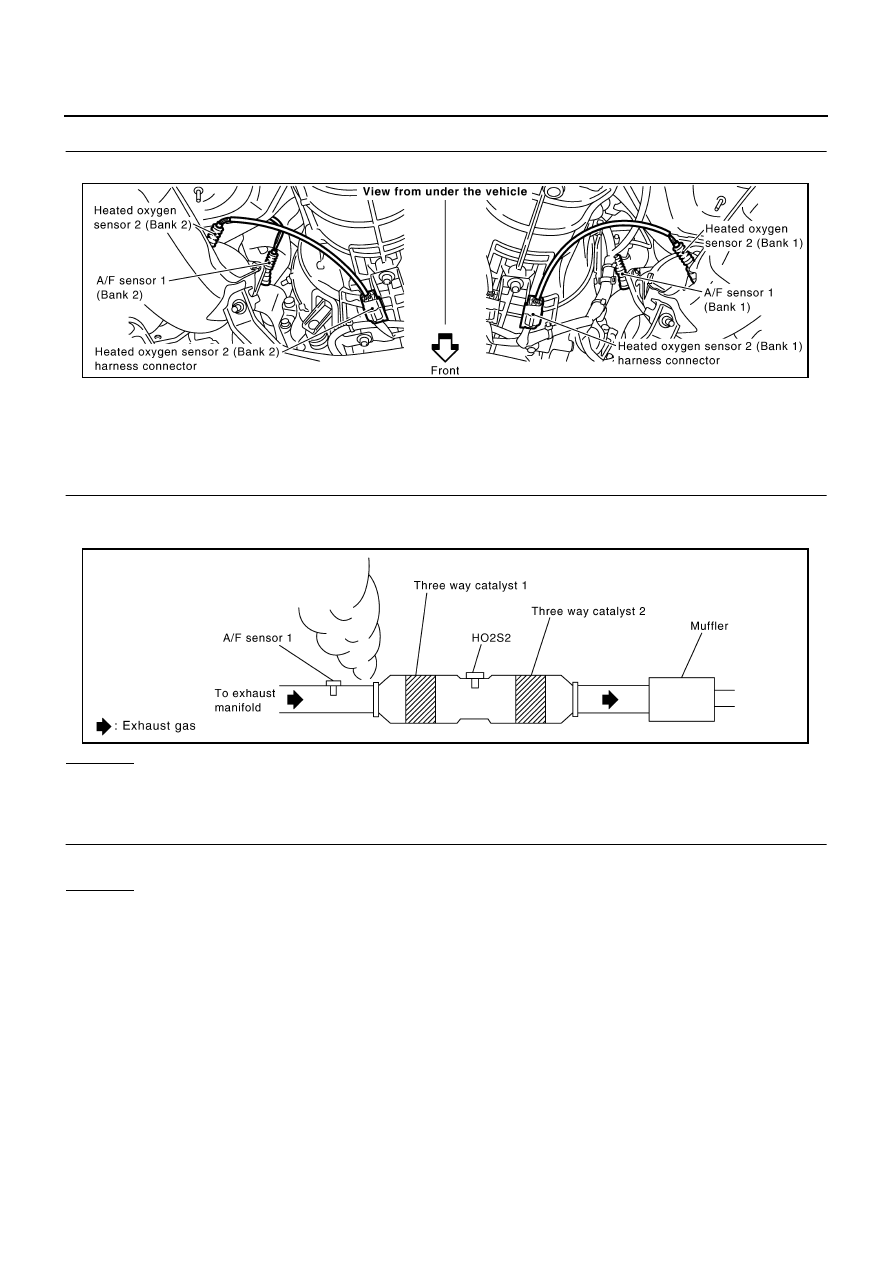

Listen for an exhaust gas leak before three way catalyst 1.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace.

4.

CHECK FOR INTAKE AIR LEAK

Listen for an intake air leak after the mass air flow sensor.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace.

Tightening torque: 50 N-m (5.1 kg-m, 37 ft-lb)

PBIB1908E

PBIB1922E

DTC P0133, P0153 A/F SENSOR 1

EC-283

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

CLEAR THE SELF-LEARNING DATA

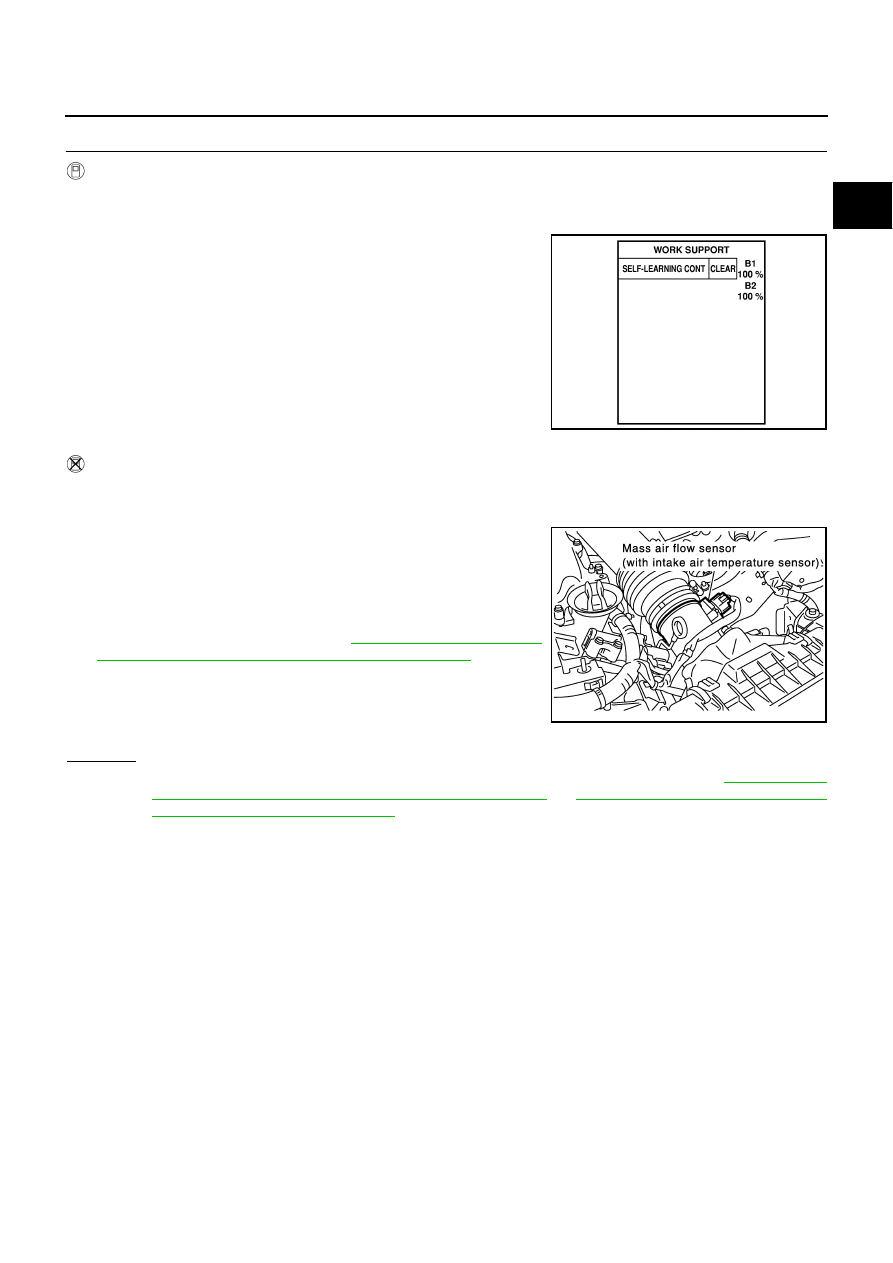

 With CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-II.

3.

Clear the self-learning control coefficient by touching “CLEAR”
or “START”.

4.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P172, P0174 or P0175 detected?
Is it difficult to start engine?

 Without CONSULT-II

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF.

3.

Disconnect mass air flow sensor harness connector.

4.

Restart engine and let it idle for at least 5 seconds.

5.

Stop engine and reconnect mass air flow sensor harness con-
nector.

6.

Make sure DTC P0102 is displayed.

7.

Erase the DTC memory. Refer to

EC-61, "HOW TO ERASE

EMISSION-RELATED DIAGNOSTIC INFORMATION"

 .

8.

Make sure DTC P0000 is displayed.

9.

Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?

Yes or No

Yes

>> Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to

EC-321, "DTC

P0171, P0174 FUEL INJECTION SYSTEM FUNCTION"

  or

EC-333, "DTC P0172, P0175 FUEL

INJECTION SYSTEM FUNCTION"

 .

No

>> GO TO 6.

SEF968Y

PBIB1077E

EC-284

DTC P0133, P0153 A/F SENSOR 1

6.

CHECK A/F SENSOR 1 POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect A/F sensor 1 harness connector.

3.

Turn ignition switch ON.

4.

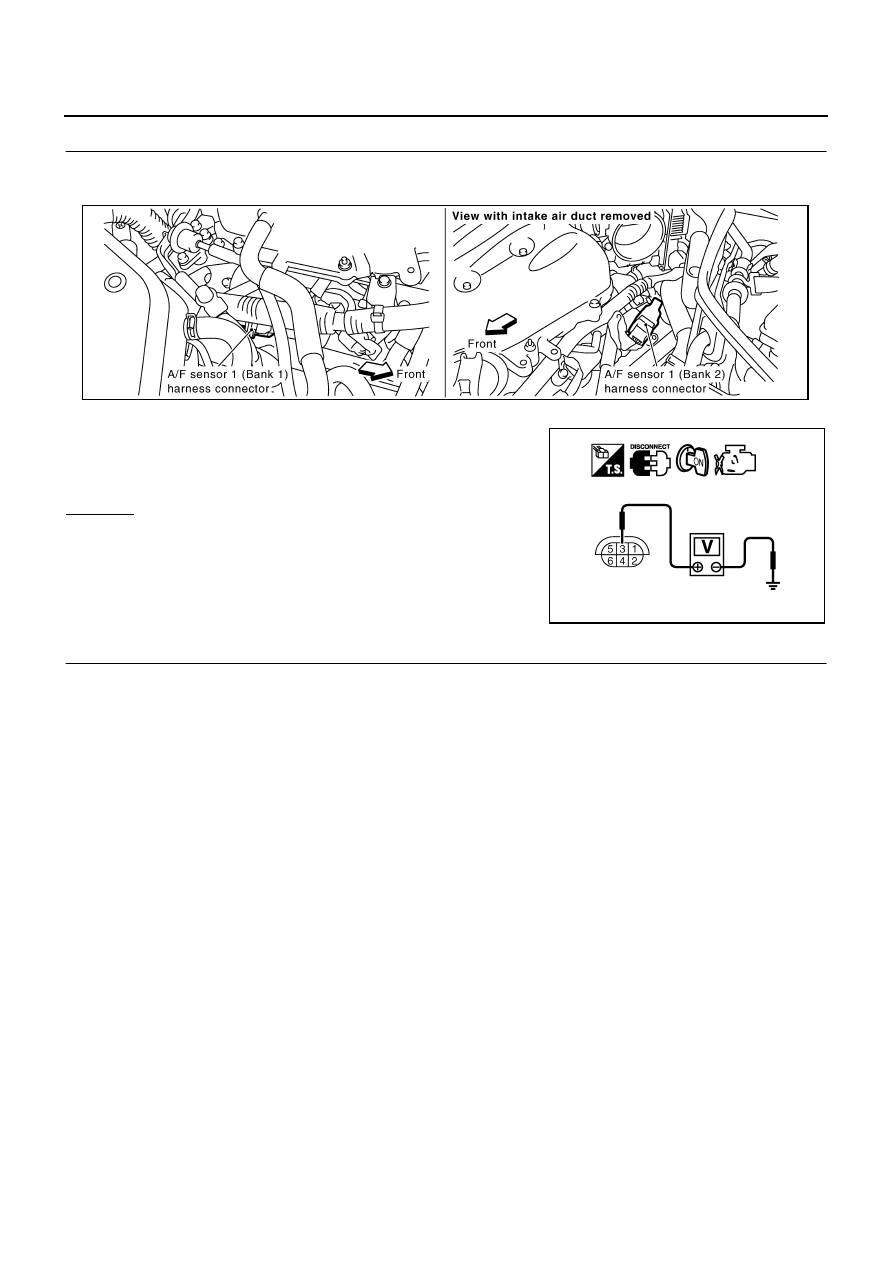

Check voltage between A/F sensor 1 terminal 3 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors M72, F102

●

Harness connectors E108, M15

●

IPDM E/R harness connector E7

●

15A fuse

●

Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

Voltage: Battery voltage

PBIB2100E

PBIB1683E
