Infiniti G35 (V35). Manual - part 334

DTC P0102, P0103 MAF SENSOR

EC-217

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC Confirmation Procedure

NBS000P8

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

PROCEDURE FOR DTC P0102

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Start engine and wait at least 5 seconds.

4.

If DTC is detected, go to

EC-219, "Diagnostic Procedure"

 .

 With GST

Follow the procedure “With CONSULT-II” above.

PROCEDURE FOR DTC P0103

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 5 seconds.

4.

If DTC is detected, go to

EC-219, "Diagnostic Procedure"

 .

If DTC is not detected, go to next step.

5.

Start engine and wait at least 5 seconds.

6.

If DTC is detected, go to

EC-219, "Diagnostic Procedure"

 .

 With GST

Follow the procedure “With CONSULT-II” above.

SEF058Y

SEF058Y

EC-218

DTC P0102, P0103 MAF SENSOR

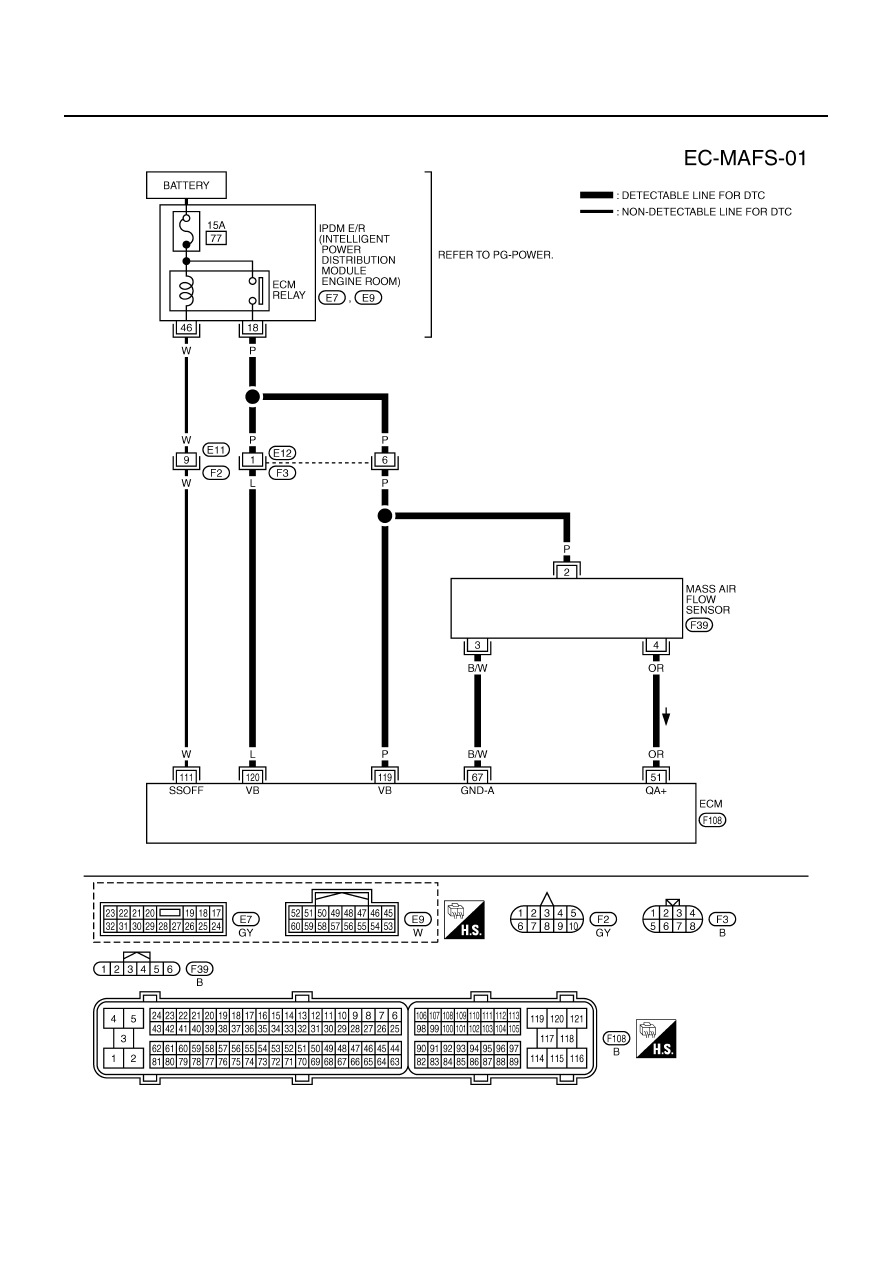

Wiring Diagram

NBS000P9

TBWM0330E

DTC P0102, P0103 MAF SENSOR

EC-219

C

D

E

F

G

H

I

J

K

L

M

A

EC

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Diagnostic Procedure

NBS000PA

1.

INSPECTION START

Which malfunction (P0102 or P0103) is duplicated?

P0102 or P0103

P0102 >> GO TO 2.
P0103 >> GO TO 3.

2.

CHECK INTAKE SYSTEM

Check the following for connection.

●

Air duct

●

Vacuum hoses

●

Intake air passage between air duct and intake manifold

OK or NG

OK

>> GO TO 3.

NG

>> Reconnect the parts.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

51

OR

Mass air flow sensor

[Engine is running]

●

Warm-up condition

●

Idle speed

0.9 - 1.2V

[Engine is running]

●

Warm-up condition

●

Engine speed: 2,500 rpm

1.5 - 1.9V

67

B/W

Sensor ground

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

111

W

ECM relay
(Self shut-off)

[Engine is running]
[Ignition switch: OFF]

●

For a few seconds after turning ignition
switch OFF

0 - 1.5V

[Ignition switch: OFF]

●

More than a few seconds after turning igni-
tion switch OFF

BATTERY VOLTAGE
(11 - 14V)

119

120

P
L

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

EC-220

DTC P0102, P0103 MAF SENSOR

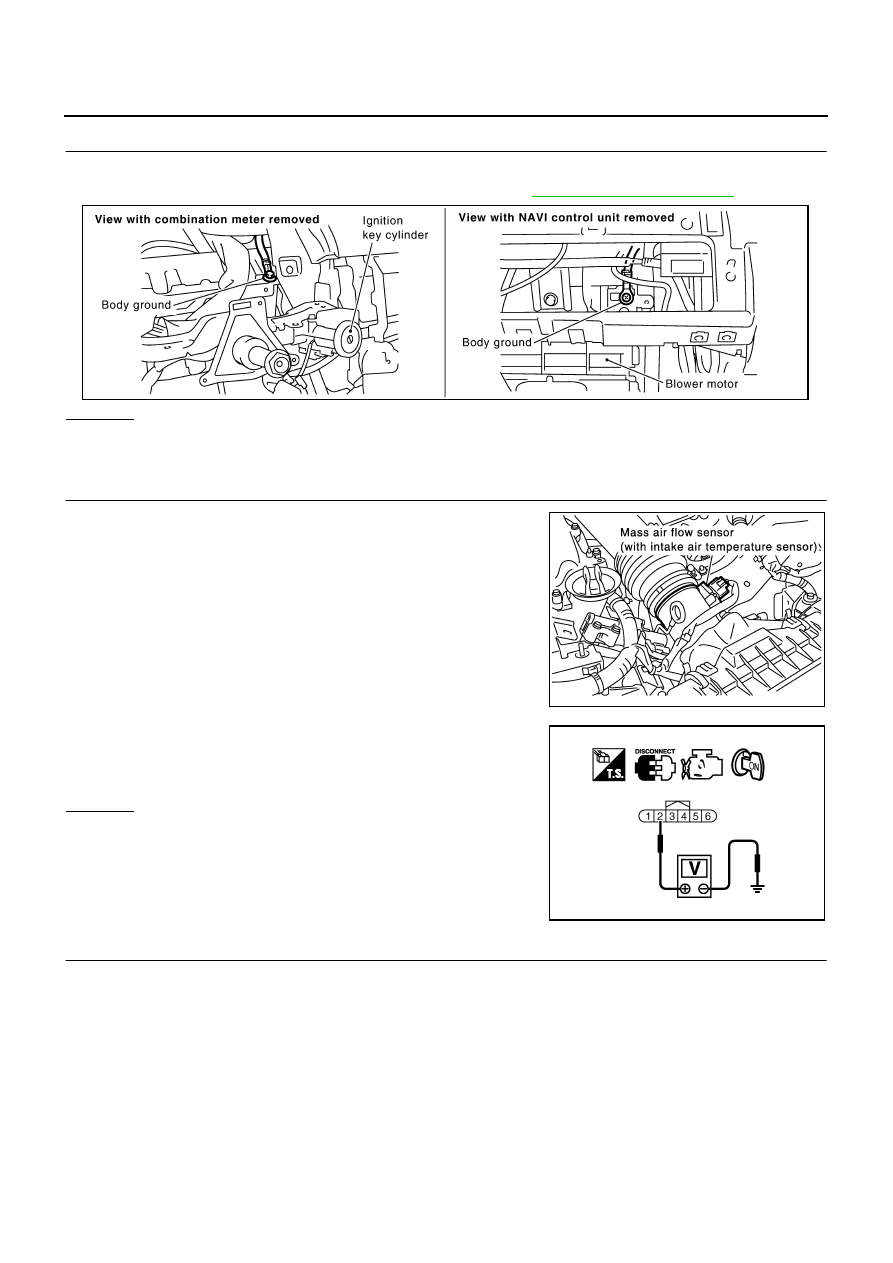

3.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten two ground screws on the body. Refer to

EC-159, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace ground connections.

4.

CHECK MAF SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect mass air flow (MAF) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between MAF sensor terminal 2 and ground with
CONSULT-II or tester.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E12, F3

●

Harness for open or short between IPDM E/R and MAF sensor

●

Harness for open or short between MAF sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

PBIB2192E

PBIB1077E

Voltage: Battery voltage

PBIB1168E
