TROUBLE DIAGNOSIS

EC-137

C

D

E

F

G

H

I

J

K

L

M

A

EC

INT/V TIM(B1)
INT/V TIM(B2)

Engine: After warming up

Shift lever: P or N (A/T), Neutral
(M/T)

Air conditioner switch: OFF

No load

Idle

5

°

 - 5

°

CA

When revving engine up to 2,000 rpm
quickly

Approx. 0

°

 - 30

°

CA

EXH/V TIM B1*

2

EXH/V TIM B2*

2

Engine: After warming up

Shift lever: Neutral

Air conditioner switch: OFF

No load

Idle

5

°

 - 5

°

CA

Engine speed: Above 1,500 rpm

Approx. 0

°

 - 30

°

CA

INT/V SOL(B1)
INT/V SOL(B2)

Engine: After warming up

Shift lever: P or N (A/T), Neutral
(M/T)

Air conditioner switch: OFF

No load

Idle

0% - 2%

When revving engine up to 2,000 rpm
quickly

Approx. 0% - 50%

EX VTC DTY B1*

2

EX VTC DTY B2*

2

Engine: After warming up

Shift lever: Neutral

Air conditioner switch: OFF

No load

Idle

0% - 2%

Engine speed: Above 1,500 rpm

Approx. 0% - 70%

AIR COND RLY

Engine: After warming up, idle
the engine

Air conditioner switch: OFF

OFF

Air conditioner switch: ON
(Compressor operates)

ON

FUEL PUMP RLY

For 1 second after turning ignition switch ON

Engine running or cranking

ON

Except above conditions

OFF

VENT CONT/V

Ignition switch: ON

OFF

THRTL RELAY

Ignition switch: ON

ON

COOLING FAN

Engine: After warming up, idle
the engine

Air conditioner switch: OFF

Engine coolant temperature is 97

°

(206

°

F) or less

OFF

Engine coolant temperature is between
98

°

C (208

°

F) and 99

°

C (210

°

F)

LOW

Engine coolant temperature is 100

°

(212

°

F) or more

HI

HO2S2 HTR (B1)
HO2S2 HTR (B2)

Engine speed: Below 3,600 rpm after the following conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load

ON

Engine speed: Above 3,600 rpm

OFF

I/P PULLY SPD

Vehicle speed: More than 20 km/h (12 MPH)

Almost the same speed as the
tachometer indication

VEHICLE SPEED

Turn drive wheels and compare CONSULT-II value with the speedometer
indication.

Almost the same speed as the
speedometer indication

TRVL AFTER MIL

Ignition switch: ON

Vehicle has traveled after MIL has
turned ON.

0 - 65,535 km
(0 - 40,723 mile)

A/F S1 HTR(B1)
A/F S1 HTR(B2)

Engine: After warming up, idle the engine

0 - 100%

AC PRESS SEN

Engine: Idle

Both A/C switch and blower fan switch: ON.
(Compressor operates.)

1.0 - 4.0V

VEH SPEED SE

Turn drive wheels and compare speedometer indication with the CONSULT-
II value.

Almost the same speed as the
CONSULT-II value

MONITOR ITEM

CONDITION

SPECIFICATION

EC-138

TROUBLE DIAGNOSIS

*1: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ
from ECM terminals voltage signal.
*2: For models with M/T.

SET VHCL SPD

Engine: Running

ASCD: Operating

The preset vehicle speed is
displayed.

MAIN SW

Ignition switch: ON

MAIN switch: Pressed

ON

MAIN switch: Released

OFF

CANCEL SW

Ignition switch: ON

CANCEL switch: Pressed

ON

CANCEL switch: Released

OFF

RESUME/ACC SW

Ignition switch: ON

RESUME/ACCELERATE switch:
Pressed

ON

RESUME/ACCELERATE switch:
Released

OFF

SET SW

Ignition switch: ON

SET/COAST switch: Pressed

ON

SET/COAST switch: Released

OFF

BRAKE SW1

Ignition switch: ON

Brake pedal: Fully released (A/T)

Brake pedal and clutch pedal: Fully
released (M/T)

ON

Brake pedal: Slightly depressed (A/T)

Brake pedal and/or clutch pedal:
Slightly depressed (M/T)

OFF

BRAKE SW2

Ignition switch: ON

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

CRUISE LAMP

Ignition switch: ON

MAIN switch: Pressed at the 1st time



at the 2nd time

ON

 OFF

SET LAMP

MAIN switch: ON

When vehicle speed is between
40 km/h (25 MPH) and 144 km/h
(89MPH)

ASCD: Operating

ON

ASCD: Not operating

OFF

MONITOR ITEM

CONDITION

SPECIFICATION

TROUBLE DIAGNOSIS

EC-139

C

D

E

F

G

H

I

J

K

L

M

A

EC

Major Sensor Reference Graph in Data Monitor Mode

NBS000NN

The following are the major sensor reference graphs in “DATA MONITOR” mode.

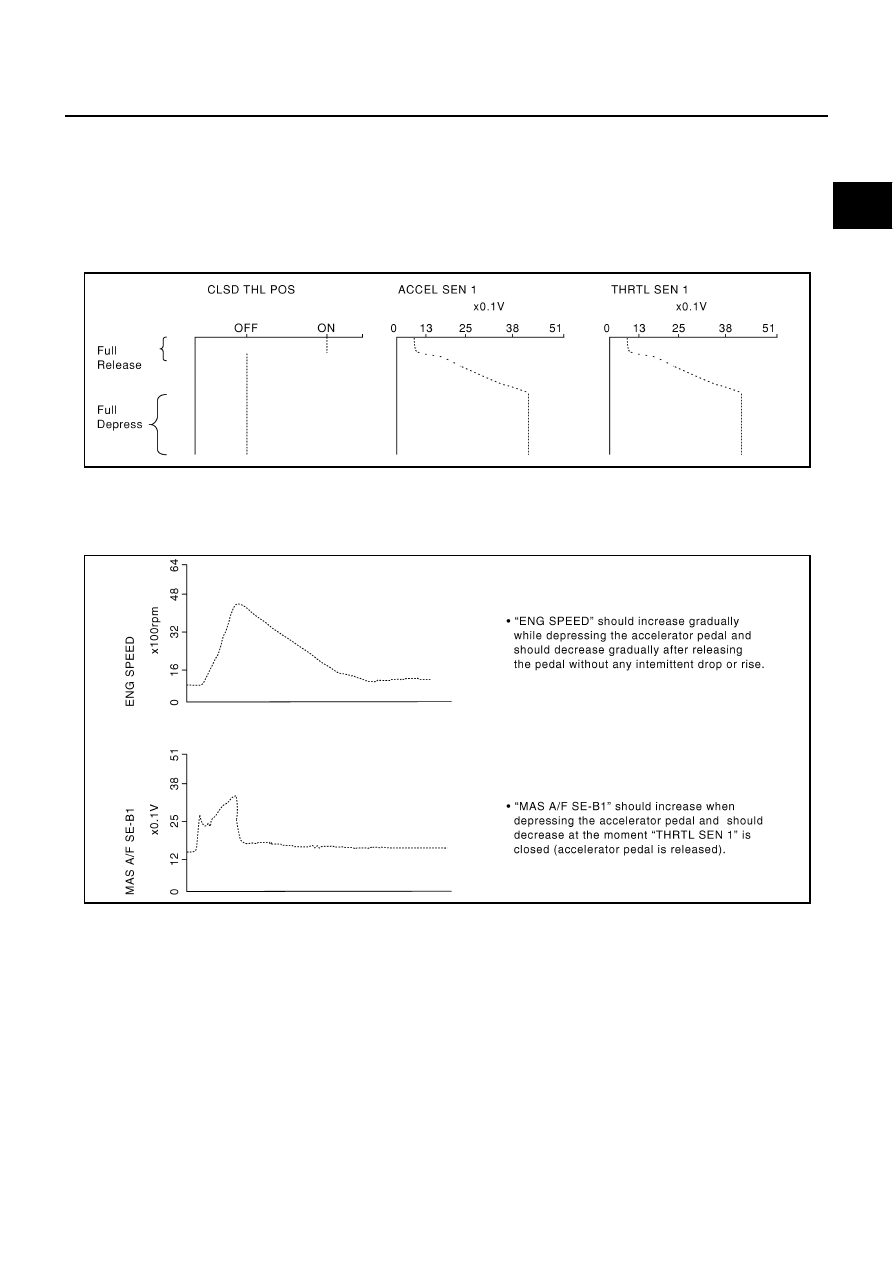

CLSD THL POS, ACCEL SEN 1, THRTL SEN 1

Below is the data for “CLSD THL POS”, “ACCEL SEN 1” and “THRTL SEN 1” when depressing the accelera-
tor pedal with the ignition switch ON and with shift lever in D (A/T), 1st (M/T) position.
The signal of “ACCEL SEN 1” and “THRTL SEN 1” should rise gradually without any intermittent drop or rise
after “CLSD THL POS” is changed from “ON” to “OFF”.

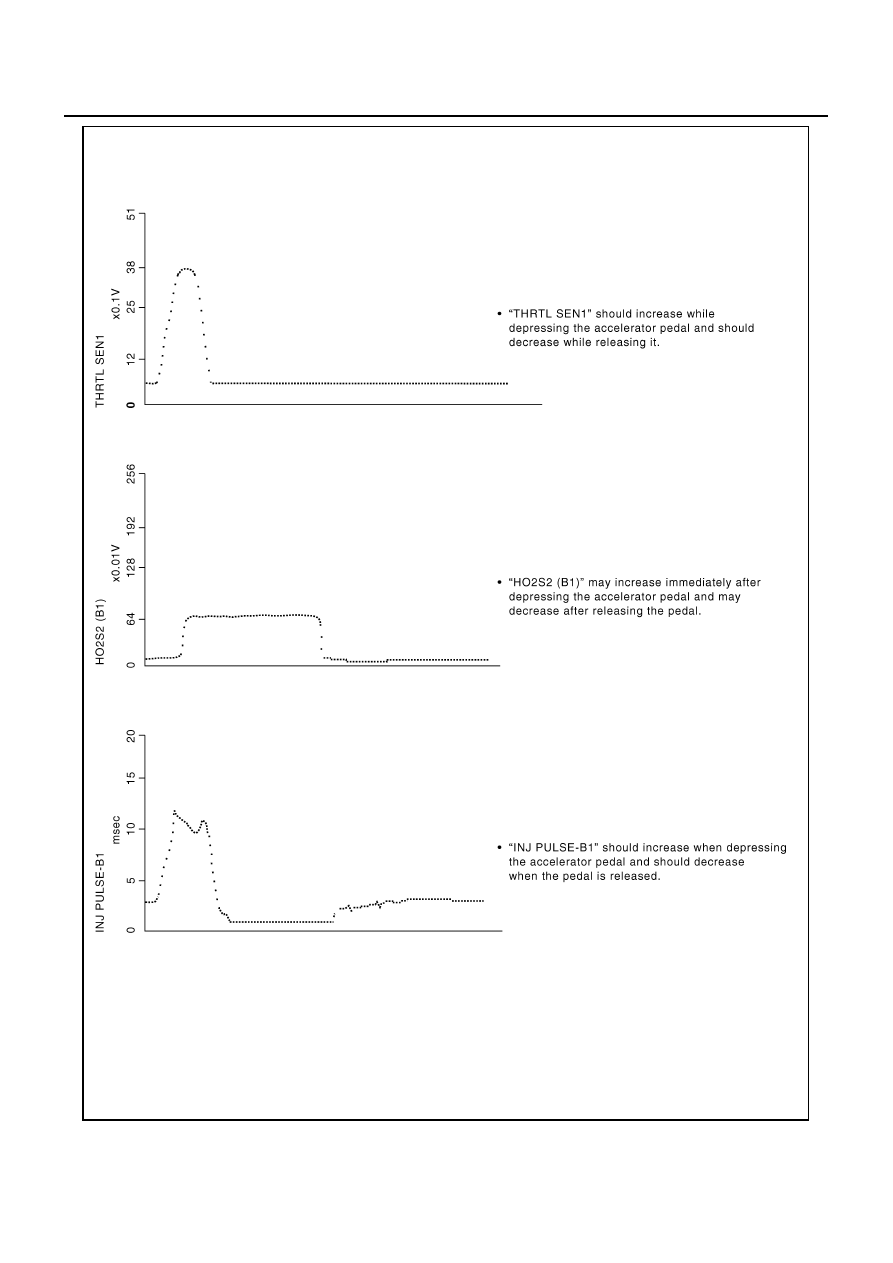

ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), INJ PULSE-B1

Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL SEN 1”, “HO2S2 (B1)” and “INJ PULSE-B1”
when revving engine quickly up to 4,800 rpm under no load after warming up engine sufficiently.
Each value is for reference, the exact value may vary.

PBIB0198E

PBIB2445E

EC-140

TROUBLE DIAGNOSIS

PBIB2099E
