BASIC SERVICE PROCEDURE

EC-81

C

D

E

F

G

H

I

J

K

L

M

A

EC

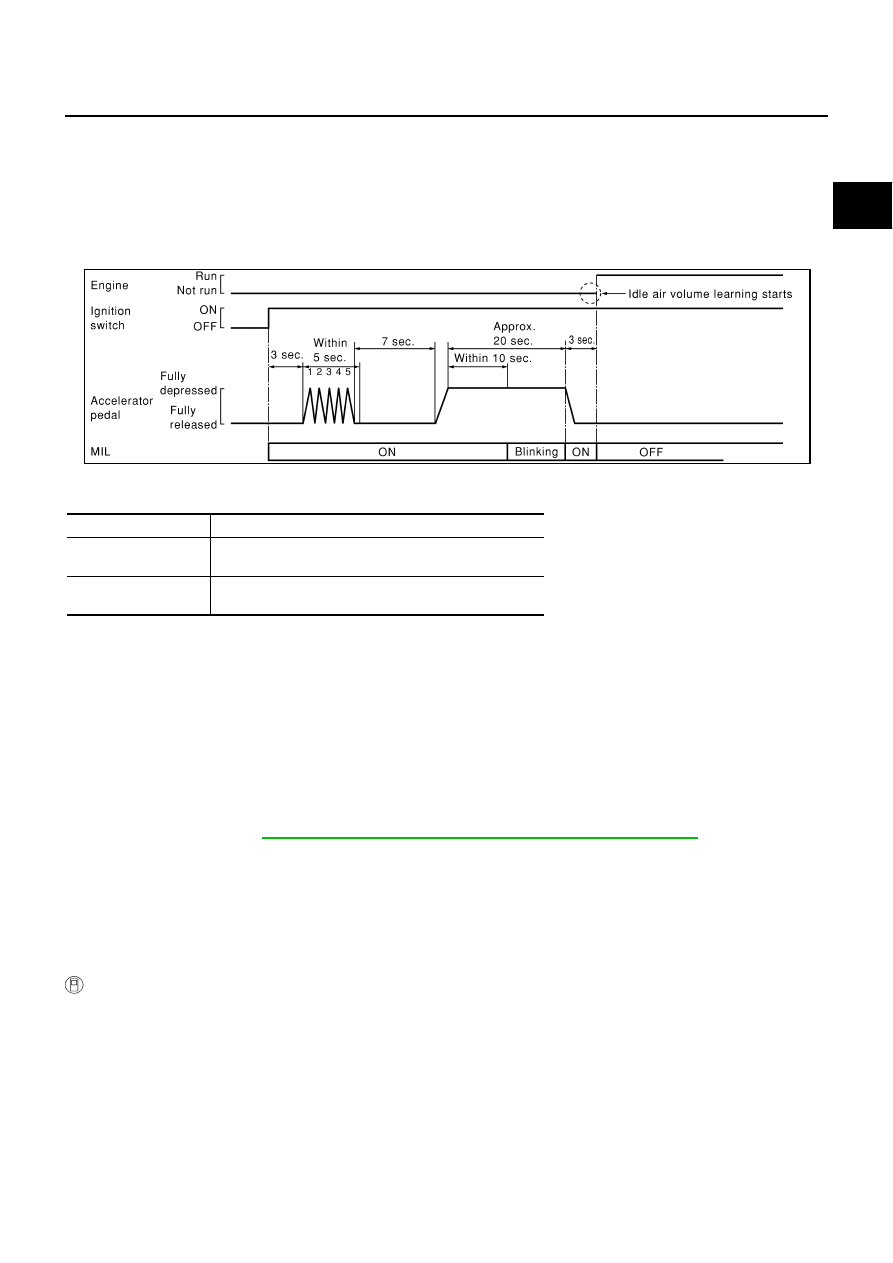

a.

Fully depress the accelerator pedal.

b.

Fully release the accelerator pedal.

8.

Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MIL stops
blinking and turned ON.

9.

Fully release the accelerator pedal within 3 seconds after the MIL turned ON.

10. Start engine and let it idle.

11. Wait 20 seconds.

12. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the

specifications.

13. If idle speed and ignition timing are not within the specification, Idle Air Volume Learning will not be carried

out successfully. In this case, find the cause of the incident by referring to the DIAGNOSTIC PROCE-
DURE below.

DIAGNOSTIC PROCEDURE

If Idle Air Volume Learning cannot be performed successfully, proceed as follows:

1.

Check that throttle valve is fully closed.

2.

Check PCV valve operation.

3.

Check that downstream of throttle valve is free from air leakage.

4.

When the above three items check out OK, engine component parts and their installation condi-
tion are questionable. Check and eliminate the cause of the incident.
It is useful to perform

EC-141, "TROUBLE DIAGNOSIS - SPECIFICATION VALUE"

 .

5.

If any of the following conditions occur after the engine has started, eliminate the cause of the
incident and perform Idle Air Volume Learning all over again:

●

Engine stalls.

●

Erroneous idle.

Fuel Pressure Check

NBS006SS

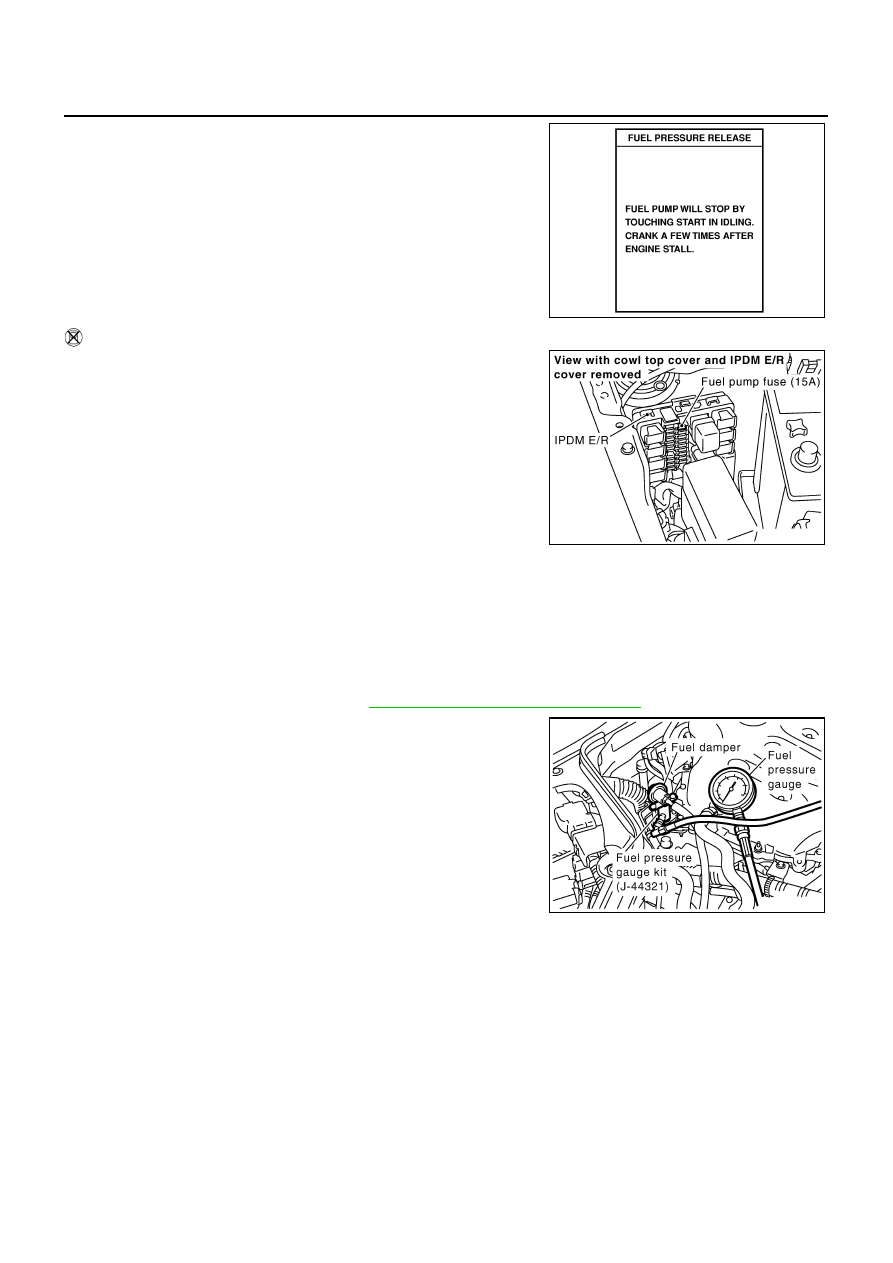

FUEL PRESSURE RELEASE

 With CONSULT-II

1.

Turn ignition switch ON.

ITEM

SPECIFICATION

Idle speed

A/T: 650

±

 50 rpm (in P or N position)

M/T: 650

±

 50 rpm (in Neutral position)

Ignition timing

A/T: 15

±

 5

°

 BTDC (in P or N position)

M/T: 15

±

 5

°

 BTDC (in Neutral position)

SEC897C

EC-82

BASIC SERVICE PROCEDURE

2.

Perform “FUEL PRESSURE RELEASE” in “WORK SUPPORT”
mode with CONSULT-II.

3.

Start engine.

4.

After engine stalls, crank it two or three times to release all fuel
pressure.

5.

Turn ignition switch OFF.

 Without CONSULT-II

1.

Remove fuel pump fuse located in IPDM E/R.

2.

Start engine.

3.

After engine stalls, crank it two or three times to release all fuel
pressure.

4.

Turn ignition switch OFF.

5.

Reinstall fuel pump fuse after servicing fuel system.

FUEL PRESSURE CHECK

CAUTION:

Before disconnecting fuel line, release fuel pressure from fuel line to eliminate danger.

NOTE:

●

Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel
pressure cannot be completely released because V35 models do not have fuel return system.

●

Use Fuel Pressure Gauge Kit (J-44321) to check fuel pressure.

1.

Release fuel pressure to zero. Refer to

EC-81, "FUEL PRESSURE RELEASE"

 .

2.

Install the inline fuel quick disconnected fitting between fuel
damper and fuel injector tube.

3.

Connect the fuel pressure gauge (quick connector adapter
hose) to the inline fuel quick disconnected fitting.

4.

Turn ignition switch ON and check for fuel leakage.

5.

Start engine and check for fuel leakage.

6.

Read the indication of fuel pressure gauge.

7.

If result is unsatisfactory, go to next step.

8.

Check the following.

●

Fuel hoses and fuel tubes for clogging

●

Fuel filter for clogging

●

Fuel pump

●

Fuel pressure regulator for clogging

If OK, replace fuel pressure regulator.
If NG, repair or replace.

SEF214Y

PBIB1910E

At idling:

Approximately 350 kPa (3.57 kg/cm

2

 , 51 psi)

PBIB1662E

TROUBLE DIAGNOSIS

EC-83

C

D

E

F

G

H

I

J

K

L

M

A

EC

TROUBLE DIAGNOSIS

PFP:00004

Trouble Diagnosis Introduction

NBS000NA

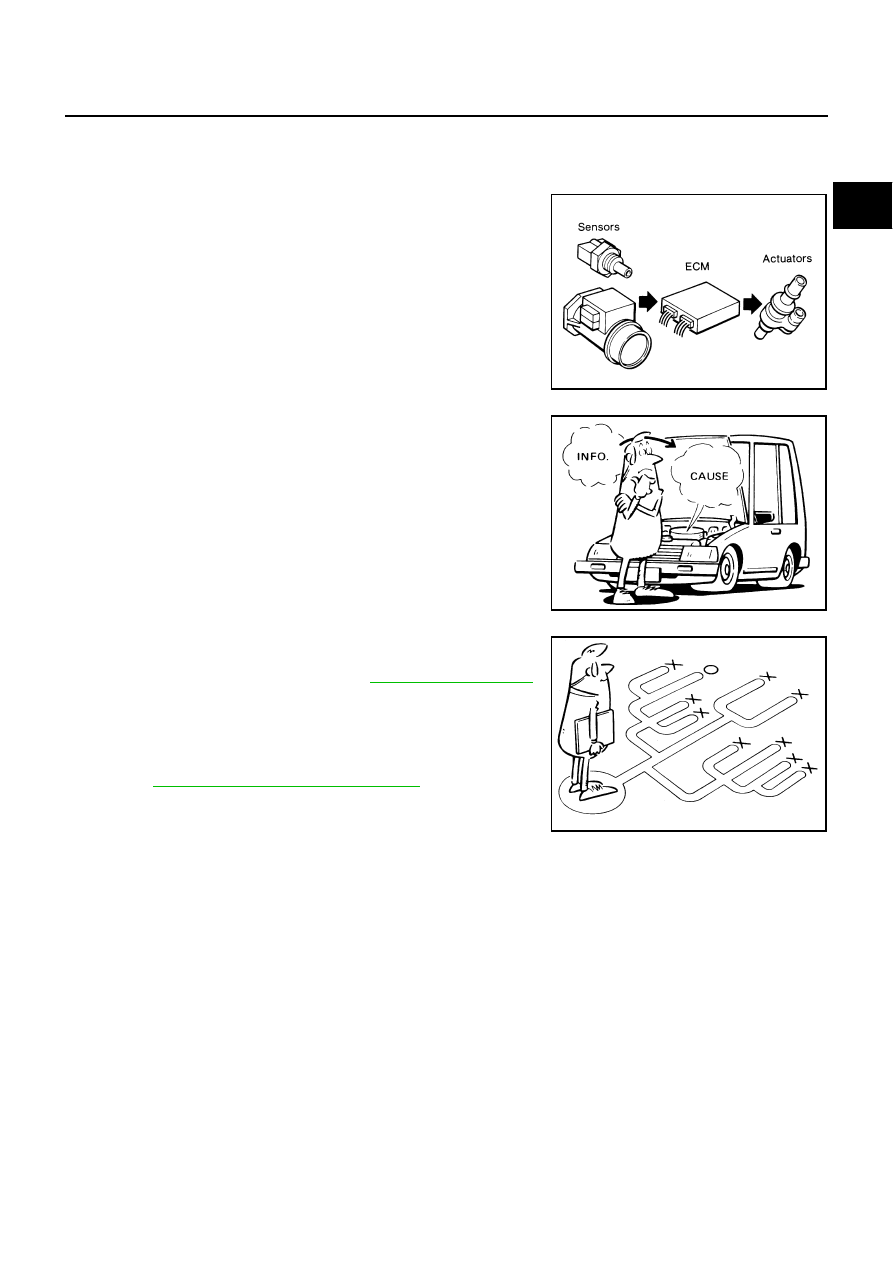

INTRODUCTION

The engine has an ECM to control major systems such as fuel con-
trol, ignition control, idle air control system, etc. The ECM accepts
input signals from sensors and instantly drives actuators. It is essen-
tial that both input and output signals are proper and stable. At the
same time, it is important that there are no malfunctions such as vac-
uum leaks, fouled spark plugs, or other malfunctions with the engine.

It is much more difficult to diagnose an incident that occurs intermit-
tently rather than continuously. Most intermittent incidents are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.

A visual check only may not find the cause of the incidents. A road
test with CONSULT-II (or GST) or a circuit tester connected should
be performed. Follow the WORK FLOW on

EC-84, "WORK FLOW"

 .

Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such incidents, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A DIAGNOSTIC WORKSHEET like the
example on

EC-87, "DIAGNOSTIC WORKSHEET"

  should be used.

Start your diagnosis by looking for conventional malfunctions first.
This will help troubleshoot driveability malfunctions on an electroni-
cally controlled engine vehicle.

MEF036D

SEF233G

SEF234G

EC-84

TROUBLE DIAGNOSIS

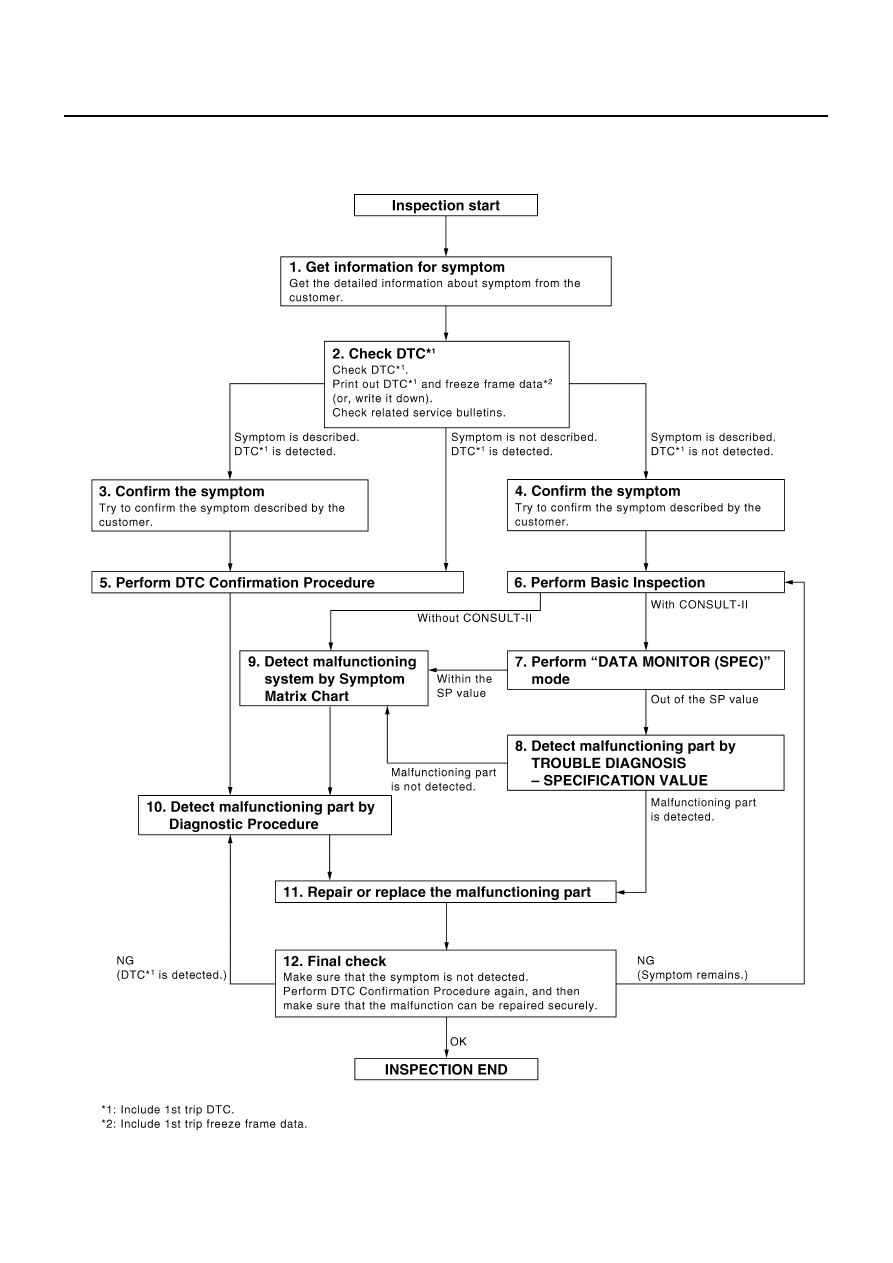

WORK FLOW
Overall Sequence

PBIB2267E
