PRECAUTIONS

CO-3

C

D

E

F

G

H

I

J

K

L

M

A

CO

3.

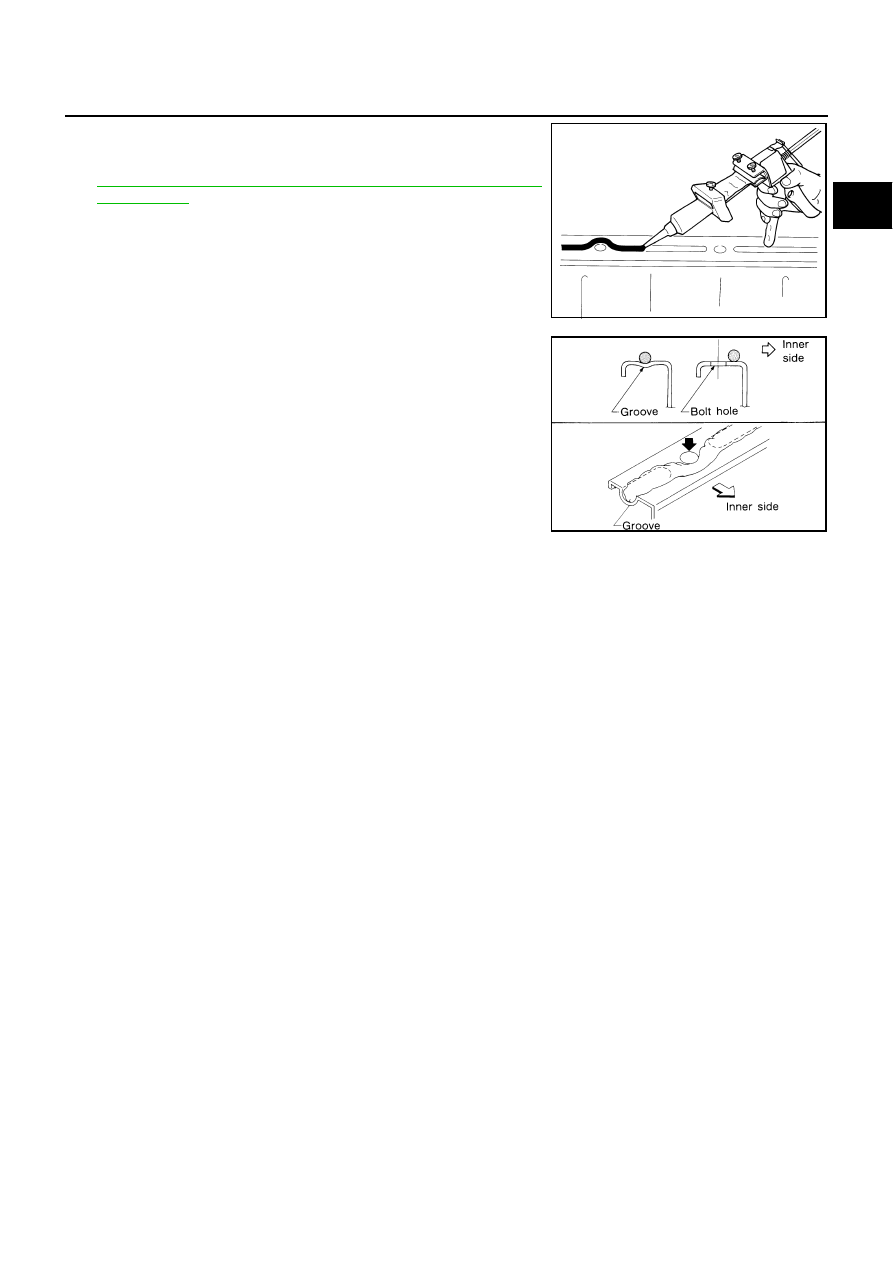

Attach liquid gasket tube to tube presser [SST: WS39930000
(

—

)].

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-46, "RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS"

 .

4.

Apply liquid gasket without breaks to the specified location with
the specified dimensions.

●

If there is a groove for the liquid gasket application, apply liq-
uid gasket to the groove.

●

As for the bolt holes, normally apply liquid gasket inside the
holes. Occasionally, it should be applied outside the holes.
Make sure to read the text of service manual.

●

Within five minutes of liquid gasket application, install the mat-
ing component.

●

If liquid gasket protrudes, wipe it off immediately.

●

Do not retighten mounting bolts or nuts after the installation.

●

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

EMA0622D

SEM159F

CO-4

PREPARATION

PREPARATION

PFP:00002

Special Service Tools

NBS000LG

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

EG17650301
(J33984-A)
Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

KV99103510
(

–

)

Radiator plate pliers A

Installing radiator upper and lower tanks

KV99103520
(

–

)

Radiator plate pliers B

Removing radiator upper and lower tanks

KV10111100
(J37228)
Seal cutter

Removing chain tensioner cover and water
pump cover

WS39930000
(

–

)

Tube presser

Pressing the tube of liquid gasket

S-NT564

S-NT224

S-NT225

NT046

S-NT052

PREPARATION

CO-5

C

D

E

F

G

H

I

J

K

L

M

A

CO

Commercial Service Tools

NBS000LH

Tool name

Description

Power tool

Loosening bolts and nuts

Radiator cap tester

Checking radiator and radiator cap

PBIC0190E

PBIC1982E

CO-6

OVERHEATING CAUSE ANALYSIS

OVERHEATING CAUSE ANALYSIS

PFP:00012

Troubleshooting Chart

NBS000LI

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn or loose drive belt

—

Thermostat stuck closed

—

Damaged fins

Dust contamination or
paper clogging

Physical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Reduced air flow

Cooling fan does not oper-
ate

Fan assembly

—

High resistance to fan rota-
tion

Damaged fan blades

Damaged radiator shroud

—

—

—

Improper engine coolant
mixture ratio

—

—

—

Poor engine coolant quality

—

Engine coolant viscosity

—

Insufficient engine coolant

Engine coolant leaks

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Radiator cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leaks into
cooling system

Cylinder head deterioration

Cylinder head gasket dete-
rioration
