2.

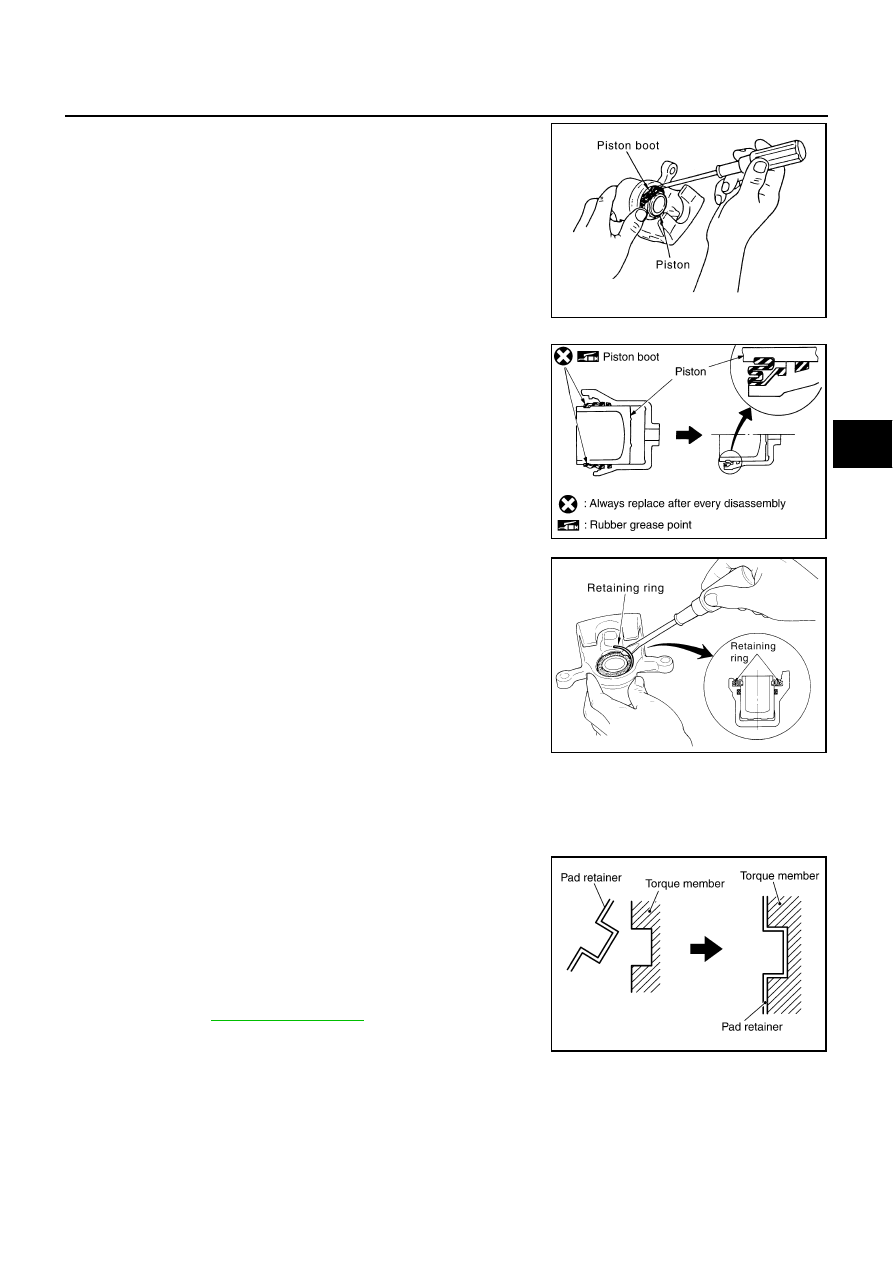

Apply rubber grease to piston boot. Cover the piston end with
the piston boot, and install cylinder-slide lip on piston boot prop-
erly into the groove on cylinder body.

CAUTION:

Do not reuse the piston boot.

3.

Apply brake fluid to the piston, and press piston into cylinder
body by hand to assemble piston-side lip on piston boot properly
into a groove on piston.

CAUTION:

Press piston evenly and change pressing point to prevent
inner wall of cylinder from being rubbed.

4.

Fix piston boot with retaining ring.

CAUTION:

●

Make sure the boot is firmly in the cylinder body groove.

●

Do not reuse the retaining ring.

5.

Install the sliding pin bolt and sliding pin boot to the torque member.

6.

Apply PBC (Poly Butyl Cuprysil) grease or silicone- based grease to the rear of the pad and to both sides
of the shim, and attach the inner shim and shim cover to the inner pad, and the outer shim to the outer
pad.

7.

Install the pad retainer and pad to the torque member.

CAUTION:

When attaching the pad retainer, attach it firmly so that it
does not float up higher than the torque member, as shown
in the figure.

8.

After assembling shims and shim cover to pad, install it to the
torque member.

9.

Install cylinder body. Tighten sliding pin bolts to the specified
torque. Refer to

BR-27, "Components"

 .

SFIA2498E

PFIA0272E

SFIA2280E

PFIA0273E

BR-32

REAR DISC BRAKE

DISC ROTOR INSPECTION
Visual Inspection

Check surface of the disc rotor for uneven wear, cracks, and serious damage. If a malfunction detected,
replace applicable part.

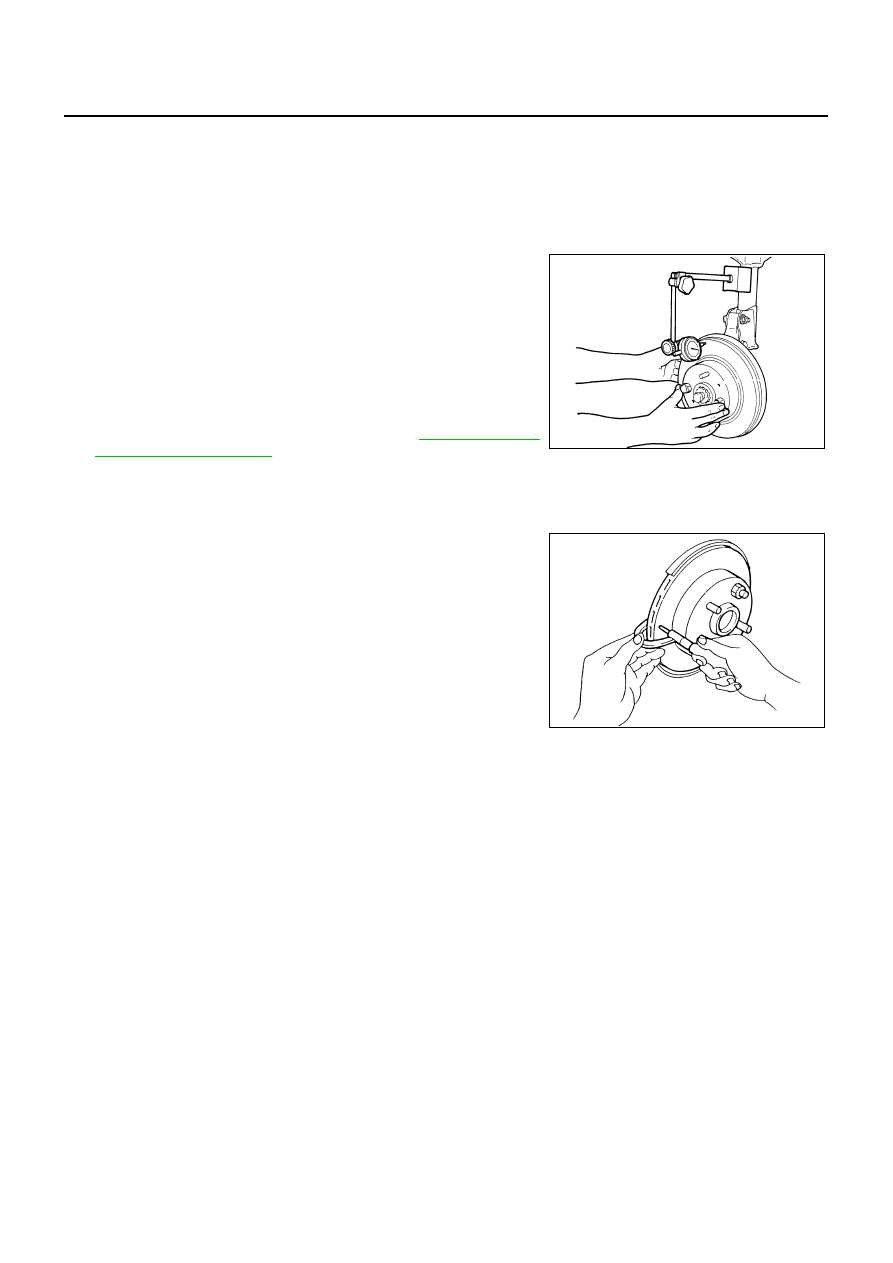

Runout Inspection

1.

Using wheel nuts, secure disc rotor to the wheel hub. (2 or more positions)

2.

Inspect runout using a dial gauge.

NOTE:
Make sure that wheel bearing axial end play is with in the speci-
fication before measuring runout. Refer to

RAX-6, "WHEEL

BEARING INSPECTION"

 .

3.

If runout is outside the limit, find the minimum runout point by shifting mounting positions of the disc rotor
and wheel hub by one hole.

Thickness Inspection

Using a micrometer, check thickness of the disc rotor. If thickness is
outside the standard, replace disc rotor.

Brake Burnishing Procedure

NFS000TD

Burnish the brake pad and disc rotor mutually contacting surfaces of disc rotor according to following proce-
dure after refinishing or replacing rotors, after replacing pads, or if a soft pedal occurs at very low mileage.

CAUTION:

●

Be careful of vehicle speed because brake does not operate easily until pad and disc rotor are
securely fitted.

●

Only perform this procedure under safe road and traffic conditions. Use extreme caution.

1.

Drive vehicle on straight, flat road.

2.

Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.

3.

Drive without depressing brake for a few minutes to cool brake.

4.

Repeat steps 1 to 3 until pad and disc rotor are securely fitted.

Measurement position:

At a point 10.0 mm (0.394 in) from outer edge of
disc rotor

Runout limit (with it attached to the vehicle):

0.055 mm (0.0022 in) or less

BRA0013D

Standard thickness

: 16.0 mm (0.630 in)

Repair limit thickness

: 14.0 mm (0.551 in)

Maximum uneven wear (measured at 8 positions)

: 0.015 mm (0.0006 in) or less

SBR020B

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-33

C

D

E

G

H

I

J

K

L

M

A

B

BR

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

NFS00060

Unit: mm (in)

Brake Pedal

NFS00061

Check Valve

NFS00062

Brake Booster

NFS00063

Front Disc Brake

NFS00064

Rear Disc Brake

NFS00065

Front brake

Cylinder bore diameter

45.0 (1.772)

×

 2

Pad length

×

 width

×

 thickness

130

×

 50

×

 11.0 (5.12

×

 1.97

×

 0.433)

Rotor outer diameter

×

 thickness

320

×

 28.0 (12.60

×

 1.102)

Rear brake

Cylinder bore diameter

42.86 (1.6874)

Pad length

×

 width

×

 thickness

83.0

×

 31.9

×

 8.5 (3.268

×

 1.256

×

 0.335)

Rotor outer diameter

×

 thickness

308

×

 16.0 (12.13

×

 0.630)

Master cylinder

Cylinder bore diameter

25.4 (1.0)

Control valve

Valve type

Electric brake force distribution

Brake booster

Diaphragm diameter

255 (10.04)

Recommended brake fluid

DOT 3

Brake pedal free height (from dash lower panel top surface)

M/T models

153.2 – 163.2 mm (6.03 – 6.43 in)

A/T models

161.5 – 171.5 mm (6.36 – 6.75 in)

Brake pedal depressed height [under a force of 490 N (50 kg, 110
lb) with the engine running]

M/T models

90 mm (3.54 in) or more

A/T models

95 mm (3.74 in) or more

Clearance between stopper rubber and the threaded end of stop lamp switch and
ASCD cancel switch

0.74 – 1.96 mm (0.0291 – 0.0772 in)

Pedal play

3 – 11 mm (0.12 – 0.43 in)

Vacuum leakage
[at vacuum of

−

66.7 kPa(

−

500 mmHg,

−

19.69 inHg]

Within 1.3 kpa (10 mmHg, 0.39 inHg) of vacuum for 15 seconds

Vacuum leakage
[at vacuum of

−

66.7 kPa (

−

500 mmHg,

−

19.69 inHg)]

Within 3.3 kPa (25 mmHg, 0.98 inHg) of vacuum for 15 seconds

Output rod length

30.5 mm(1.201 in)

Input rod length

125 mm (4.92 in)

Brake pad

Standard thickness

11.0 mm (0.433 in)

Repair limit thickness

2.0 mm (0.079 in)

Disc rotor

Standard thickness

28.0 mm (1.102 in)

Repair limit thickness

26.0 mm (1.024 in)

Runout limit

0.035 mm (0.0014 in)

Brake pad

Standard thickness

8.5 mm (0.335 in)

Repair limit thickness

2.0 mm (0.079 in)

Disc rotor

Standard thickness

16.0 mm (0.630 in)

Repair limit thickness

14.0 mm (0.551 in)

Runout limit

0.055 mm (0.0022 in)
