Infiniti G35 (V35). Manual - part 211

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-231

C

D

E

F

G

H

J

K

L

M

A

B

BL

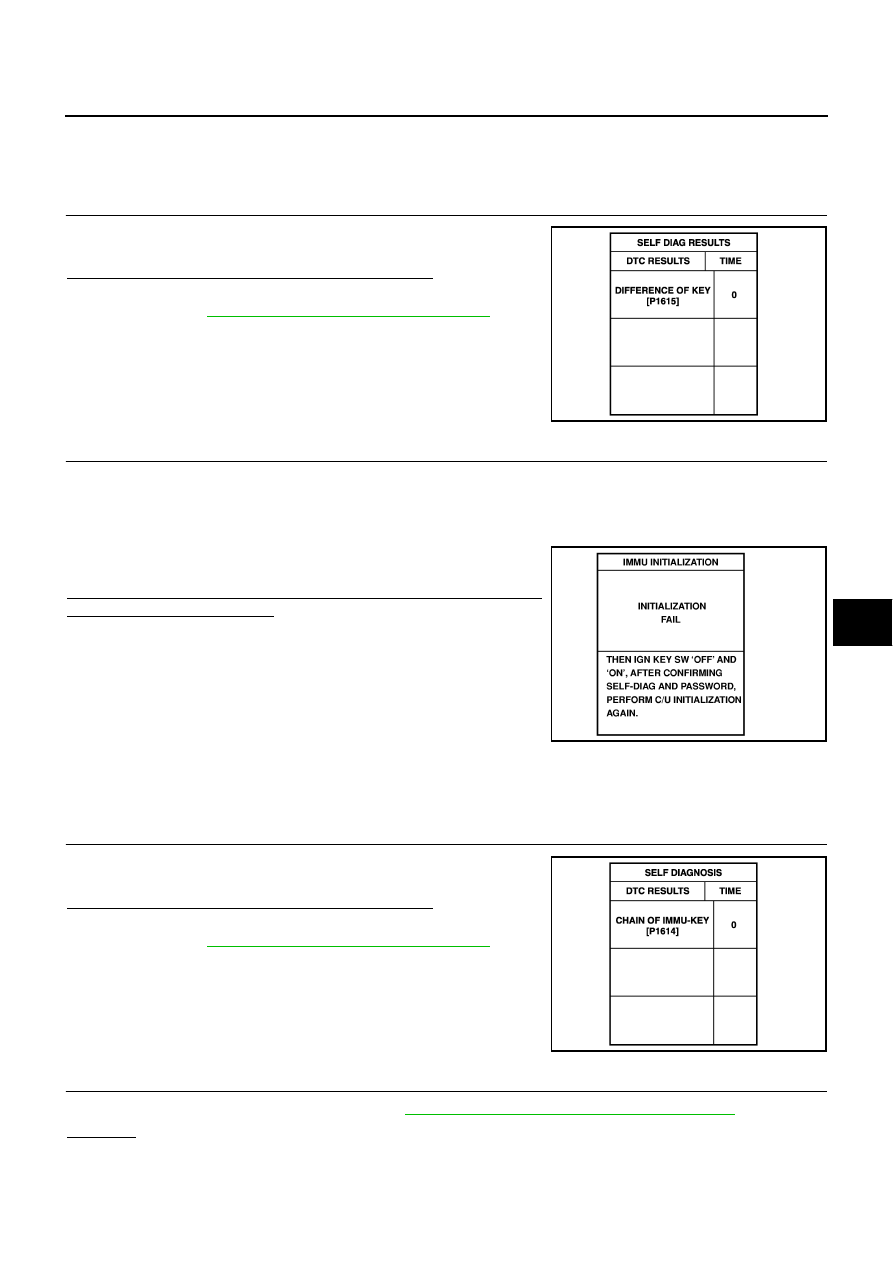

Diagnostic Procedure 2

NIS001KY

Self-diagnostic results:
“DIFFERENCE OF KEY” displayed on CONSULT-II screen

1.

CONFIRM SELF-DIAGNOSTIC RESULTS

Confirm SELF-DIAGNOSTIC RESULTS “DIFFERENCE OF KEY”
displayed on CONSULT-II screen.

Is CONSULT-II screen displayed as shown in figure?

Yes

>> GO TO 2.

No

>> GO TO

BL-228, "SYMPTOM MATRIX CHART 1"

 .

2.

PERFORM INITIALIZATION WITH CONSULT-II

Perform initialization with CONSULT-II. Re-register all NATS ignition key IDs.
For initialization and registration of NATS ignition key IDs, refer to “CONSULT-II Operation Manual NATS-IVIS/
NVIS”.

NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows message on the screen.

Can the system be initialized and can the engine be started with re-
registered NATS ignition key?

Yes

>> Ignition key ID was unregistered.

No

>> BCM is malfunctioning.

●

Replace BCM.

●

Perform initialization with CONSULT-II

●

For initialization, refer to “CONSULT-II Operation
Manual NATS-IVIS/NVIS”

Diagnostic Procedure 3

NIS001KZ

Self-diagnostic results:
“CHAIN OF IMMU-KEY” displayed on CONSULT-II screen

1.

CONFIRM SELF-DIAGNOSTIC RESULTS

Confirm SELF-DIAGNOSTIC RESULTS “CHAIN OF IMMU-KEY”
displayed on CONSULT-II screen.

Is CONSULT-II screen displayed as shown in figure?

Yes

>> GO TO 2.

No

>> GO TO

BL-228, "SYMPTOM MATRIX CHART 1"

 .

2.

CHECK NATS ANTENNA AMP. INSTALLATION

Check NATS antenna amp. installation. Refer to

BL-237, "How to Replace NATS Antenna Amp."

 .

OK or NG

OK

>> GO TO 3.

NG

>> Reinstall NATS antenna amp. correctly.

PIIA1261E

SEL297W

PIIA1263E

BL-232

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

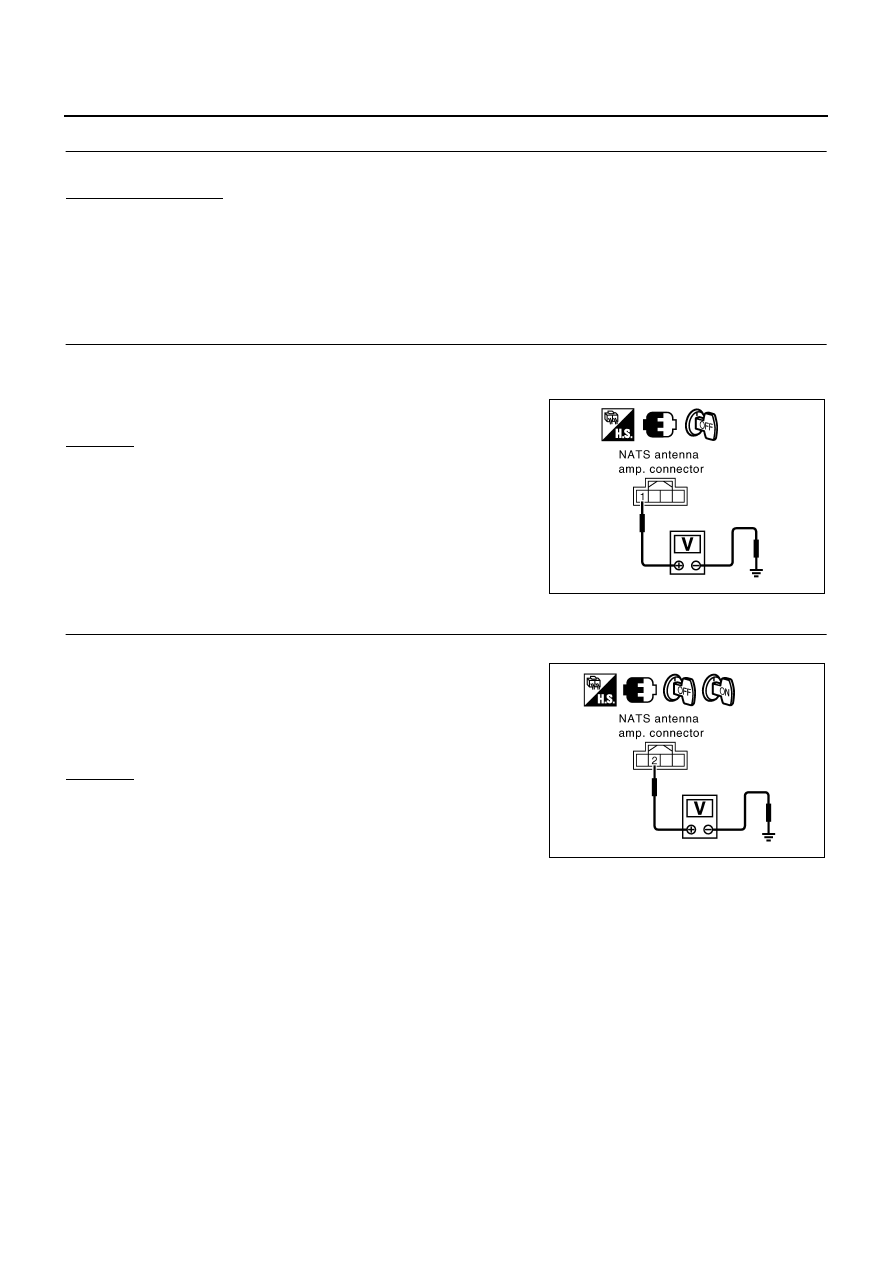

3.

CHECK IVIS (NATS) IGNITION KEY ID CHIP

Start engine with another registered NATS ignition key.

Does the engine start?

Yes

>> Ignition key ID chip is malfunctioning.

●

Replace the ignition key

●

Perform initialization with CONSULT-II
For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”

No

>> GO TO 4.

4.

CHECK POWER SUPPLY FOR NATS ANTENNA AMP.

1.

Turn ignition switch “OFF”.

2.

Check voltage between NATS antenna amp. connector M308 terminal 1 and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Check the following.

●

15A fuse [No. 77, located in IPDM E/R]

●

Harness for open or short between fuse and NATS
antenna amp.

5.

CHECK NATS ANTENNA AMP. SIGNAL LINE- 1

Check voltage between NATS antenna amp. connector M308 terminal 2 and ground with analogue tester.

OK or NG

OK

>> GO TO 6.

NG

>>

●

Check harness for open or short between NATS
antenna amp. and BCM.

NOTE:
If harness is OK, replace BCM, perform initialization
with CONSULT-II. For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.

1 (L) – Ground

: Battery voltage.

PIIB4650E

Before turning ignition switch “ON”

Voltage: Approx. 0V

Just after turning ignition switch “ON”

: Pointer of tester should move.

PIIB4651E

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-233

C

D

E

F

G

H

J

K

L

M

A

B

BL

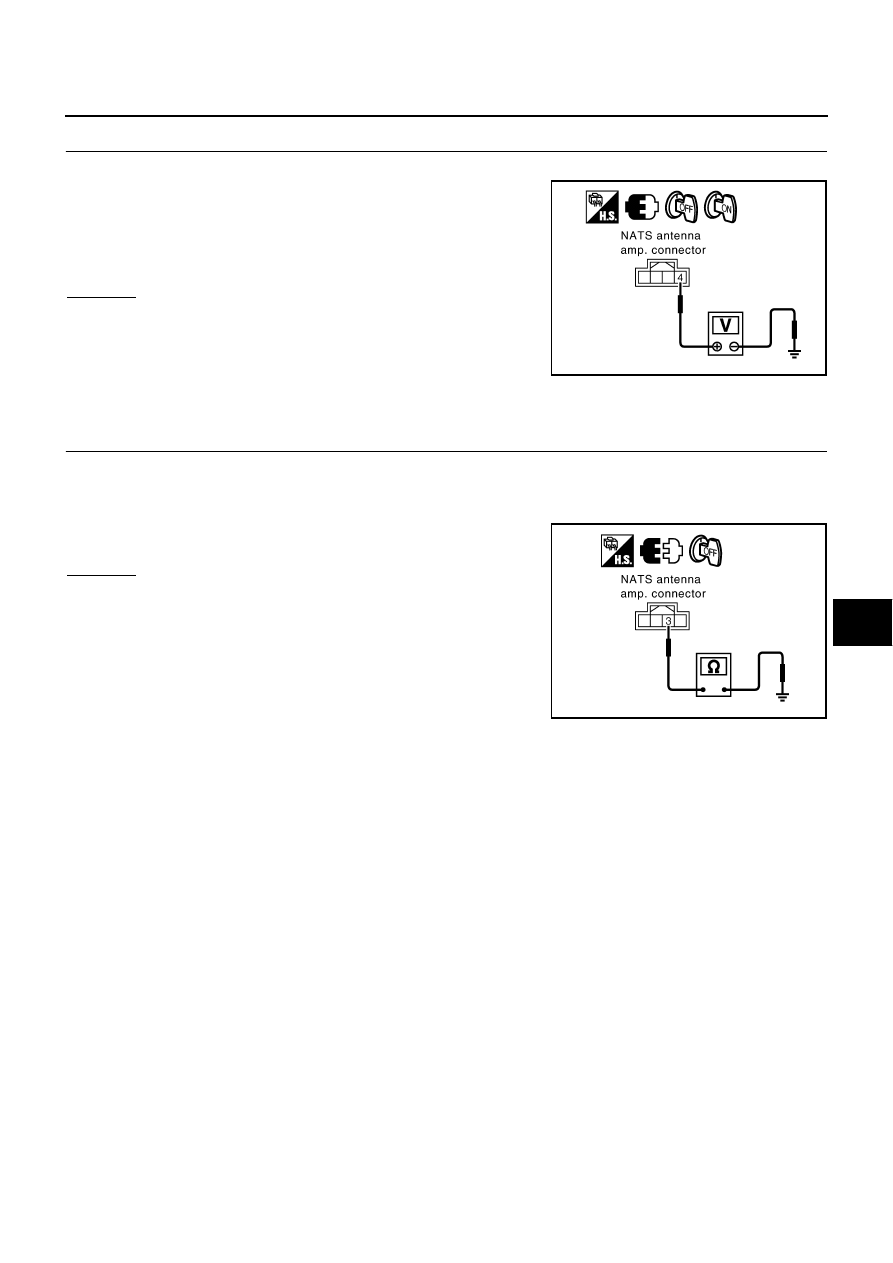

6.

CHECK NATS ANTENNA AMP. SIGNAL LINE- 2

Check voltage between NATS antenna amp. connector M308 terminal 4 and ground with analogue tester.

OK or NG

OK

>> GO TO 7.

NG

>>

●

Check harness for open or short between NATS
antenna amp. and BCM.
NOTE:
If harness is OK, replace BCM, perform initialization
with CONSULT-II. For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”.

7.

CHECK NATS ANTENNA AMP. GROUND LINE CIRCUIT

1.

Turn ignition switch “OFF”.

2.

Disconnect NATS antenna amp. connector.

3.

Check continuity between NATS antenna amp. connector M308 terminal 3 and ground.

OK or NG

OK

>> NATS antenna amp. is malfunctioning.

NG

>> Repair or replace NATS antenna amp. ground circuit.

Before turning ignition switch “ON”

Voltage: Approx. 0V

Just after turning ignition switch “ON”

: Pointer of tester should move.

PIIB4652E

3 (B) – Ground

: Continuity should exist.

PIIB4653E

BL-234

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

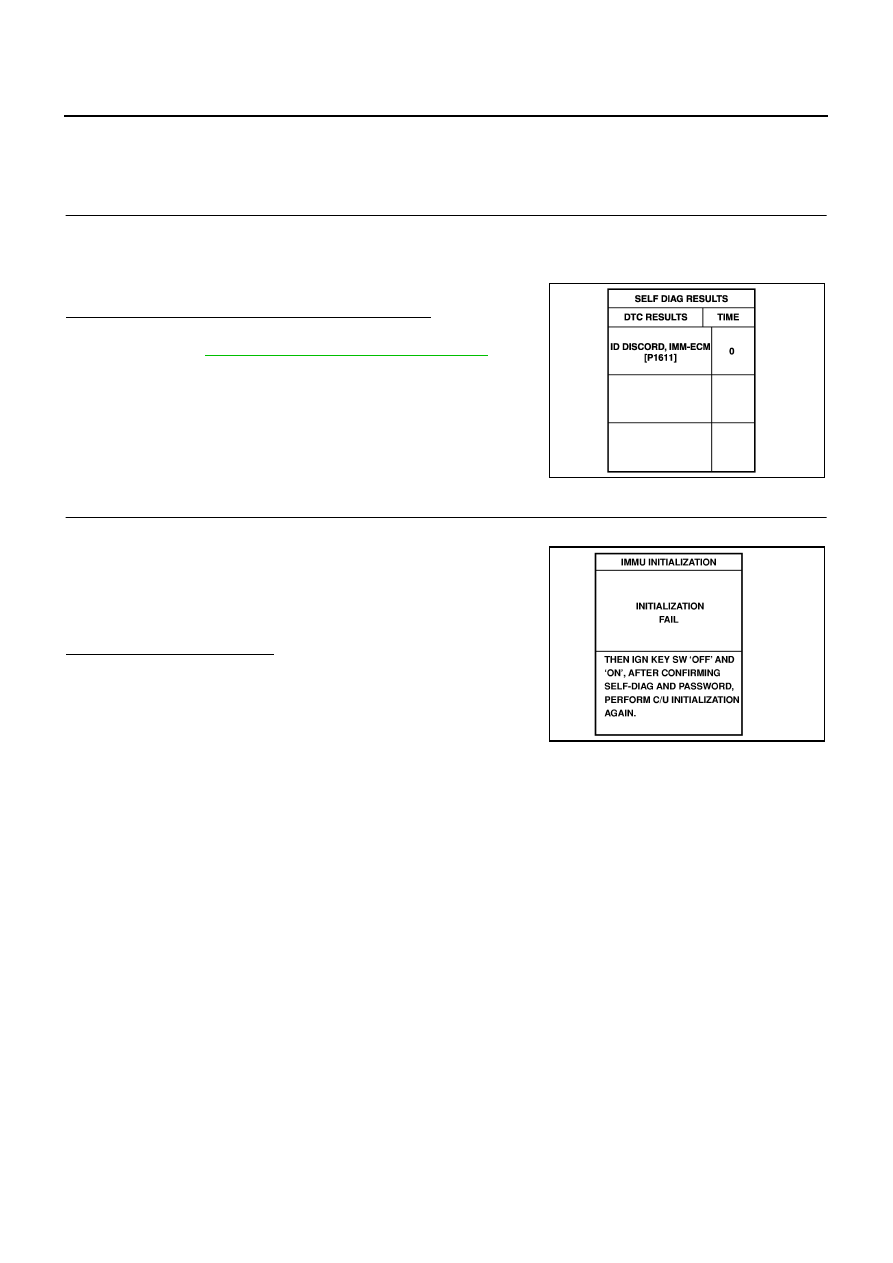

Diagnostic Procedure 4

NIS001L0

Self-diagnostic results:
“ID DISCORD, IMM-ECM” displayed on CONSULT-II screen

1.

CONFIRM SELF-DIAGNOSTIC RESULTS

Confirm SELF-DIAGNOSTIC RESULTS “ID DISCORD, IMM-ECM” displayed on CONSULT-II screen.

NOTE:
“ID DISCORD IMM-ECM”:
Registered ID of BCM is in discord with that of ECM.

Is CONSULT-II screen displayed as shown in figure?

Yes

>> GO TO 2.

No

>> GO TO

BL-228, "SYMPTOM MATRIX CHART 1"

 .

2.

PERFORM INITIALIZATION WITH CONSULT-II

Perform initialization with CONSULT-II. Re-register all NATS ignition key IDs.
For initialization, refer to “CONSULT-II Operation Manual NATS-
IVIS/NVIS”.

NOTE:
If the initialization is not completed or malfunctions, CONSULT-II
shows message on the screen.

Can the system be initialized?

Yes

>>

●

Start engine. (END)

●

(System initialization had not been completed.)

No

>> ECM is malfunctioning.

●

Replace ECM.

●

Perform initialization with CONSULT-II
For initialization, refer to “CONSULT-II Operation Manual NATS-IVIS/NVIS”

PIIA1262E

SEL297W
