IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-219

C

D

E

F

G

H

J

K

L

M

A

B

BL

TIWM1488E

BL-220

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

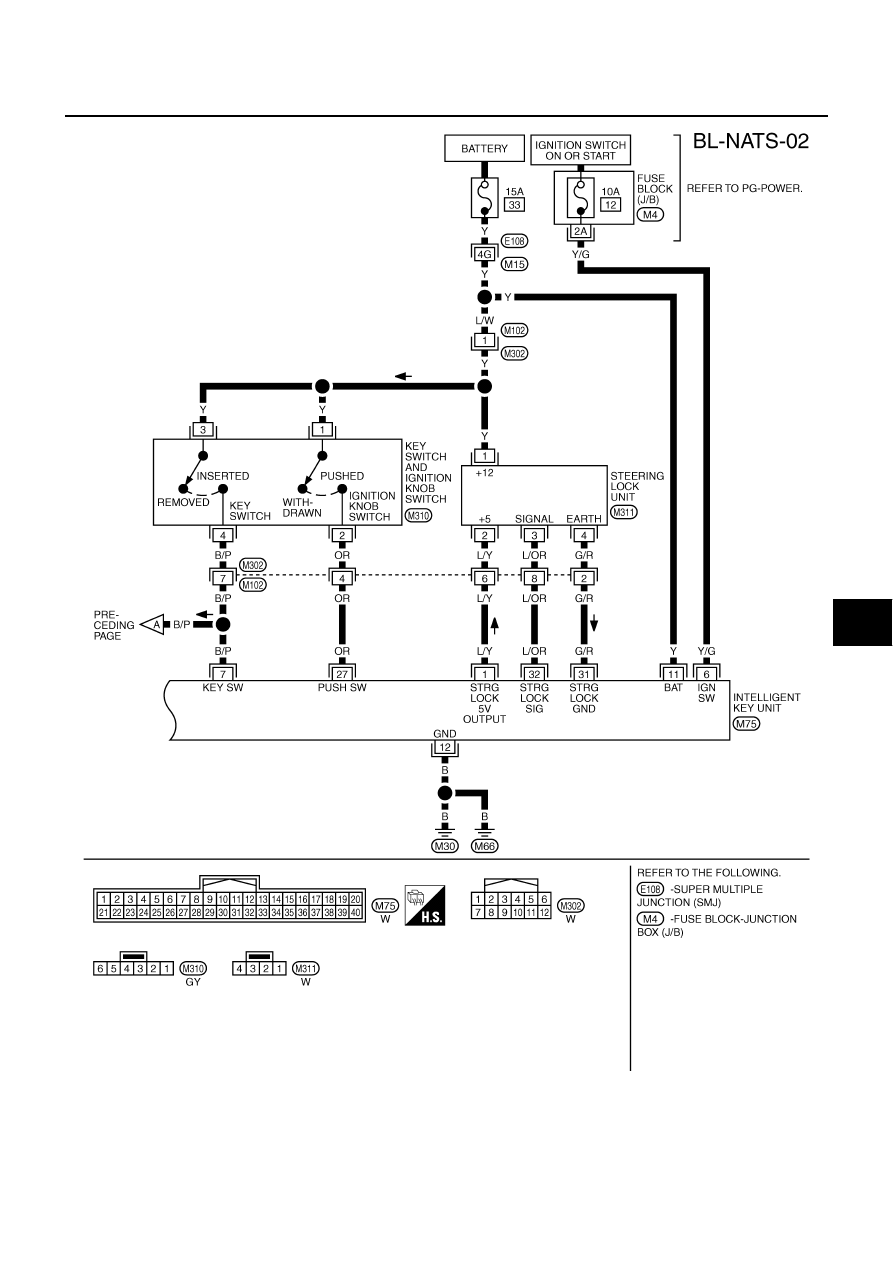

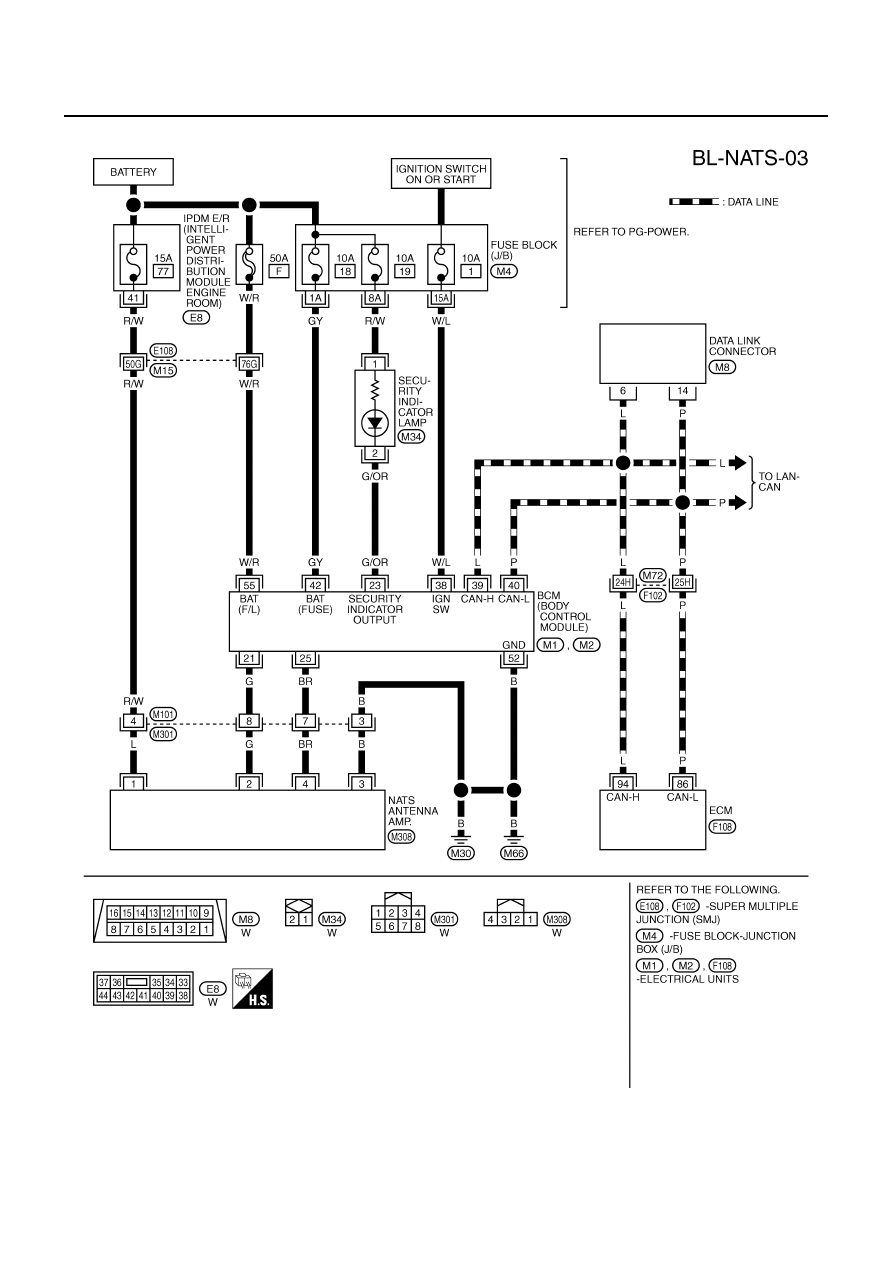

Wring Diagram — NATS —/Without Intelligent Key System

NIS001KP

TIWM1489E

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

BL-221

C

D

E

F

G

H

J

K

L

M

A

B

BL

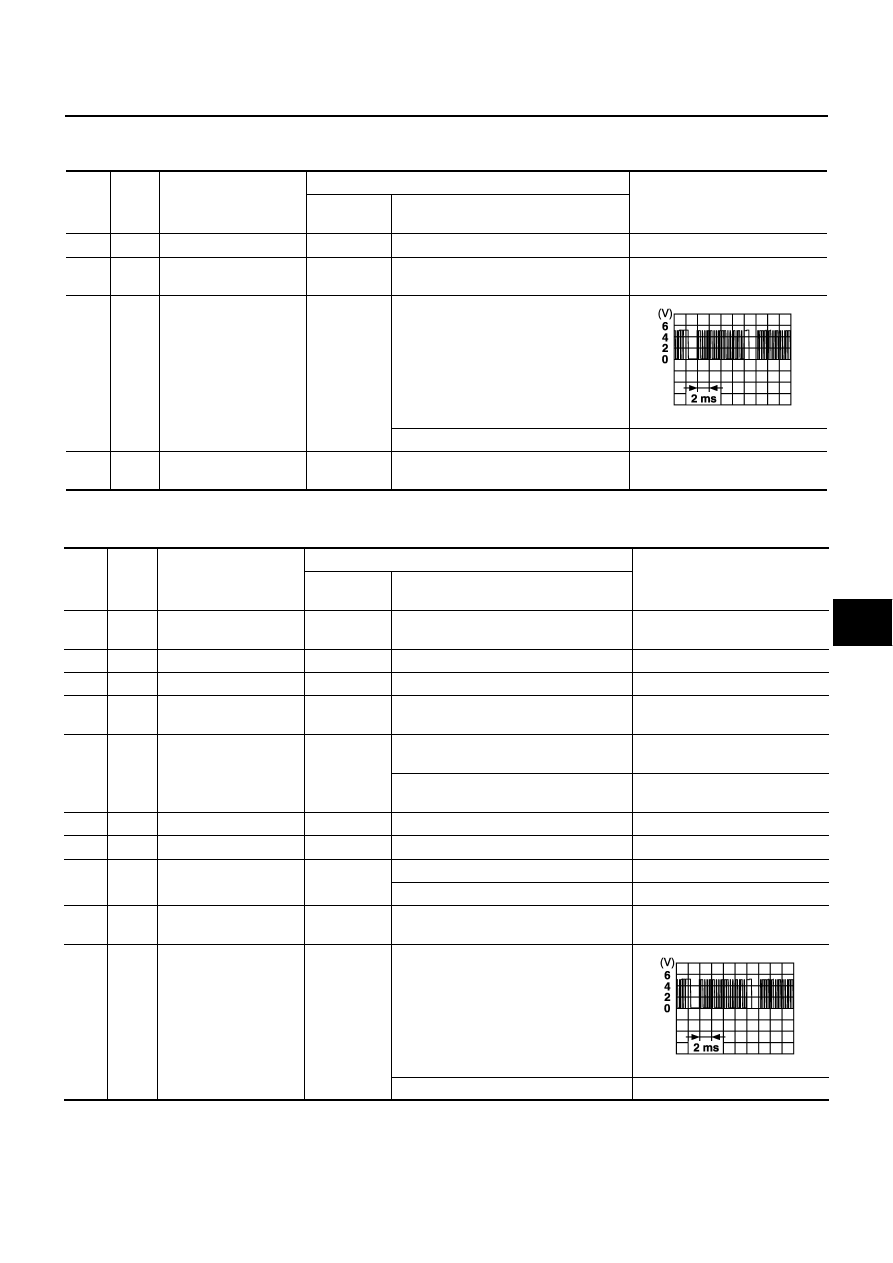

Terminals and Reference Value for Steering Lock Unit/With Intelligent Key Sys-
tem

NIS001KQ

Terminals and Reference Value for Intelligent Key Unit/With Intelligent Key Sys-
tem

NIS001KR

Ter-

minal

No.

Wire

color

Signal Designation

Measuring condition

Voltage (V)

(Approx.)

Ignition knob

position

Operation or conditions

1

Y

Power source (Fuse)

—

—

Battery voltage

2

L/Y

Steering lock unit
power supply

LOCK

—

5

3

L/OR

Steering lock unit com-
munication signal

LOCK

Press ignition knob with Intelligent Key
inside vehicle.

Other than the above

5

4

G/R

Steering lock unit
ground

—

—

0

SIIA1911J

Ter-

minal

No.

Wire

color

Signal designation

Measuring condition

Voltage (V)

(Approx.)

Ignition knob

position

Operation or conditions

1

L/Y

Steering lock unit power
supply

LOCK

—

5

2

L

CAN-H

—

—

—

3

P

CAN-L

—

—

—

6

Y/G

Ignition power supply
(ON)

ON

Ignition knob ON or START position

Battery voltage

7

B/P

Key switch

LOCK

Insert mechanical key into ignition key
cylinder.

Battery voltage

Remove mechanical key from ignition
key cylinder.

0

11

Y

Power source (Fuse)

—

—

Battery voltage

12

B

Ground

—

—

0

27

OR

Ignition knob switch

—

Press ignition knob.

Battery voltage

Return ignition knob to LOCK position.

0

31

G/R

Steering lock unit
ground

—

—

0

32

L/OR

Steering lock unit com-
munication signal

LOCK

Press ignition knob with Intelligent Key
inside vehicle.

Other than the above

5

SIIA1911J

BL-222

IVIS (INFINITI VEHICLE IMMOBILIZER SYSTEM-NATS)

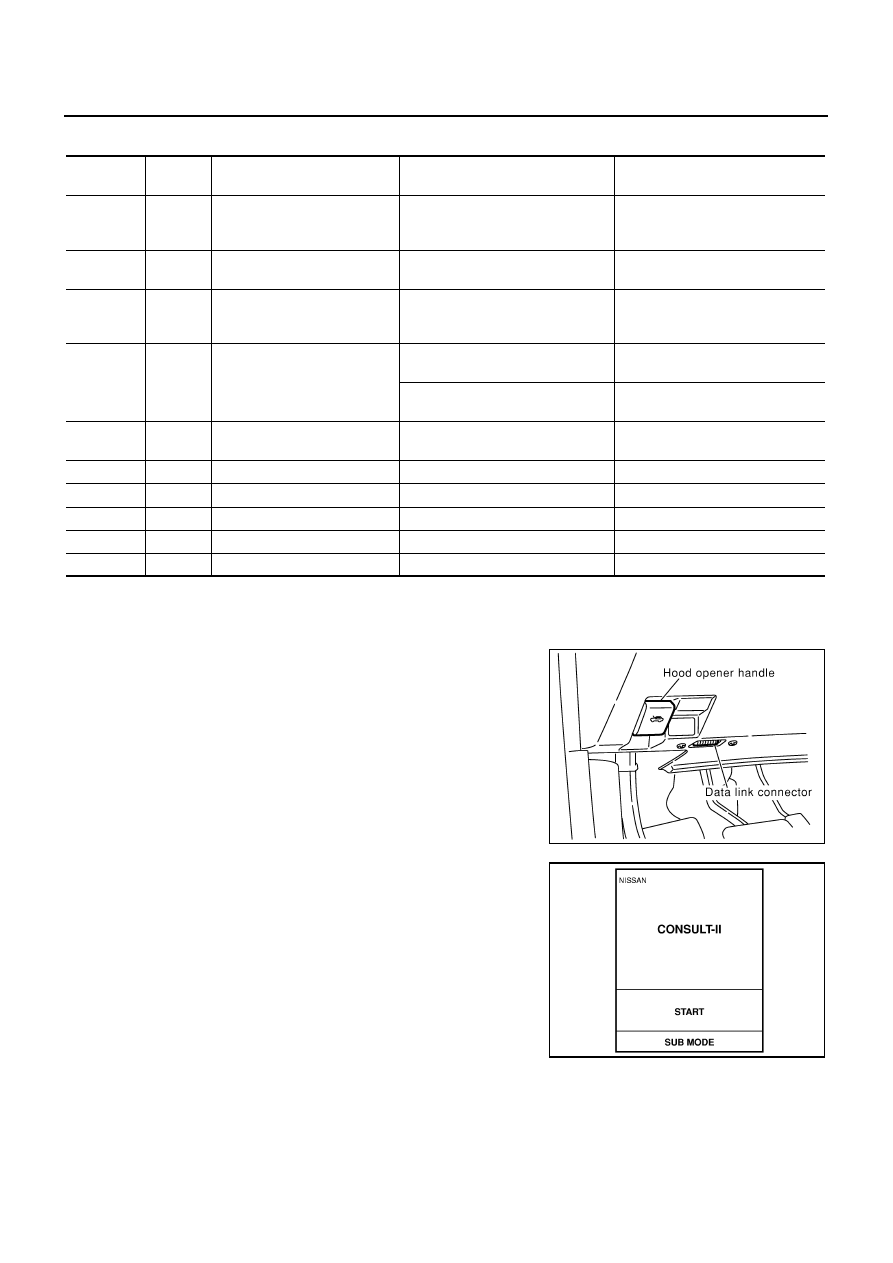

Terminals and Reference Value for BCM

NIS001KS

*: With Intelligent Key system

CONSULT-II Function

NIS001KT

CONSULT-II INSPECTION PROCEDURE

1.

Turn ignition switch OFF.

2.

Insert IVIS (NATS) program card into CONSULT-II.

3.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.

4.

Turn ignition switch ON.

5.

Touch “START”.

Terminal

Wire

color

Item

Condition

Voltage [V]

(Approx.)

21

G

NATS antenna amp.

Ignition switch (OFF

→

 ON)

Just after turning ignition switch
“ON”: Pointer of tester should
move.

23

G/OR

Security indicator lamp

Goes OFF

→

 illuminates (Every 2.4

seconds)

Battery voltage

→

 0

25

BR

NATS antenna amp.

Ignition switch (OFF

→

 ON)

Just after turning ignition switch
“ON”: Pointer of tester should
move.

37*

B/P

Key switch

Insert mechanical key into ignition
key cylinder.

Battery voltage

Remove mechanical key from igni-
tion key cylinder.

0

38

W/L

Ignition switch (ON or START)

Ignition switch (ON or START posi-
tion)

Battery voltage

39

L

CAN-H

—

—

40

P

CAN-L

—

—

42

GY

Power source (Fuse)

—

Battery voltage

52

B

Ground

—

0

55

W/R

Power source (Fusible link)

—

Battery voltage

Program card

: NATS (AEN06B)

PIIA1095E

PBR455D
