BLOWER UNIT

ATC-119

C

D

E

F

G

H

I

K

L

M

A

B

ATC

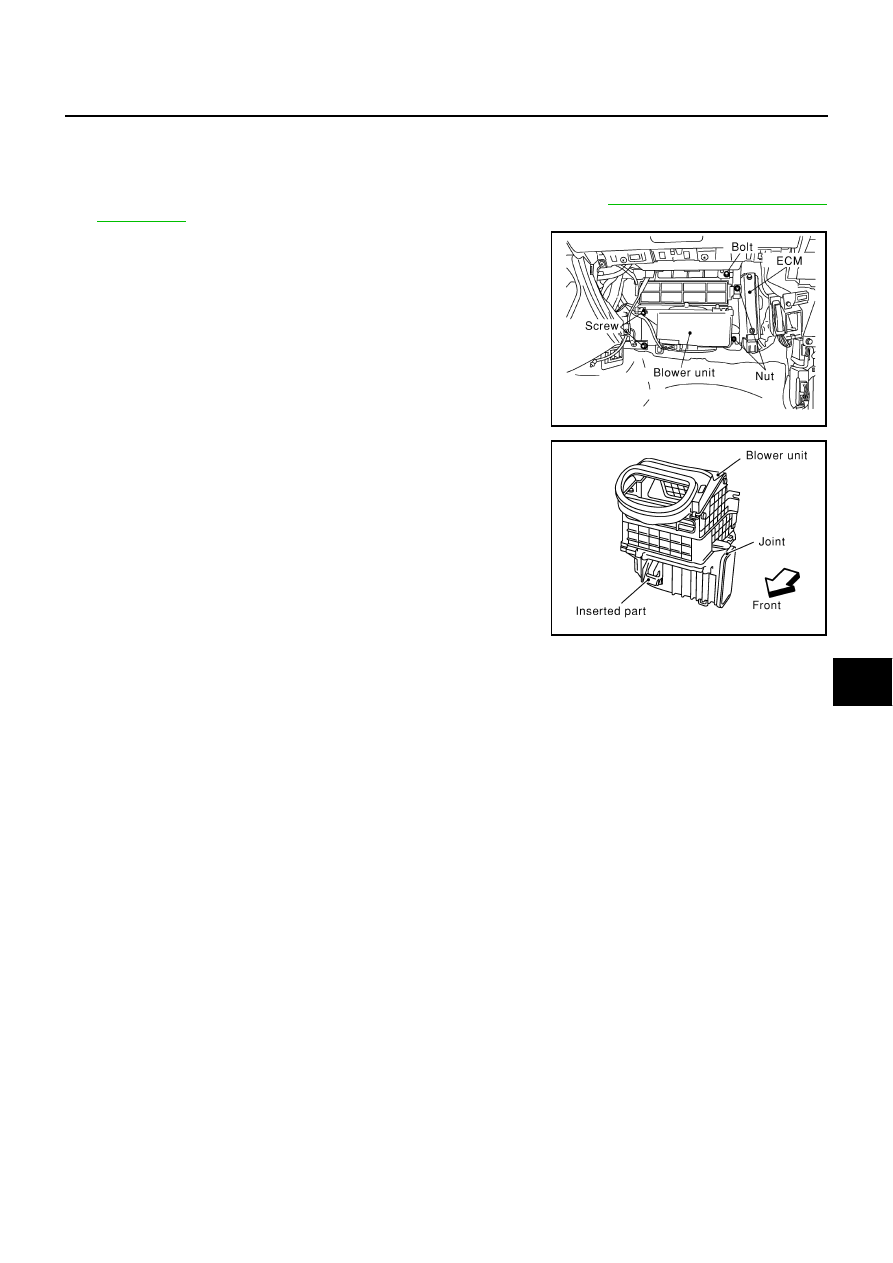

BLOWER UNIT

PFP:27200

Removal and Installation

NJS00041

REMOVAL

1.

Remove glove box assembly and instrument lower cover. Refer to

IP-10, "INSTRUMENT PANEL

ASSEMBLY"

 .

2.

Remove mounting nuts, and then remove ECM with bracket
attached.

3.

Disconnect intake door motor connector and blower fan motor
connector.

4.

Remove mounting bolt and screws, and then remove blower
unit.

CAUTION:

Move blower unit rightward, and remove locating pin (1
part) and joint. Then remove blower unit downward.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

Make sure locating pin (1 part) and joint are securely inserted.

RJIA0942E

RJIA0943E

ATC-120

BLOWER UNIT

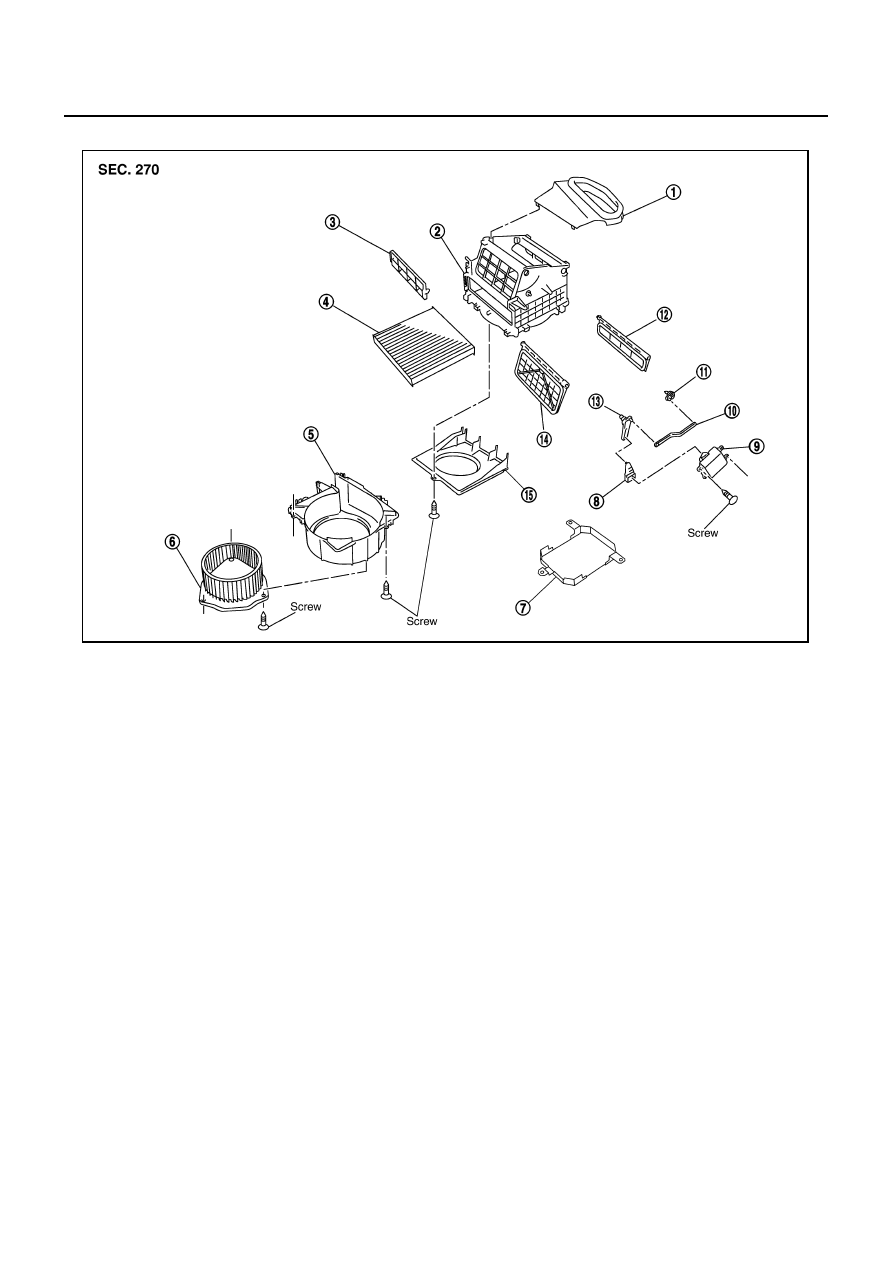

Disassembly and Assembly

NJS00042

1.

Adapter

2.

Intake upper case

3.

Filter cover

4.

In-cabin microfilter

5.

Intake lower case

6.

Blower motor assembly

7.

Motor cover (with intelligent key system)

8.

Intake door lever 2

9.

Intake door motor

10. Intake door link

11.

Intake door lever 3

12. Intake door 2

13. Intake door lever 1

14.

Intake door 1

15. Intake bell mouth

RJIA3585E

BLOWER MOTOR

ATC-121

C

D

E

F

G

H

I

K

L

M

A

B

ATC

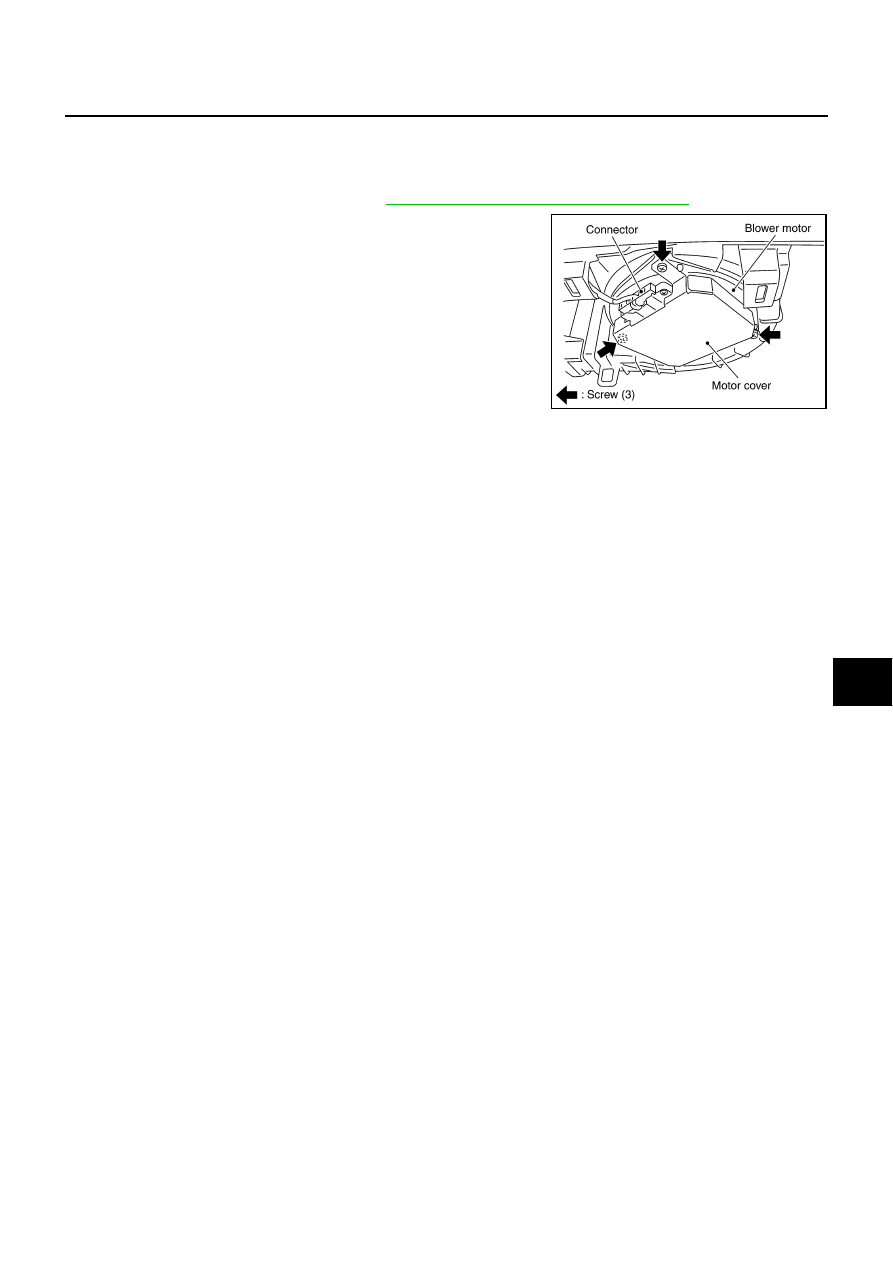

BLOWER MOTOR

PFP:27226

Removal and Installation

NJS00043

REMOVAL

1.

Remove instrument lower cover. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Disconnect blower motor connector.

3.

Remove mounting screws, and then remove motor cover and
blower motor.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA3586E

ATC-122

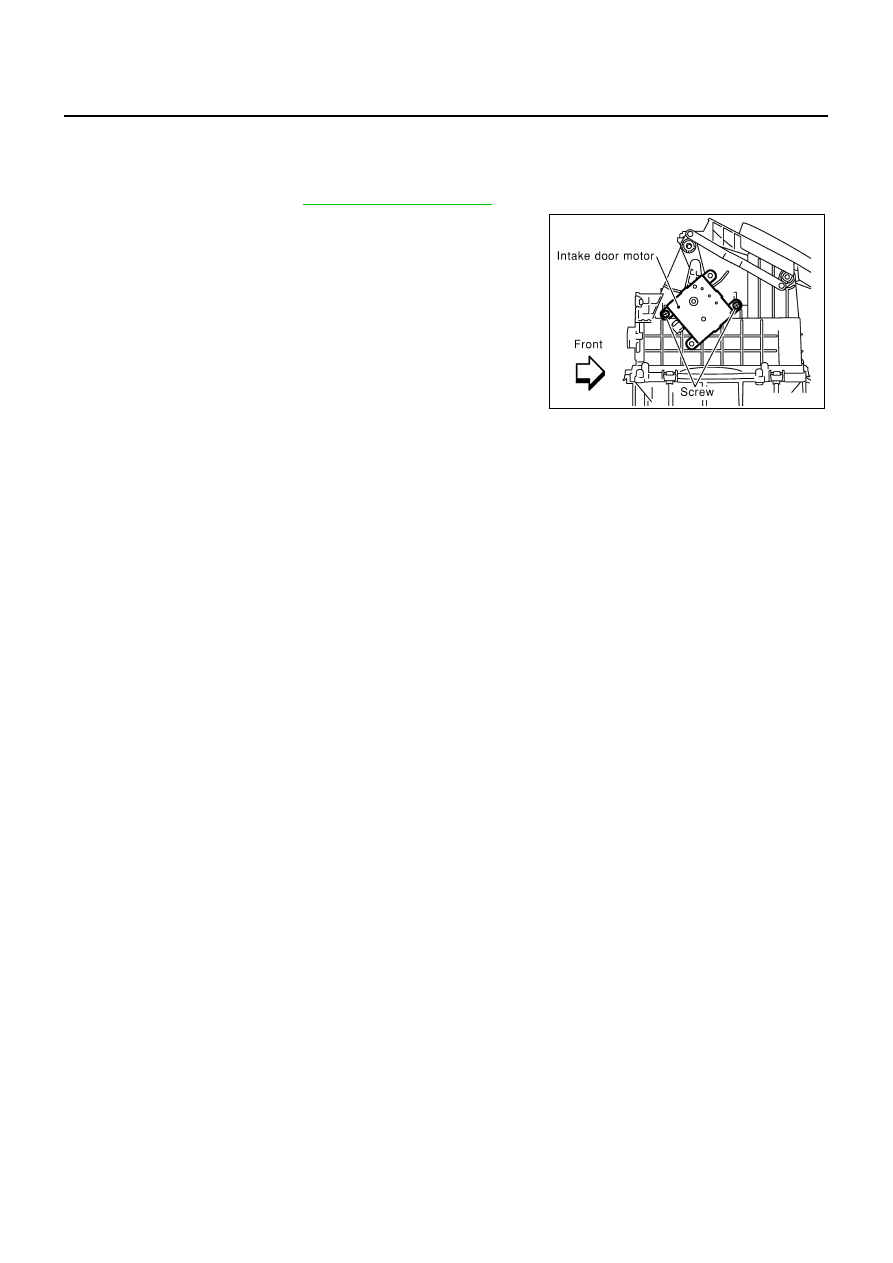

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR

PFP:27730

Removal and Installation

NJS00044

REMOVAL

1.

Remove blower unit. Refer to

ATC-119, "BLOWER UNIT"

 .

2.

Remove mounting screws, and then remove intake door motor
from blower unit.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0947E
