Infiniti G35 (V35). Manual - part 76





REPAIR FOR COMPONENT PARTS

AT-295

D

E

F

G

H

I

J

K

L

M

A

B

AT

INSPECTION

Check the following, and replace high and low reverse clutch assembly if necessary.

High and Low Reverse Clutch Snap Ring

Check for deformation, fatigue or damage.

High and Low Reverse Clutch Drive Plates

Check facing for burns, cracks or damage.

High and Low Reverse Clutch Retaining Plate and Driven Plates

Check facing for burns, cracks or damage.

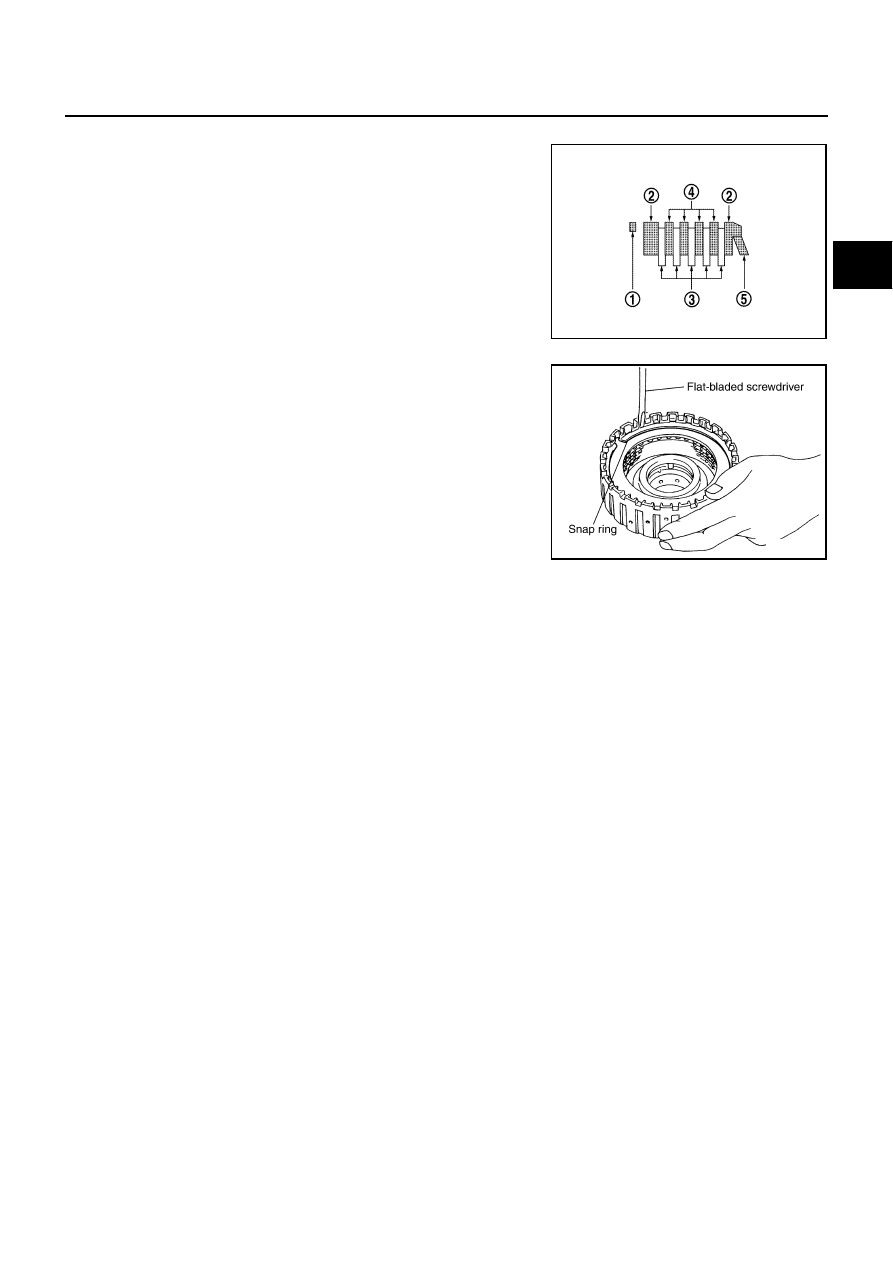

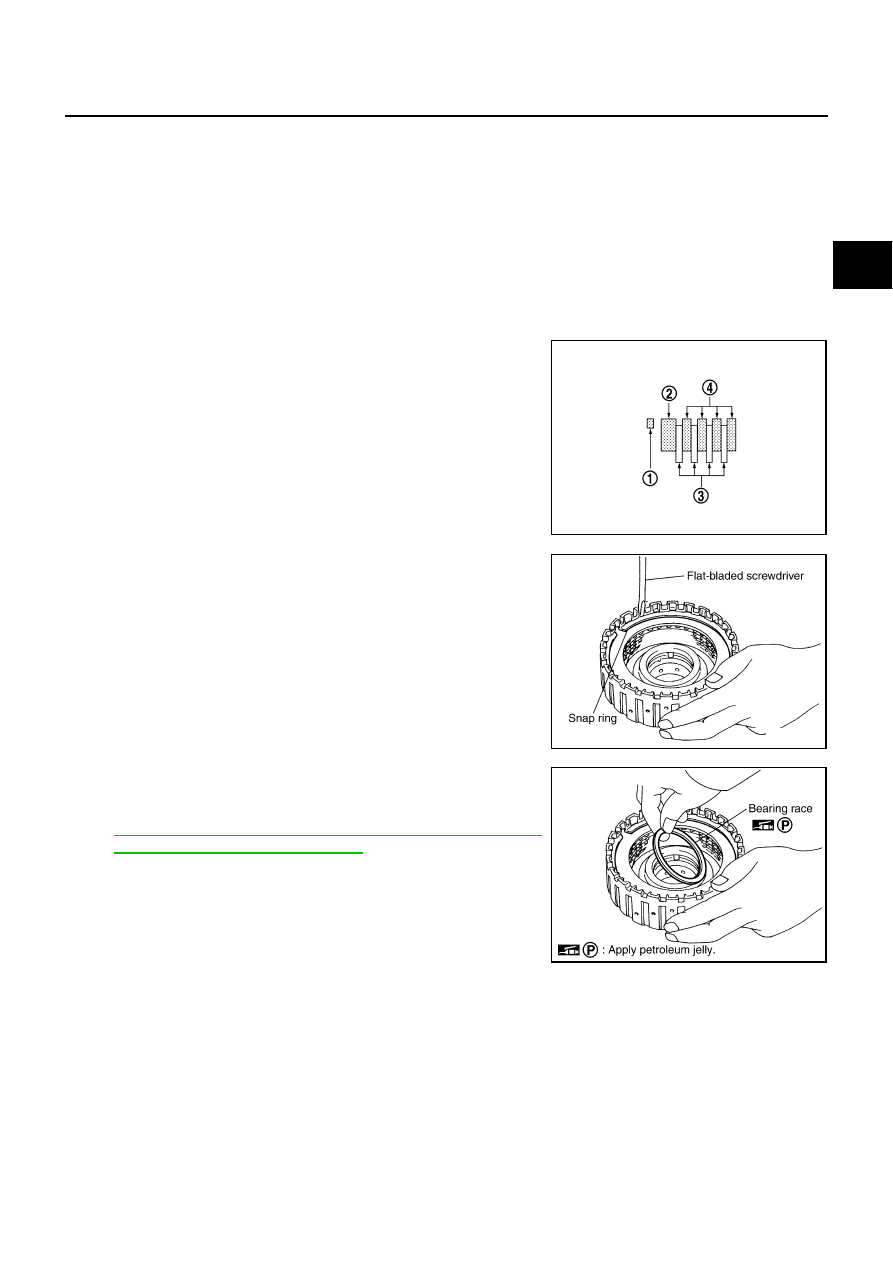

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in high and
low reverse clutch drum.

CAUTION:

Take care with order of plates.

Snap ring (1)

Retaining plate (2)

Drive plate (3)

Driven plate (4)

Drive plate/Driven plate: 4/4

2.

Using a flat-bladed screwdriver, install snap ring in high and low
reverse clutch drum.

3.

Install bearing race to high and low reverse clutch drum.

CAUTION:

Take care with the direction of needle bearing. Refer to

AT-262, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

Apply petroleum jelly to needle bearing.

SCIA6735E

SCIA2868E

SCIA5215E

AT-296

REPAIR FOR COMPONENT PARTS

Direct Clutch

NCS000JA

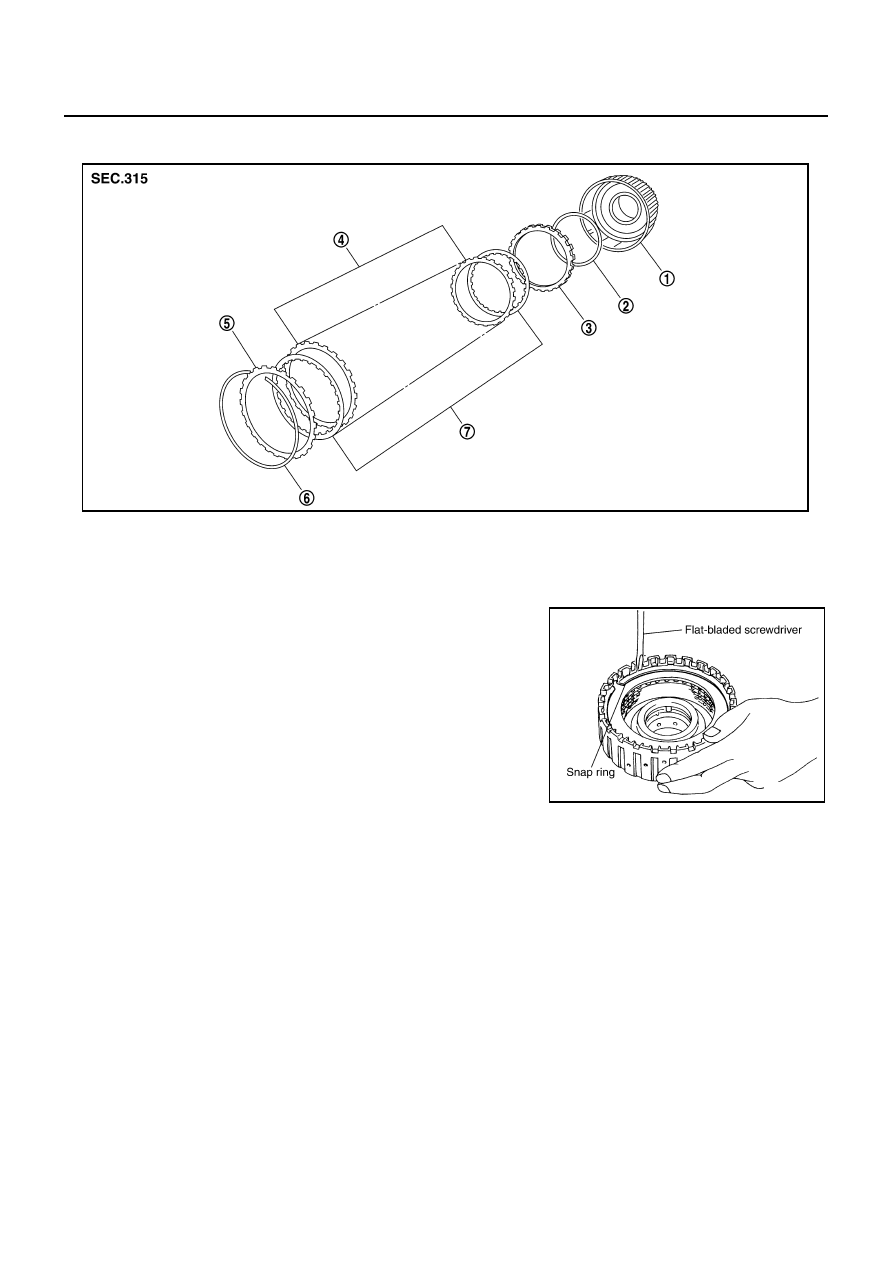

COMPONENTS

DISASSEMBLY

1.

Using a flat-bladed screwdriver, remove snap ring from direct
clutch drum.

2.

Remove drive plates, driven plates, dish plate and retaining
plate from direct clutch drum.

INSPECTION

Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring

Check for deformation, fatigue or damage.

Direct Clutch Drive Plates

Check facing for burns, cracks or damage.

Direct Clutch Retaining Plate and Driven Plates

Check facing for burns, cracks or damage.

1.

Direct clutch drum

2.

Dish plate

3.

Retaining plate

4.

Driven plate

5.

Retaining plate

6.

Snap ring

7.

Drive plate

SCIA7015E

SCIA2868E

REPAIR FOR COMPONENT PARTS

AT-297

D

E

F

G

H

I

J

K

L

M

A

B

AT

ASSEMBLY

1.

Install drive plates, driven plates, dish plate and retaining plate
in direct clutch drum.

CAUTION:

Take care with order of plates.

Snap ring (1)

Retaining plate (2)

Drive plate (3)

Driven plate (4)

Dish plate (5)

Drive plate/Driven plate: 5/4

2.

Using a flat-bladed screwdriver, install snap ring in direct clutch
drum.

SCIA6952E

SCIA2868E

AT-298

ASSEMBLY

ASSEMBLY

PFP:00000

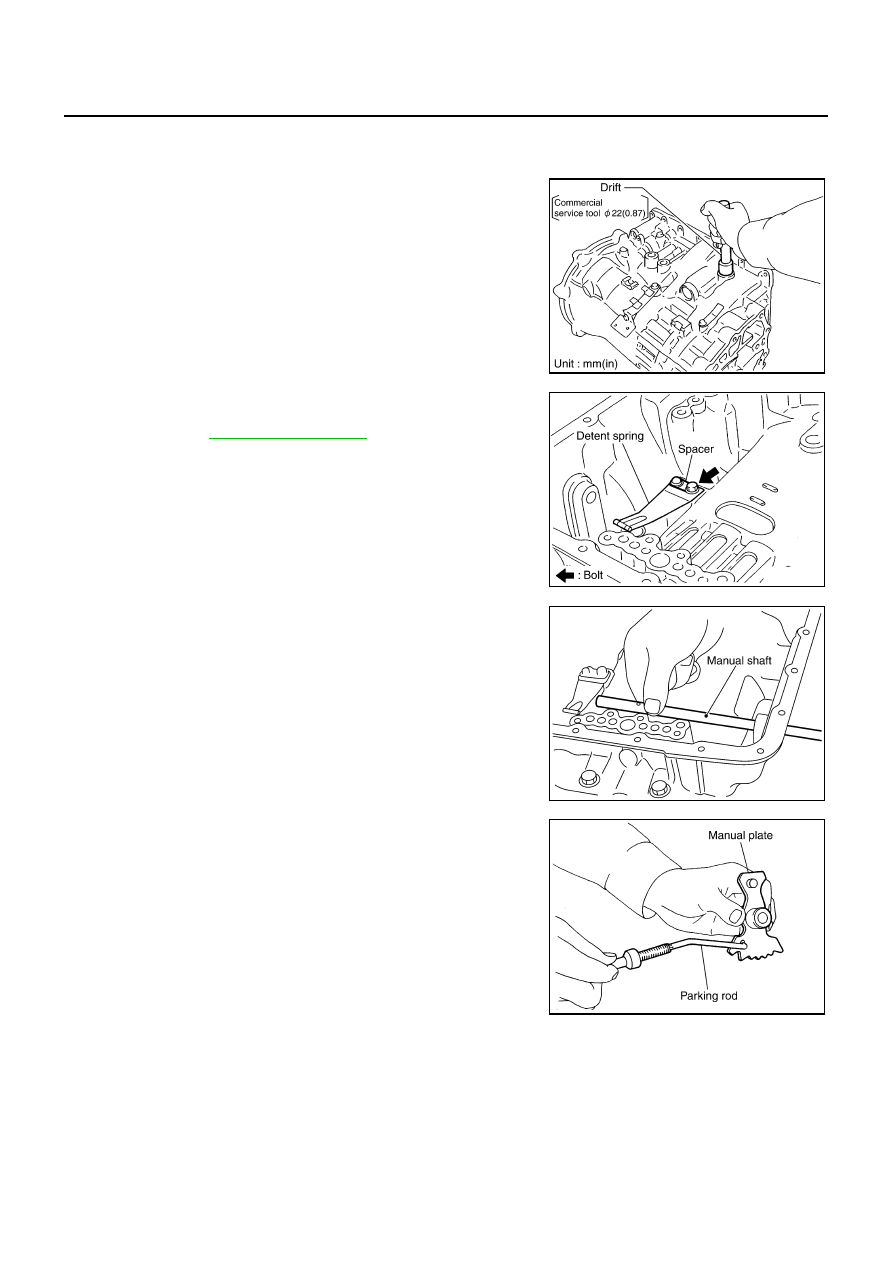

Assembly (1)

NCS000JB

1.

As shown in the figure, use a drift [commercial service tool 22
mm (0.87 in) dia.] to drive manual shaft oil seals into the trans-
mission case until it is flush.

CAUTION:

Do not reuse manual shaft oil seals.

Apply ATF to manual shaft oil seals.

2.

Install detent spring and spacer in transmission case, and then
tighten detent spring and spacer mounting bolt to the specified
torque. Refer to

AT-255, "Components"

3.

Install manual shaft to transmission case.

4.

Install parking rod to manual plate.

SCIA5259E

SCIA5248E

SCIA5716E

SCIA5220E
