REPAIR FOR COMPONENT PARTS

PFP:00000

Oil Pump

NCS000J5

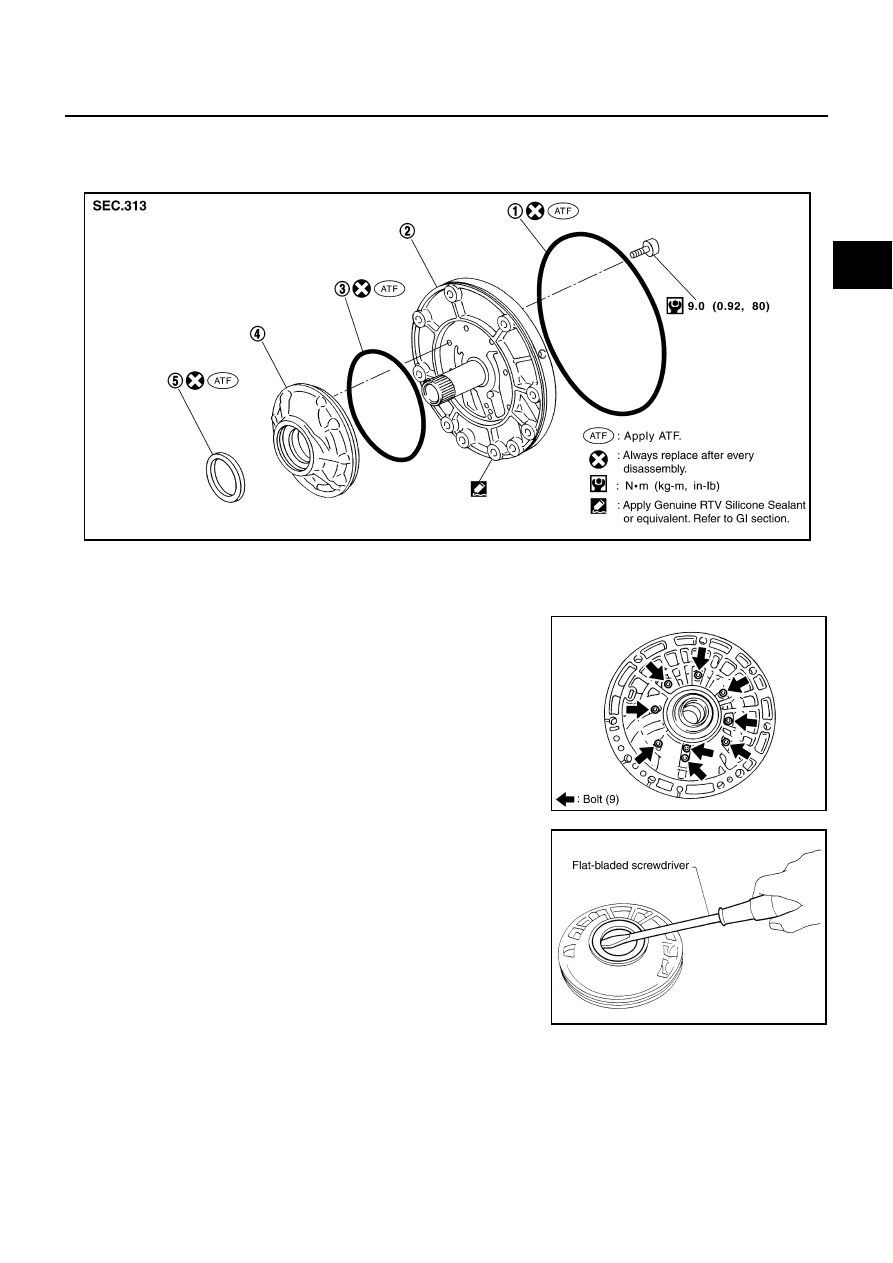

COMPONENTS

DISASSEMBLY

1.

Remove oil pump housing from oil pump cover.

2.

Remove oil pump housing oil seal using a flat-bladed screw-
driver.

CAUTION:

Be careful not to scratch oil pump housing.

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Oil pump housing oil seal

SCIA5227E

SCIA5228E

SCIA2840E

AT-280

REPAIR FOR COMPONENT PARTS

3.

Remove O-ring from oil pump housing.

4.

Remove O-ring from oil pump cover.

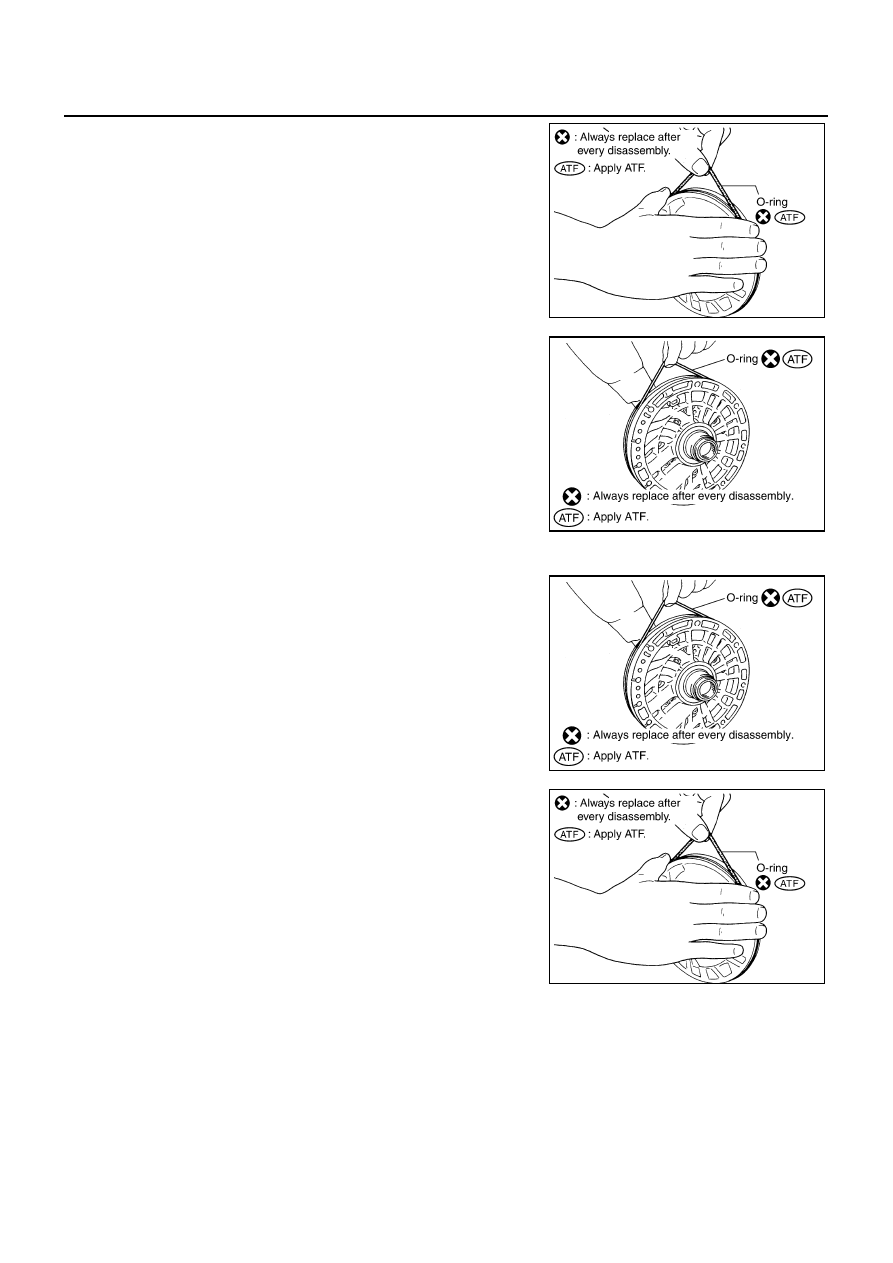

ASSEMBLY

1.

Install O-ring to oil pump cover.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

2.

Install O-ring to oil pump housing.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

SCIA2841E

SCIA5230E

SCIA5230E

SCIA2841E

REPAIR FOR COMPONENT PARTS

AT-281

D

E

F

G

H

I

J

K

L

M

A

B

AT

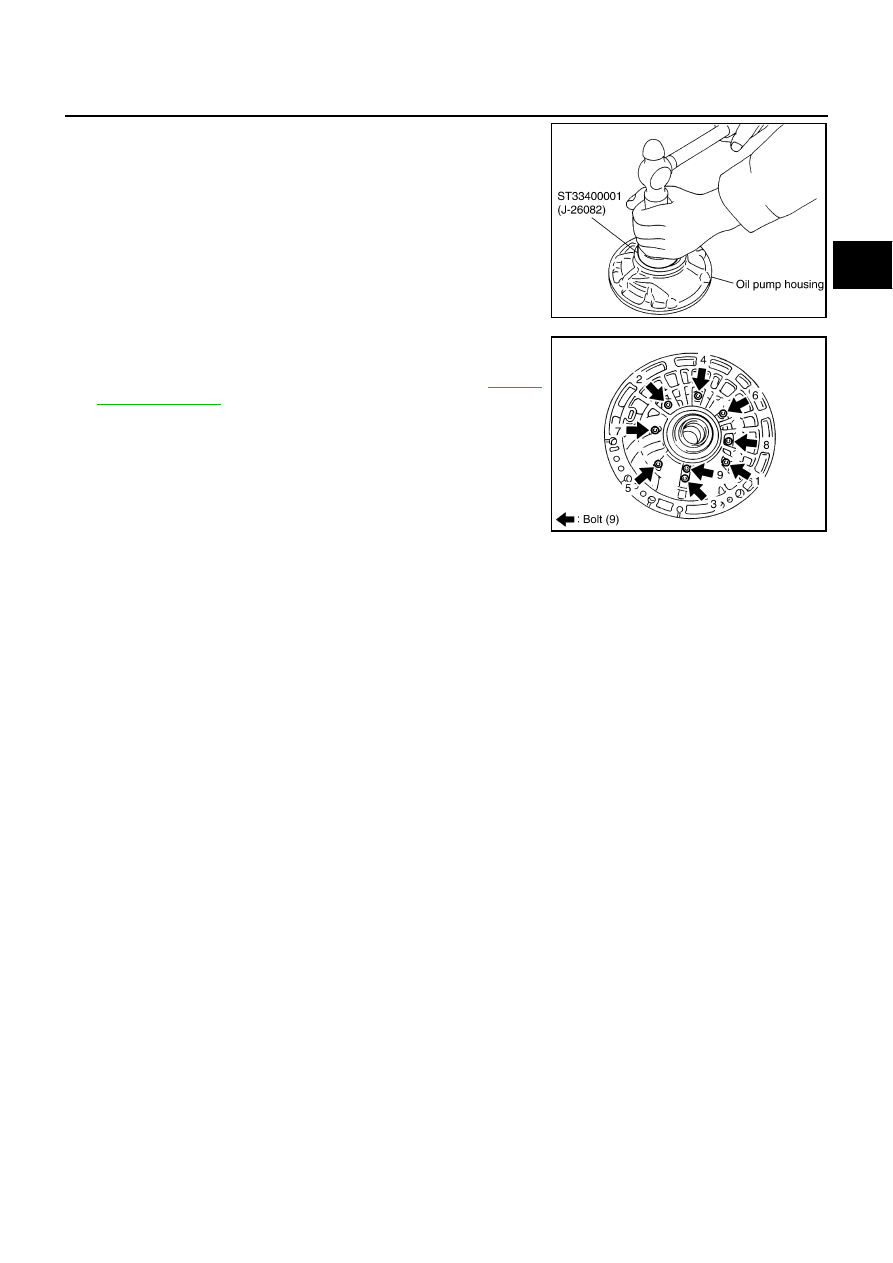

3.

Using the drift, install oil pump housing oil seal to the oil pump
housing until it is flush.

CAUTION:

●

Do not reuse oil pump housing oil seal.

●

Apply ATF to oil pump housing oil seal.

4.

Install oil pump housing to oil pump cover.

5.

Tighten bolts to the specified torque in numerical order shown in
the figure after temporarily tightening them. Refer to

AT-279,

"COMPONENTS"

 .

SCIA5313E

SCIA6388E

AT-282

REPAIR FOR COMPONENT PARTS

Front Sun Gear, 3rd One-way Clutch

NCS000J6

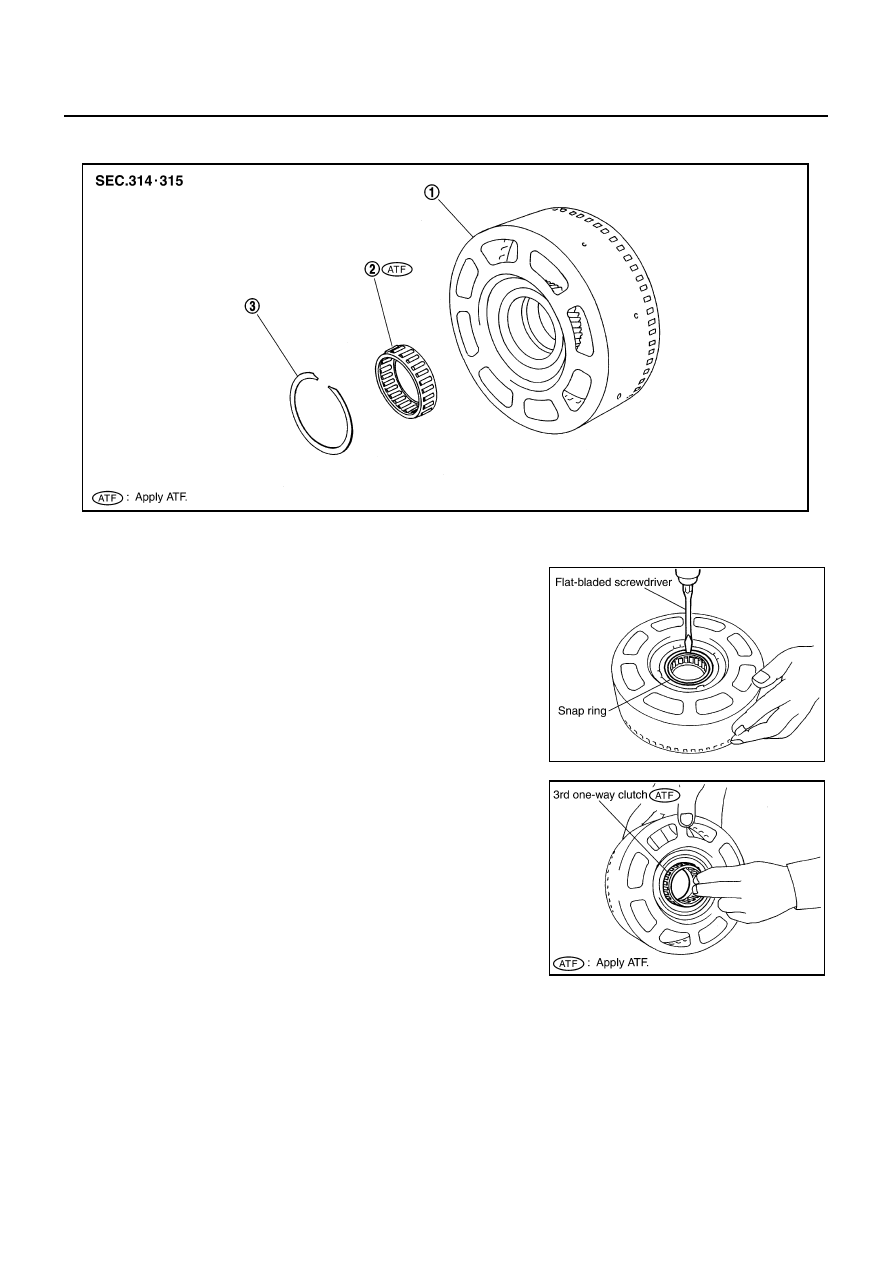

COMPONENTS

DISASSEMBLY

1.

Using a flat-bladed screwdriver, remove snap ring from front sun
gear.

2.

Remove 3rd one-way clutch from front sun gear.

INSPECTION
3rd One-way Clutch

●

Check frictional surface for wear or damage.

CAUTION:

If necessary, replace the 3rd one-way clutch.

1.

Front sun gear

2.

3rd one-way clutch

3.

Snap ring

SCIA3114E

SCIA3110E

SCIA3111E
