OVERHAUL

AT-259

D

E

F

G

H

I

J

K

L

M

A

B

AT

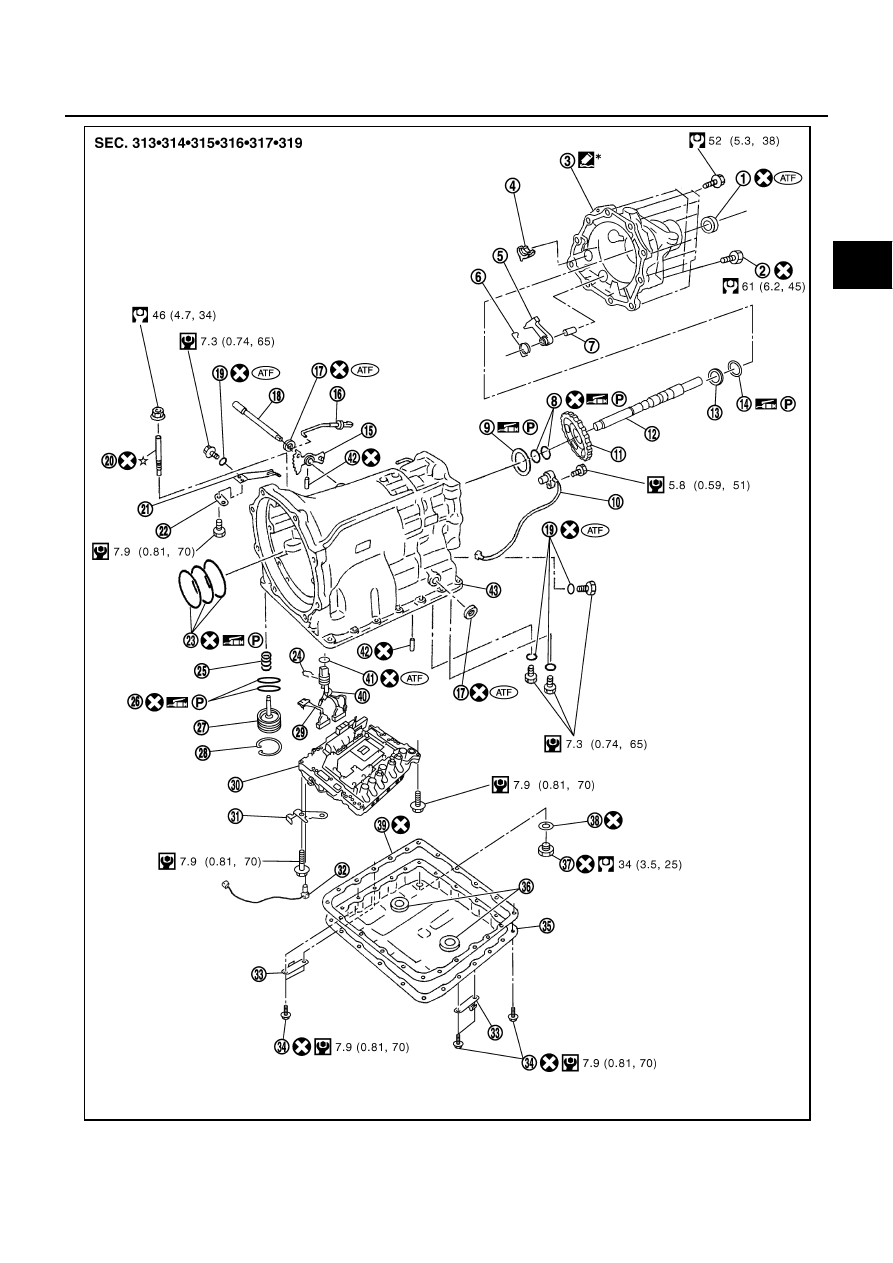

1.

Rear oil seal

2.

Self-sealing bolt

3.

Rear extension

4.

Parking actuator support

5.

Parking pawl

6.

Return spring

7.

Pawl shaft

8.

Seal ring

9.

Needle bearing

SCIA8233E

AT-260

OVERHAUL

10.

Revolution sensor

11.

Parking gear

12. Output shaft

13.

Bearing race

14.

Needle bearing

15. Manual plate

16.

Parking rod

17.

Manual shaft oil seal

18. Manual shaft

19.

O-ring

20.

Band servo anchor end pin

21. Detent spring

22.

Spacer

23.

Seal ring

24. Snap ring

25.

Return spring

26.

O-ring

27. Servo assembly

28.

Snap ring

29.

Sub-harness

30. Control valve with TCM

31.

Bracket

32.

A/T fluid temperature sensor 2

33. Clip

34.

Oil pan mounting bolt

35.

Oil pan

36. Magnet

37.

Drain plug

38.

Drain plug gasket

39. Oil pan gasket

40.

Terminal cord assembly

41.

O-ring

42. Retaining pin

43.

Transmission case

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-10, "Components"

 .

However, refer to the following symbols for others.

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-46, "Recommended Chemical Products and Seal-

ants"

 .

OVERHAUL

AT-261

D

E

F

G

H

I

J

K

L

M

A

B

AT

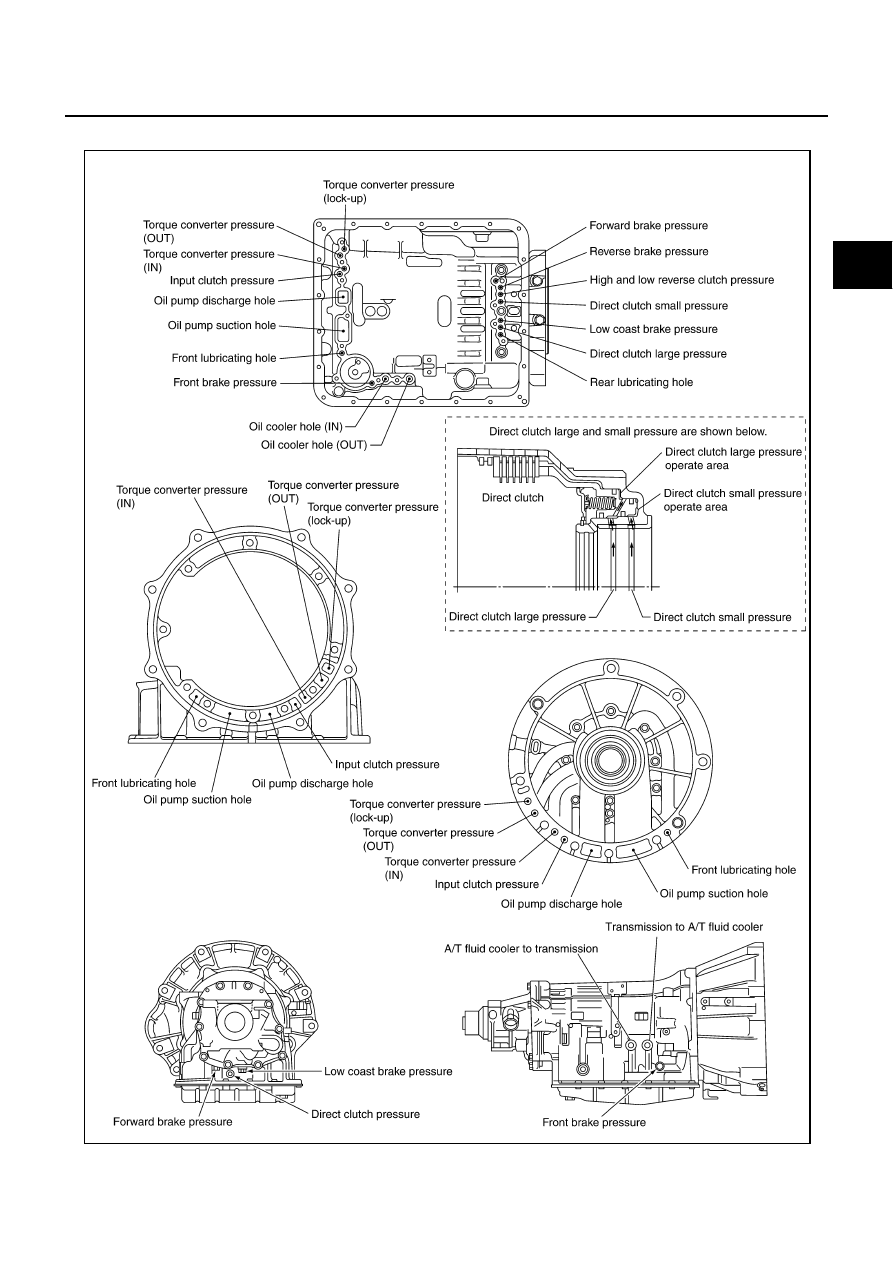

Oil Channel

NCS000J2

SCIA5185E

AT-262

OVERHAUL

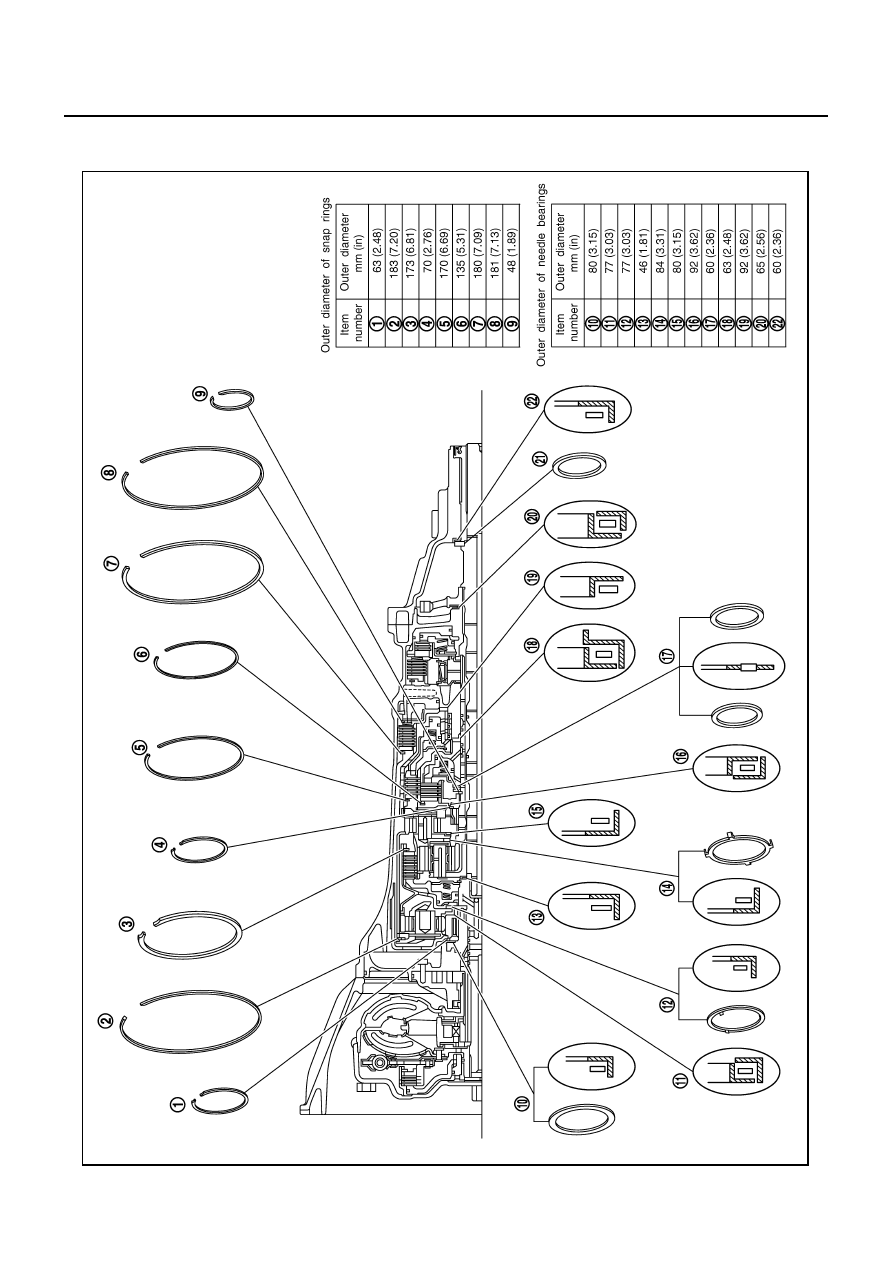

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap
Rings

NCS000J3

SCIA7477E
