KEY INTERLOCK CABLE

AT-223

D

E

F

G

H

I

J

K

L

M

A

B

AT

Removal and Installation

NCS000IU

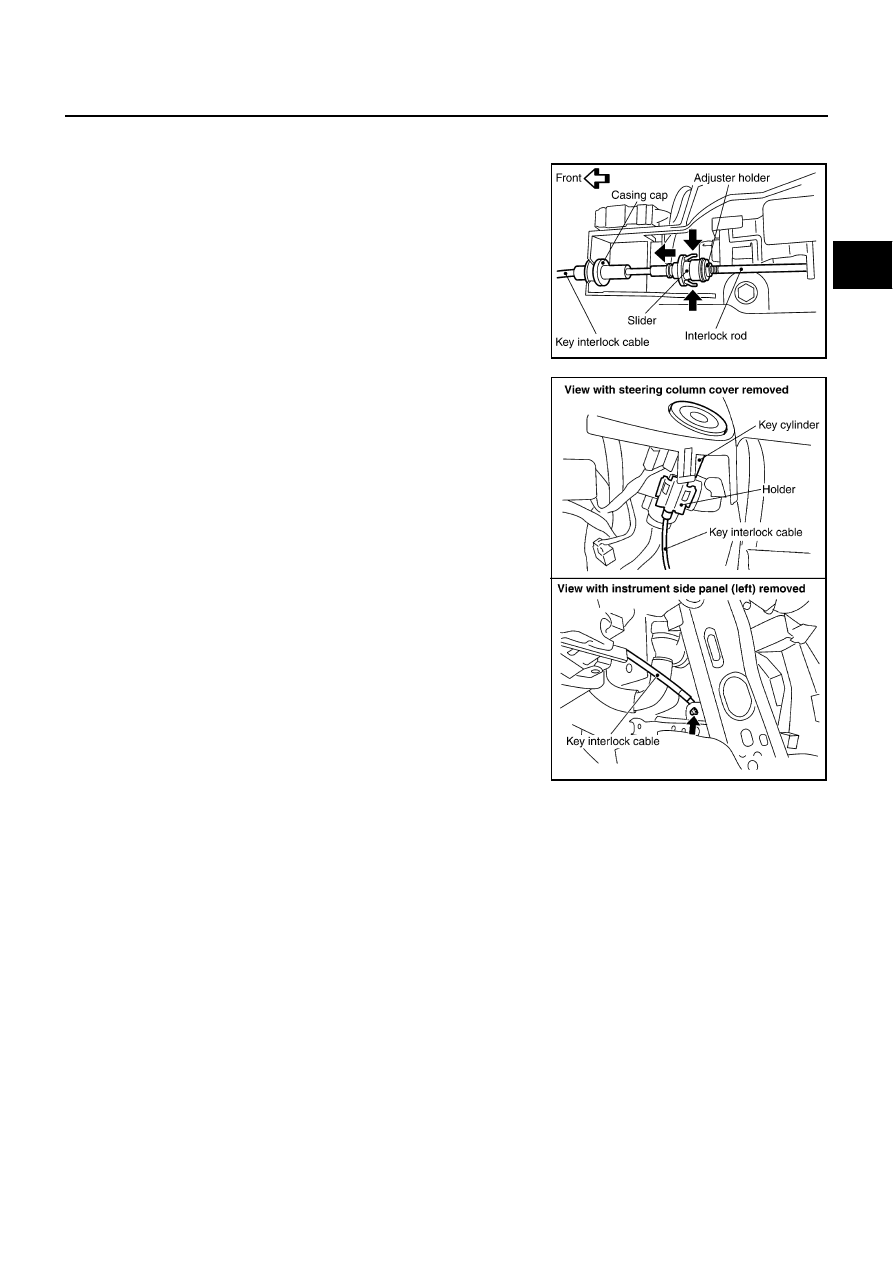

REMOVAL

1.

Unlock slider by squeezing lock tabs on slider from adjuster
holder.

2.

Remove casing cap from bracket of control device assembly
and remove interlock rod from key interlock cable.

3.

Remove holder from key cylinder and remove key interlock
cable.

SCIA1230E

SCIA1231E

AT-224

KEY INTERLOCK CABLE

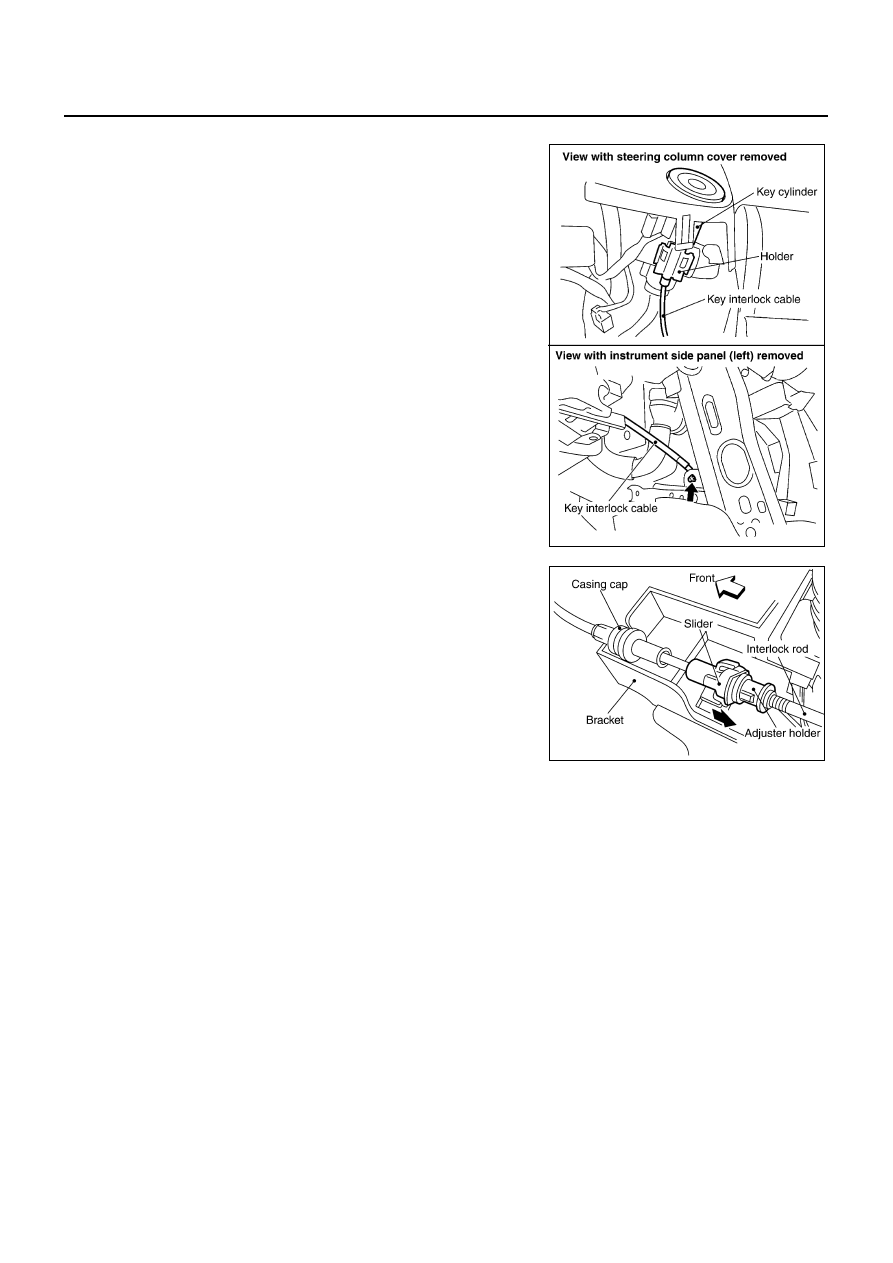

INSTALLATION

1.

Set key interlock cable to key cylinder and install holder.

2.

Clamp cable and fix to control cable with band.

3.

Turn ignition key to lock position.

4.

Set select lever to “P” position.

5.

Insert interlock rod into adjuster holder.

6.

Install casing cap to bracket.

7.

Move slider in order to fix adjuster holder to interlock rod.

CAUTION:

Do not touch any adjacent parts of key interlock cable when
slider is being held.
Insert slider into key interlock rod straightly.

SCIA1231E

SCIA1232E

ON-VEHICLE SERVICE

AT-225

D

E

F

G

H

I

J

K

L

M

A

B

AT

ON-VEHICLE SERVICE

PFP:00000

Control Valve with TCM and A/T Fluid Temperature Sensor 2

NCS000IV

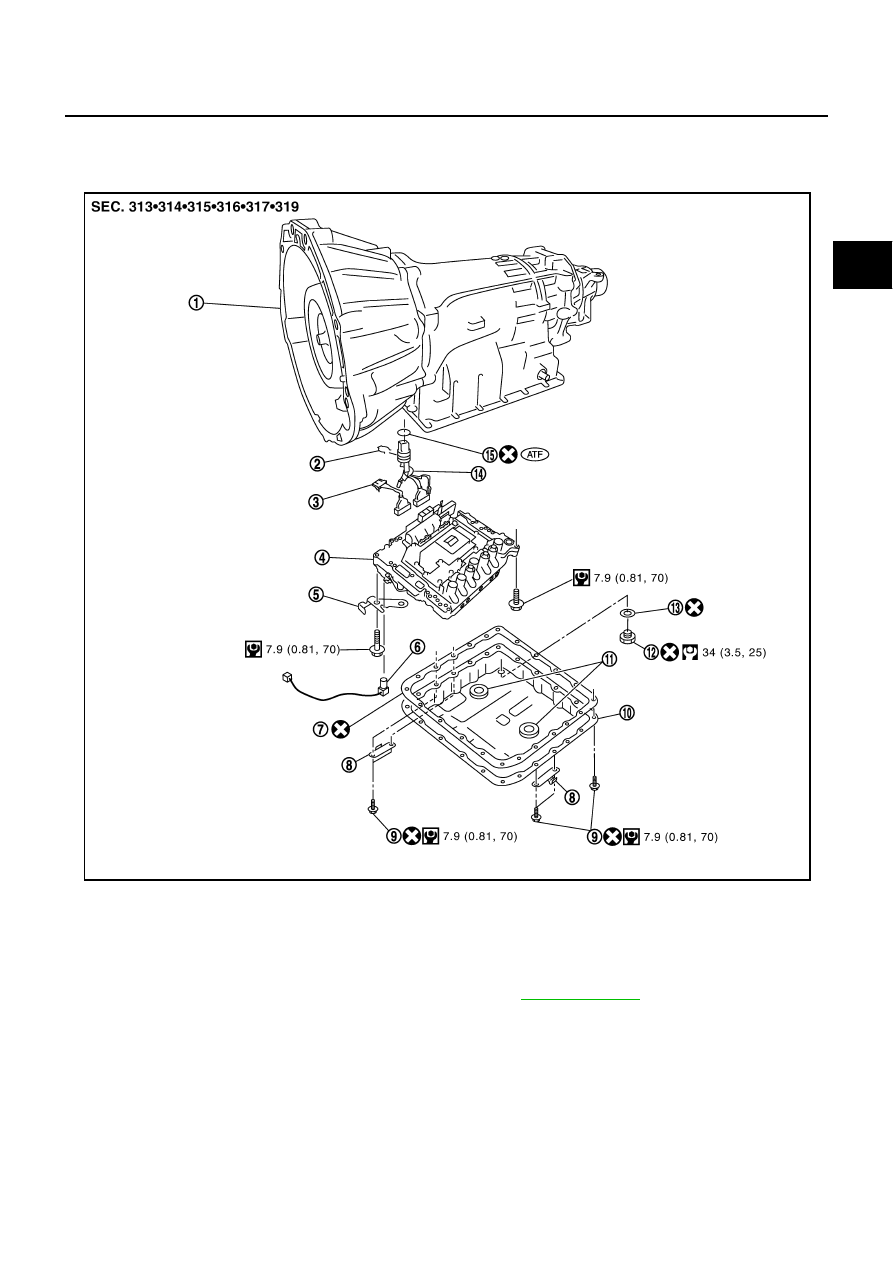

COMPONENTS

CONTROL VALVE WITH TCM REMOVAL AND INSTALLATION
Removal

1.

Disconnect the battery cable from the negative terminal.

2.

Disconnect heated oxygen sensor 2 harness connector.

3.

Drain ATF through drain plug.

4.

Disconnect A/T assembly harness connector.

1.

A/T

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

A/T fluid temperature sensor 2

7.

Oil pan gasket

8.

Clip

9.

Oil pan mounting bolt

10. Oil pan

11.

Magnet

12. Drain plug

13. Drain plug gasket

14. Terminal cord assembly

15. O-ring

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-10, "Components"

 .

SCIA8044E

AT-226

ON-VEHICLE SERVICE

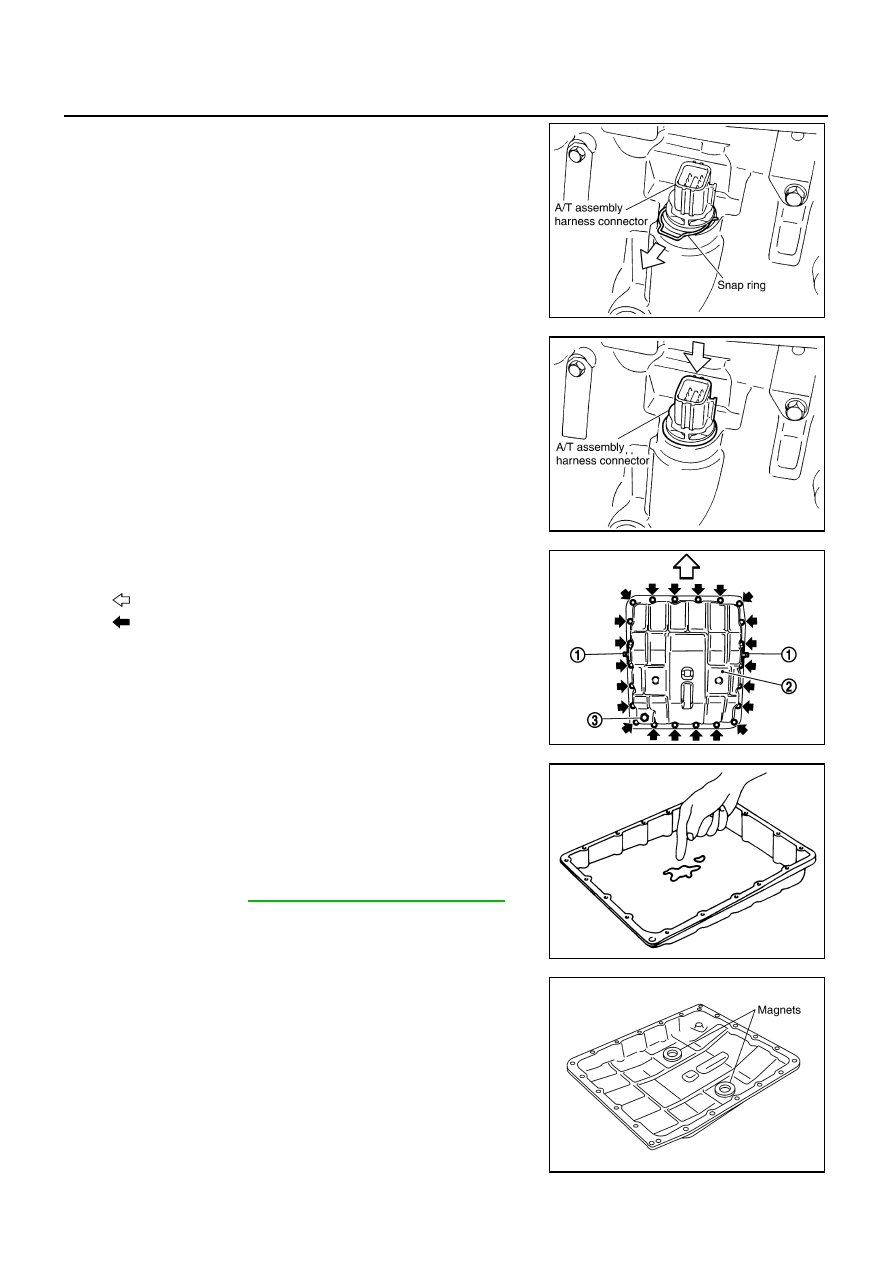

5.

Remove snap ring from A/T assembly harness connector.

6.

Push A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

7.

Remove clips (1).

8.

Remove oil pan (2) and oil pan gasket.

●

: Vehicle front

●

: Bolt (22)

●

Drain plug (3)

9.

Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.

●

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to

AT-14, "A/T Fluid Cooler Cleaning"

.

10. Remove magnets from oil pan.

SCIA5021E

SCIA5022E

SCIA8117E

SCIA5199E
