FLOOR TRIM

INT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

6.

Remove front seat belt floor anchor bolt (LH/RH). Refer to

SB-7, "SEAT BELT BUCKLE : Exploded View"

.

7.

Remove center console assembly. Refer to

IP-22, "Removal and Installation"

.

8.

Remove instrument lower cover, instrument driver lower panel, instrument assist lower panel and instru-
ment side panel (LH/RH). Refer to

IP-12, "Removal and Installation"

.

9.

Remove G-sensor (1). Refer to

BRC-112, "Removal and Instal-

lation"

.

10. Remove diagnosis sensor unit (2). Refer to

SR-16, "Removal

and Installation"

.

11. Remove console rear bracket (3). Refer to

IP-22, "Removal and

Installation"

.

12. Remove floor harness mounting clamps (A).

13. Remove dash side finisher (LH/RH), front kicking plate inner (LH/RH) and body side welt (LH/RH). Refer

to

INT-20, "Removal and Installation"

.

14. Remove floor trim mounting clips and fixing nuts.
15. Remove floor trim from floor trim fixing clips (A) and remove floor

carpet.

INSTALLATION

Install in the reverse order of removal.

JMJIA0093GB

JMJIA1560ZZ

INT-26

< ON-VEHICLE REPAIR >

HEADLINING

HEADLINING

NORMAL ROOF

NORMAL ROOF : Exploded View

INFOID:0000000003591455

1.

Sun-visor assembly

2.

Sun-visor holder

3.

Sun-visor cover

4.

Assist grip cap

5.

Assist grip

6.

Headlining assembly

7.

Front camera finisher

8.

Over head console

9.

Map lamp assembly

10. Map lamp lens

11. Bracket map lamp

12. Roof plate assembly

13. Dual lock fastener

14. Antenna feeder harness

15. Front roof finisher

16. Personal lamp assembly

: Clip

: Pawl

: Metal clip

JMJIA1681ZZ

HEADLINING

INT-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

NORMAL ROOF : Removal and Installation

INFOID:0000000003591456

REMOVAL

1.

Remove rear seat cushion and seat back. Refer to

SE-99, "Removal and Installation"

.

2.

Remove front seat belt anchor bolt (LH/RH). Refer to

SB-7, "SEAT BELT BUCKLE : Exploded View"

.

3.

Remove rear seat belt anchor bolt (LH/RH). Refer to

SB-12, "SEAT BELT BUCKLE : Exploded View"

.

4.

Remove luggage side lower finisher (LH/RH), luggage side upper finisher (LH/RH). Refer to

INT-35,

"Removal and Installation"

.

5.

Remove front pillar garnish (LH/RH), front kicking plate (LH/RH), center pillar lower garnish (LH/RH), cen-
ter pillar upper garnish (LH/RH), front body side welt (LH/RH), rear body side welt (LH/RH), rear kicking
plate (LH/RH). Refer to

INT-20, "Removal and Installation"

.

6.

Disconnect roof harness connectors (A) and clips (B), then
remove the roof harness (1).

7.

Remove front roof finisher mounting pawls with remover tool (A),
then remove front roof finisher (1).

8.

Remove the front camera finisher mounting pawls with a
remover tool (A), then remove the front camera finisher.

9.

Remove sun-visor (LH/RH).
• Remove sun-visor cap.
• Remove mounting screws.
• Disconnect vanity mirror lamp harness connector (With vanity mirror lamp)

10. Disconnect inside mirror harness connector.

: Clip

JMJIA1565ZZ

: Pawl

: Metal clip

JMJIA1564ZZ

: Pawl

JMJIA1567ZZ

INT-28

< ON-VEHICLE REPAIR >

HEADLINING

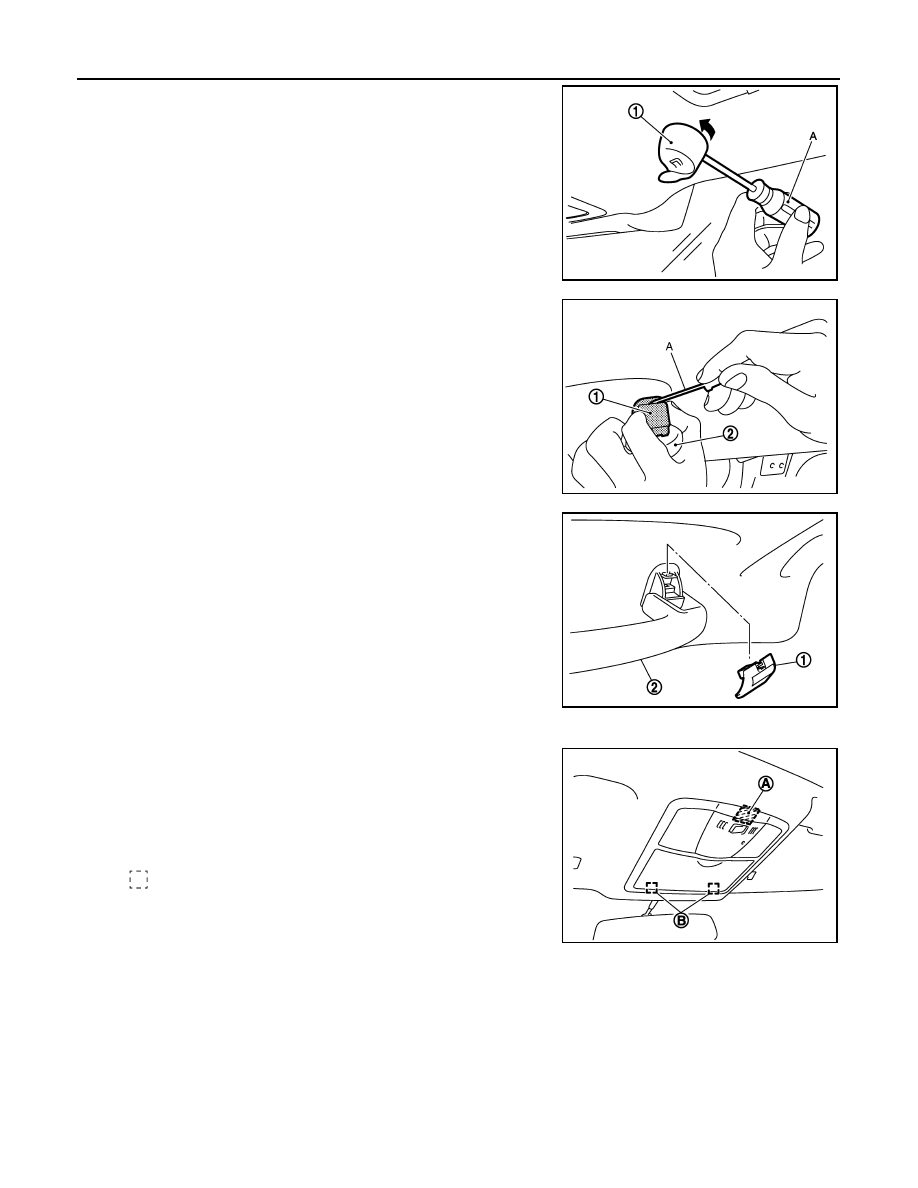

11. Insert a small flatted-blade screwdriver (A) into the hole of the

sun-visor holder (1), press while rotating approximately 90
degrees to remove.

12. With a small flatted-blade screwdriver (A), press the upper side

mounting plastic clip (1) and pull up to remove the mounting
plastic clip (1) from assist grip (2).

•

13. Once the mounting plastic clip (1) is removed, pull out the assist

grip (2) to remove.

14. Recline front seat back to facilitate the headlining removal.

15. Pull map lamp assembly toward and disengage metal clips (B)

and dual-lock fastener (A).

CAUTION:

Map lamp assembly is crimped from the back of headlining.
Remove it by disengaging the crimped area of back of map
lamp assembly after removing headlining from the vehicle.

16. Using remover tool, remove headlining hidden clip at the back side of headlining.

JMJIA1706ZZ

JMJIA1379ZZ

JMJIA1380ZZ

: Metal clip

JMJIA1008ZZ
