Liquid Gasket

INFOID:0000000003139079

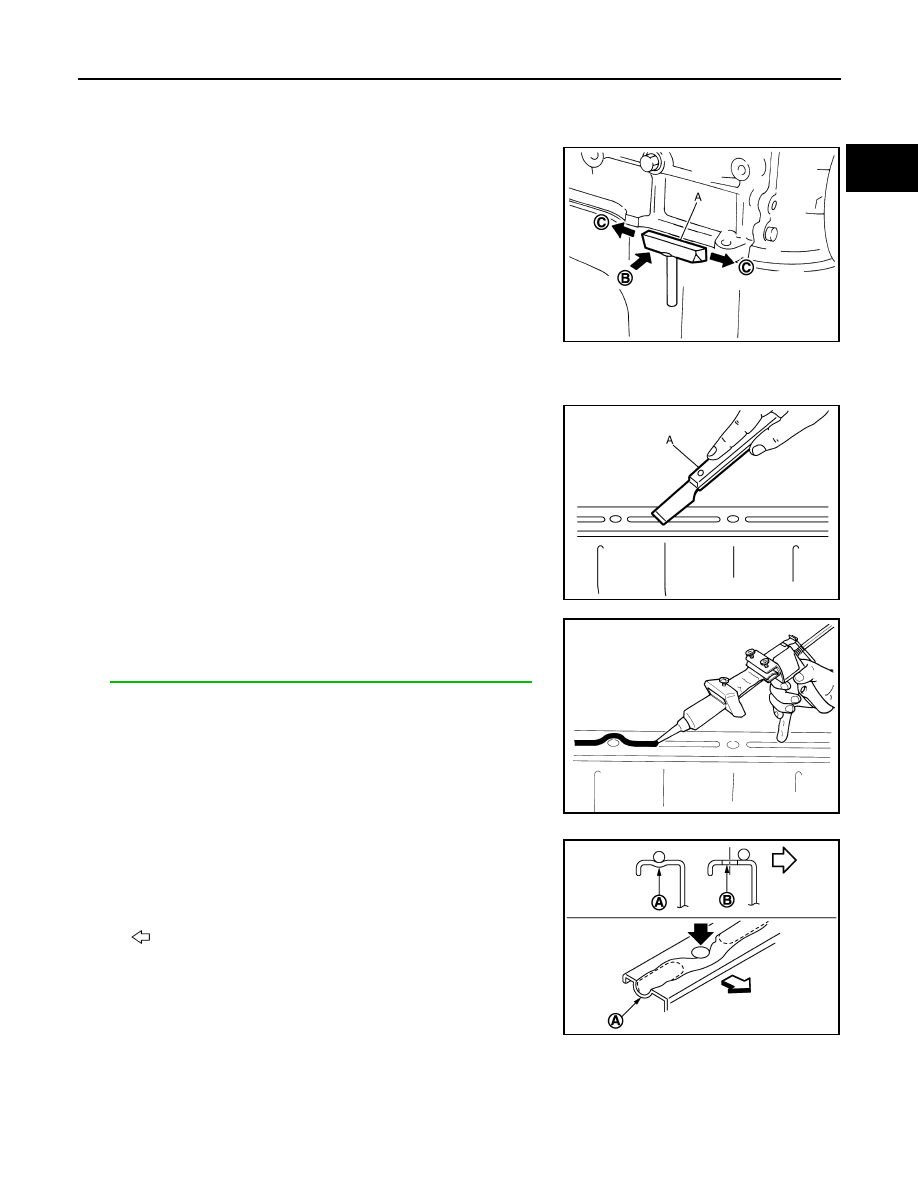

REMOVAL OF LIQUID GASKET SEALING

• After removing mounting bolts and nuts, separate the mating sur-

face using the seal cutter [SST: KV10111100 (J37228)] (A) and
remove old liquid gasket sealing.

CAUTION:

Be careful not to damage the mating surfaces.

• Tap the seal cutter [SST: KV10111100 (J37228)] to insert it (B), and

then slide it (C) by tapping on the side as shown in the figure.

• In areas where the seal cutter [SST: KV10111100 (J37228)] is diffi-

cult to use, use a plastic hammer to lightly tap the parts, to remove
it.

CAUTION:

If for some unavoidable reason tool such as a screwdriver is
used, be careful not to damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper (A), remove old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.
• Remove liquid gasket completely from the groove of the liquid

gasket application surface, mounting bolts, and bolt holes.

2.

Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.

3.

Attach liquid gasket tube to the tube presser (commercial ser-
vice tool).
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

4.

Apply liquid gasket without breaks to the specified location with
the specified dimensions.
• If there is a groove for liquid gasket application, apply liquid

gasket to the groove.

• As for bolt holes (B), normally apply liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.
Check to read the text of this manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.
• Do not retighten mounting bolts or nuts after the installation.
• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

JPBIA0052ZZ

JPBIA0053ZZ

EMA0622D

A

:  Groove

: Inside

JPBIA0010ZZ

EM-8

< PRECAUTION >

PRECAUTIONS

Definitions of Bank Names

INFOID:0000000003139080

• In this manual, each bank name is defined as follows:

• For cylinder numbers and bank layout, refer to the illustration.

A

: Bank 1 (The conventional right bank)

B

: Bank 2 (The conventional left bank)

: Engine front

Bank 1

: The bank side including cylinder No. 1
 (odd-numbered cylinder side)

Bank 2

: The other bank side of the above
 (even-numbered cylinder side)

JPBIA1135ZZ

PREPARATION

EM-9

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000003139081

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10116200
(J26336-A)
Valve spring compressor
1. KV10115900
(J26336-20)
Attachment
2.KV10109220
(

—

)

Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200
(J26336-A), but Part (2) is not so.

KV10107902
(J38959)
Valve oil seal puller

Replacing valve oil seal

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A (G).
a: 20 (0.79) dia.             d: 8 (0.31) dia.
b: 13 (0.51) dia.             e: 10.7 (0.421)
c: 10.3 (0.406) dia.         f: 5 (0.20)
H: side B
                                                   Unit: mm (in)

EM03470000
(J8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J23907)
Pilot bushing puller

Removing pilot converter

KV10111100
(J37228)
Seal cutter

Removing oil pan (lower and upper), front and
rear timing chain case, etc.

PBIC1650E

NT011

JPBIA0396ZZ

NT044

NT045

NT046

E

M

- 1

0

< PREPARATION >

PREPARATION

Commercial Service Tools

INFOID:0000000003139082

KV10112100
(BT8653-A)
Angle wrench

Tightening bolts for connecting rod bearing
cap, cylinder head, etc. in angle

KV10114400
(J38365)
Heated oxygen sensor wrench

Loosening or tightening air fuel ratio sensor 1
a: 22 mm (0.87 in)

KV10118600
(J-48641)
Ring gear stopper

Removing and installing crankshaft pulley

Tool number
(Kent-Moore No.)
Tool name

Description

NT014

JPBIA0397ZZ

JPBIA0409ZZ

(Kent-Moore No.)
Tool name

Description

(

—

)

Tube presser

Pressing the tube of liquid gasket

(

—

)

Power tool

Loosening bolts and nuts

(

—

)

Manual lift table caddy

Removing and installing engine

NT052

PBIC0190E

ZZA1210D
