BR-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000003139967

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

BRAKE PEDAL

BR-7

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

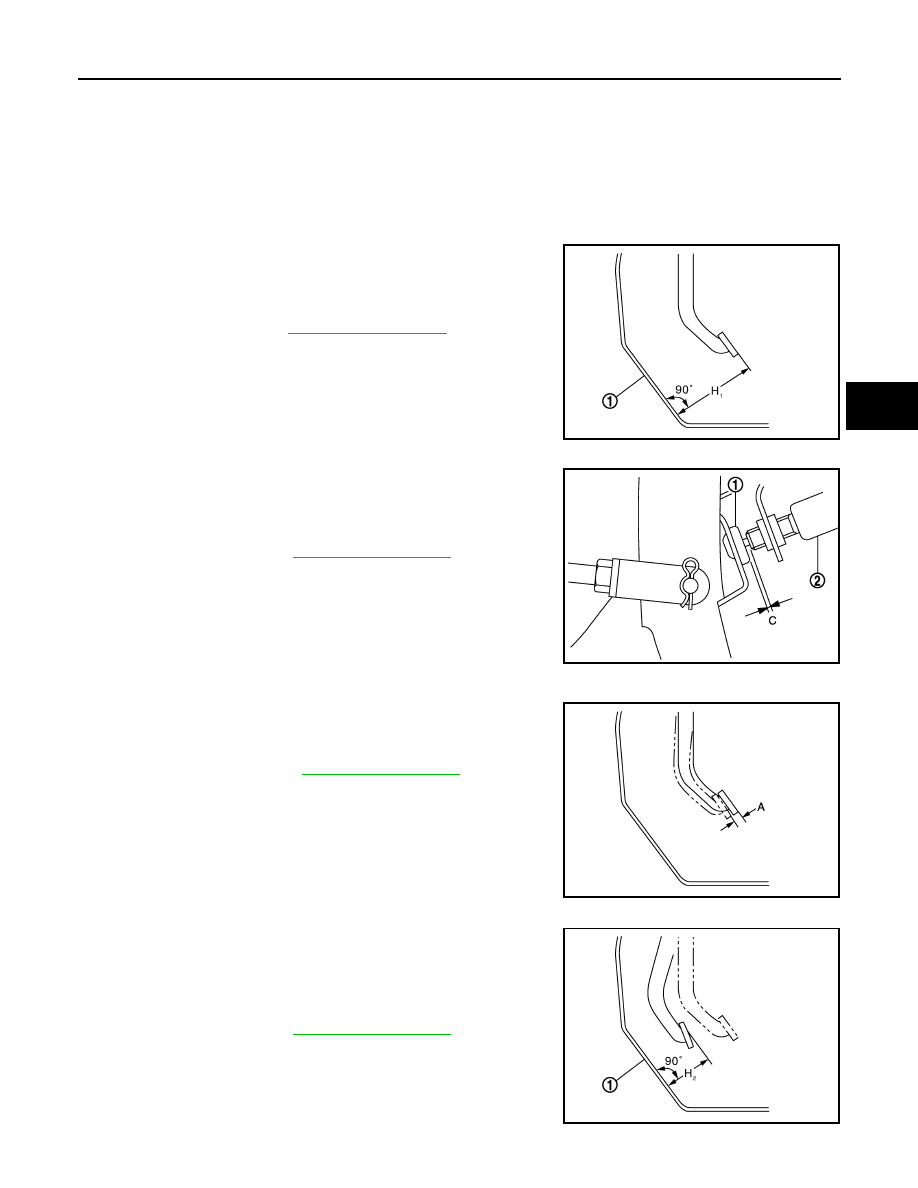

ON-VEHICLE MAINTENANCE

BRAKE PEDAL

Inspection and Adjustment

INFOID:0000000003562162

INSPECTION

Brake Pedal Height

Check the brake pedal height (H

1

) between the dash lower panel (1)

and the brake pedal upper surface.

CAUTION:

Remove the floor trim.

Stop Lamp Switch and ASCD Brake Switch

Check the clearance (C) between stopper rubber (1) and stop lamp
switch and ASCD brake switch (2) threaded end.

CAUTION:

The stop lamp must be turned off when the brake pedal is
released.
NOTE:
Pull the brake pedal pad to make the clearance between stopper
rubber and stop lamp switch and ASCD brake switch threaded end.

Brake Pedal Play

Press the brake pedal. Check the brake pedal play (A).

Depressed Brake Pedal Height

Check the brake pedal height (H

2

) between the dash lower panel (1)

and the brake pedal upper surface when depressing the brake pedal
at 490 N (50 kg, 110 lb) while turning engine ON.

CAUTION:

Remove the floor trim.

Standard

H

1

: Refer to

BR-46, "Brake Pedal"

.

JPFIA0065ZZ

Standard

C

: Refer to

BR-46, "Brake Pedal"

.

JPFIA0122ZZ

Standard

A

: Refer to

BR-46, "Brake Pedal"

.

JPFIA0121ZZ

Standard

H

2

: Refer to

BR-46, "Brake Pedal"

.

JPFIA0068ZZ

BR-8

< ON-VEHICLE MAINTENANCE >

BRAKE PEDAL

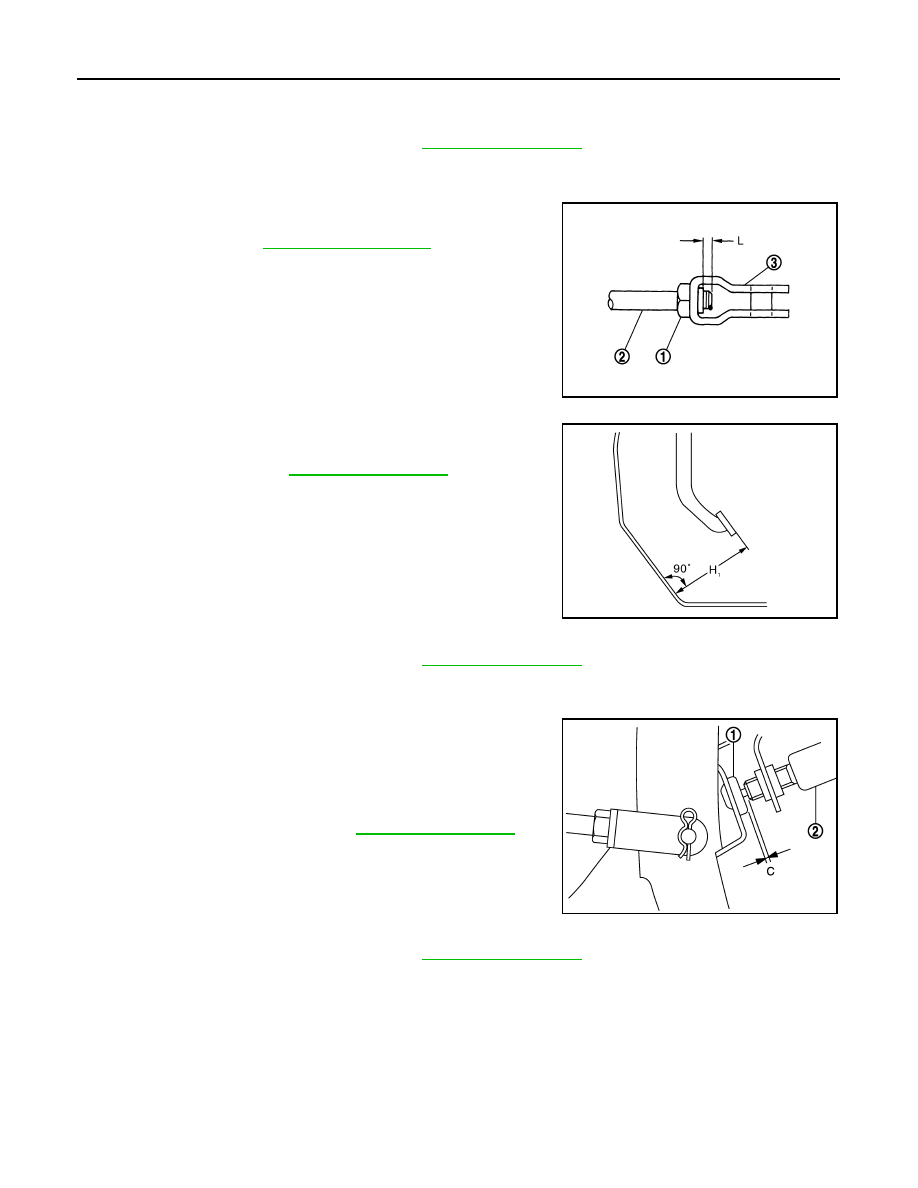

ADJUSTMENT

Brake Pedal Height

1.

Remove instrument lower panel LH. Refer to

IP-11, "Exploded View"

.

2.

Disconnect the stop lamp switch and ASCD brake switch harness connector.

3.

Turn the stop lamp switch and ASCD brake switch 45

°

 counterclockwise.

4.

Loosen the input rod lock nut (1). Adjust the brake pedal height
(H

1

) to the specification. Tighten the input rod lock nut to the

specification. Refer to

BR-28, "Exploded View"

.

CAUTION:

The threaded end of the input rod (2) must project to the
inner side (L) of the clevis (3).

Stop Lamp Switch and ASCD Brake Switch

1.

Remove instrument lower panel LH. Refer to

IP-11, "Exploded View"

.

2.

Disconnect the stop lamp switch and ASCD brake switch harness connector.

3.

Turn the stop lamp switch and ASCD brake switch 45

°

 counterclockwise.

4.

Press-fit stop lamp switch and ASCD brake switch (2) until stop
lamp switch and ASCD brake switch hits the stopper rubber (1)
45

°

 clockwise.

CAUTION:

• The clearance (C) between the stopper rubber and stop

lamp switch and ASCD brake switch threaded end must
be the specified value. Refer to

BR-46, "Brake Pedal"

.

• The stop lamp must be turned off when the brake pedal is

released.

Brake Pedal Play

1.

Remove instrument lower panel LH. Refer to

IP-11, "Exploded View"

.

2.

Disconnect the stop lamp switch and ASCD brake switch harness connector.

3.

Turn the stop lamp switch and ASCD brake switch 45

°

 counterclockwise.

JPFIA0003ZZ

Standard

H

1

: Refer to

BR-46, "Brake Pedal"

.

JPFIA0279ZZ

JPFIA0122ZZ

BRAKE PEDAL

BR-9

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

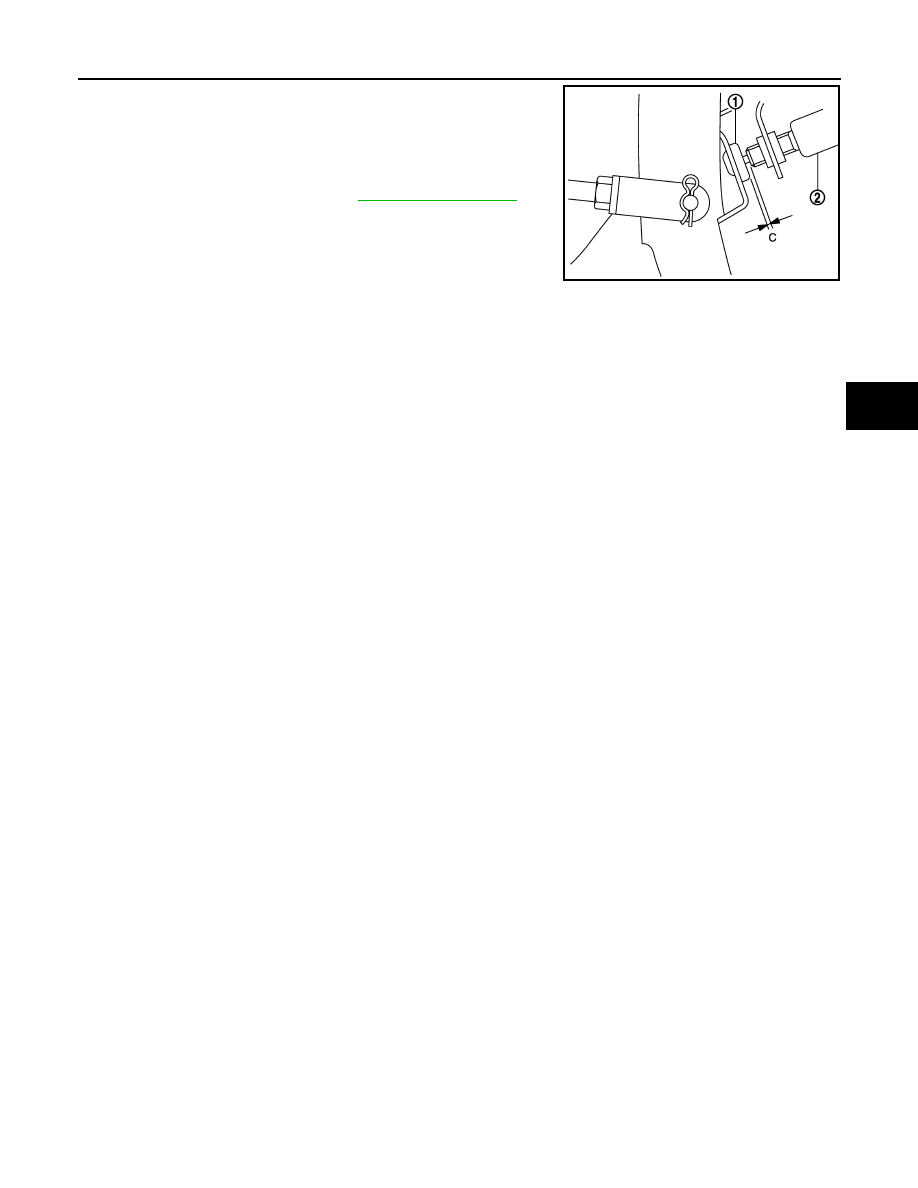

4.

Press-fit stop lamp switch and ASCD brake switch (2) until stop
lamp switch and ASCD brake switch hits the stopper rubber (1)
45

°

 clockwise.

CAUTION:

• The clearance (C) between the stopper rubber and stop

lamp switch and ASCD brake switch threaded end must
be the specified value. Refer to

BR-46, "Brake Pedal"

.

• The stop lamp must be turned off when the brake pedal is

released.

JPFIA0122ZZ
