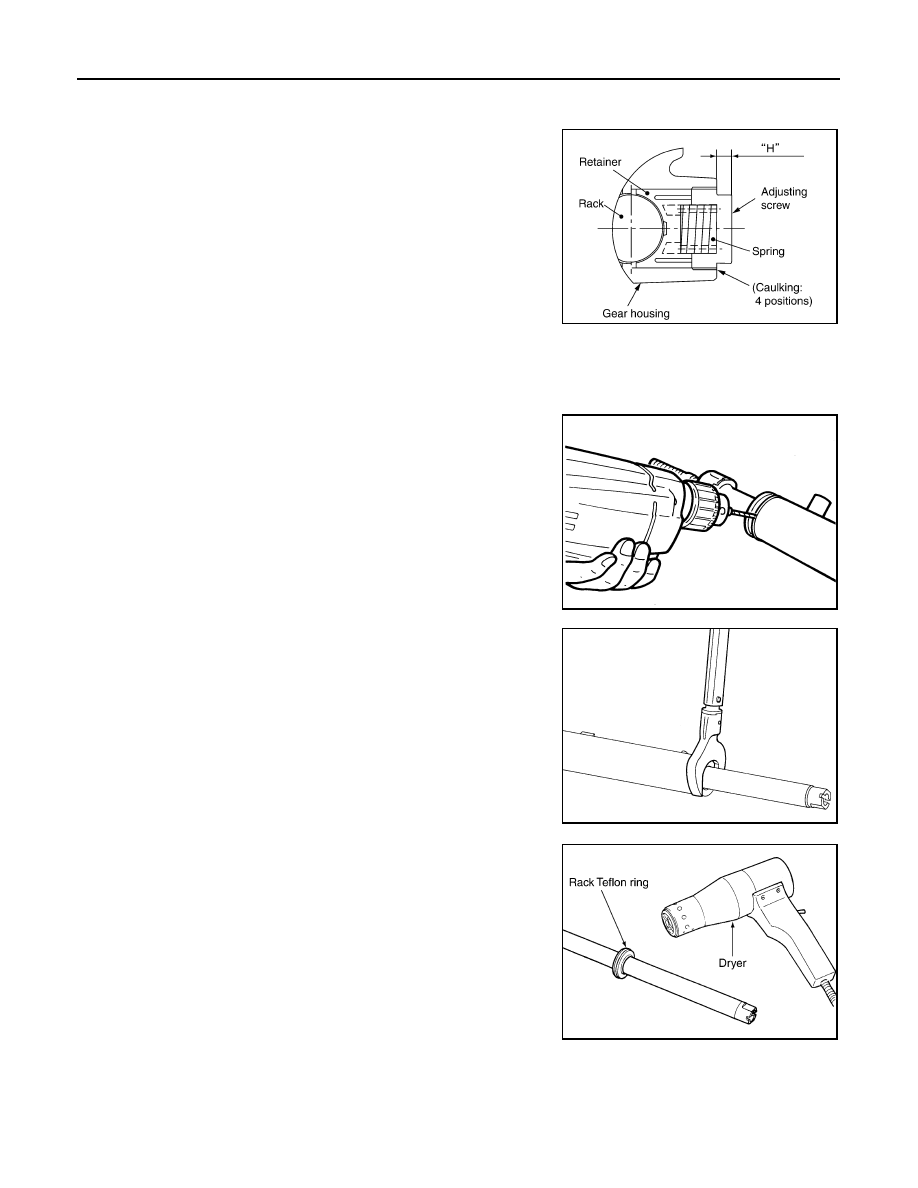

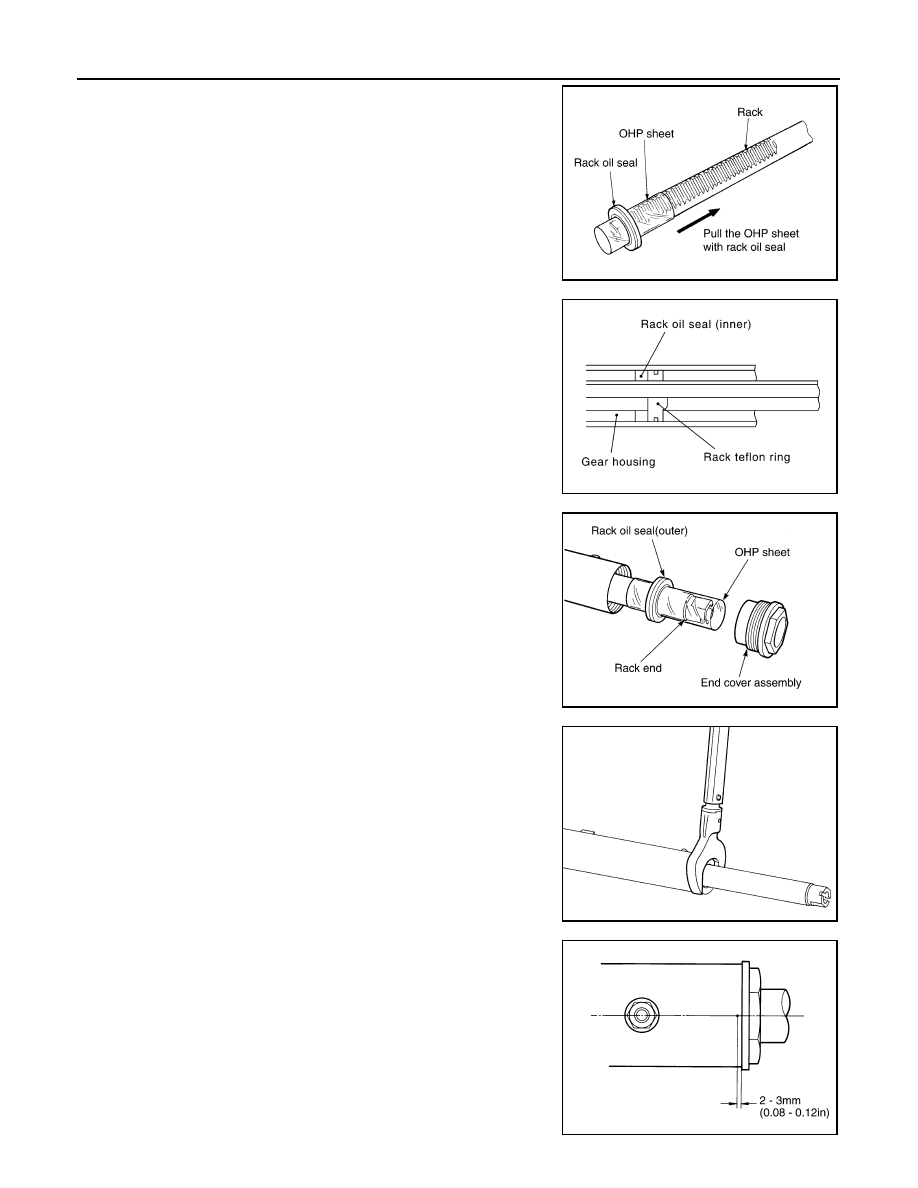

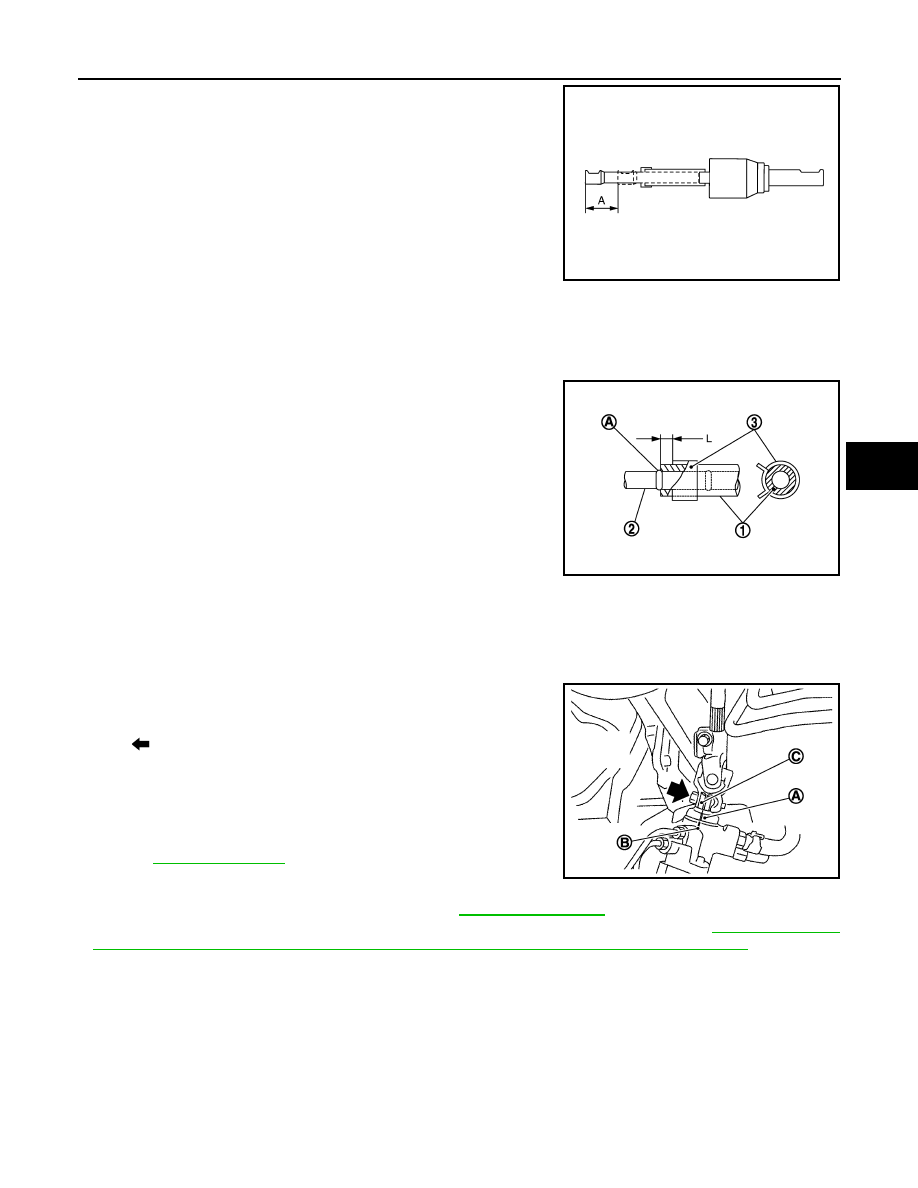

STEERING GEAR AND LINKAGE ST-37 < ON-VEHICLE REPAIR > C D E F H I J K L M A B ST N O P 11. Separate the lower shaft from the steering gear assembly by sliding the slide shaft (A: sliding range). CAUTION: Spiral cable may be cut if steering wheel turns while sepa- 12. Remove the mounting bolts and nuts of steering gear assembly. INSTALLATION Note the following, and install in the reverse order of removal. CAUTION: Spiral cable may be cut if steering wheel turns while separating steering column assembly and steer- CAUTION: • Never apply fluid to the hose (1) and tube (2). • When installing lower joint to steering gear assembly, follow the procedure listed below. NOTE: - Align rear cover cap projection (A) with the marking position of gear housing assembly (B). - Install slit part of lower joint (C) aligning with the rear cover cap projection (A). Make sure that the slit part of lower joint (C) is • After installation, bleed air from the steering hydraulic system. . • Perform final tightening of nuts and bolts on each part under unladen conditions with tires on level ground when removing steer- • Adjust neutral position of steering angle sensor after checking wheel alignment. Refer to MENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement" AWD : Disassembly and Assembly INFOID:0000000003134405 DISASSEMBLY 1. Remove low pressure piping. CAUTION: • Disassemble and assemble steering gear assembly by fixing the mounting area with a vise using copper plates. • Clean steering gear assembly with kerosene before disassembling. Be careful to avoid splash- ing or applying any kerosene over connector of discharge port or return port. JSGIA0035ZZ Standard L : 3 – 8 mm (0.12 – 0.31 in) JSGIA0118ZZ : Bolt JSGIA0111ZZ |
