Infiniti EX35. Manual - part 97





AV

REAR VIEW CAMERA

AV-169

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

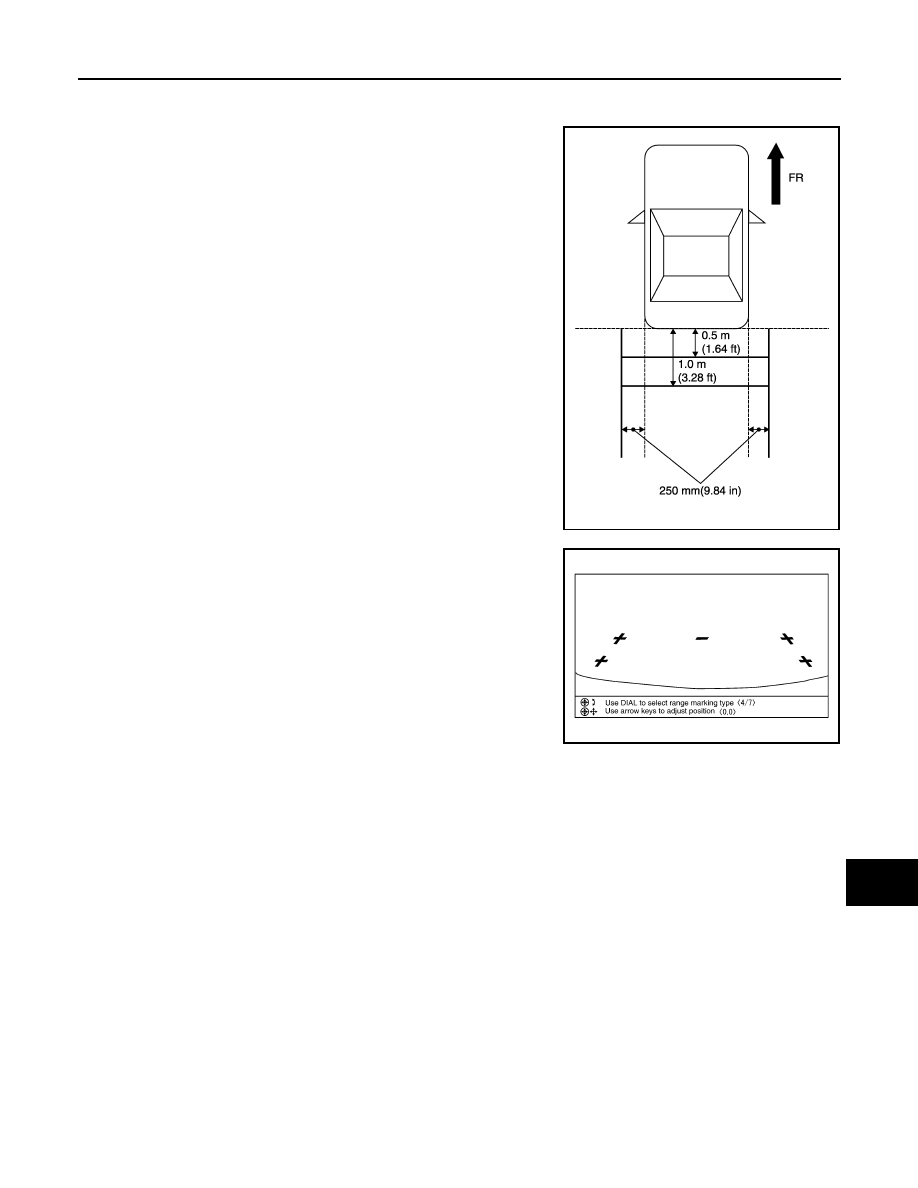

Adjustment

INFOID:0000000003579617

1.

Draw lines on rearward area of the vehicle passing through the
following points: 250 mm (9.84 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion/Adjustment mode.

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “”

CAUTION:

Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the
following service to adjust the index again.
• Remove battery for five min. Then reconnect battery.
• Remove camera control unit connector for five min. Then reconnect camera control unit connec-

tor.

JPNIA0967GB

Selected pattern

: 7

Up/Down adjustment range

20 – 20

Left/Right adjustment range

20 – 20

SKIB3689E

AV-170

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

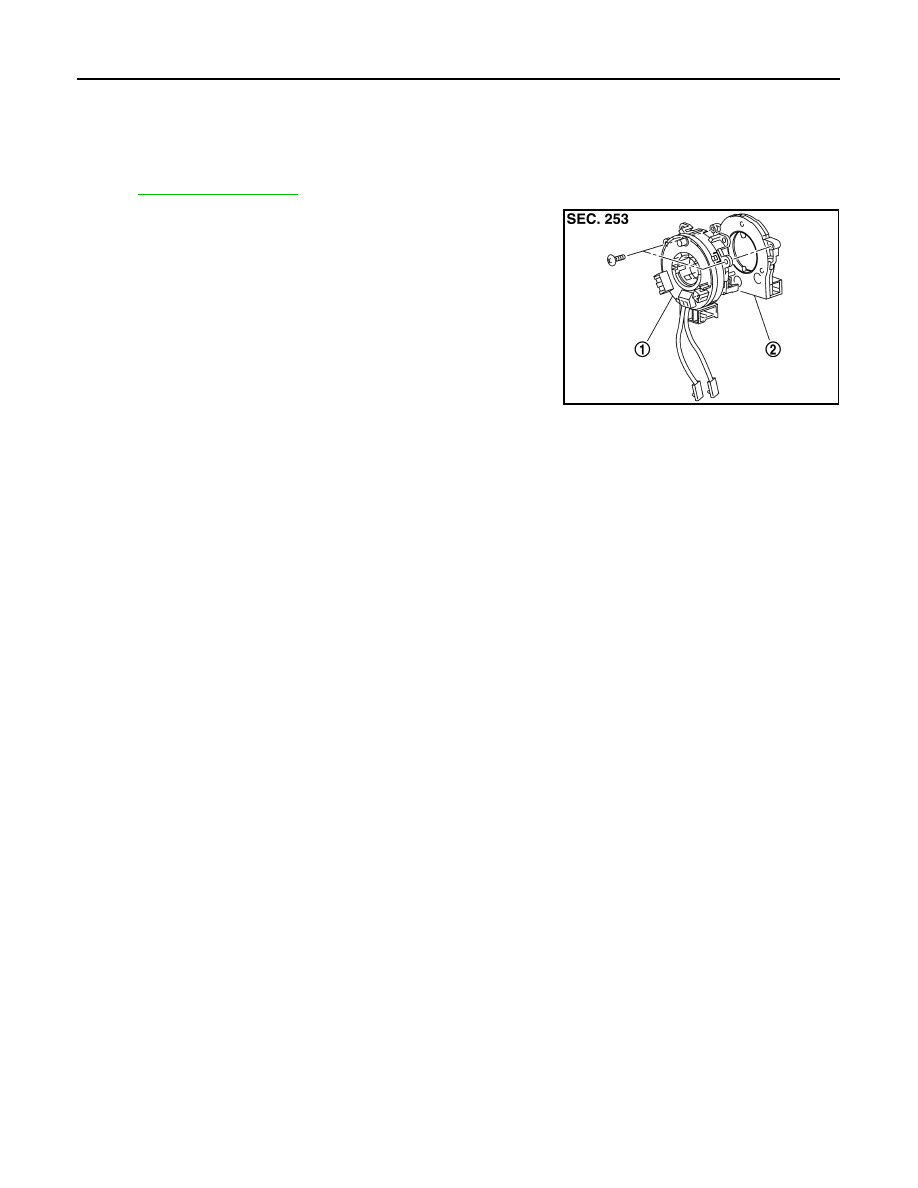

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000003573727

REMOVAL

Refer to

SR-6, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003573728

REMOVAL

1.

Remove spiral cable.

2.

Remove steering angle sensor mounting screws.

3.

Remove steering angle sensor.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor

AV

ANTENNA FEEDER

AV-171

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

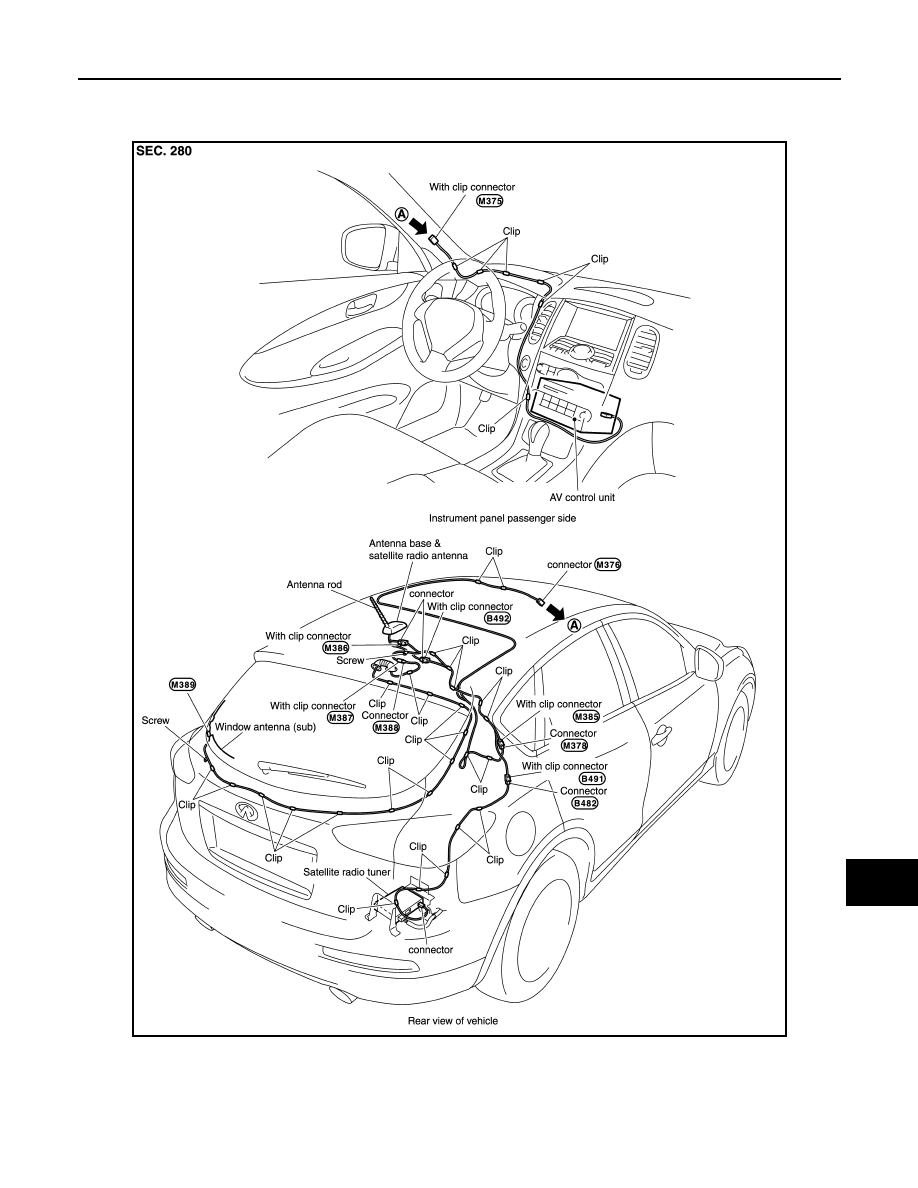

ANTENNA FEEDER

Harness Layout

INFOID:0000000003508464

JPNIA0885GB

AV-172

< BASIC INSPECTION >

[BOSE AUDIO WITHOUT NAVIGATION]

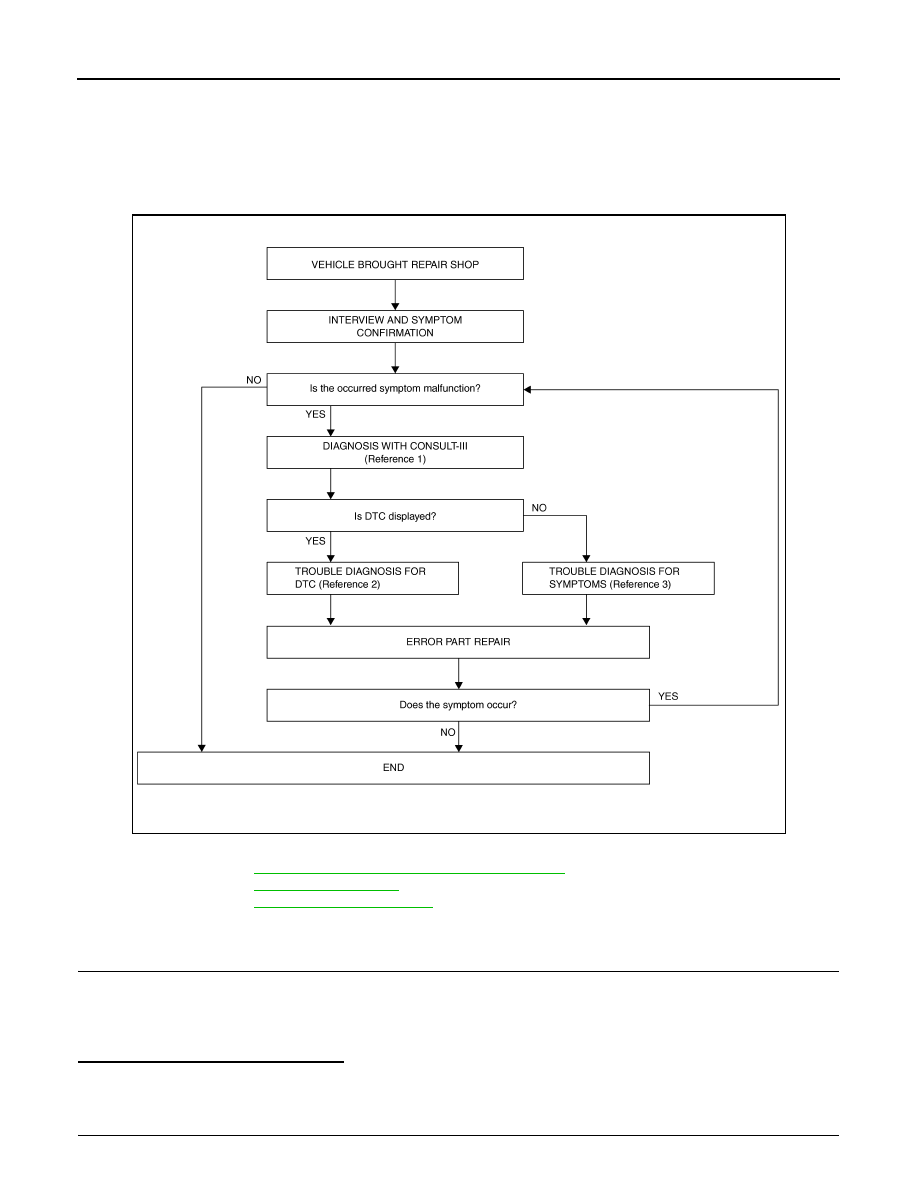

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000003508649

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-201, "CONSULT-III Function (MULTI AV)"

.

• Reference 2··· Refer to

AV-278, "DTC Index"

.

• Reference 3··· Refer to

AV-403, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

Is the occurred symptom malfunction?

YES

>> GO TO 2.

NO

>> INSPECTION END

2.

DIAGNOSIS WITH CONSULT-III

JSNIA0732GB
