10. Check the gap dimension on the clamp ear.

11. Angulate the C/V joint several times to disperse the grease.

12. Install the inner seal. Refer to Wheel Drive Shaft Inner Joint and Boot Replacement.

DESCRIPTION AND OPERATION

WHEEL DRIVE SHAFTS DESCRIPTION AND OPERATION

Front Wheel Drive Shafts are flexible assemblies which consist of the following components:



Front wheel drive shaft constant velocity joint (outer joint).



Front wheel drive shaft tri-pot joint (inner joint).



The front wheel drive shaft connects the front wheel drive shaft tri-pot joint and the front
wheel drive shaft constant velocity joint.



The front wheel drive shaft tri-pot joint is completely flexible and moves with an in and out
motion.



The front wheel drive shaft constant velocity joint is flexible but can not move in and out.

The Wheel Drive Shaft is a balanced shaft that transmits rotational force from the front
differential to the front wheels when the transfer case is engaged. The wheel drive shaft is
mounted to the front differential by bolting the flange of the wheel drive shaft to the flange on the
inner output shaft of the front differential. The other end of the wheel drive shaft is splined to fit
into and drive the hub assembly when the transfer case is engaged. The tri-pot joint and constant
velocity joint on the wheel drive shaft allows the shaft to be flexible to move with the suspension
travel of the vehicle.

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS

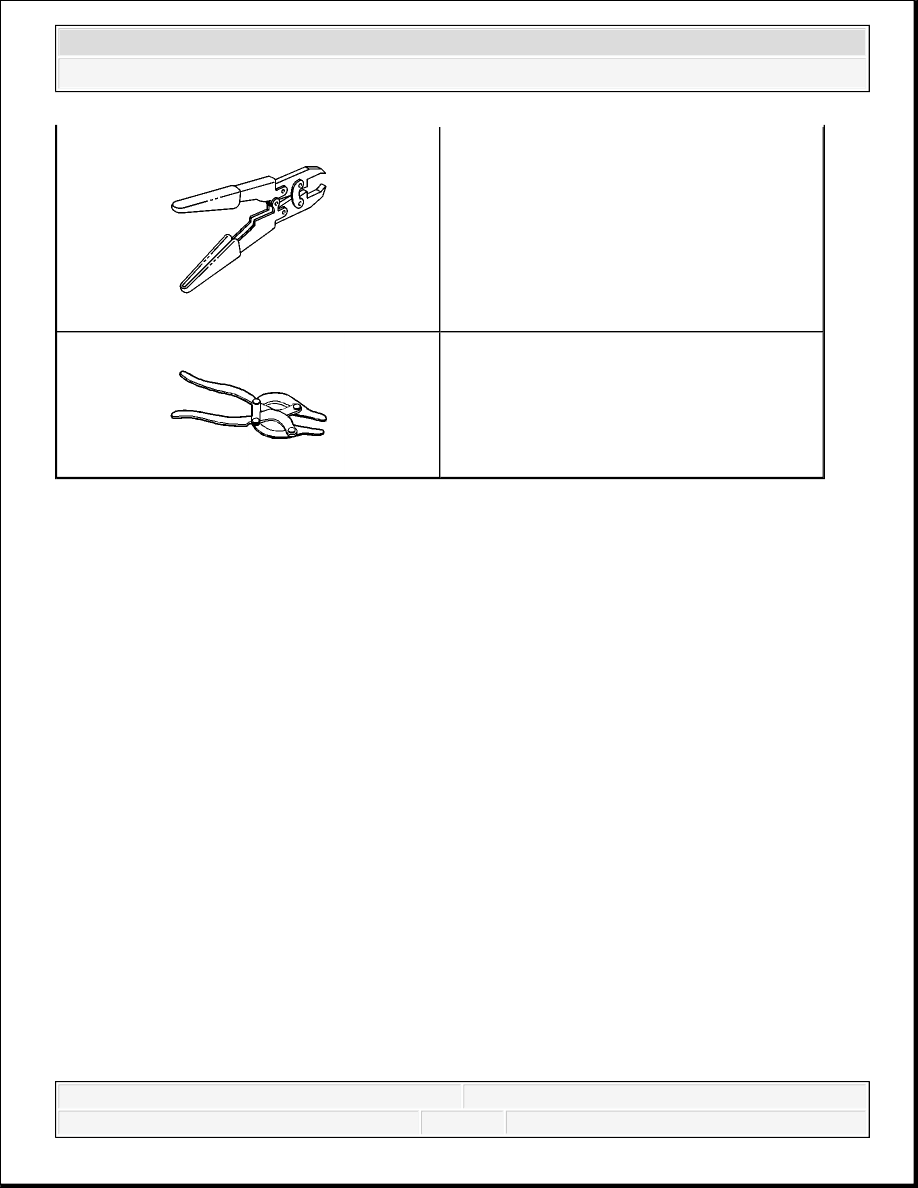

Special Tools

Illustration

Tool Number/Description

J-8059

Drive Axle Seal Clamp Pliers



2007 Hummer H3

2007 Driveline/Axle Wheel Drive Shafts - H3



J-35566

Drive Axle Seal Clamp Pliers

J-35910

Snap Ring Pliers - Parallel Jaw



2007 Hummer H3

2007 Driveline/Axle Wheel Drive Shafts - H3



2007 ACCESSORIES & EQUIPMENT

Bolted Exterior Body Panels and Closures - H3

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

REPAIR INSTRUCTIONS

HOOD BUMPER REPLACEMENT

Application

Specification

Metric

English

Check Link Bolt

25 N.m

18 lb ft

Check Strap Nuts

9 N.m

80 lb in

Endgate Assist Rod Stud

10 N.m

89 lb in

Endgate Hinge Bolt

50 N.m

37 lb ft

Fender Mount Bolts

10 N.m

89 lb in

Front Side Door Hinge Bolts

25 N.m

18 lb ft

Grille Support Bolts

9 N.m

27 lb in

Hood Hinge Bolts

25 N.m

18 lb ft

Hood Latch Release Screws

2 N.m

18 lb in

Hood Latch Screws

10 N.m

89 lb in

Rear Side Door Hinge Bolts

25 N.m

18 lb ft



2007 Hummer H3

2007 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - H3





2007 Hummer H3

2007 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - H3



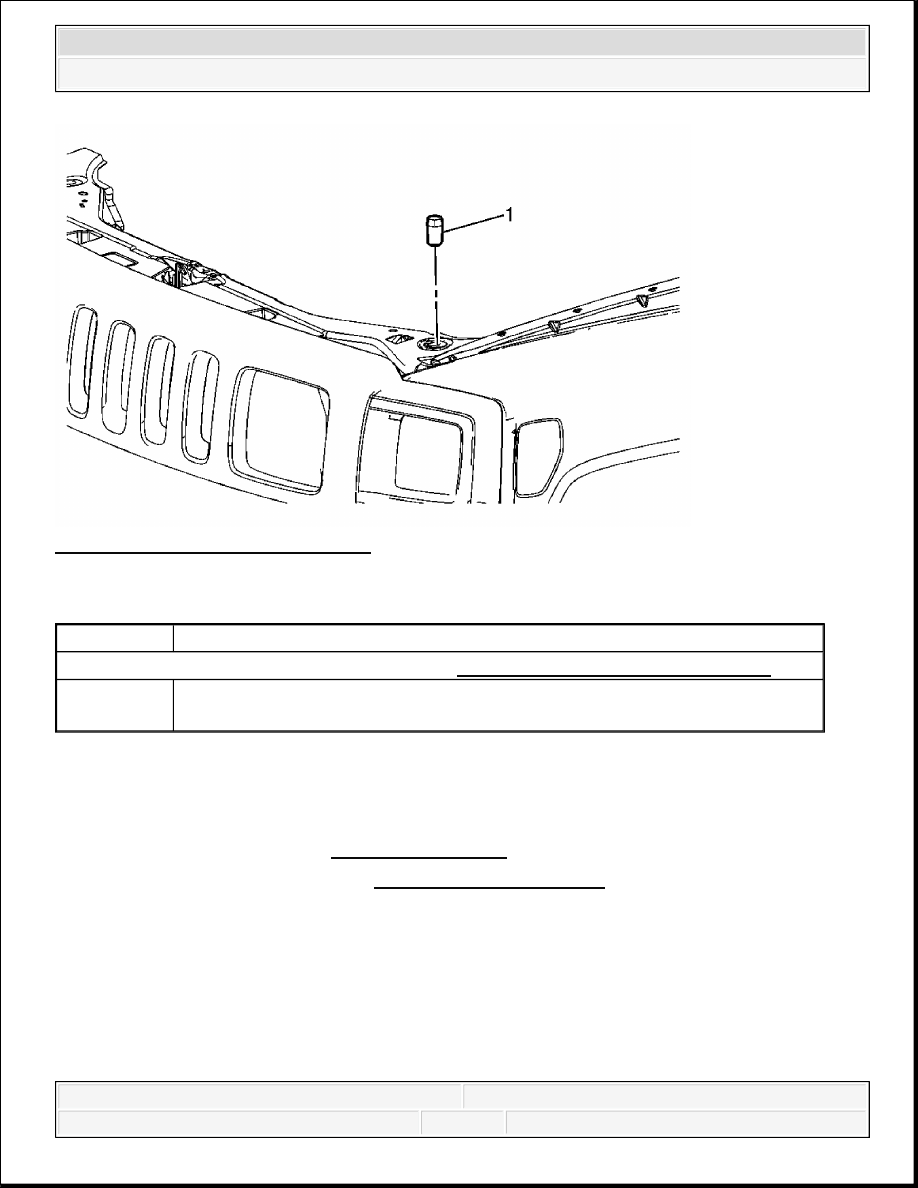

Fig. 1: Hood Bumper Replacement
Courtesy of GENERAL MOTORS CORP.

Hood Bumper Replacement

HOOD PRIMARY LATCH RELEASE CABLE REPLACEMENT

Removal Procedure

1. Remove the grille. Refer to Grille Replacement .

2. Remove the hood latch. Refer to Hood Latch Replacement

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications.

1

Bumper, Hood Bumper
Tip: Adjust bumper as necessary.



2007 Hummer H3

2007 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - H3
