Hummer H3. Manual - part 1345

2007 ACCESSORIES & EQUIPMENT

Displays and Gages - H3

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

FUEL LEVEL SPECIFICATIONS

The information in this table is intended for use with the J 33431-C Signal Generator and
Instrument Panel Tester. The fuel level sensor values represent the test values to be used on the
Signal Generator to drive the fuel gage display to the indicated positions. Vehicles that require
more than one fuel level sensor calculate gage position from many possible resistance
combinations of fuel levels between the two tanks. Therefore, the values in the table may not
correlate directly to readings taken from the vehicle primary or secondary sending units.

The values in this table are approximate values based on information obtained from properly
operating vehicles. Actual results may vary slightly.

Fuel Level Specifications

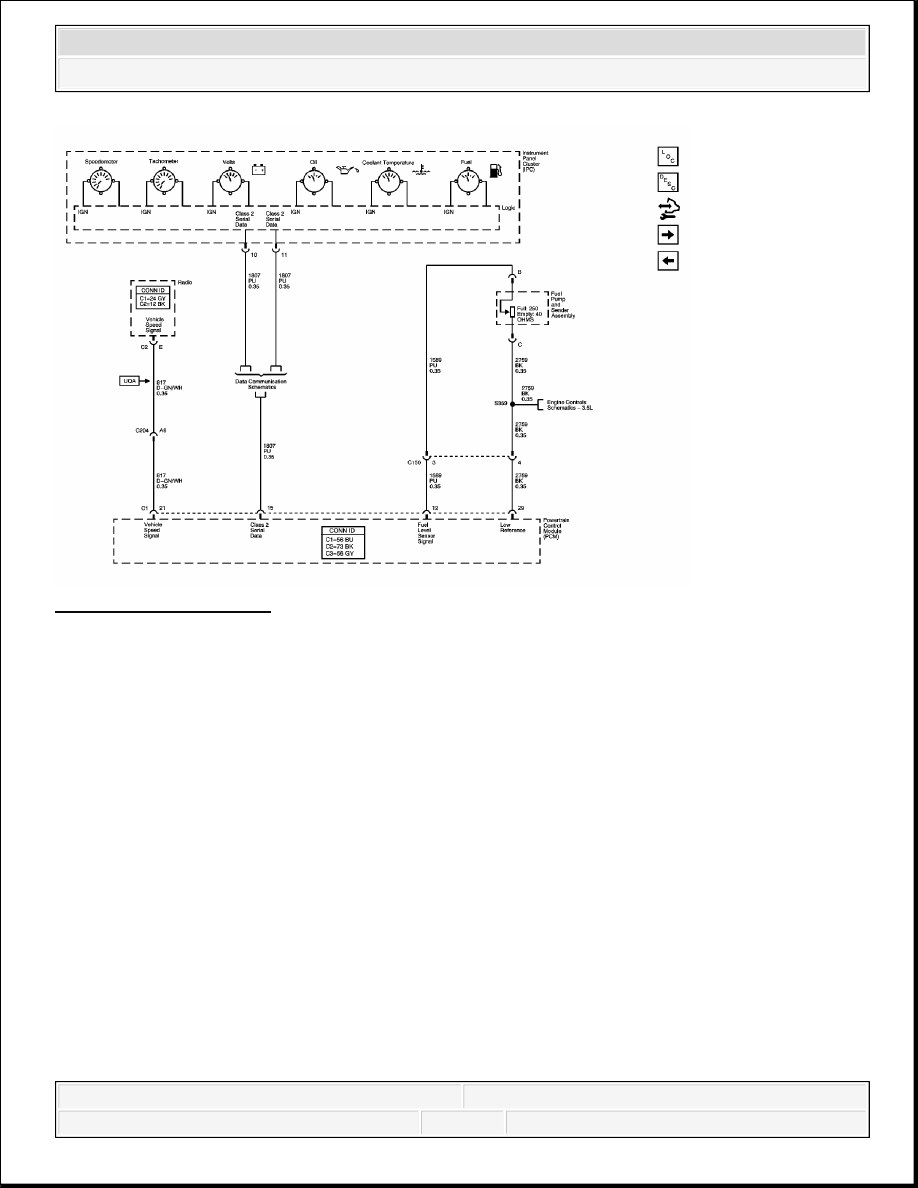

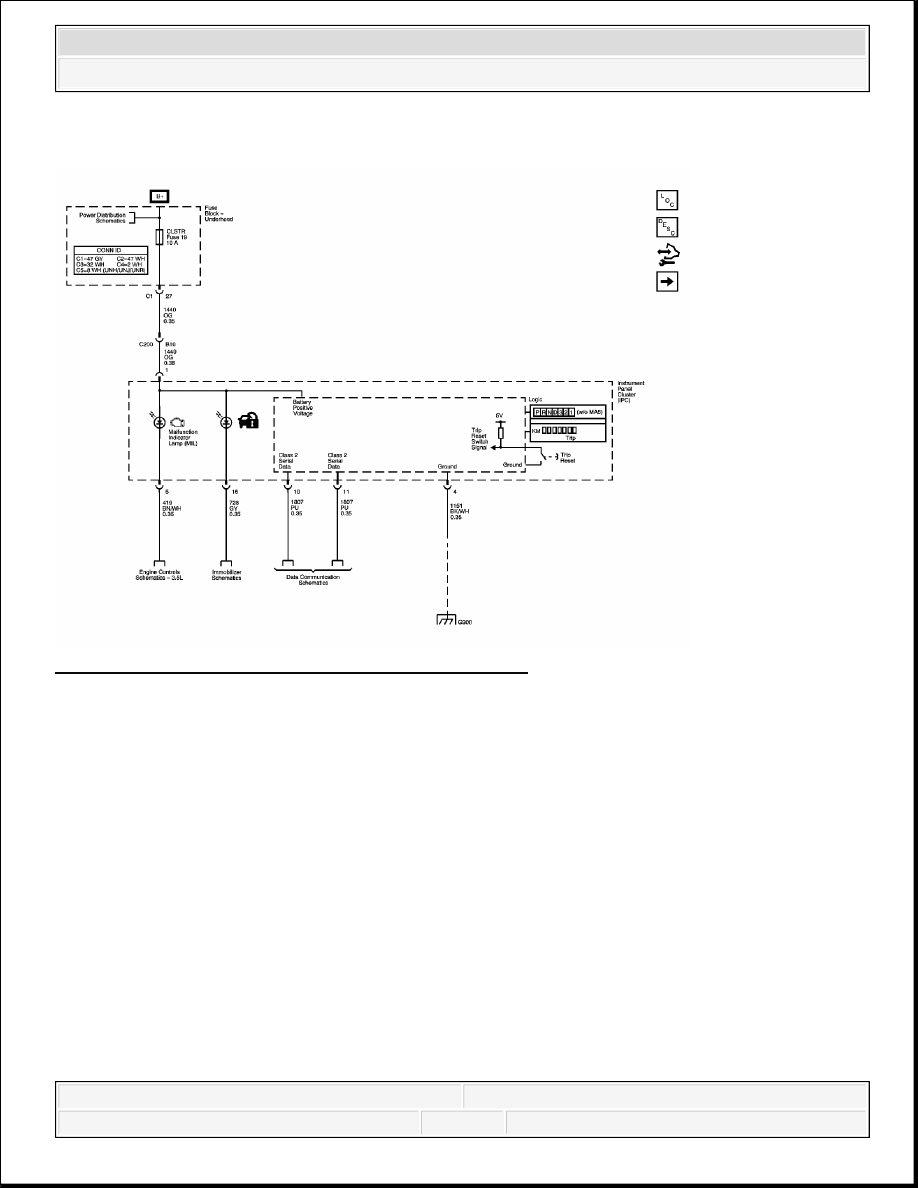

SCHEMATIC AND ROUTING DIAGRAMS

Application

Specification

Metric

English

Instrument Panel Accessory Switch Assembly
Screws

2 N.m

18 lb in

Instrument Panel Cluster Assembly Screws

2 N.m

18 lb in

Fuel Gage Display

Resistance

Fuel Level

Fuel Remaining

19.8 Gallon Tank

40-70 ohms

0-10%

0-8.5 L (0-2.3 gal)

1/4

110 ohms

28%

23.4 L (6.2 gal)

1/2

143 ohms

51%

38.3 L (10.1 gal)

3/4

181 ohms

74%

53.2 L (14.1 gal)

215-250 ohms

90-100%

68.1-75.7 L (18-20 gal)

Low Fuel Indicator

63 ohms

9.3 L (2.4 gal)
