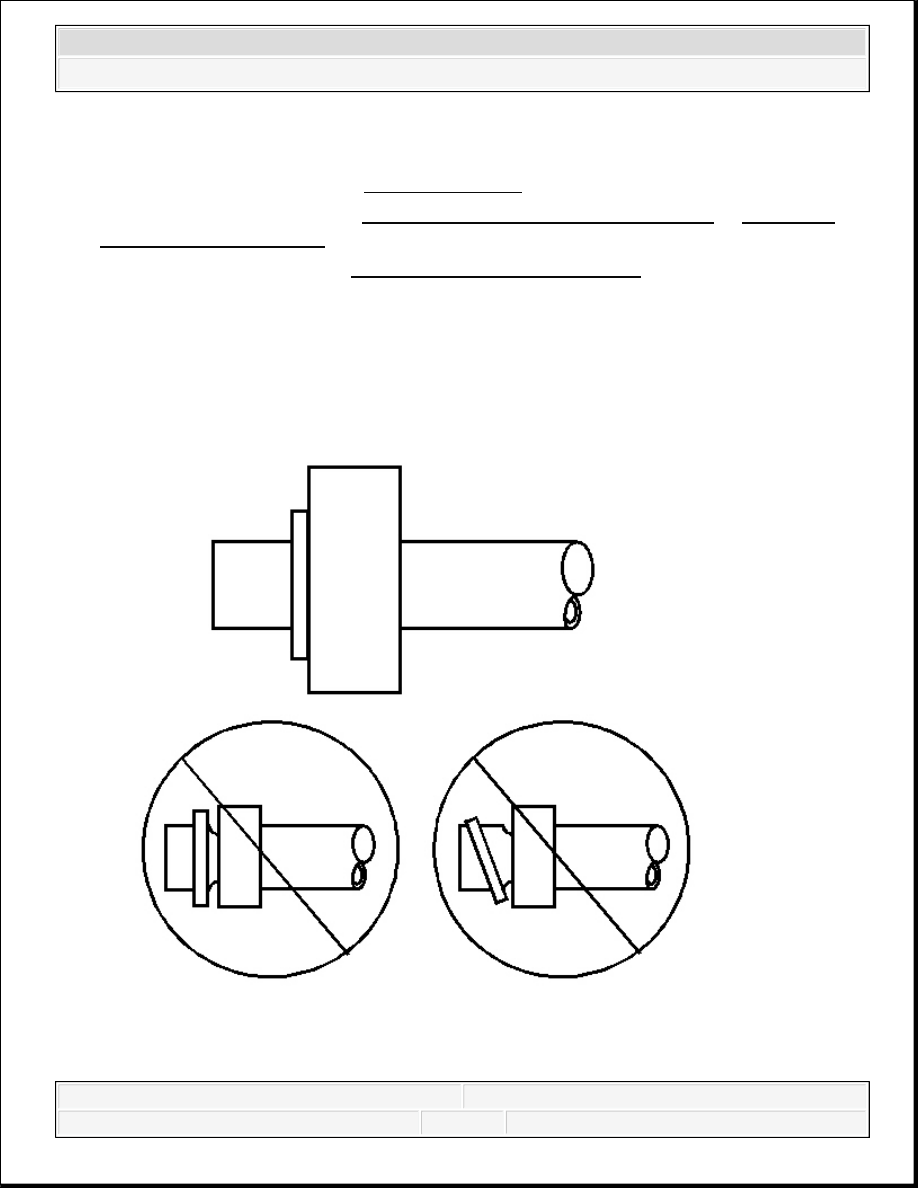

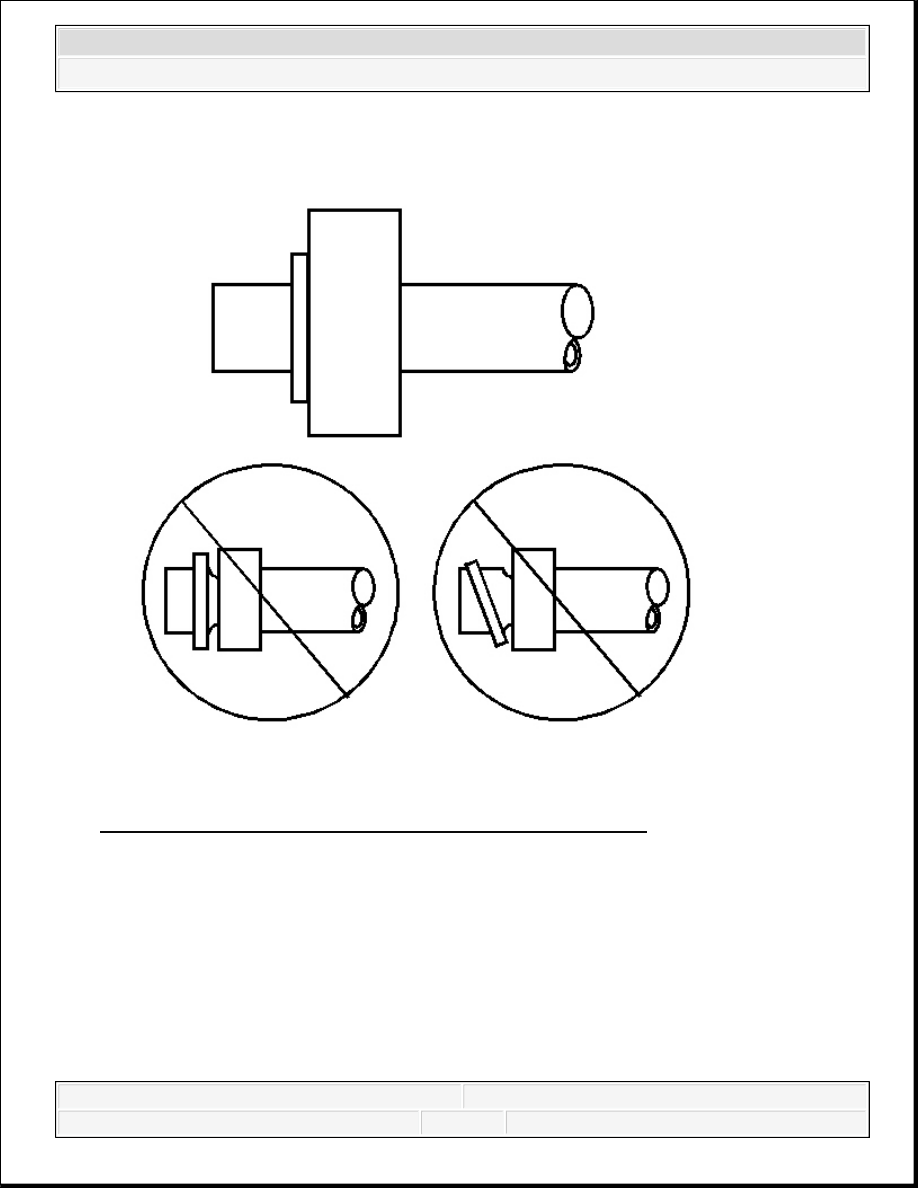

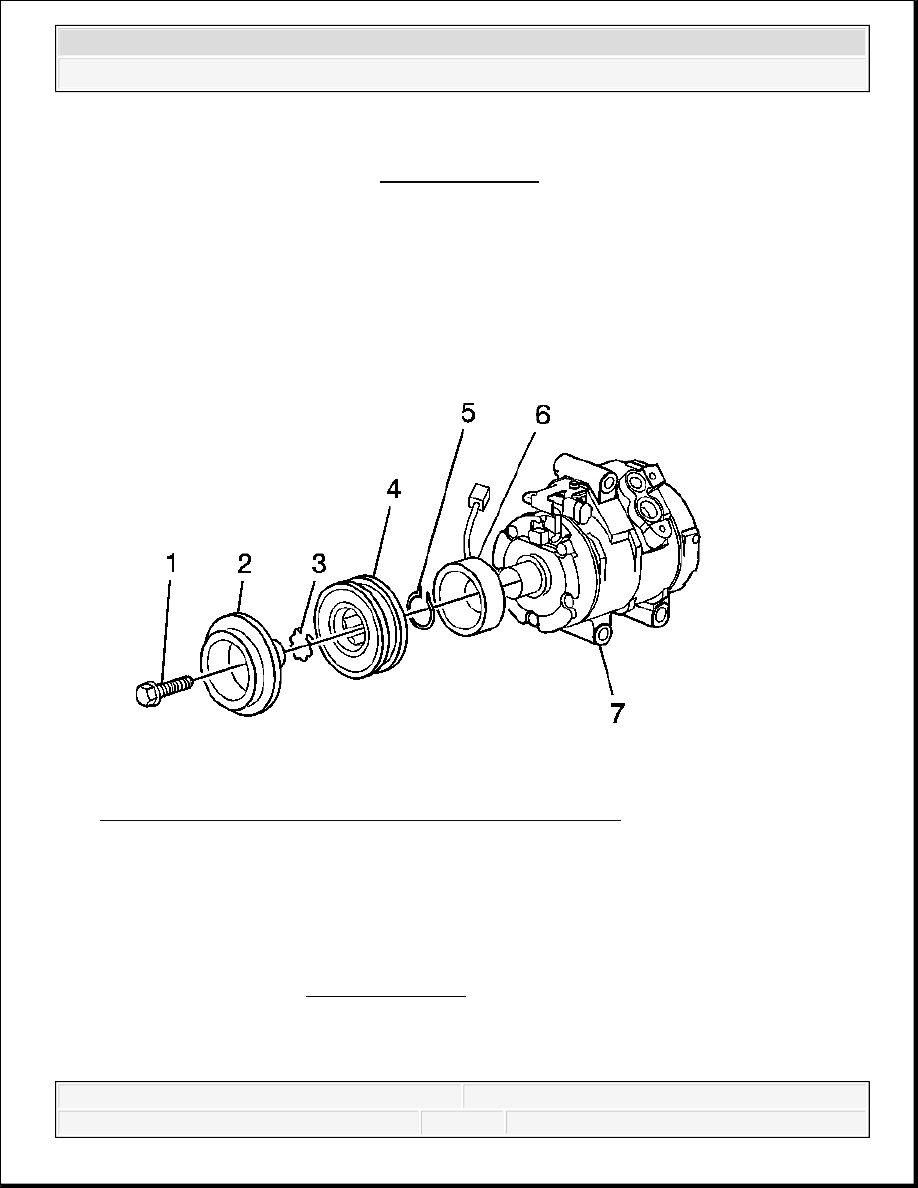

3. Remove the clutch plate retaining bolt (1). 4. Remove the cooling fan. Refer to Fan Replacement . 5. Remove the clutch plate assembly (2). 6. Remove the clutch hub/bearing snap ring (3). 7. Remove the clutch hub/bearing assembly (4). Installation Procedure Fig. 10: Exploded View Of Clutch Hub/Bearing Assembly 1. Install the clutch hub/bearing assembly (4). 2. Install the clutch hub/bearing snap ring (3). 3. Install the clutch plate assembly (2). 4. Install the clutch plate retaining bolt (1). NOTE: Refer to Fastener Notice .
